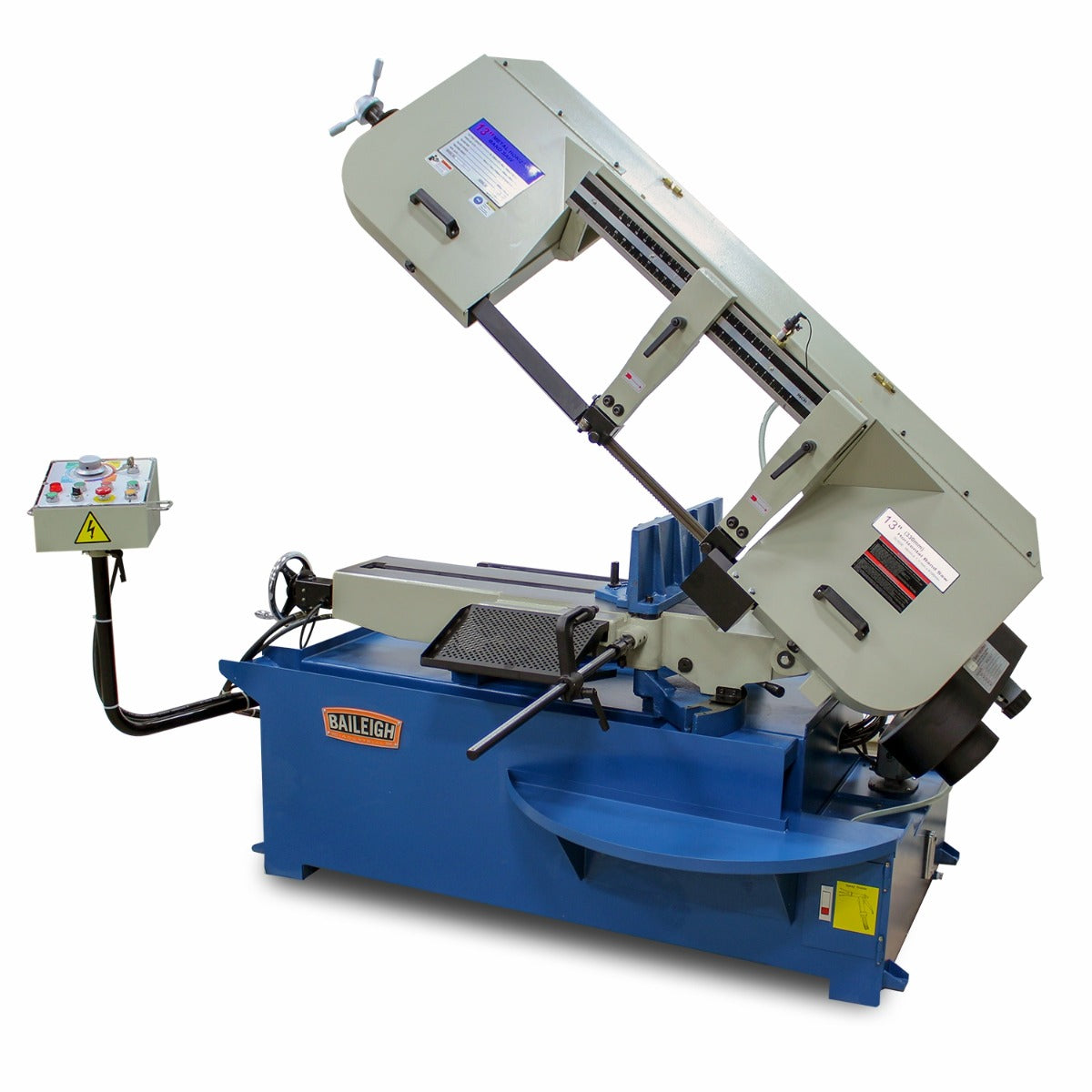

Baileigh BS-330SA; 13" Semi-Automatic Mitering Bandsaw 3HP, 220V 3Phase 1001521
Baileigh BS-330SA; 13" Semi-Automatic Mitering Bandsaw 3HP, 220V 3Phase 1001521
Couldn't load pickup availability
Details
Details
1001521, Baileigh BS-330SA-Semi-Auto Metal Cutting Bandsaw
This horizontal band saw has an impressive track record: 10+ years of dependable use. The BS-330SA will improve your efficiency with a hydraulic vise, downfeed, and bow return.
Features:
- Maximum capacity of 13” OD round at 90°.
- Accepts a 1.25” blade, a large size for greater accuracy and speed.
- Variable blade speed ranges from 82 to 270 fpm.

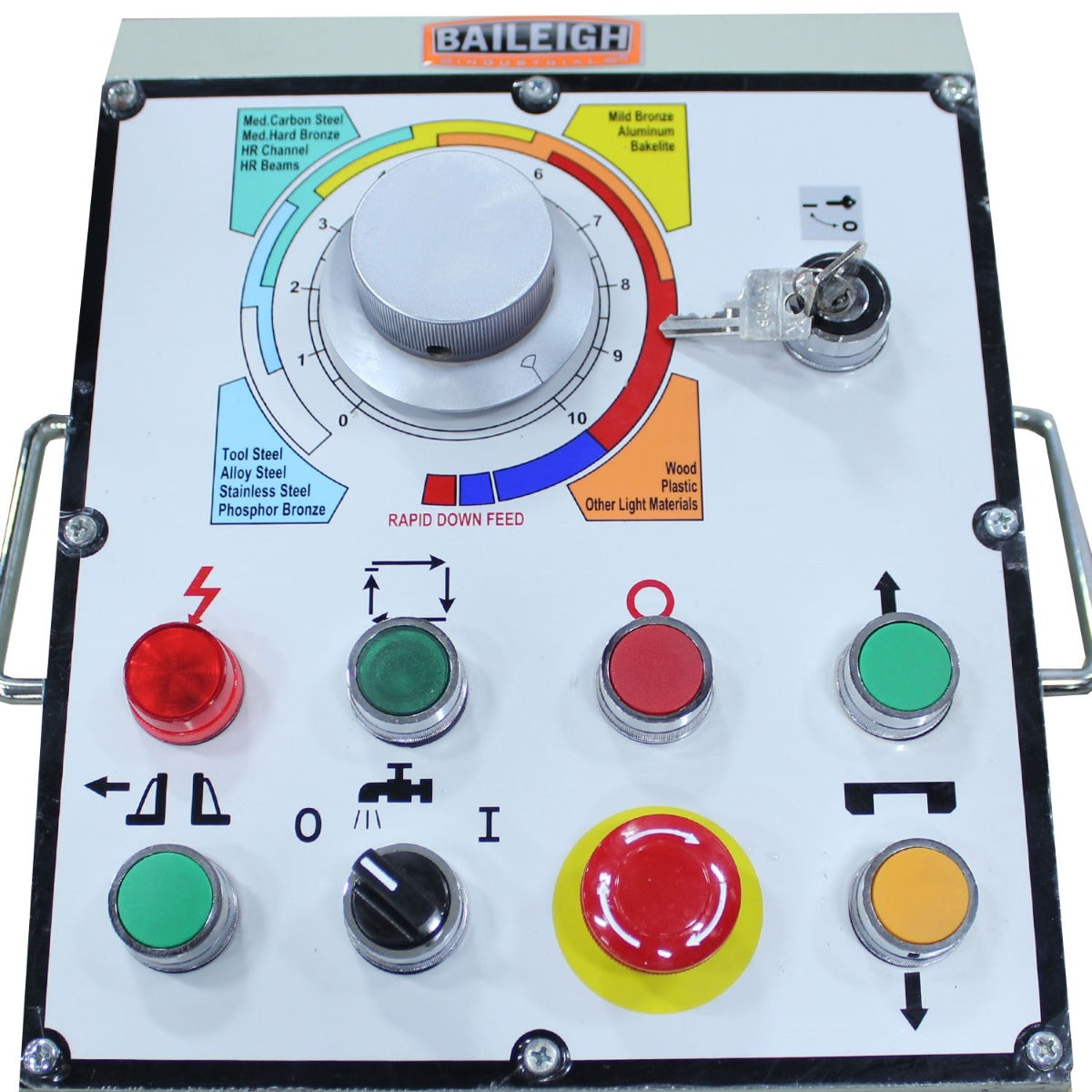

- You can adjust the dial to set the speed at the perfect fpm for your material.
- 3 hp motor runs on 220-volt three-phase power.
- Gear-driven transmission makes the machine more reliable. No belts to break and replace.
- Saw head miters up to 45°.

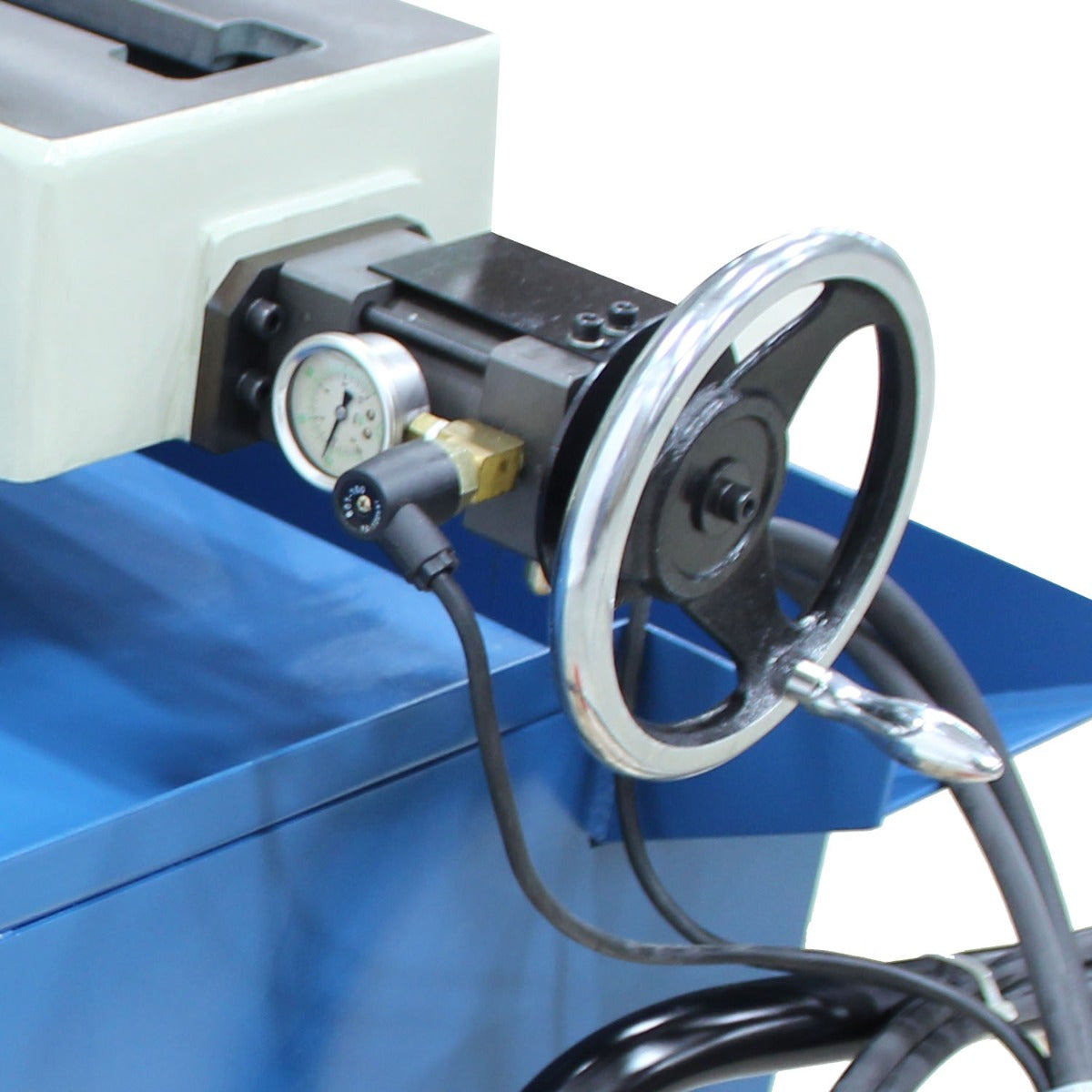

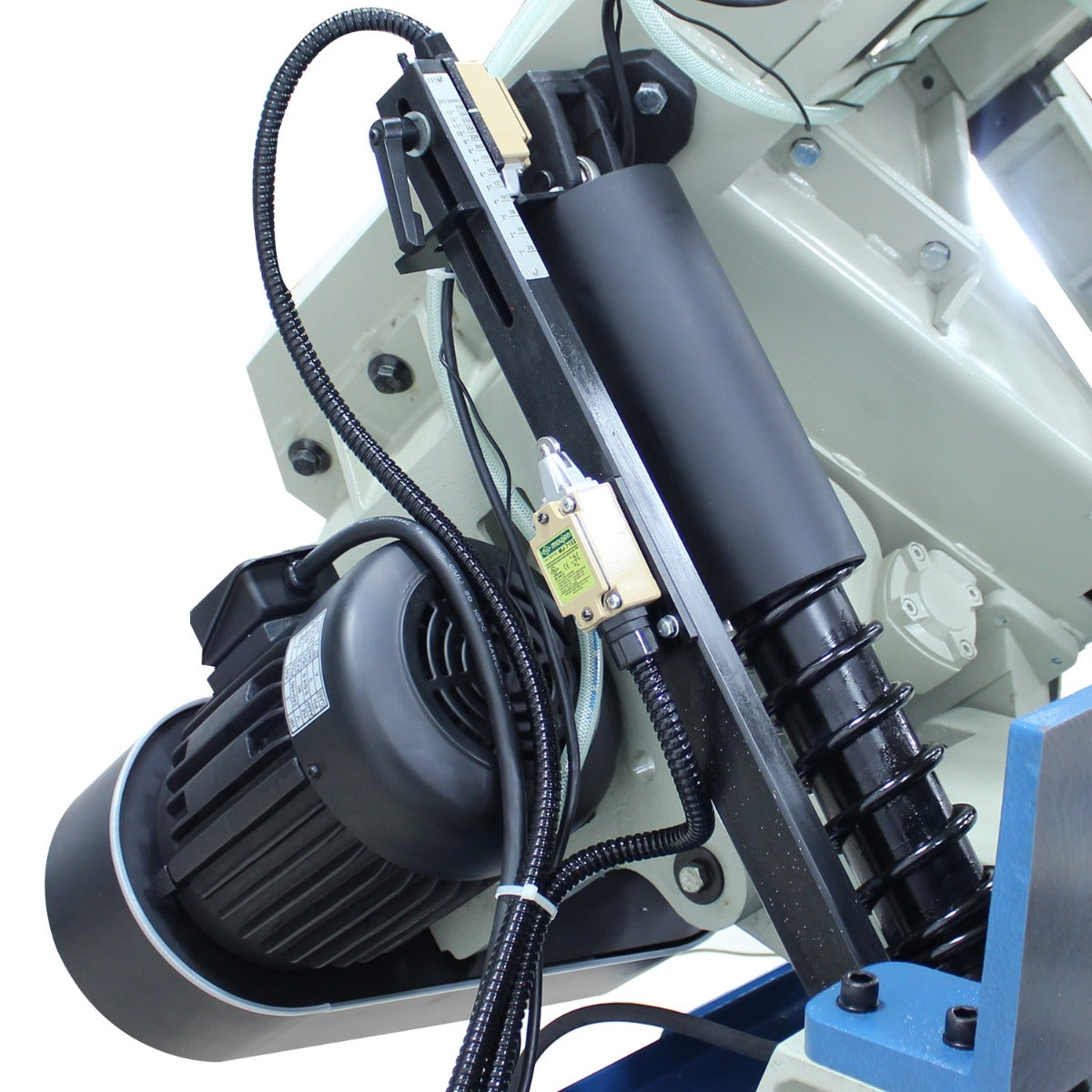

- Industrial-grade hydraulic system clamps the vise, lowers the head, then raises the head back up after the cut is done.
- Cast iron mitering head and bow reduce vibrations when cutting.
- Tungsten carbide blade guides get as close as possible to the material to produce a clean, high-quality cut.
- Laser pointer guide lets you see where the cut will be, for more accurate work.

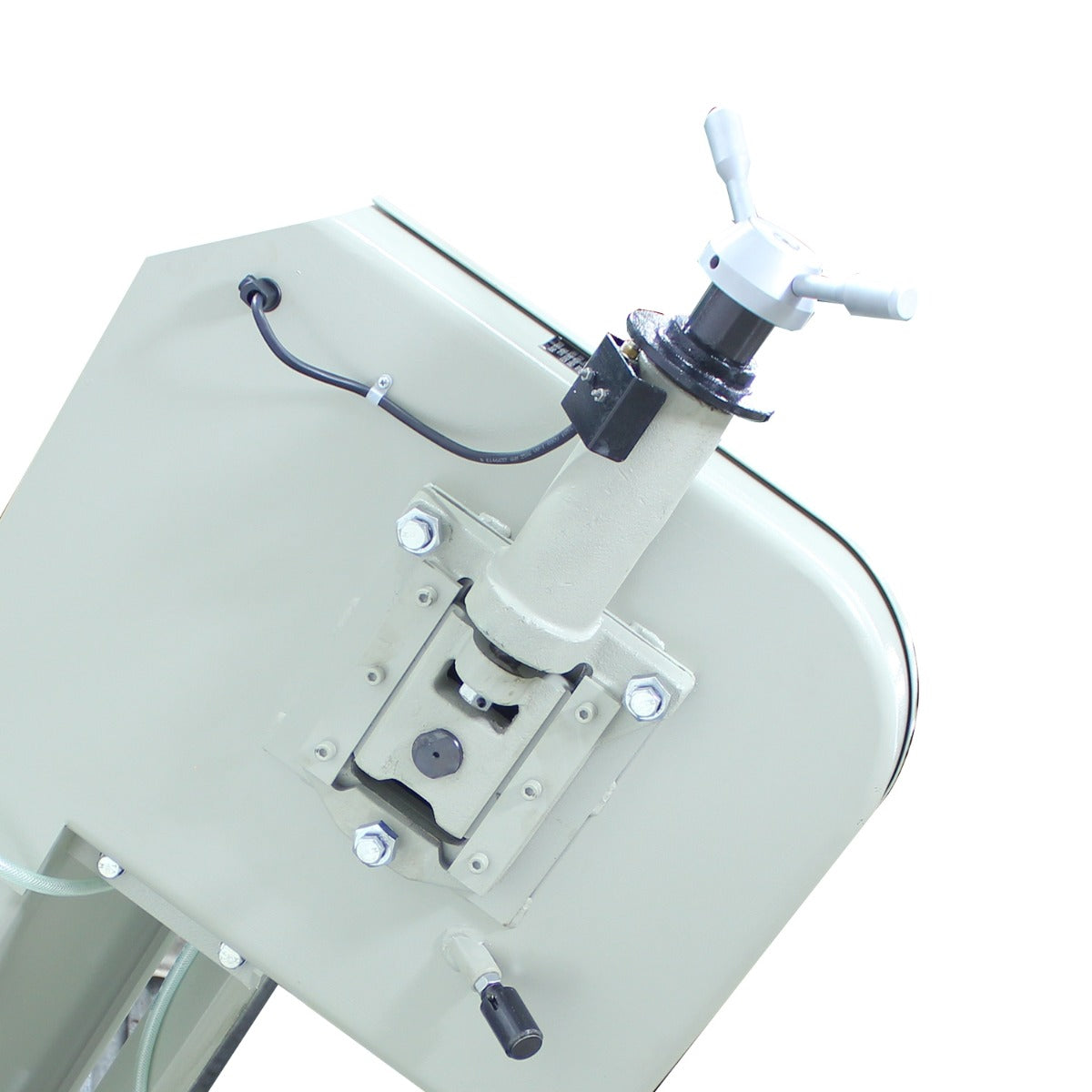

- Patented blade tensioning gauge makes it simple to get the tension right. Simply adjust until the black arrow is lined up with the liquid-filled green area.
- Electro-welded steel construction keeps the machine stable for more accurate cutting.

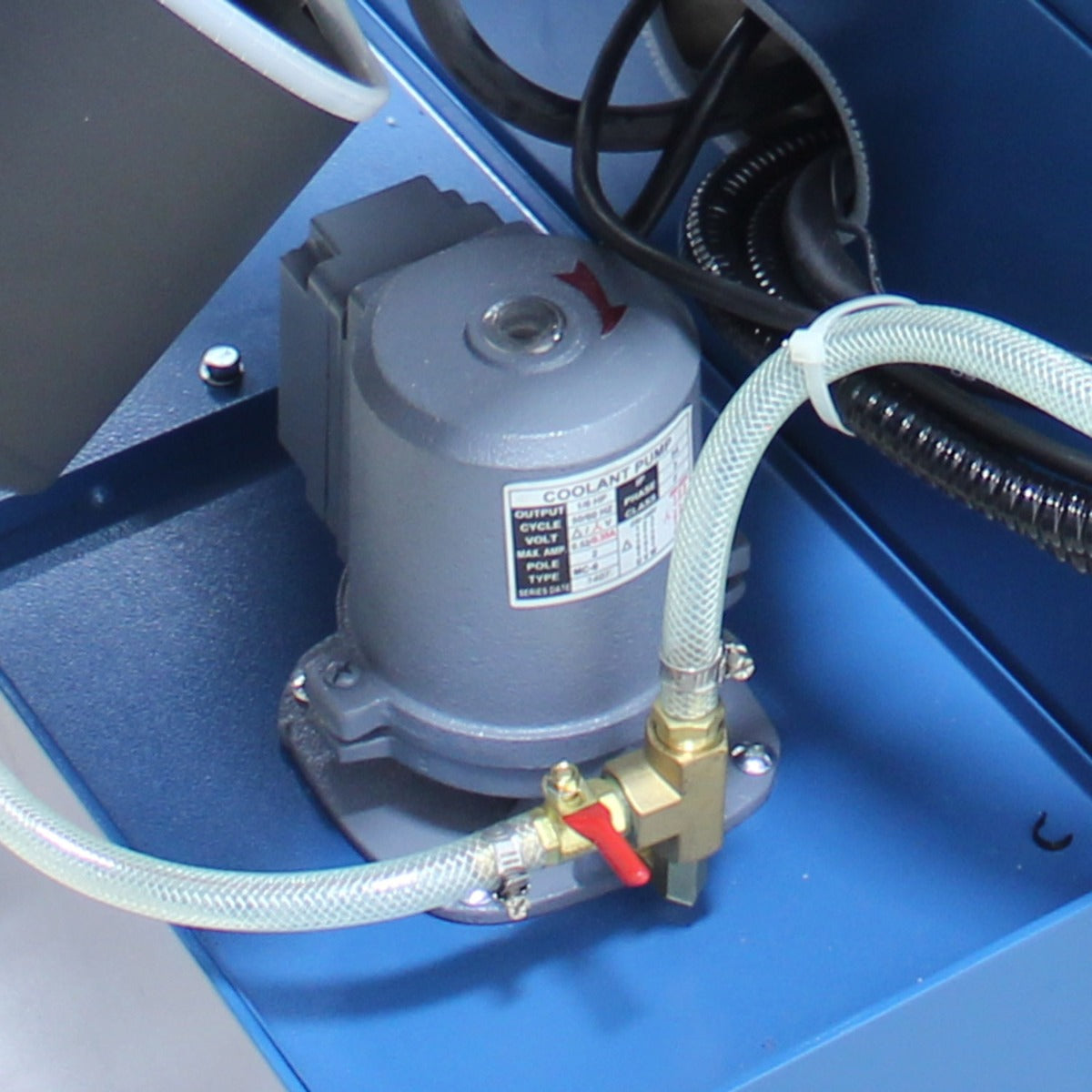

- Large-capacity flood coolant system washes away metal chips and helps blades last longer.
- You can get replacement parts quickly. We stock them at our headquarters in Wisconsin.
- Covered by a 1-year parts warranty.
- Comes with lifetime technical support by phone. Call our experienced reps if you need troubleshooting or project advice.
Specifications:
- Item Number: BS-330SA
- Return: Hydraulic
- Miter Adjustment: Swivel Head and Vise
- Miter Angle: 0 – 45°
- Motor: 3 hp
- Capacity Rectangular 90 x 45 x 45L: 13" x 18.9" x 11" x 10.04"
- Capacity Round 90° x 45°: 13" x 8.86"
- Capacity Square 90° x 45°: 13" x 8.86"
- Table Height: 30.5"
- Blade Guide: Carbide x Roller
- Blade Size: 1.3" x .043" x 161.4"
- Blade Speed (fpm): 82 – 270
- Descent Control: Pressure Assist Hydraulic
- Drive: Belt x Pulley
- Power: 220V / 3-phase
- Shipping Weight: 1800lbs
- Shipping Dimensions (Inches): 90x38x60
Specifications
Specifications
| Baileigh BS-330SA; 13" Semi-Automatic Mitering Bandsaw 3HP, 220V 3Phase 1001521 | |
| APPLICATION | Metal Working |
| Brand | Baileigh |
| HORSEPOWER | 3.0 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Saws - Band Saws |
| TOOL TYPE | Saws |
| VOLTAGE | 208V-240V 3Ph |
