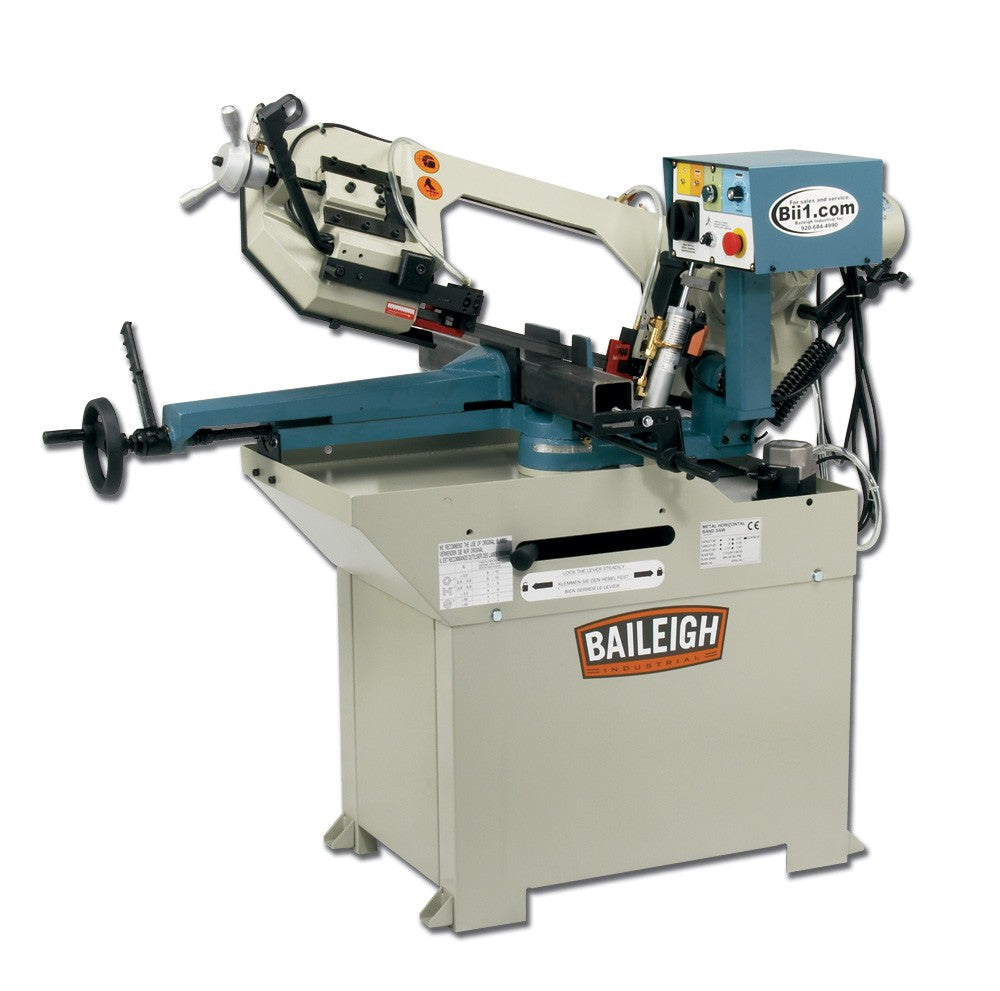

1001396, Baileigh Mitering Band Saw BS-250M
Does your mitering band saw cut a variety of materials and profiles? This single-miter horizontal band saw is a great investment. With a welded steel framework, the metal mitering band saw offers decades of precision.
Features:
- Runs on 110-volt single-phase power, so you can use it practically anywhere.
- Cuts up to 8.93” round metal stock at 90°.
- Swivel head miters up to 60°.
- Angle changes take seconds—and the vise stays in place.
- Cast iron saw head and bow reduce vibrations and keep the saw accurate.
- Accepts a standard 1” blade.
- Adjustable speed from 66 to 280 fpm for the blade and the material, increasing the blade life and decreasing costs.
- Patented blade tension device (a liquid-filled gauge) makes it easy to check the tension and correct it.
- An inverter drives the 2 hp motor through a gearbox, so there are no pulleys to adjust or belts to break!
- 2 ways to operate this metal band saw:
- Manual descent: Use the pull-down arm and trigger switch to activate the blade and coolant.
- Hydraulic descent: For production runs, you can switch the machine over to cut using the pressure you input. It will automatically shut down the blade and coolant system when the cut is completed.
- Includes a powerful coolant pump that washes away metal chips, cools the blade teeth, and lubricates the blade, helping it last longer.
- Baileigh covers this horizontal mitering band saw with a 1-year parts warranty.
- We typically keep all replacement parts in stock for fast deliveries.
- Comes with lifetime technical support by phone. You can call up an experienced technical sales rep for troubleshooting and project advice anytime.
Specifications:
- Item Number: BS-250M
- Motor Hp: 2
- Return: Manual
- Miter Adjustment: Swivel Head
- Miter Angle: 0 – 60°
- Motor: High Torque 1.1Kw (AC)
- Capacity Rectangular 90° x 45°: 10.23" x 4.33"
- Capacity Round 90°/ 45° / 60°: 8.66" / 6" / 3.5"
- Capacity Square 90°/ 45° / 60°: 8.46” / 5.875" / 3.375"
- Table Height: 33.07"
- Blade Guide: Carbide x Roller
- Blade Size: 1" x .035" x 96.85"
- Blade Speed (fpm): 66–280 Variable
- Descent Control: Hydraulic
- Drive: Gear
- Power: 110V
- Shipping Weight: 650 lbs
- Shipping Dimensions (Inches): 69 x 44 x 42
Specifications
Specifications
| Baileigh BS-250M; Metal Cutting 8.6" Geared Head Band Saw Mitering Head 2HP, 110V, Single Phase 1001396 | |
| APPLICATION | Metal Working |
| Brand | Baileigh |
| HORSEPOWER | 2.0 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Saws - Band Saws |
| TOOL TYPE | Saws |
| VOLTAGE | 110V-120V |
