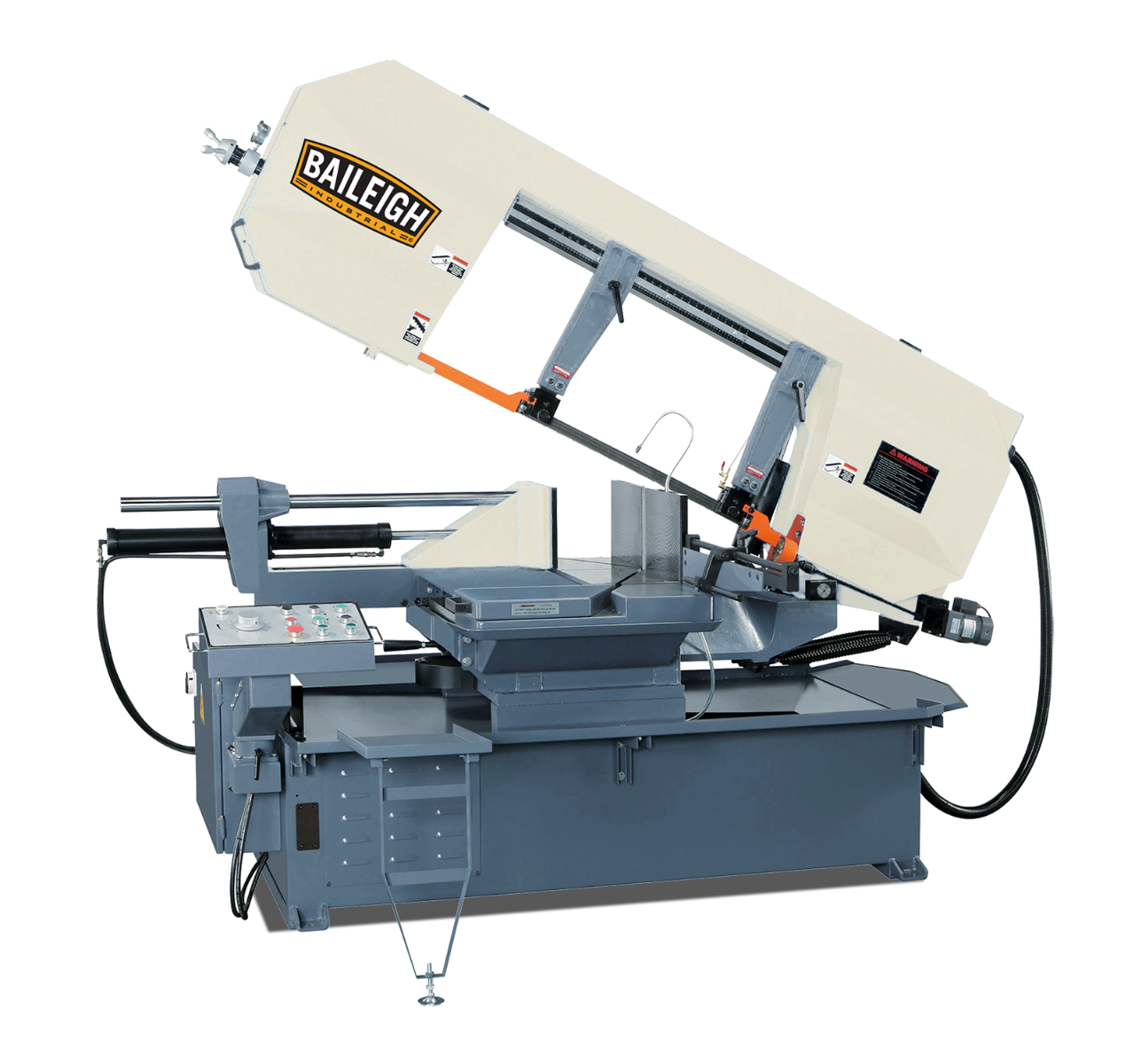

Baileigh BS-24SA-DM; 18" Variable Speed Semi-Auto Dual Mitering Bandsaw 5HP, 220V 3Phase 1001389
Baileigh BS-24SA-DM; 18" Variable Speed Semi-Auto Dual Mitering Bandsaw 5HP, 220V 3Phase 1001389
Couldn't load pickup availability
Details
Details
1001389, Baileigh BS-24SA-DM-220V 3ph SA Dual Mitering Saw
This dual-mitering band saw doesn’t sacrifice capacity. With a hydraulic system, cast iron bow, and steel frame, the BS-24SA-DM is built for decades of efficient production.
Features:
- Cuts 18” round or 15” x 24” rectangle at 90°.
- Swivel head miters 60° left and right.
- Accepts a standard 1.5” blade (included). This width makes the cutting fast and accurate.
- 106 to 317 fpm variable blade speed, allowing for infinite blade speed adjustments.
- Adjustable speed lets you fine-tune for different materials, like mild steel, bronze, or aluminum.
- Runs on 220-volt 3-phase power for reliability.
- Sturdy cast iron vise and bow prevent wobbling and keep cuts accurate.
- Semi-automatic system with a hydraulic downfeed speeds up production. You just put the material in place and start the controls. The saw will take care of the rest.
- Industrial-grade hydraulics open and close the quick-lock vise.
- Adjustable hydraulic descent pressure helps you achieve faster cut times and longer blade life.
- You can change the return position of the saw head for faster cycle times between cuts on smaller dimensioned pieces.
- Patented blade tension device allows you to set the right tension quickly and easily. Line up the black arrow with the green liquid-filled gauge.
- Electro-welded steel frame stabilizes the machine, reducing vibrations for many years of accurate cuts.
- Flood coolant system washes away metal chips and helps prolong blade life.
- We typically keep all replacement parts in stock for fast deliveries.
- Covered by a 1-year parts warranty.
- With lifetime technical support by phone, you can call up our team of experienced reps any time you have a problem or need project advice.
Specifications:
- Item Number: BS-24SA-DM
- Return: Hydraulic
- Miter Adjustment: Dual Miter Swivel Head
- Miter Angle: 0 - 60° Left and Right
- Motor: 5 hp
- Capacity Round 90°: 18.1"
- Capacity Square 90°: 18.1"
- Capacity Rectangle 90°: 17" x 24"
- Capacity Round 45°: 17.5"
- Capacity Round 90°/ 45° / 60°: 18" x 17.5" x 11"
- Table Height: 31.5"
- Blade Guide: Carbide x Roller
- Blade Size: 1.5" x .051" x 209.84"
- Blade Speed (fpm): 106 - 317
- Descent Control: Pressure Assist Hydraulic
- Drive: Belt x Pulley
- Power: 220 Volt Three Phase
- Shipping Weight: 3550lbs
- Shipping Dimensions (Inches): 111x45x74
Specifications
Specifications
| Baileigh BS-24SA-DM; 18" Variable Speed Semi-Auto Dual Mitering Bandsaw 5HP, 220V 3Phase 1001389 | |
| APPLICATION | Metal Working |
| Brand | Baileigh |
| HORSEPOWER | 5.0 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Saws - Band Saws |
| TOOL TYPE | Saws |
| VOLTAGE | 208V-240V 3Ph |
