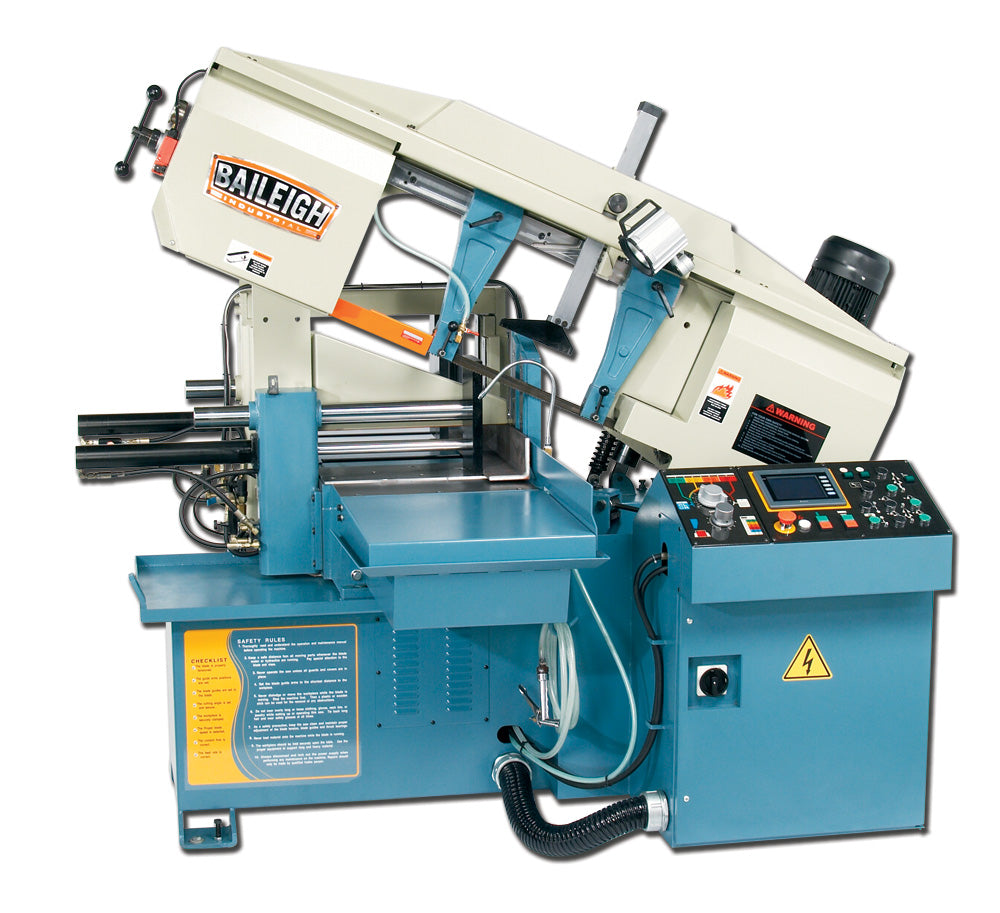

Baileigh BS-20A; 13" Automatic Variable Speed Band Saw with Heavy Duty Bundling System and 5HP, 220V, 3 Phase 1001260
Baileigh BS-20A; 13" Automatic Variable Speed Band Saw with Heavy Duty Bundling System and 5HP, 220V, 3 Phase 1001260
Couldn't load pickup availability
Details
Details
1001260, Baileigh BS-20A-220V 3PH Auto Metal Band Saw
Need to increase production rates on large jobs? The BS-20A automatic feed bandsaw's hydraulic system can automatically clamp, cut, and feed bundles. The heavy steel frame on this 3-phase bandsaw maintains accuracy.
Features:
- Cuts up to 13” round and 13” x 18” rectangle at 90°.
- 89 to 256 fpm variable speed, so you can fine-tune your material.
- Accepts a standard 1” blade (included) for speed and precision.
- Available in 220-volt or 440-volt 3-phase models (440-volt is a special order).
- Miters up to 45° with a degree indicator to show your angle.
- Powerful 5 hp motor runs the low-pressure industrial-grade hydraulic system.
- Automatic system, with a hydraulic vise and automatic return, saves time and smoothly manages the whole cutting process, including transitions.
- Digital encoders feed the material between cuts for repeatability.
- Hydraulic large-capacity bundling system clamps the material tight to ensure a consistent cut across all of the pieces.
- 2-speed blade descent allows for faster cycle times.
- Delta® touchscreen programmer is easy to use, so you can get to work right away.
- Programmer can run in manual or automatic mode.
- Infeed and outfeed table can handle 5,000 lbs. of material.
- Patented blade tension device makes it simple to set the correct tension. You can just line up the arrow within the green gauge.
- Electro-welded steel framework reduces vibrations and gives this automatic horizontal band saw the structural strength to tackle large capacities accurately.
- In case of a blade breaking, automatic blade shut-off protects your safety.
- Variable-speed metal chip auger and coolant system keep the saw clean and make blades last longer.
- Bright halogen work light lets you clearly see what the machine’s doing.
- Most parts are in stock, so you don’t have to wait long to get replacements.
- Covered by a 1-year parts warranty.
- You can count on lifetime technical support by phone from a team of reps with hands-on machine experience.
Specifications:
- Item Number: BS-20A
- Return: Hydraulic
- Miter Adjustment: Swivel Head
- Miter Angle: 0 – 45°
- Capacity Rectangular 90 x 45 x 45L: 13" x 18" x 13" x 11"
- Capacity Round 90° x 45°: 13" x 11"
- Chip Removal: Hydraulic Auger
- Capacity Square 90° x 45°: 13" x 11"
- Table Height: 32.3"
- Blade Guide: Carbide x Roller
- Blade Motor: 5 hp
- Blade Size: 1" x .035" x 162.59"
- Blade Speed (fpm): 89 – 256 (Variable Speed)
- Material Clamping Bundling: Hydraulic
- Material Feed: Hydraulic
- Descent Control: Pressure Assist Hydraulic
- Power: 220V / 3-phase
- Shipping Weight: 3500lbs
- Shipping Dimensions (Inches): 91x87x73
Specifications
Specifications
| Baileigh BS-20A; 13" Automatic Variable Speed Band Saw with Heavy Duty Bundling System and 5HP, 220V, 3 Phase 1001260 | |
| APPLICATION | Metal Working |
| Brand | Baileigh |
| HORSEPOWER | 5.0 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Saws - Band Saws |
| TOOL TYPE | Saws |
| VOLTAGE | 208V-240V 3Ph |
