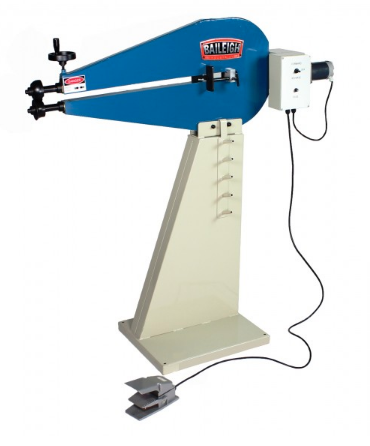

Baileigh BR-18E-24; 110V 24" Throat Depth Bead Roller for 16 Gauge Mild Steel 1000923
Baileigh BR-18E-24; 110V 24" Throat Depth Bead Roller for 16 Gauge Mild Steel 1000923
Couldn't load pickup availability
Details
Details
1000923, Baileigh BR-18E-24, 110V, 24in, 16-ga Power Bead Roller
Built with foot pedal controls, this 16 gauge electric bead roller leaves your hands free to work the material. The industrial-grade motor, gearbox, and plate steel frame on the BR-18E-24 ensure accuracy.
Features:
- 16 gauge mild steel and 14 gauge aluminum capacity.
- 24” throat depth is perfect for 4’ x 8’ sheets of sheet metal, but the design still makes it simple for you to create intricate patterns.
- Runs on 110-volt single-phase power, so you can plug it in almost anywhere.
- Intuitive variable-speed foot pedal design: press harder to roll faster. Apply less force for slower, more careful forming.
- Up to 30 rpm feed rate, which amounts to 280” per minute.

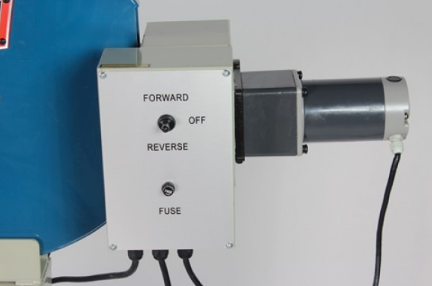

- Rolls can run forward or in reverse. Just flip the switch to change direction.

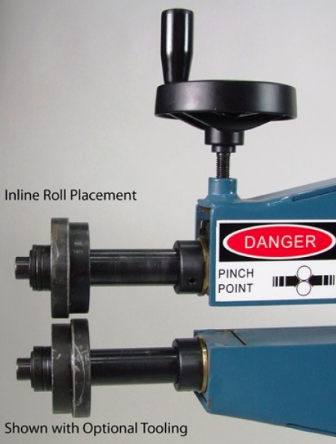

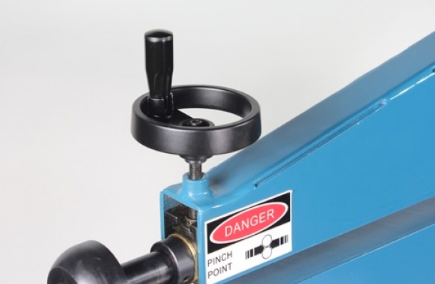

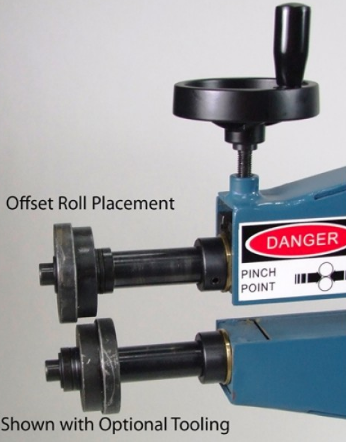

- Adjustable top roll lets you set your desired forming depth.

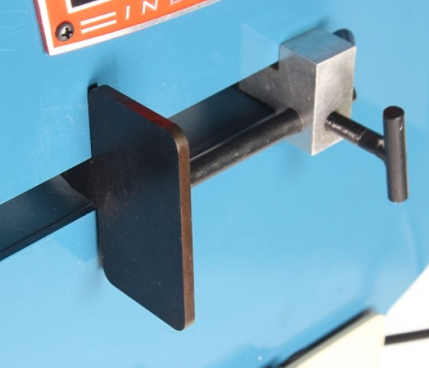

- Depth stop within the throat helps you make straight, repeatable beads.

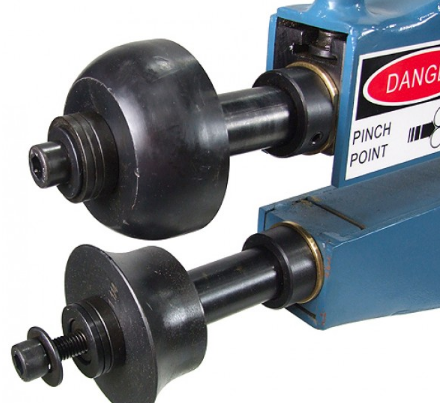

- We offer tooling to fit most applications.

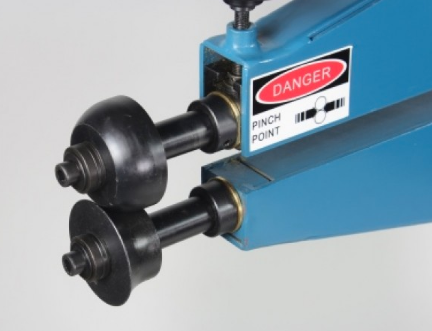

- ¾” shaft diameter is compatible with most commercial roll sets.

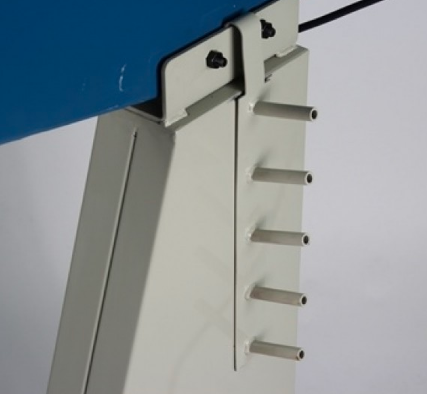

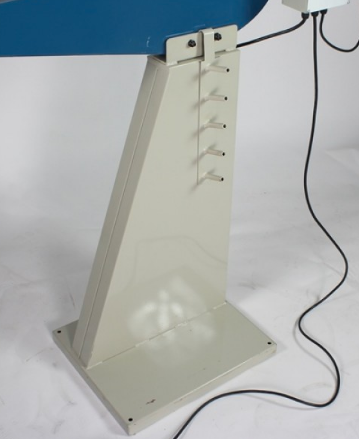

- Robust steel floor stand includes a rack for roll sets.
- All moving parts turn on long-lasting bronze bushings with grease fittings for convenient maintenance.
- Fully welded plate steel frame keeps the bead roller rigid, so it makes quality profiles over many years of use.
- Covered by a 1-year parts warranty.
- This sheet metal bead roller and its parts are almost always in stock for fast deliveries.
Specifications:
- Item Number BR-18E-24
- Motor Hp 1/8 hp
- Max. Thickness (Mild Steel) 16 gauge
- Roll Holder Included
- Throat Depth 24"
- Stand Included
- Adjustable Depth Stop Included
- Power 110V
- Shipping Weight 200lbs
- Shipping Dimensions (Inches) 50x23x23
* specifications subject to change without notice.
Specifications
Specifications
| Baileigh BR-18E-24; 110V 24" Throat Depth Bead Roller for 16 Gauge Mild Steel 1000923 | |
| APPLICATION | Metal Working |
| BRAND COMPATIBILITY | Baileigh |
| Brand | Baileigh |
| HORSEPOWER | 0.1 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Work Holding - Workholding Rollers |
| TOOL TYPE | Work Holding |
| VOLTAGE | 110V-120V |
