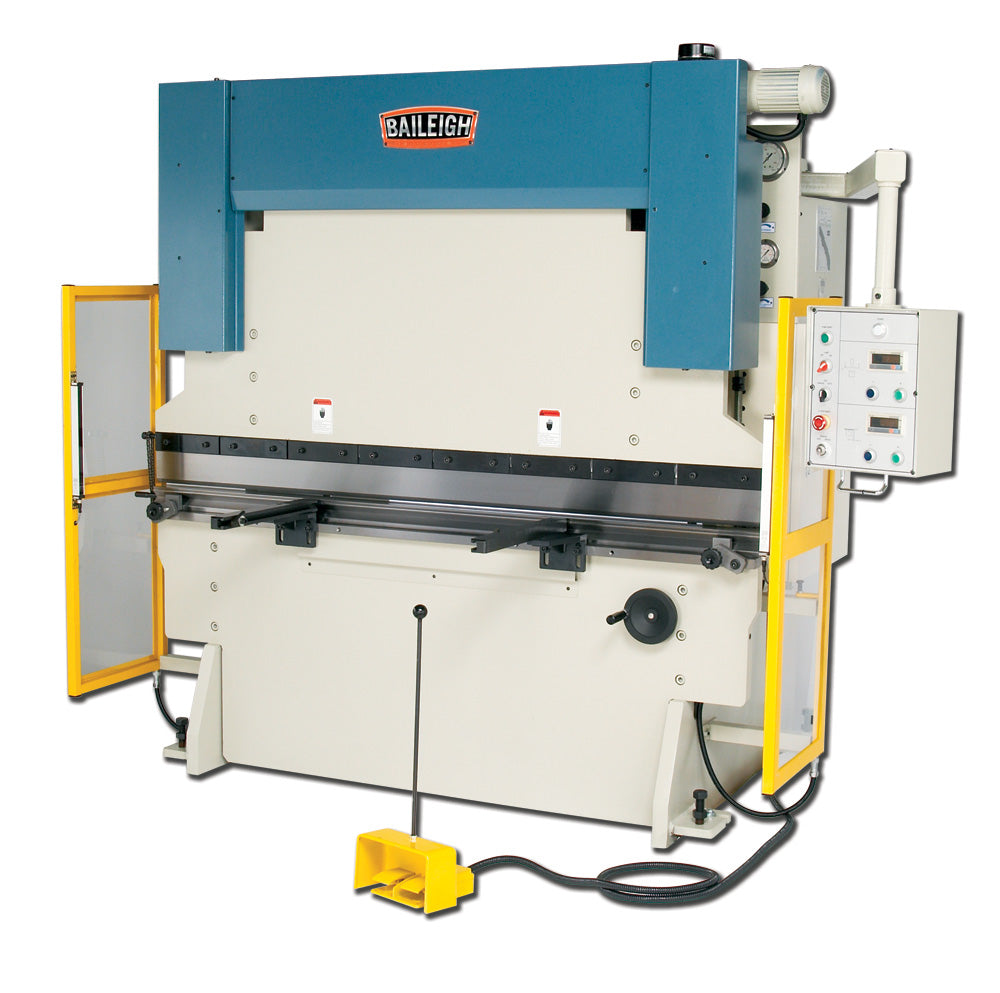

A heavy steel frame keeps this industrial press brake accurate for decades. In just 5 minutes, anyone can learn to use the encoder-controlled stroke and back gauge, each with a DRO.

Recommended for: Industrial shops, maintenance shops, and R&D shops.

Features:

• Delivers up to 67 tons of pressure.

• Bends sheet metal up to 78.75” wide.

• Maximum capacity of .157” thick sheet metal across the machine’s full width.

• 7.5 hp main motor runs on 220-volt 3-phase power.

POWERFUL, EASY-TO-USE HYDRAULIC SYSTEM

• Runs in 3 modes: jog mode for setup, manual mode for more control over descent and return, and automatic mode for full production.

• 2 encoder-controlled hydraulic cylinders move the top beam.

• Digital readout (DRO) displays the position of the downward stroke, so you can fine-tune a bend and make it right every time.

• It takes a just few seconds to change the top beam pressure and the top position of the stroke (for more or less travel).

• You can set a timer for bend delay to hold the beam down at the bottom of the stroke, so the bend won't lose its shape.

• 2 hand wheels let you adjust the position of the beam and back gauge for consistency across the entire width of the beam.

• Foot pedal brings the stroke up and down, leaving your hands free to position the material.

• Motorized back gauge rides on a solid ball screw trolley mechanism.

• Back gauge encoder shows its position on its own DRO.

• Parallel mechanism on the beam synchronizes the top and bottom die to deliver better-quality bends across the entire width of the machine.



RIGID STRUCTURE AND LOW MAINTENANCE

• Heavy electro-welded frame, made of solid steel, enables this press brake to stay accurate and run smoothly in production for many years.

• Massive 7,700-pound construction supports the hydraulic pressure, so the machine stands firm at full capacity.

• Upper beam rides on a hardened, stabilizing track, coupled together by 3 axes of bearings, to ensure high accuracy between both dies at any position of the stroke.

• Includes a set of hardened single-Vee American tooling.

• Accepts standard press brake tooling, giving you a wide variety of options.

• Comes with front material rests (or support arms), which some competing machines do not include.

• 6-light safety curtain helps protect you from injury. This guard stops the machine from running if your hand passes through the light beam.

• 4 grease zerks let you add oil every few months.

• Large hydraulic reservoir on the back allows for convenient fluid changes every 6 to 8 months.



FAST SHIPPING AND LIFETIME SERVICE

• Typically in stock and usually ships in 72 hours.

• Most replacement parts are in stock at our Wisconsin headquarters, so we can get them to you without delay.

• Comes covered by a 1-year parts warranty.

• We provide lifetime technical support by phone. All of our reps have hands-on machine experience. Call us whenever you need help and advice on a project.

Specifications:

• Item Number: BP-6778NC
• Gauge Length: 17201
• Return Speed: 2.36" / sec.
• Oil Capacity: 35 gal
• Bending Capacity Max Length Max Thickness: 78.75" / .157"
• Stroke Distance: 5.9"
• Table Width: 6.29"
• Approach Speed: 3.14" / sec.
• Back Gauge Motor: 1/2 hp
• Bending Speed: .275" / sec.
• Main Motor: 7.5 hp
• Max. Capacity: 67 tons
• Distance Between Housings: 61"
• Distance From Table To Ram: 11.81"
• Power: 220V / 3-phase
• Shipping Weight: 7700lbs
• Shipping Dimensions (Inches): 103x76x98
