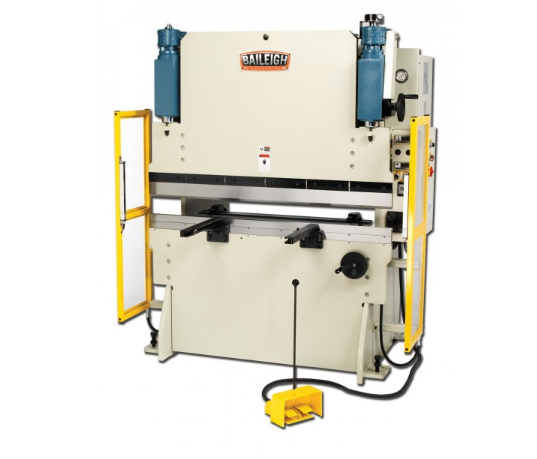

Built with a steel frame, this hydraulic press brake runs smoothly in production and makes crisp bends. We designed this machine for simplicity. You can learn to use it in 5 minutes.

Features:

• Produces up to 33 tons of pressure.

• Bends sheet metal up to 61” wide.

• Maximum capacity of .078” thick sheet metal across the machine’s full width.

• 3 hp main motor requires 220-volt 3-phase power.



POWERFUL, EASY-TO-USE HYDRAULIC SYSTEM

• Runs in 3 modes: jog mode for setup, manual mode for more control over descent and return, and automatic mode for full production.

• 2 encoder-controlled hydraulic cylinders move the top beam.

• Digital readout (DRO) displays the position of the downward stroke, so you can fine-tune a bend and make it right every time.

• It takes a just few seconds to change the top beam pressure and the top position of the stroke (for more or less travel).

• You can set a timer for bend delay to hold the beam down at the bottom of the stroke, so the bend keeps its shape.

• 2 hand wheels let you adjust the position of the beam and back gauge for consistency across the entire width of the beam.

• Foot pedal brings the stroke up and down, leaving your hands free to position the material.

• Motorized back gauge rides on a solid ball screw trolley mechanism.

• Back gauge encoder shows its position on its own DRO.

• Parallel mechanism on the beam synchronizes the top and bottom die to deliver better-quality bends across the entire width of the machine.



RIGID STRUCTURE AND LOW MAINTENANCE

• Heavy electrowelded frame, made of solid plate steel, keeps this press brake accurate and running smoothly in production for many years.

• Rugged 3,300-pound construction supports the hydraulic pressure, so the machine stays strong at full capacity.

• Upper beam rides on a hardened, stabilizing track, coupled together by 3 axes of bearings, to ensure high accuracy between both dies at any position of the stroke.

• Includes a set of hardened single-Vee American tooling.

• Accepts standard press brake tooling, giving you a wide variety of options.

• Comes with front material rests (or support arms), which some competing machines do not include.

• 6-light safety curtain helps protect you from injury. This guard stops the machine from running if your hand passes through the light beam.

• 4 grease zerks let you add oil every few months.

• Large hydraulic reservoir on the back allows for convenient fluid changes every 6 to 8 months.

Specifications:

• Item Number: BP-3360NC
• Gauge Length: 17201
• Return Speed: 2.36" / sec.
• Maximum Pressure: 33 tons
• Oil Capacity: 24 gal
• Bending Capacity Max Length Max Thickness: 61" / .078"
• Approach Speed: 3.14" / sec.
• Back Gauge Motor: 1/2 hp
• Bending Speed: .275" / sec.
• Main Motor: 3 hp
• Distance Between Housings: 49.21"
• Distance From Table To Ram: 9.84"
• Power: 220V / 3-phase
• Shipping Weight: 3300lbs
• Shipping Dimensions (Inches): 83x59x94
