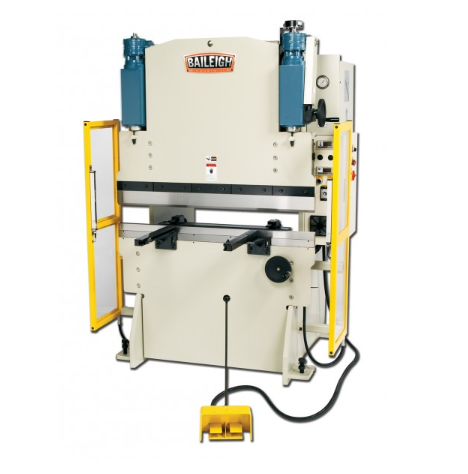

Baileigh BP-3350NC; 220V 3Phase 33 Ton Hydraulic Press Brake. Distance Between Housings is 38" 1000801
Baileigh BP-3350NC; 220V 3Phase 33 Ton Hydraulic Press Brake. Distance Between Housings is 38" 1000801
Couldn't load pickup availability
Details
Details
1000801, Baileigh BP-3350NC 33-Ton Hydraulic Press Brake
Simple to use, this hydraulic press brake shows the encoder-controlled bend depth and back gauge positions on separate DROs. A heavy steel frame ensures reliable production.
Recommended for: Small industrial shops, maintenance and R&D shops, and potentially larger industrial shops, if they need to make a specific part that fits this press brake’s width.
Features:
-
Produces up to 33 tons of pressure.
-
Bends sheet metal up to 50” wide.
-
Maximum capacity of .098” thick sheet metal across the machine’s full width.
-
Requires 220-volt 3-phase power.
POWERFUL, EASY-TO-LEARN HYDRAULIC SYSTEM
-
Runs in 3 modes: jog mode for setup, manual mode for more control over descent and return, and automatic mode for full production.
-
2 encoder-controlled hydraulic cylinders move the top beam.
-
Digital readout (DRO) displays the position of the downward stroke, so you can fine-tune a bend and make it right every time.
-
It takes a just few seconds to change the top beam pressure and the top position of the stroke (for more or less travel).
-
You can set a timer for bend delay to hold the beam down at the bottom of the stroke, so the bend keeps its shape.
-
2 hand wheels let you adjust the position of the beam and back gauge for consistency across the entire width of the beam.
-
Foot pedal brings the stroke up and down, leaving your hands free to position the material.
-
Motorized back gauge rides on a solid ball screw trolley mechanism.
-
Back gauge encoder shows its position on its own DRO.
-
Parallel mechanism on the beam synchronizes the top and bottom die to deliver better-quality bends across the entire width of the machine.
-
You can train your staff to use this press brake in 5 minutes.
RIGID STRUCTURE AND LOW MAINTENANCE
-
Heavy electrowelded frame, made of solid plate steel, keeps this press brake accurate and running smoothly in production for many years.
-
Robust 2,640-pound construction supports the hydraulic pressure, so the machine won’t buckle at full capacity.
-
Upper beam rides on a hardened, stabilizing track, coupled together by 3 axes of bearings, to ensure high accuracy between both dies at any position of the stroke.
-
Includes a set of hardened single-Vee American tooling.
-
Accepts standard press brake tooling, giving you a wide variety of options.
-
Comes with front material rests (or support arms), which some competing machines do not include.
-
6-light safety curtain helps protect you from injury. This guard stops the machine from running if your hand passes through the light beam.
-
4 grease zerks let you add oil every few months.
-
Large hydraulic reservoir on the back allows for convenient fluid changes every 6 to 8 months.
Specifications:
- Item Number: BP-3350NC
- Oil Capacity: 20 gal
- Bending Capacity Max Length Max Thickness: 50" / .098"
- Power: 220V / 3-phase
- Shipping Weight: 2640lbs
- Shipping Dimensions (Inches): 75x59x94
Specifications
Specifications
| Baileigh BP-3350NC; 220V 3Phase 33 Ton Hydraulic Press Brake. Distance Between Housings is 38" 1000801 | |
| APPLICATION | Metal Working |
| BRAND COMPATIBILITY | Baileigh |
| Brand | Baileigh |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Drills - Drill Presses |
| TOOL TYPE | Drills |
| VOLTAGE | 208V-240V 3Ph |
