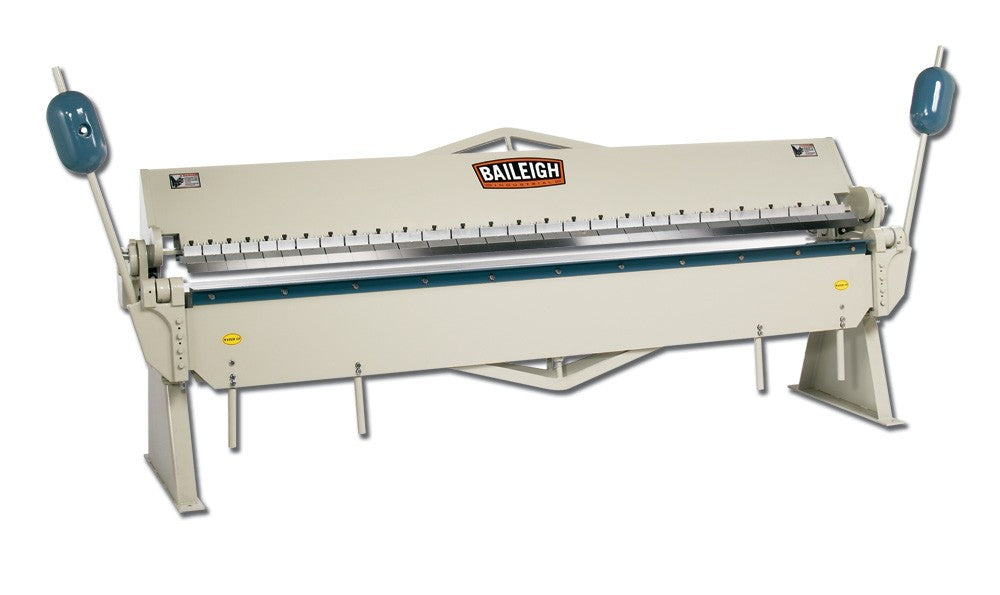

Baileigh Heavy Duty Manually Operated Box and Pan Brake, 10' Length, 14 Gauge Mild Steel Capacity 1000361
Baileigh Heavy Duty Manually Operated Box and Pan Brake, 10' Length, 14 Gauge Mild Steel Capacity 1000361
Couldn't load pickup availability
Details
Details
1000361, Baileigh SHEET METAL BRAKE 10ft BB-12014
Supported by a welded steel frame, this box brake can bend metal along its 10-foot width without twisting. You can bend 4 x 8 sheets at 45°, perfect for adding a stiffening rib to support long duct pieces.
Features:
- Maximum capacity of 14 gauge mild steel and 18 gauge stainless steel.
- 10-foot (120”) length enables your shop to take on a wide range of projects.
- Bends up to 135°.
- 26 fingers of varying sizes (6 fingers of 3", 4 of 4", 10 of 5", 6 of 6") allow you to bend boxes and pans up to 6” deep.
- You can set up the individual hardened fingers for straight bending or box and pan configurations.
- Apron shafts ride in precise oilable bearings, maintaining tight bend tolerances and minimizing operator fatigue.
- 2 massive counterweights make it easy to bend at maximum capacity and reduce physical strain.
- Heavy-duty truss rods support the apron to reduce flex on maximum capacity bends.
- Electro-welded all-steel framework keeps this metal brake accurate over decades of daily use at full capacity.
- Massively-built sheet metal finger brake weighs in at almost 3500 lbs.
- Baileigh backs this metal brake with a 1-year parts warranty.
Specifications:
- Item Number: BB-12014
- Min Reverse Bend: .625"
- Thickness (SS): 14 ga. (18 ga.)
- Box Depth: 6"
- Beam Adjustment: 1"
- Bend Angle: 0 – 135°
- Finger Sizes: 3" – 4" – 5" – 6"
- Power: Manual
- Shipping Weight: 3950lbs
- Length: 120”
- Shipping Dimensions (Inches): 145 x 33 x 45
Specifications
Specifications
| Baileigh Heavy Duty Manually Operated Box and Pan Brake, 10' Length, 14 Gauge Mild Steel Capacity 1000361 | |
| APPLICATION | Metal Working |
| BRAND COMPATIBILITY | Baileigh |
| Brand | Baileigh |
| POWER SOURCE | Manual |
| PRODUCT TYPE | Tools/Machinery |
| TOOL TYPE | Metal Forming |
