Baileigh Single Arm Air Powered Tapping Machine, 1/8"-1" Tapping Capacity:39" Max Range 1000326
Baileigh Single Arm Air Powered Tapping Machine, 1/8"-1" Tapping Capacity:39" Max Range 1000326
Couldn't load pickup availability
Details
Details

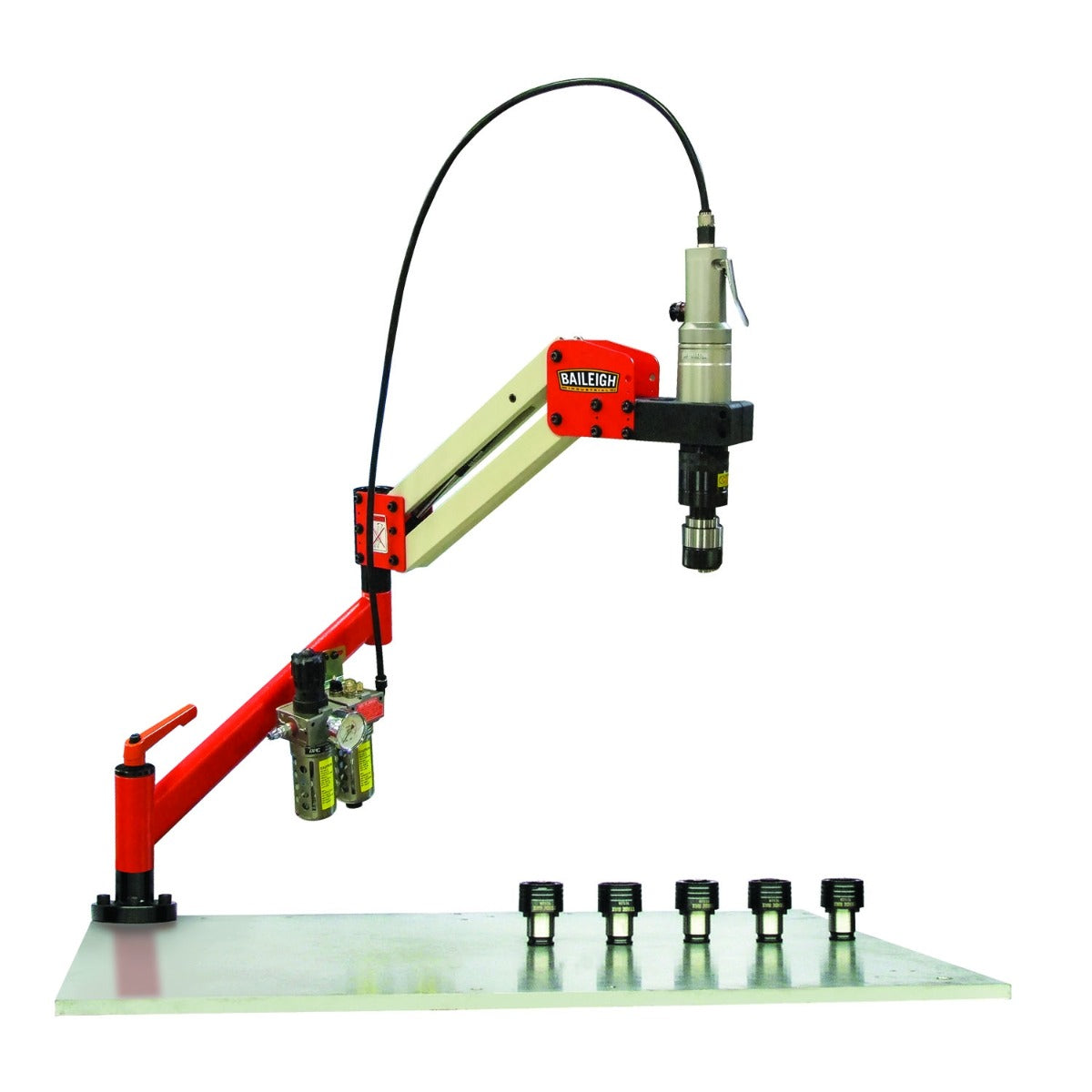

1000326, Baleigh ATM-27-1000 PNEUMATIC TAPPING ARM
The ATM-27-1000 pneumatic tapping arm from Baileigh industrial is a heavy-duty articulating tool support arm designed to provide fingertip control for the most demanding applications. The sturdy cast iron swing arm is connected to the base by means of a hardened ground shaft that incorporates a leveling system. The twin parallel arms are made of heavy gauge aluminum tubing that is effective at neutralizing vibration and torque reaction.
The included pneumatic motor spins at 220 rpm and includes 6 different tap holders. Another nice feature of the ATM-27-1000 heavy-duty industrial articulating arm is that it has an ergonomic design, to protect workers from injuries that tend to develop over time during repetitious work. Order the ATM-27-1000 pneumatic arm from Baileigh Industrial.
Features:
- Air tapping spindle
- Work range 3.93" to 39.3"
- Slanted arm
- Table mount system
- 1/4", 3/8", 1/2", 5/8", 3/4" and 7/8" tap holders included
Specifications:
- Item Number: ATM-27-1000
- Tapping Range: .11" to 1"
- Work Range (Maximum): 39.3"
- Work Range (Minimum): 3.93"
- Spindle Speeds: 220 rpm
- Spindle Operation: Pneumatic
- Included Tap Holders: 1/4", 3/8", 1/2", 5/8", 3/4" and 7/8"
- Shipping Weight: 55 lbs
- Shipping Dimensions (Inches): 69 x 44 x 32
Specifications
Specifications
| Baileigh Single Arm Air Powered Tapping Machine, 1/8"-1" Tapping Capacity:39" Max Range 1000326 | |
| APPLICATION | Metal Working |
| BRAND COMPATIBILITY | Baileigh |
| Brand | Baileigh |
| POWER SOURCE | Compressed Air |
| PRODUCT TYPE | Tools/Machinery |
| TOOL TYPE | Drills |
