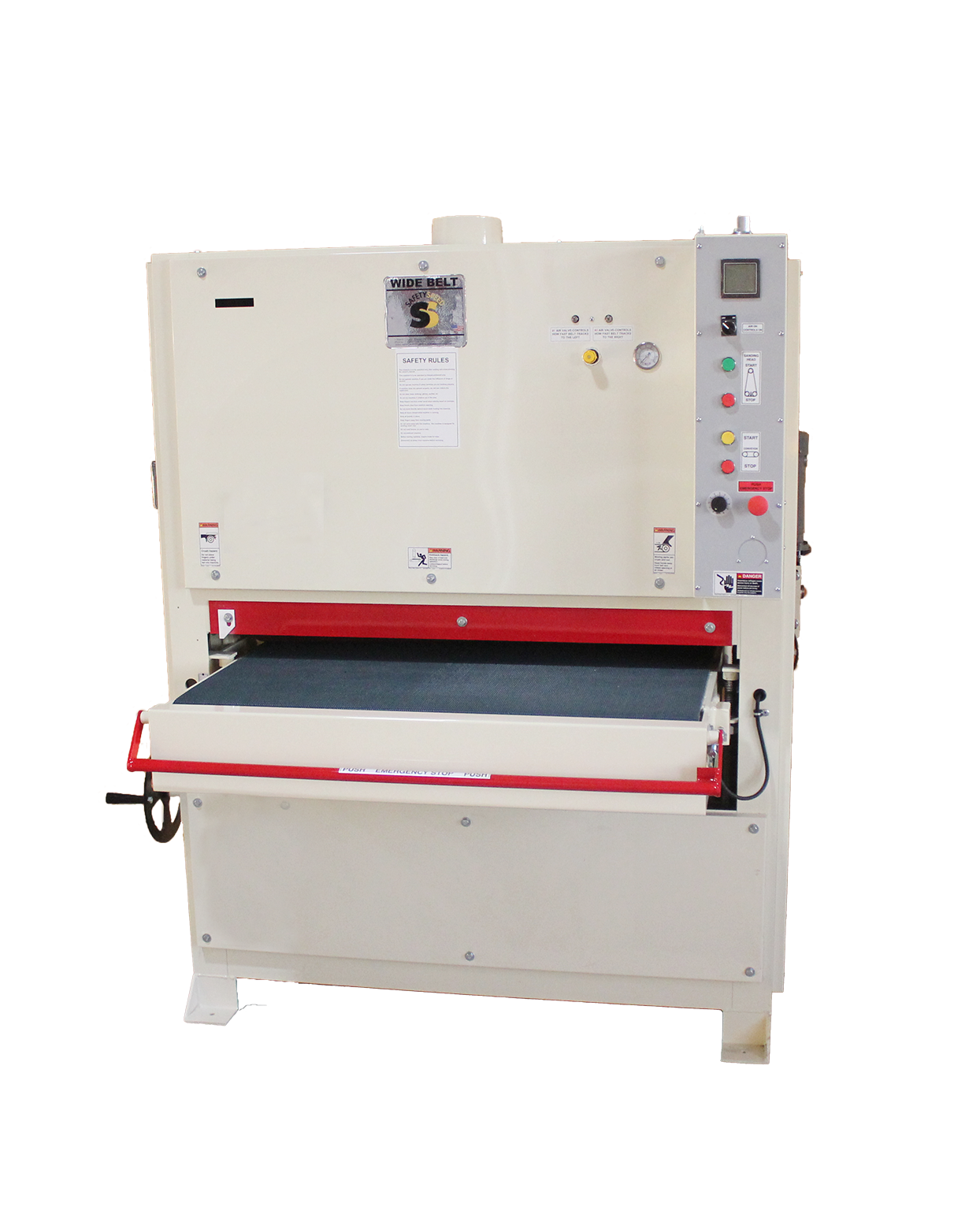

Safety Speed Manufacturing 4375 43" Wide Belt Sander 15HP 3Ph
Offering woodworkers a maximum sanding width 43", and available in single or three phase power, this American Made Wide Belt Sander will likely outlive you.
The 43" Wide Belt Sander features a 75" belt, providing 25% more abrasive surface than the smaller 60" belt machines. The larger belt translates to increased capacity, less heat accumulation, less maintenance and fewer belt replacements. With a fully adjustable platen these sanders will deliver a perfect smooth finish every time.
- Photo electric belt tracking.
- Pneumatic belt tension.
- 2-1/2" graphite covered felt pad and adjustable platen.
- 2 rubber-covered pinch rollers 2-1/2" OD.
- 2 machined idler rollers 4-1/4" OD with 1" bearings.
- Rubber-covered contact roller 5-1/4" OD with 1-5/8" drive bearing.
- Conveyor table set on four 1" acme thread jackscrews.
- 2 height adjustment indicators.
- 6" internal dust chute.
- 5 emergency stops.
- 3 year warranty.
Specifications:
- Weight — 1946 lbs
- Dimensions — 60 x 62 x 71in
- Max. Working Length — Unlimited
- Min. Working Length — 12"/305mm
- Max. Working Width — 42"/1070mm
- Max. Working Thickness — 7 1/4"/184mm
- Min. Working Thickness — 1/8"/3mm
- Vacuum Requirement — 1000 CFM
- Conveyor Speed — 0-18 FPM
- Durometer of Contact Roller — 60
- Sanding Belt Size — 43" x 75"
- Main Motor Options — 10 Hp, Single Phase (1~), 220 Volt, 15 Hp, 3 Phase (3~) 208 Volt / 230 Volt
- Country of Origin — USA
Specifications
Specifications
| Safety Speed Cut 43" Wide Belt Sander 15HP 3Ph WBS4375203 | |
| APPLICATION | Wood Working |
| Brand | Safety Speed Cut |
| HORSEPOWER | 15 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Sanders - Belt Sanders |
| TOOL TYPE | Sanders |
| VOLTAGE | 208V-240V 3Ph |
| WIDTH | 43 in |
