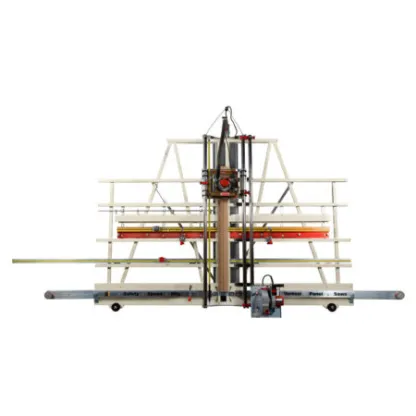

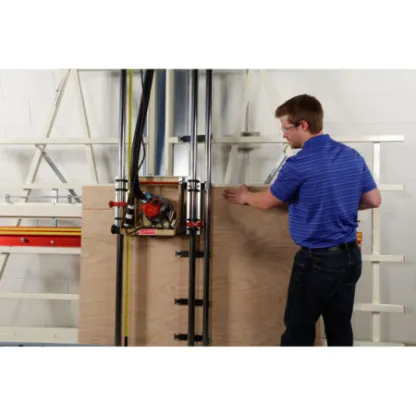

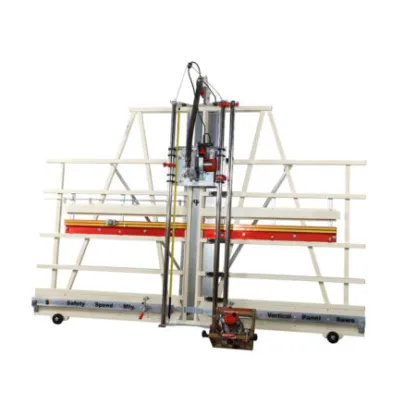

Safety Speed Manufacturing SR5 Panel Saw and Router Combo
Cutting and routing full sized panels is often a job that's dreaded in the shop due to effort required or fear of getting too close to exposed tooling. The SR5 Saw & Router combination machine features a heavily guarded blade and can be changed from a saw to a router in under a minute, all while delivering an accuracy of 1/64" straight and square. The SR5 is ideal for shops doing extensive cutting, and dado or rabbet routing. The interchangeable motor carriage features a rotating saw and router for sizing panels by pushing the panel through and making a ripcut, or by letting gravity take control and pushing the saw or router down for making a vertical crosscut. The patented self-adjusting, floating router carriage provides a consistent depth of cut. Our MID-WAY Fence? allows for processing smaller panels at waist level. If both panel cutting and routing are part of your operation, why not consider one machine that will do both?
Note that you can use either 1/4" or 1/2" collet router bits for the router.
- 3-1/4 Hp, 15 amp Milwaukee Tool saw motor.
- 1-3/4 Hp, 11 amp Milwaukee Tool router motor.
- 10 ft. welded steel frame.
- Chrome-plated 1-3/4" guide tubes.
- 8 Nylatron roller bearing system.
- Adjustable vertical and horizontal rulers.
- Quick change from vertical to horizontal cutting.
- Enclosed counterweight system.
- Integrated dust collection bonnet.
- Thin material pressure guard.
- Injection molded plastic rollers
- Adjustable floating router head.
- MID-WAY FENCE™ with stop.
- 4 material clamps.
- 2 blind dado stops.
- Extended warranty.
- TUV certified to UL/CSA standards.
Specifications:
- Weight — 538 lbs
- Dimensions — 120 x 11 x 83in
- Maximum cutting height — 62"/1575mm
- Max. Rip Cut — Unlimited
- Max. Cut Thickness — 1 3/4"/45mm
- Cut Accuracy, Straight and Square — 1/64"/.4mm
- Saw Blade Diameter — 8"/210mm
- Circular Saw Motor amperage — 15 amps
- Circular Saw Motor Manufacturer — Milwaukee Tool
- Router Motor Amperage — 11 amps
- Router Motor Manufacturer — Milwaukee Tool
- Frame Length — 120"/3050mm
- Router Bit Collet — 1/4" or 1/2" collet router bits.
- Blade Kerf — 5/8"
Specifications
Specifications
| Safety Speed Cut Panel Saw and 1.75HP Router Combo SR5 | |
| APPLICATION | Wood Working |
| Brand | Safety Speed Cut |
| HORSEPOWER | 1.75 HP / 3.25 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Saws - Panel Saws / Routers - Router Tables |
| TOOL TYPE | Routers / Saws |
| VOLTAGE | 110V-120V |
