Powermatic 15BHH 15" Planer, Helical Cutterhead, 3 HP, 1PH, 230V PM1-477
Powermatic 15BHH 15" Planer, Helical Cutterhead, 3 HP, 1PH, 230V PM1-477
Couldn't load pickup availability
Details
Details

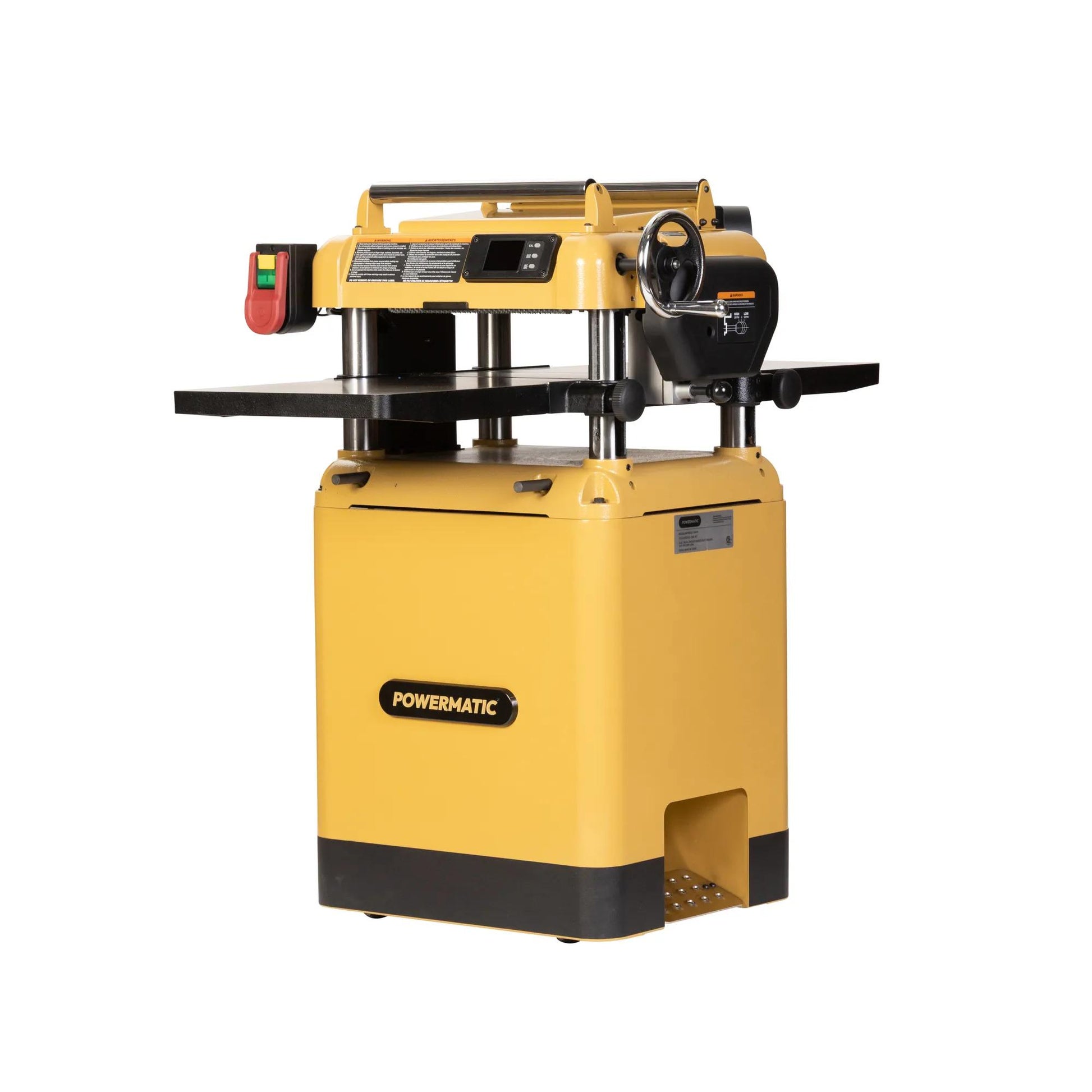

The Powermatic 15BHH is a 15-inch stationary thickness planer designed for woodworking shops that require industrial durability and precision in a versatile floor-standing format. Powered by a 3 HP, 230V, single-phase motor, the 15BHH surfaces hardwoods and softwoods consistently across its full 15-inch cutting width, with a maximum board thickness capacity of 6 inches. Its four-row helical cutterhead carries 48 four-sided carbide inserts running at 5,200 RPM, producing a smooth, professional surface finish with significantly reduced noise and extended insert life compared to straight-knife designs. Inserts are easily rotated or replaced through an accessible cutterhead door, minimizing shop downtime. A built-in digital readout (DRO) enables exact, repeatable thickness settings across passes and operators. Two selectable feed speeds, 16 FPM for finish cuts and 28 FPM for aggressive stock removal, give you precise control over both surface quality and productivity. Heavy cast iron infeed and outfeed tables spanning a full 48-inch surface area provide exceptional rigidity and vibration damping for consistent results across long boards. A 4-inch bi-directional dust port handles chip evacuation efficiently with a 900 CFM minimum requirement. An upgraded caster locking and braking system with oversized emergency stop support safe, stable operation throughout the shop.
The Powermatic 15BHH replaces the 15HH and carries a 5-year warranty.
Features & Benefits

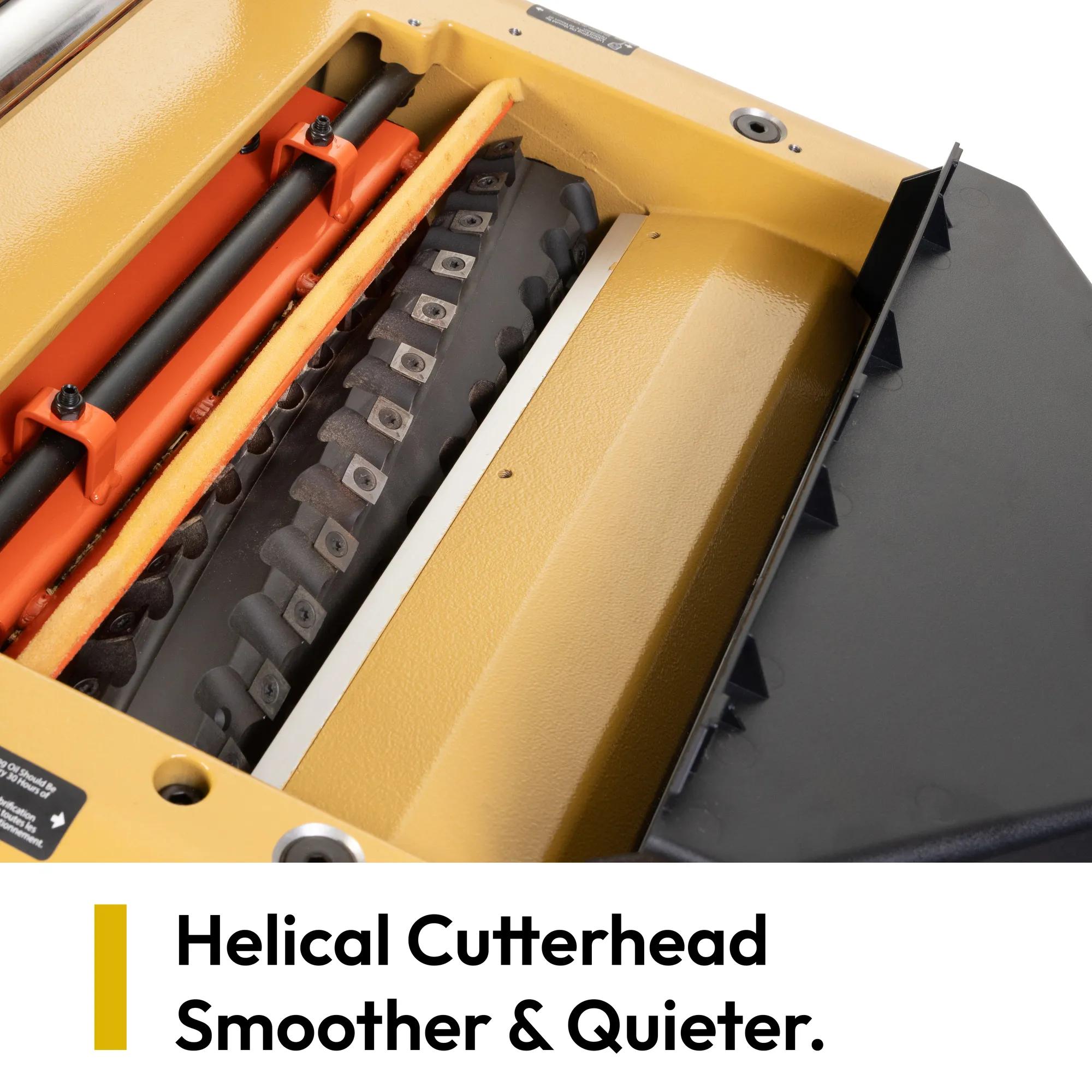

- Four-row helical cutterhead with carbide inserts delivers a smoother finish, operates more quietly, and outlasts straight-knife heads with individual insert rotation for fast, low-cost maintenance.

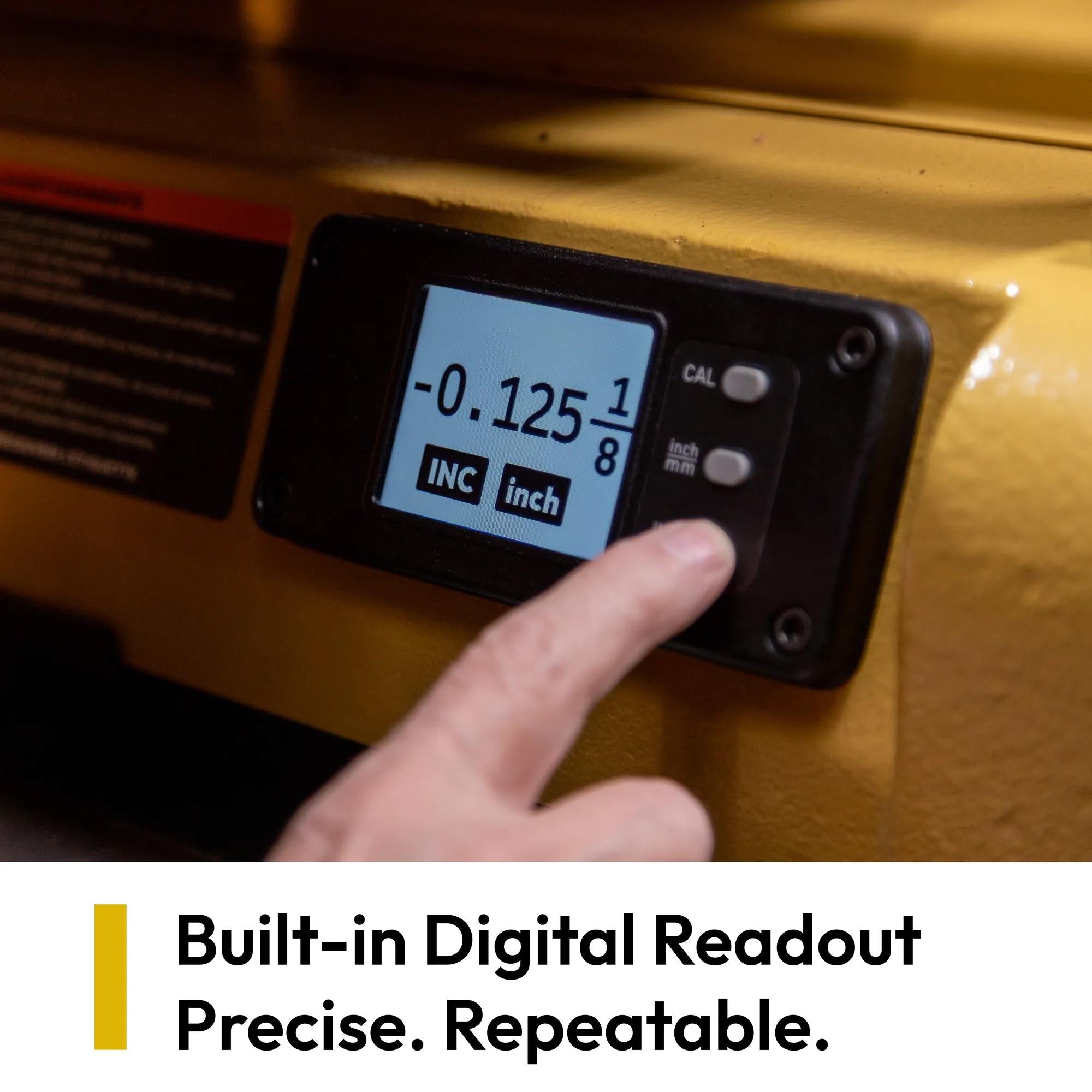

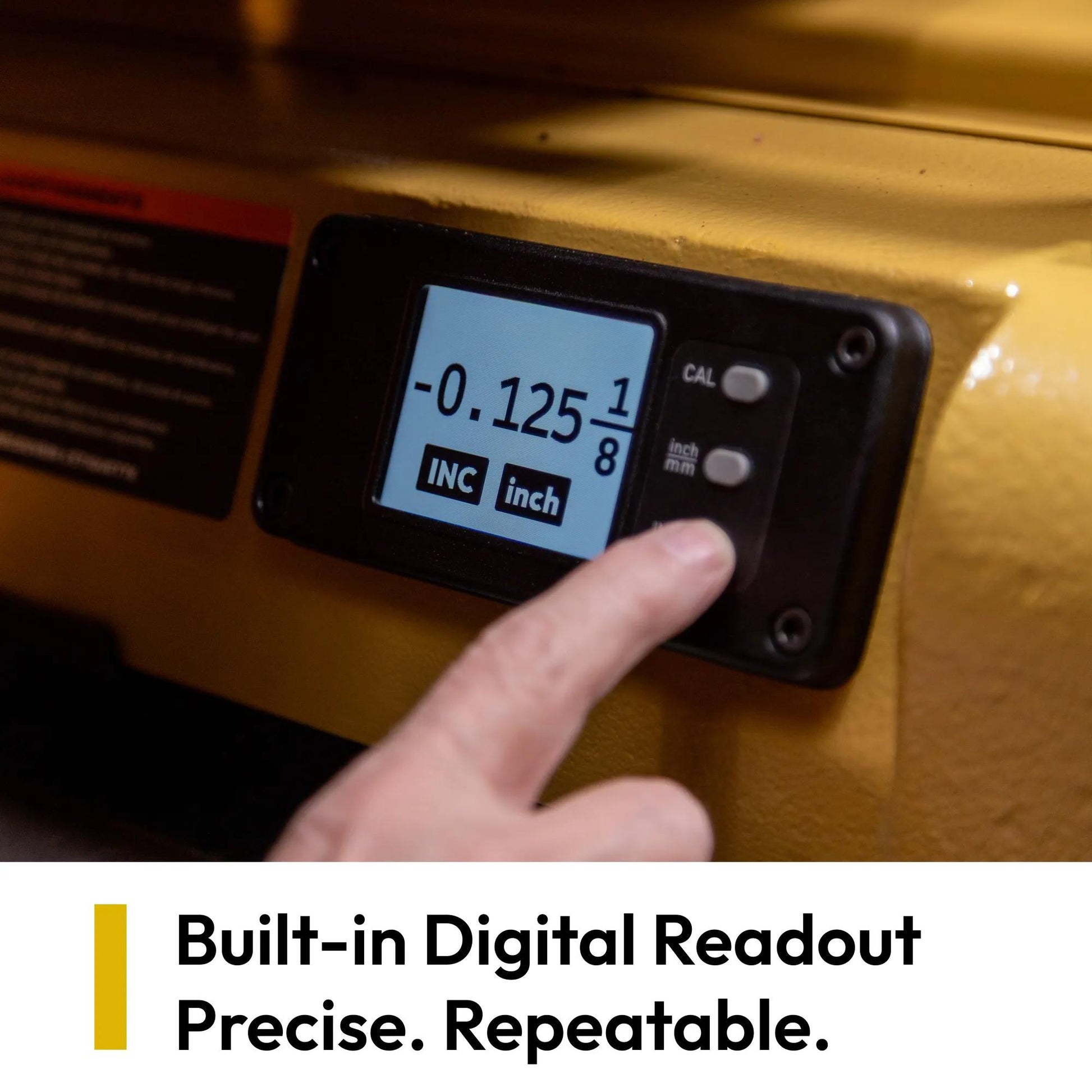

- Built-in digital readout displays exact board thickness in real time, enabling precise, repeatable settings that hold across operators and multiple passes without re-measuring.
- Solid cast iron infeed and outfeed tables resist flex and damp vibration, keeping long boards supported and the cutting surface consistent from end to end.
- Selectable 16 and 28 FPM feed rates let operators choose between a refined finish pass and aggressive stock removal without any tooling changes.

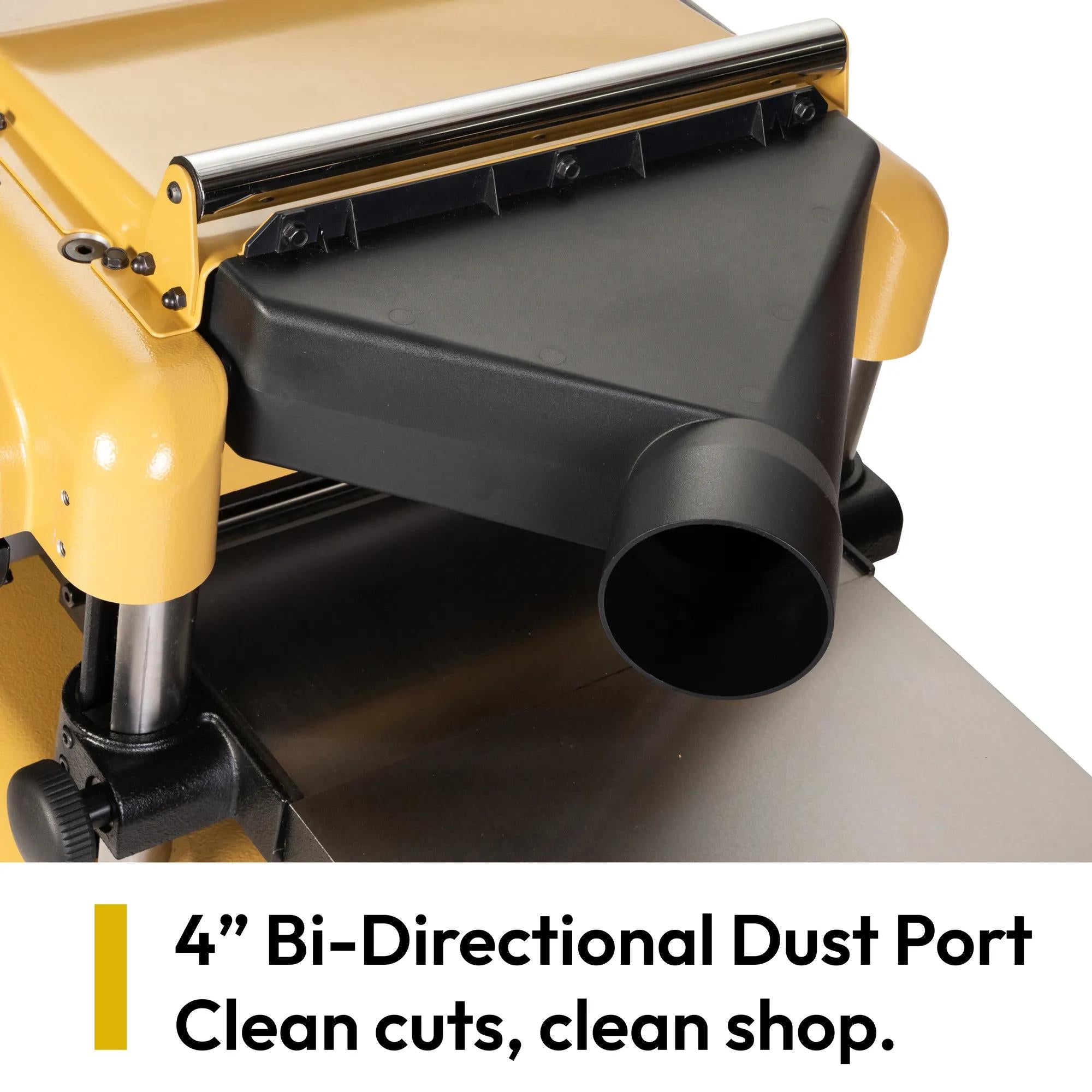

- 4-inch bi-directional dust port connects from either side for flexible placement in the shop, with a 900 CFM minimum capacity for effective chip evacuation.

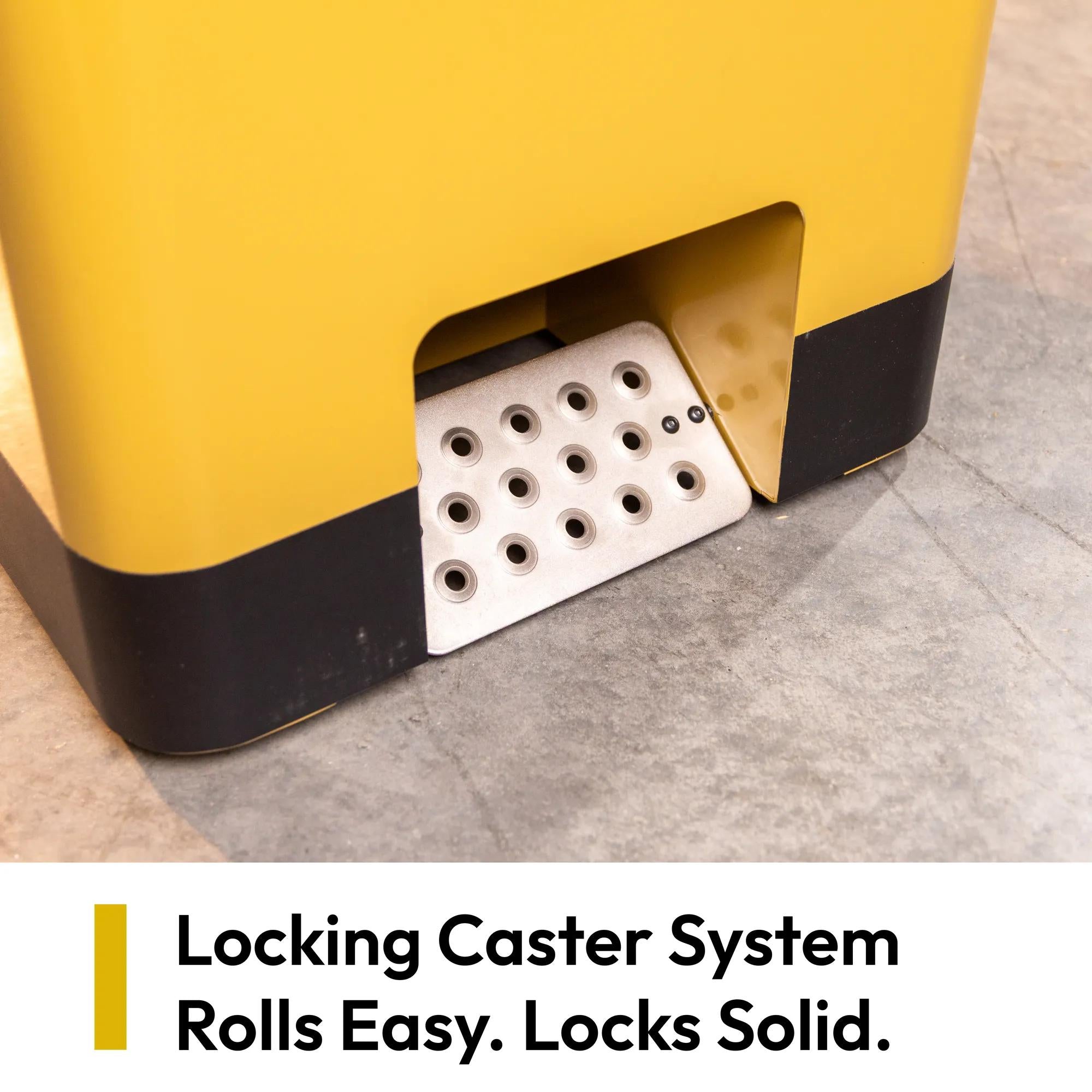

- Upgraded caster locking and braking system provides rolling mobility for repositioning while securing the machine firmly in place during cuts.

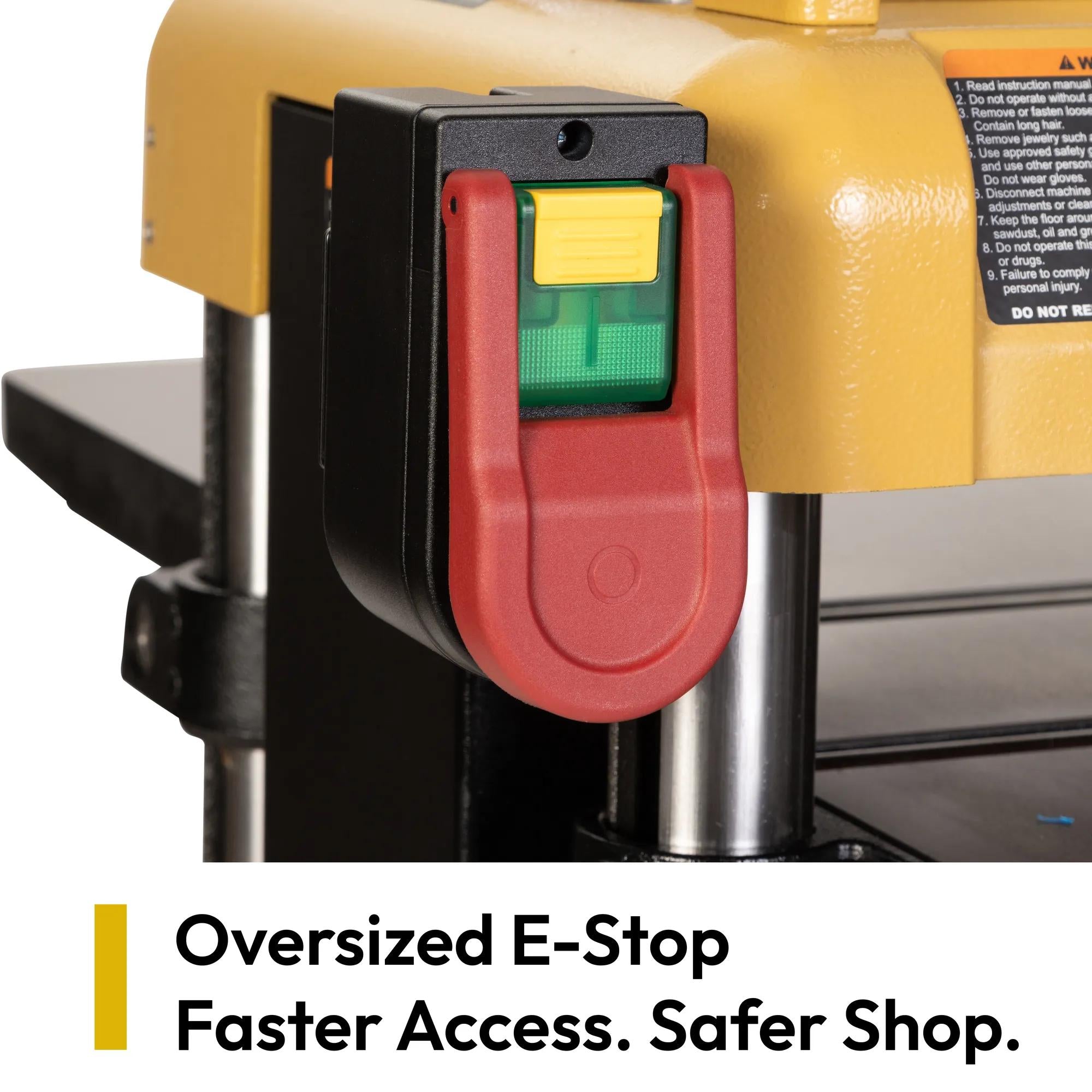

- Enlarged, high-visibility emergency stop is positioned for immediate access, reducing operator response time and improving overall shop safety.
Specifications
Specifications
| SKU | PM1-477 |
| Cutterhead Diameter | 3" |
| Cutterhead Speed (RPM) | 5,200 RPM |
| Digital Readout | Yes |
| Dust Port Outside Diameter | 4 in. |
| Feed Rate | 16 / 28 FPM |
| Gross Weight | 486 lbs. |
| Input Power | 230V Single Phase |
| Knife Size | 0.59 in. x 0.59 in. x 0.10 in. |
| Max. Board Thickness | 6 in. |
| Maximum Full Width Depth of Cut | 3/32 in. |
| Model Number | 15BHH |
| Motor Amps | 14.5 |
| Motor HP | 3 |
| Motor Phase | Three |
| Net Weight | 411 lbs. |
| Number of Knives | 48 |
| Number of Speeds | 2 |
| Prewired Voltage | 230V |
| Product Type | Machines |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Circuit Size Amp | 30 |
| Required CFM | 900 |
| Style Type | Floor Standing |
| Table Height | Manually Adjusted |
| Table Material | Cast Iron |
| Table Size | 48 in. x 15 in. |
| Type of Cutterhead | Helical Head |
| UPC | 019907005933 |
| Warranty | 5 Year |
