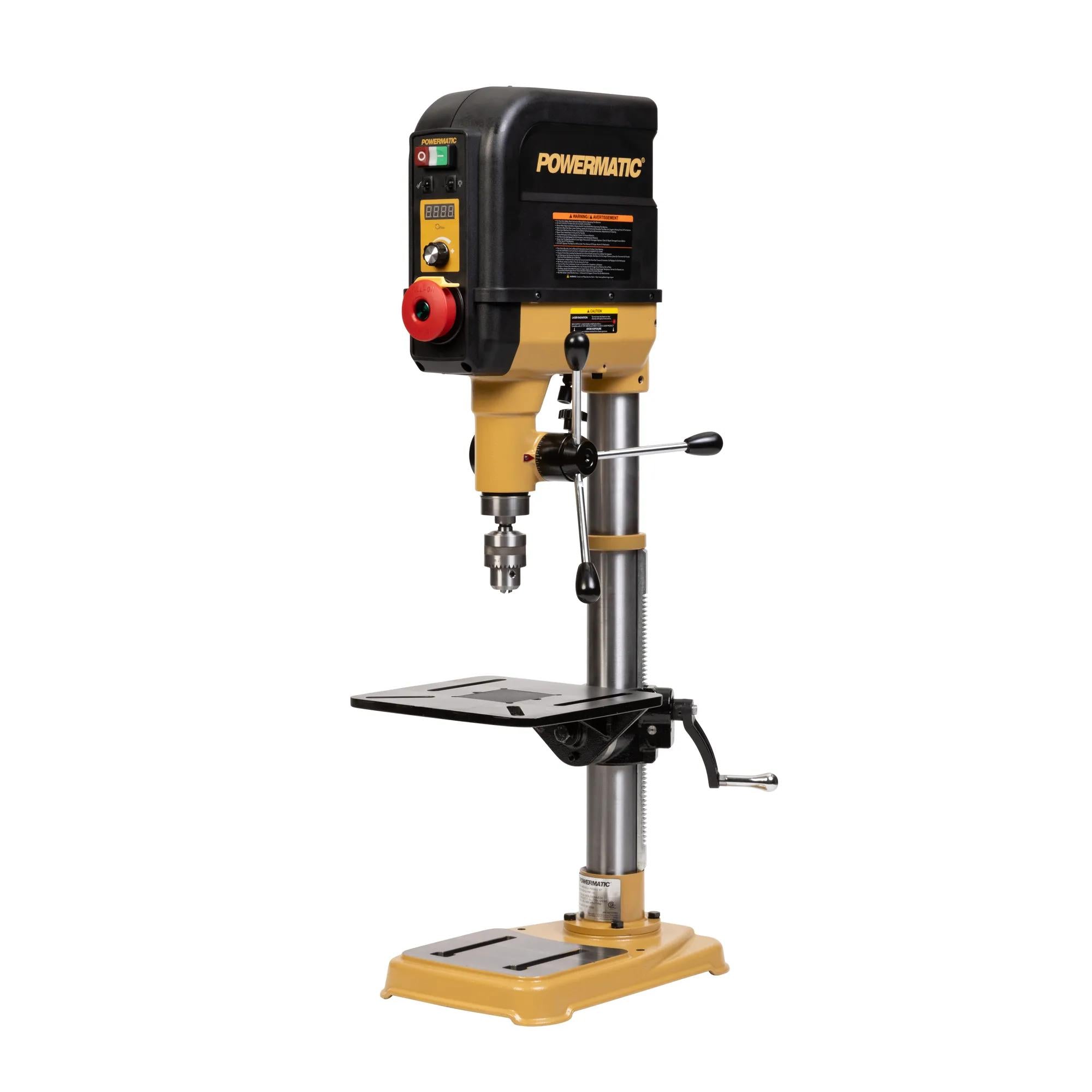

Powermatic PM2815BT 15" Benchtop Drill Press 3/4HP 1Ph 120V PM1-34
Powermatic PM2815BT 15" Benchtop Drill Press 3/4HP 1Ph 120V PM1-34
Couldn't load pickup availability
Details
Details

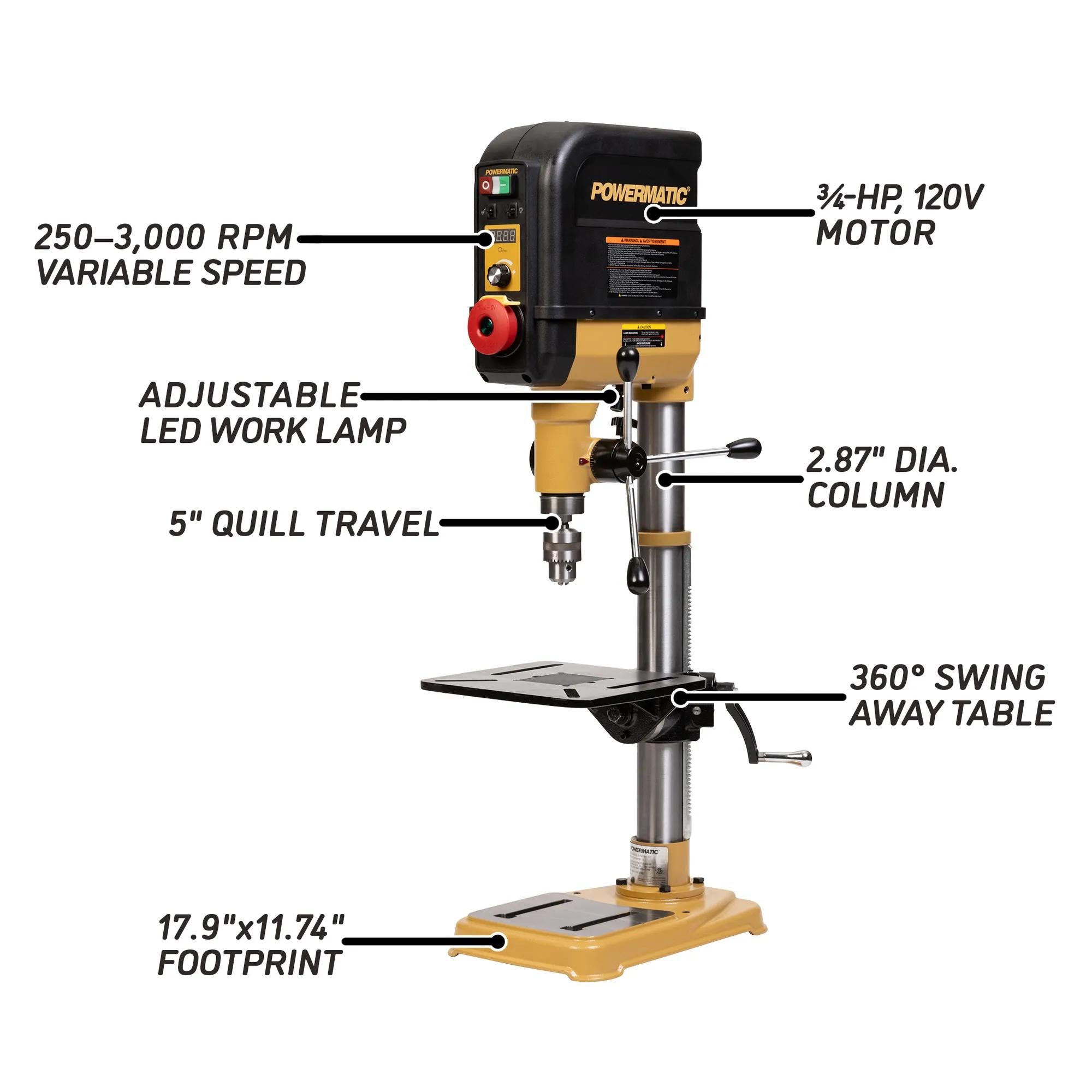

The Powermatic PM2815BT 15-inch variable-speed benchtop drill press delivers professional drilling control in a compact footprint. Its gear-driven spindle provides steady torque across the operating range, supporting cleaner holes in tougher materials and larger bit sizes. A large LED digital readout displays live RPM for precise speed selection, while laser crosshairs pinpoint the drilling location on the workpiece. Designed with Powermatic build quality from top to bottom, this benchtop unit is ideal for smaller shops that still require accuracy, reliability, and smooth variable-speed performance.
Features & Benefits

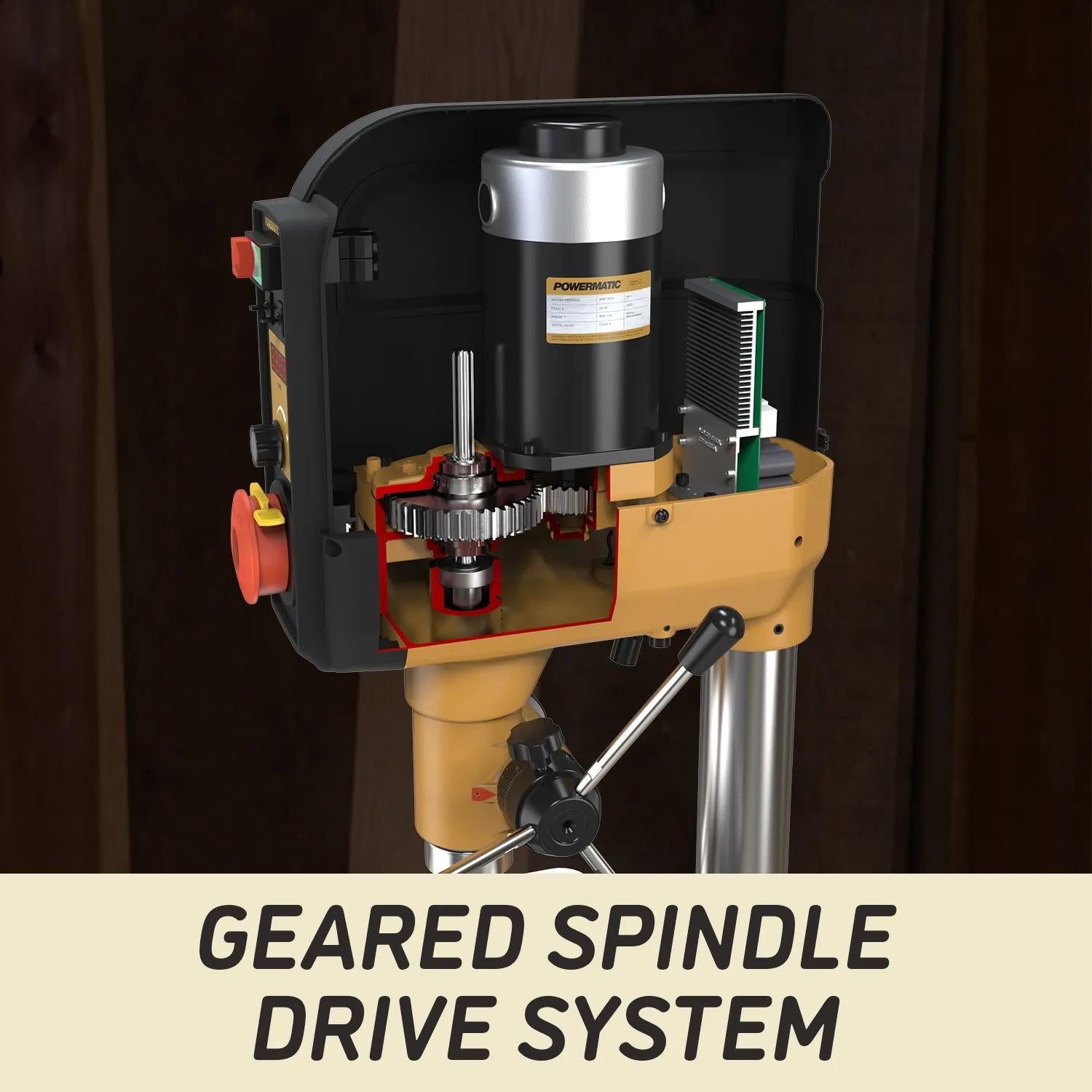

- Gear-driven spindle delivers consistent torque across the speed range for smoother drilling in demanding materials
- Electronic variable speed from 250 to 3,000 RPM allows precise speed control without changing belts

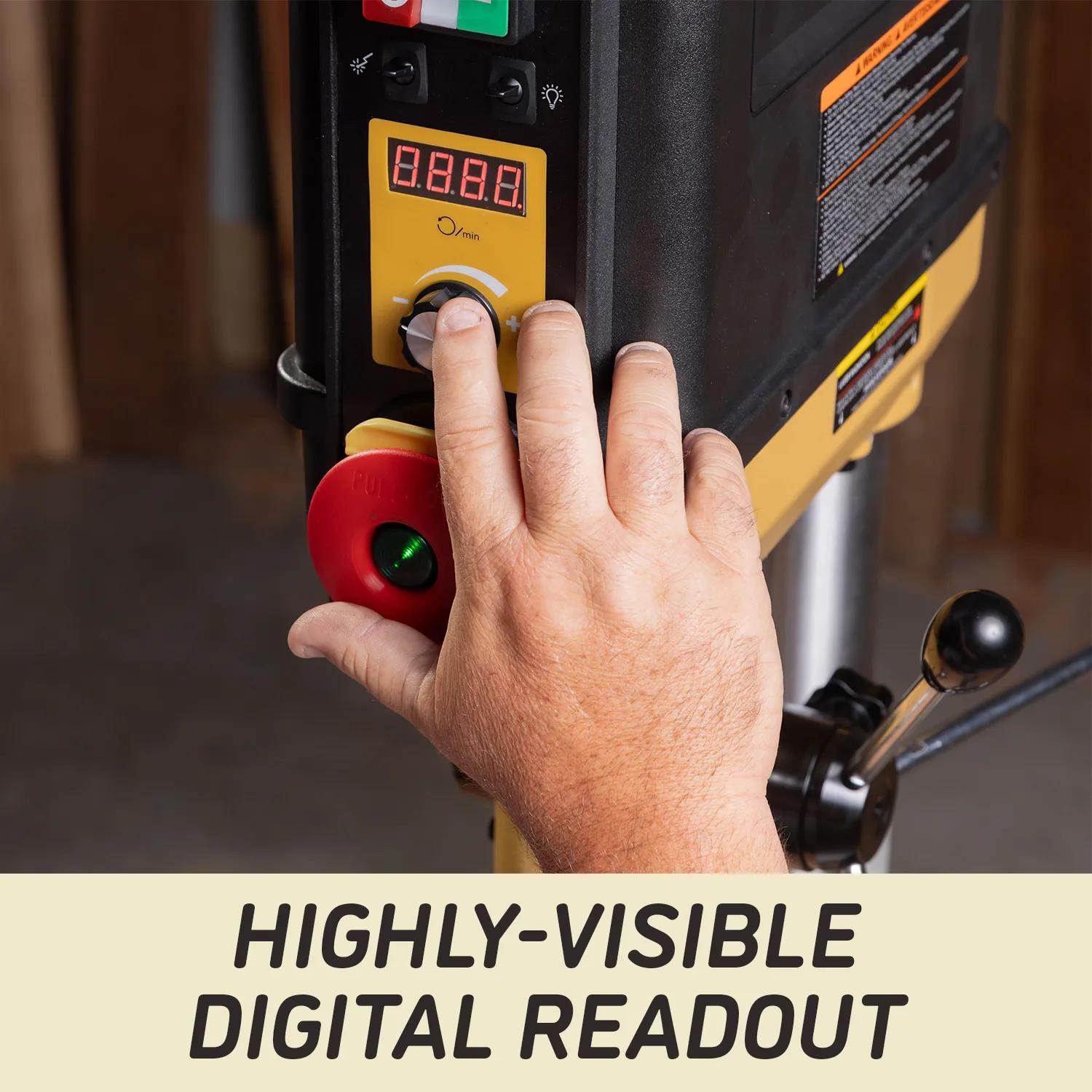

- Highly visible digital RPM readout provides real-time speed feedback for accurate drilling setups

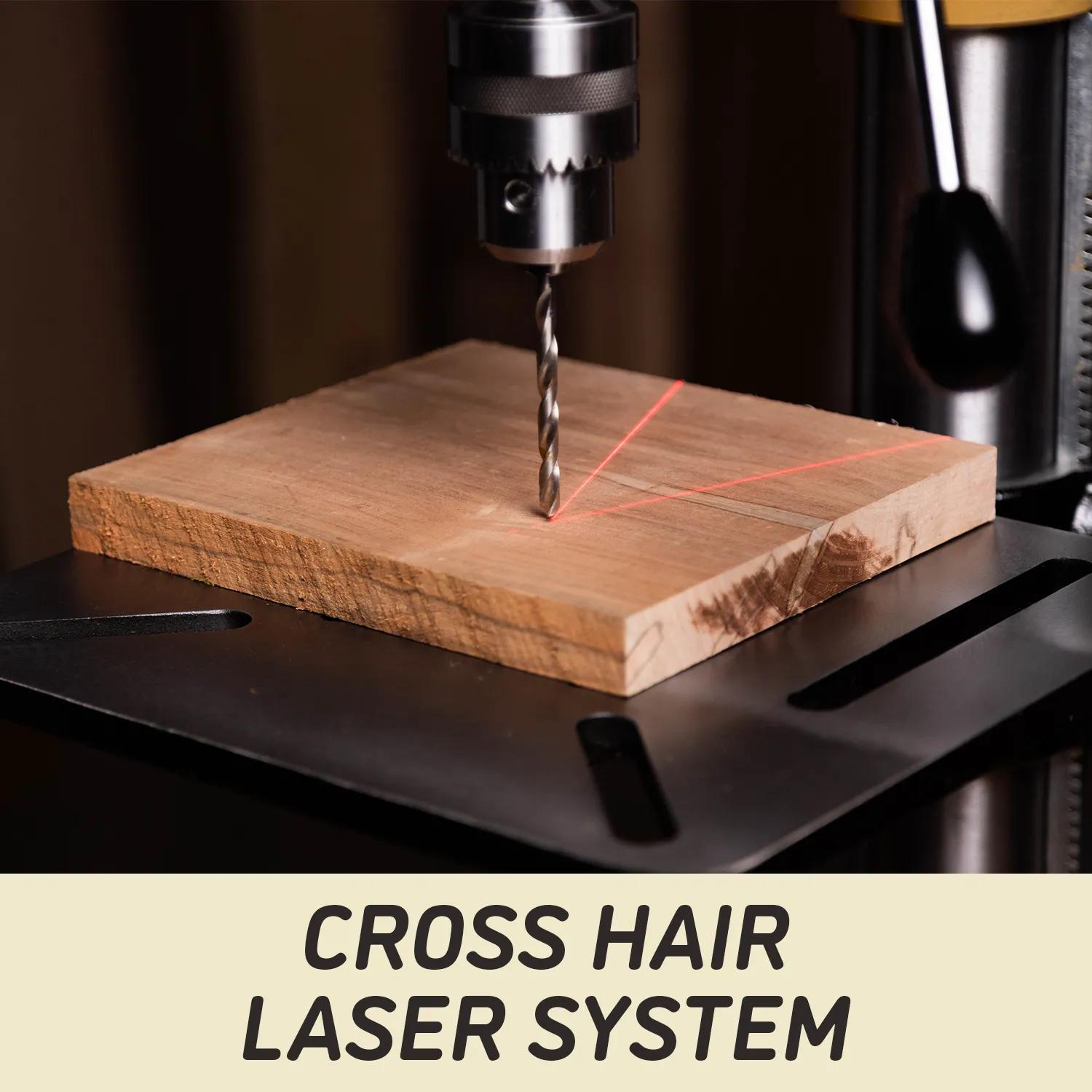

- Laser crosshair system improves bit alignment for precise hole starts and repeatable accuracy
- 5 inches of quill travel supports deeper drilling operations without frequent repositioning

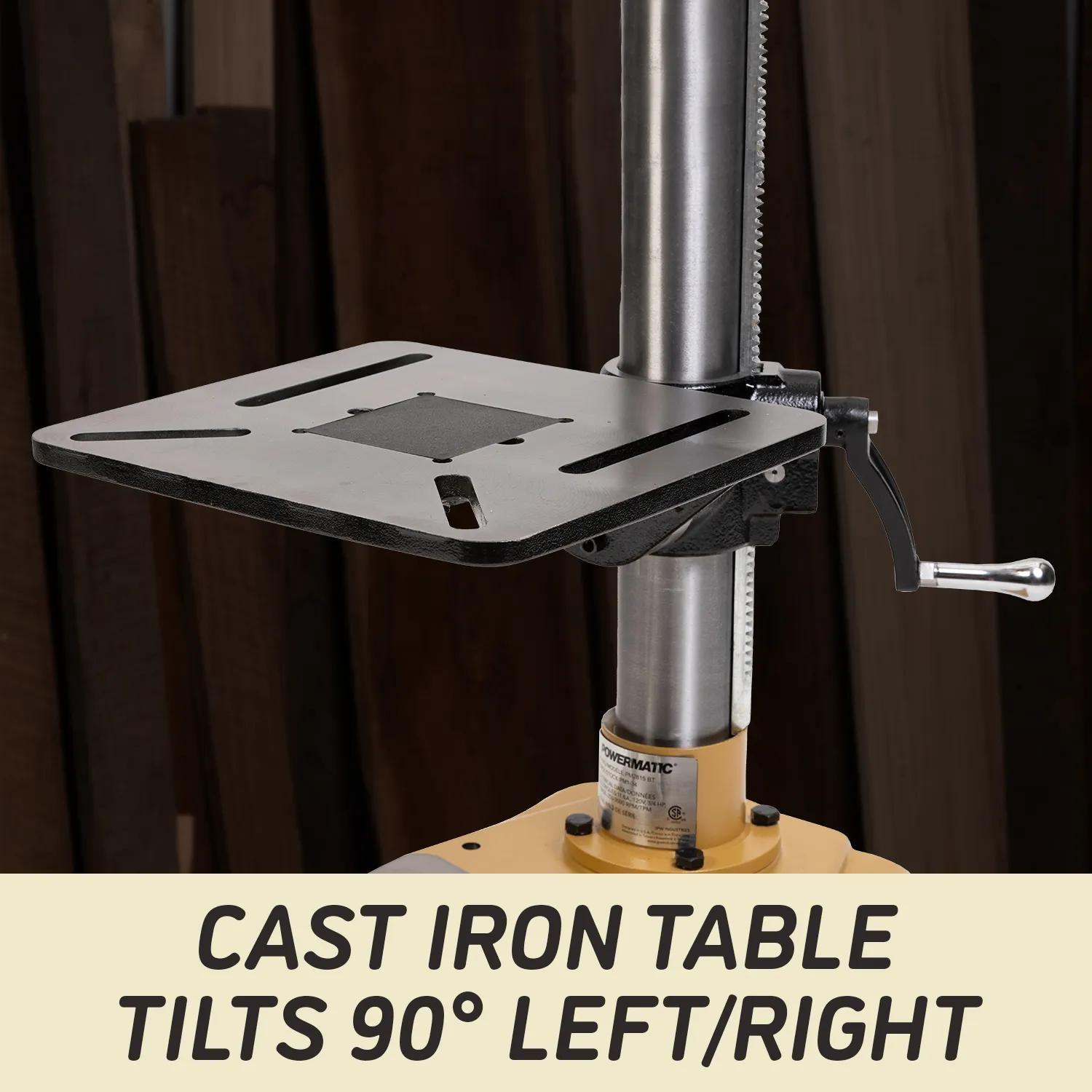

- Cast iron work table tilts 90 degrees left and right and rotates 360 degrees for angled and compound drilling

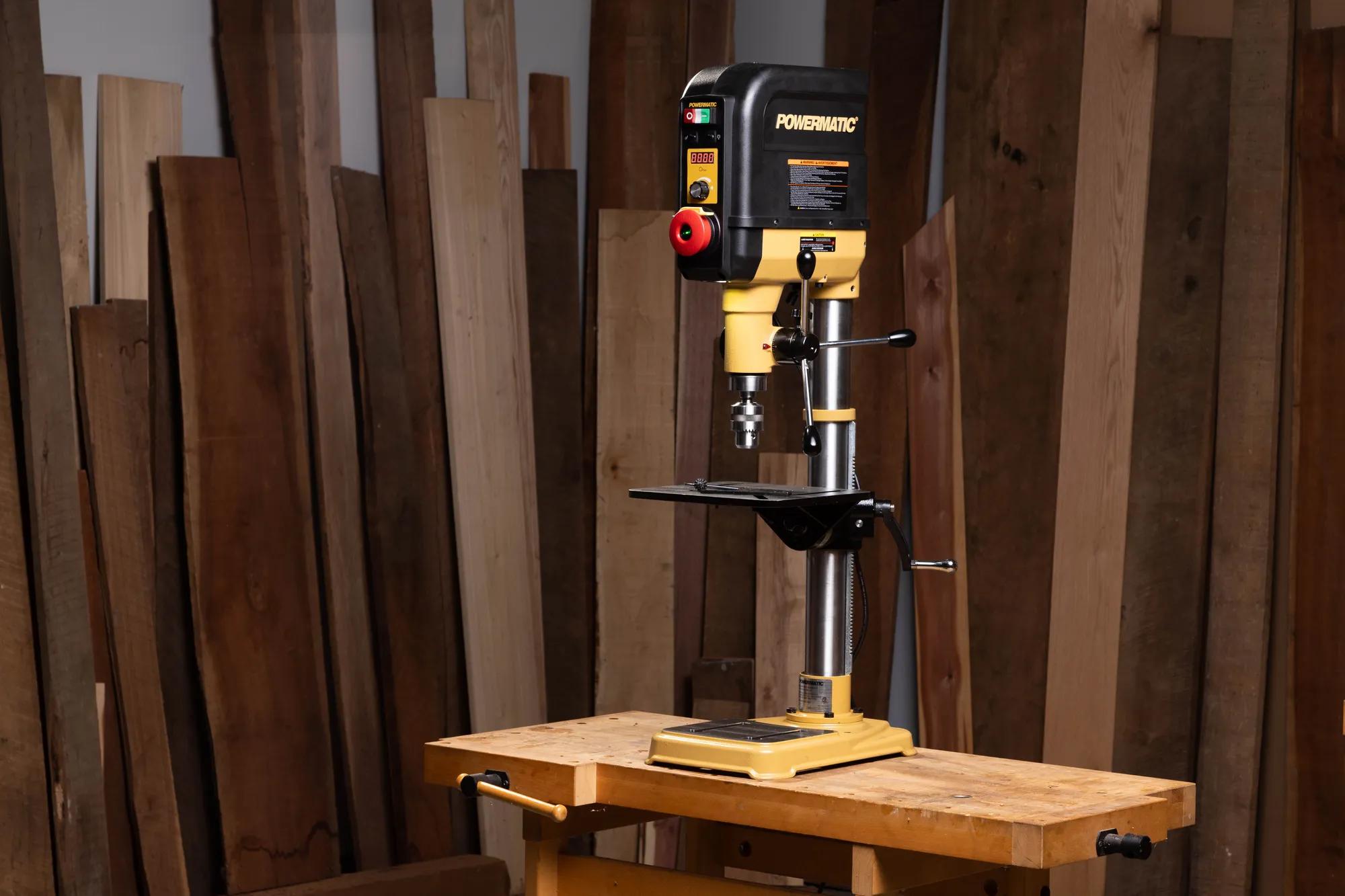

- Compact benchtop footprint delivers Powermatic build quality for shops with limited floor space
Specifications
Specifications
| assembled dimensions | 14.16 in. x 23.25 in. x 70.06 in. |
| base size | 17.87 in. x 11.75 in. |
| chuck distance to base in | 18-1/2 in. |
| chuck distance to table in | 11 in. |
| chuck size in | 5/8 in. |
| digital readout | Yes |
| distance from spindle to base | 22-13/16 in. |
| drill capacity | 5/8 in. |
| horse power hp | 0.75 |
| max distance spindle to table in | 18-1/2 in. |
| input power | 120V |
| motor amps | 11.6 |
| motor hp | 0.75 |
| motor phase | Single |
| motor voltage v | 120 |
| number of spindle speeds | Variable |
| prewired voltage v | 115 |
| range of spindle speeds rpm | 250-3000 RPM |
| recommended circuit size amps | 20A |
| spindle distance to base in | 22-13/16 in. |
| spindle distance to table max in | 18-1/2 in. |
| spindle speed rpm | 250 to 3000 |
| spindle taper | MT-2 |
| spindle travel in | 5 in. |
| style type | Bench Top |
| swing in | 15 in. |
| table size l x w in | 12.5 in. x 11.6 in. |
| table tilt deg | Right 90 / Left 90 |
| Gross Weight | 152.11000000000001 |
| Net Weight | 152.11000000000001 |
