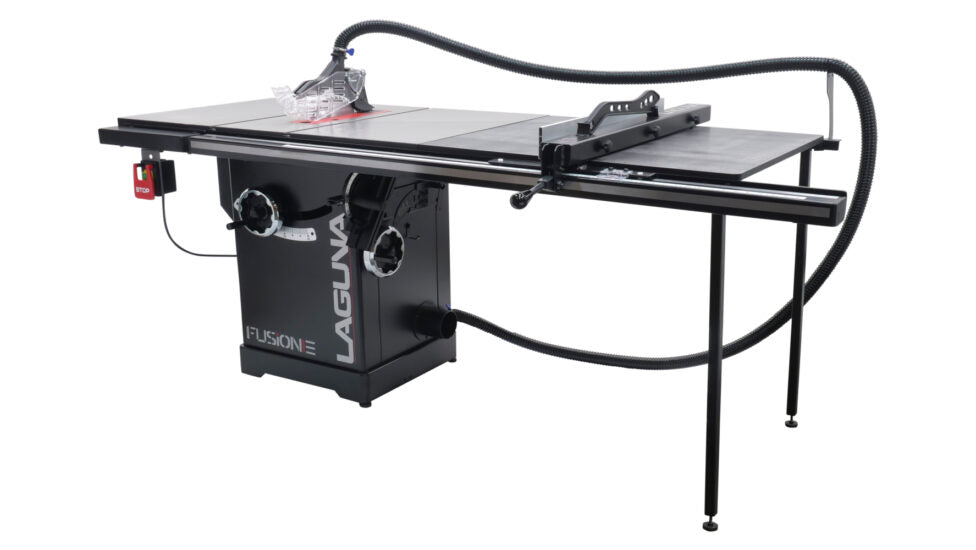

MTSF3362203-0130-52, Laguna Tools F3 Fusion 52in Rip Capacity Table Saw
The new Laguna F2 and F3 Table Saws are unlike any saw on the market. Having the same quality demands earned through the original fusion table saw, the new fusion line will not only impress but exceed the expectations you have come to expect from Laguna. With a completely redesigned trunnion and arbor controls that focuses on buttery smooth controls and longevity of the saw, we are sure this is the saw that will give you the perfect rip cut for many many years.
2 New Features Now Standard On F2 & F3 Fusions:

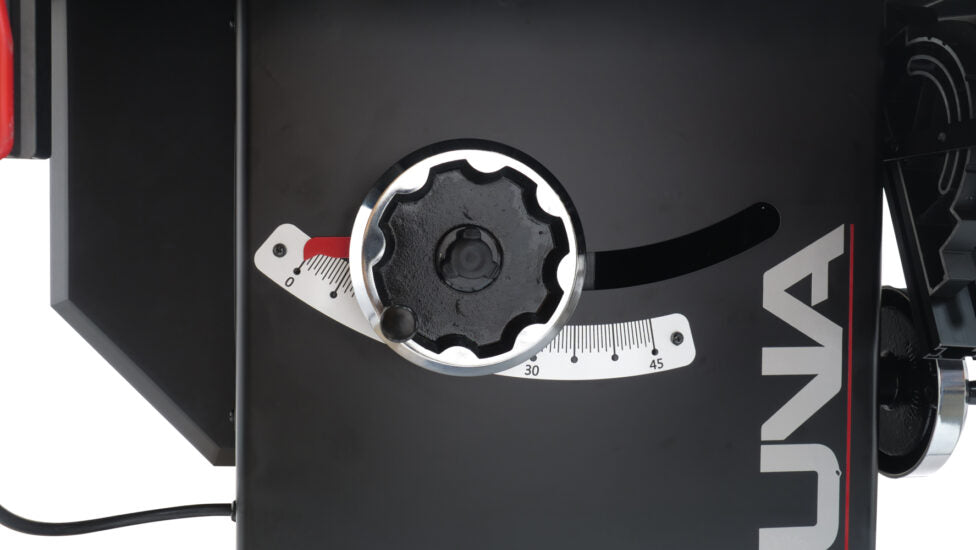

- DRO For The Tilt Angle Of Blade
- Double Window With Hairline For Hi/Low Fence
Features:
- 52" Rip Capacity
- Industrial 14 Gauge Cabinet
- 3HP TEFC Motor
- 220V, Single-Phase, 60Hz Power Requirement
- Accessory Tables (Outfeed & Rip)
- Industrial Fence Rail
- Industrial Fusion Fence
- Premium Electrical & Hardware Components
- Premium Miter Gauge
- Cast Iron Fusion Trunnions
- Cabinet Mounted Arbor
- Cast Iron Table & Wings
- European Hi-Lo Fence
- Premium Zero Clearance Throat Plate

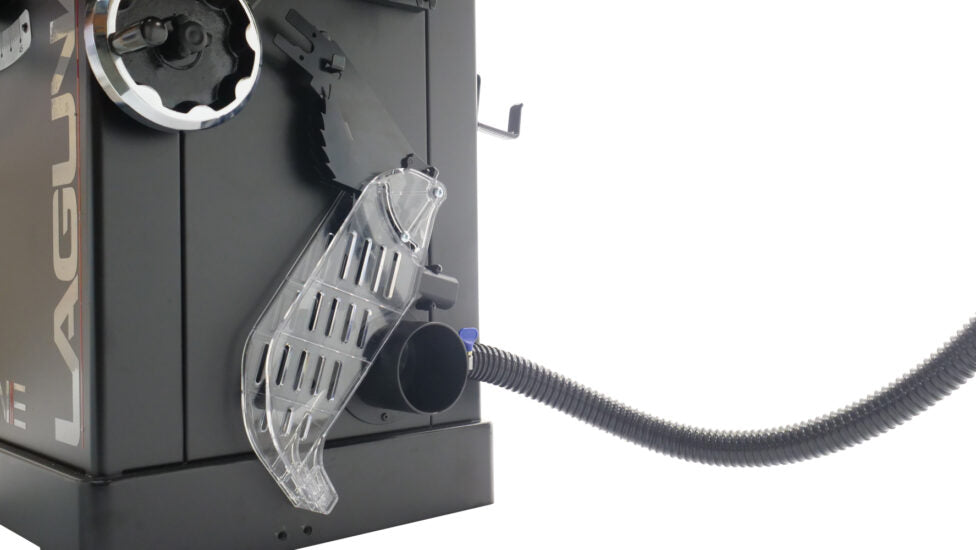

- Fusion Hi-Lo Dust Collection

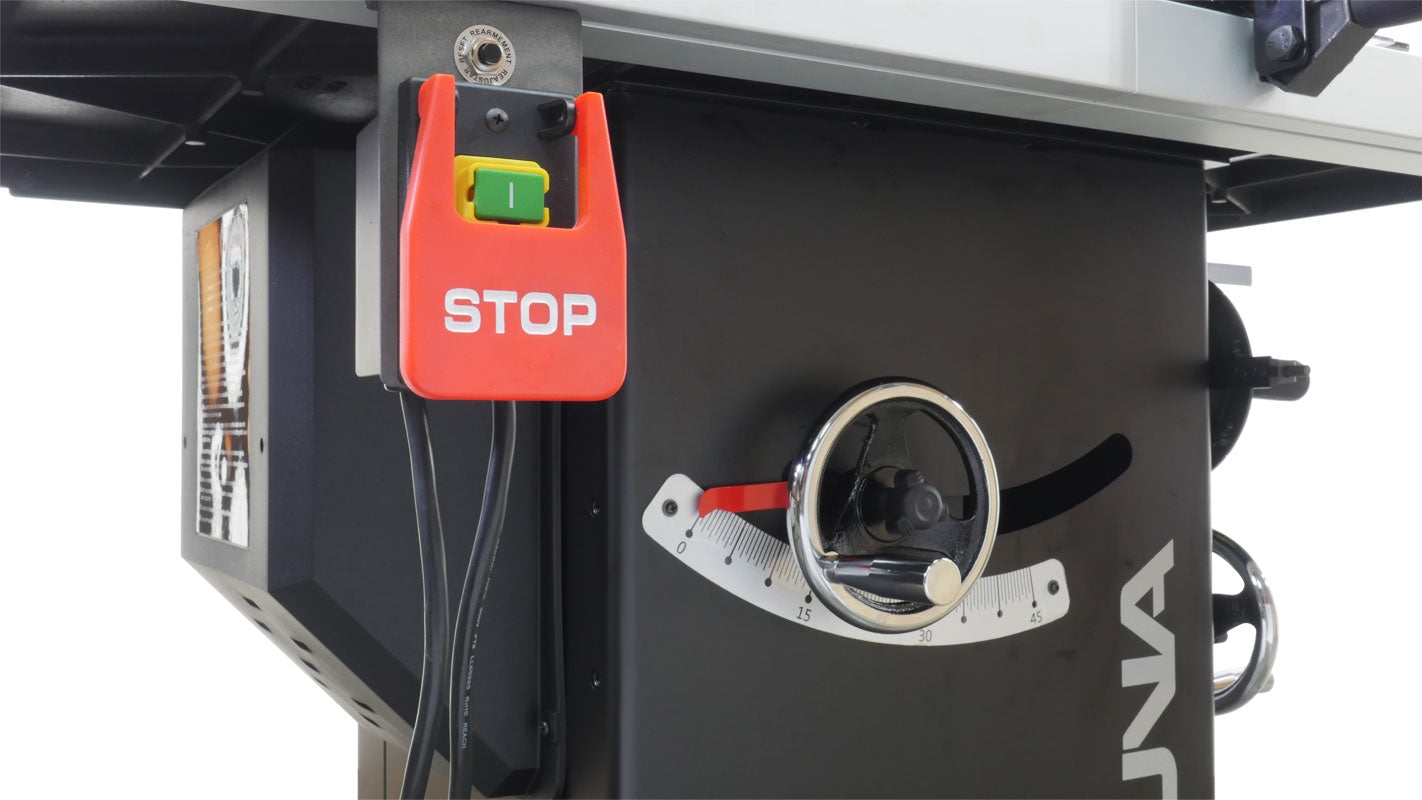

- Magnetic Contactor Switch
- Quick-Release Blade Guard and Spreader

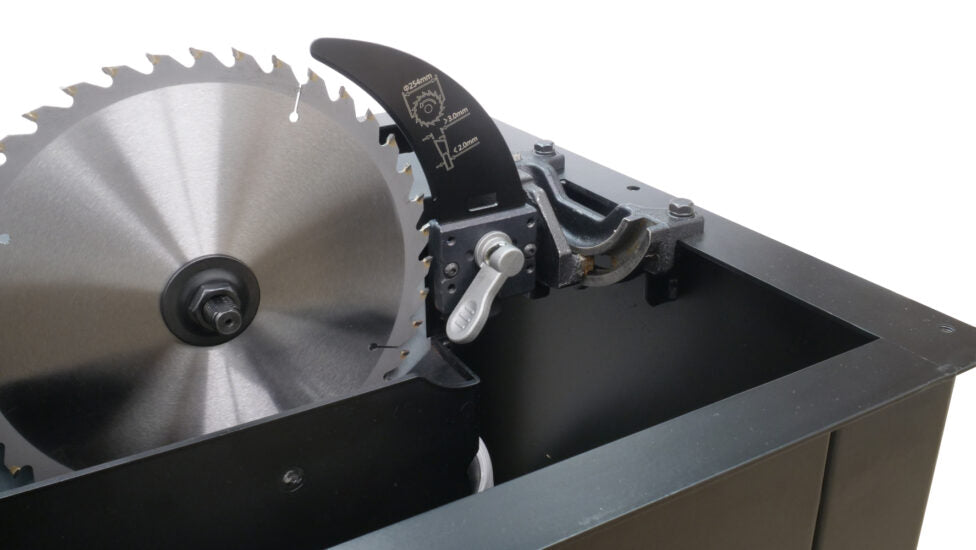

- Riving Knife Included
- Push Stick Included
- Miter Gauge Included
- Blade Changing Tool Included
- Integrated Tool Storage
- 10 x 60T Carbide-Tipped Blade Included
- Premium Arbor and Motor Bearing

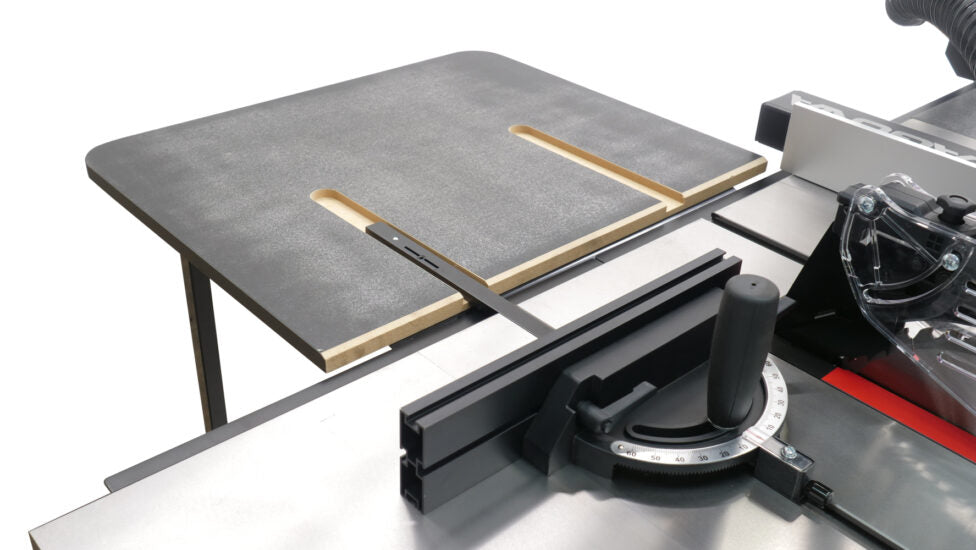

- Outfeed Table - Coming standard with the Fusion F3, the outfeed table features dual miter slots and 2 supporting legs

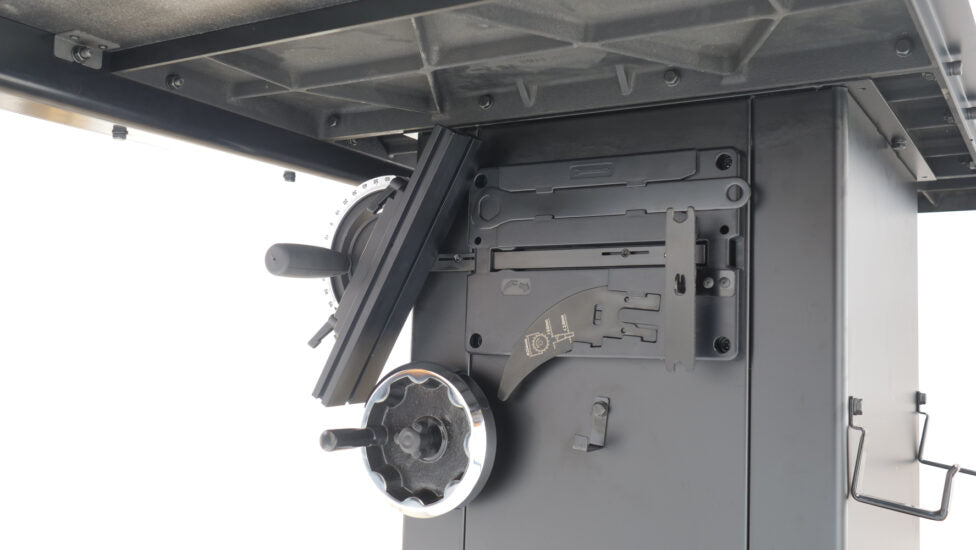

- Cabinet Mounted Trunion - Adjusting the table to line up the miter guage has never been easier
- Industrial Grade Cabinet - The Fusion 3 features a heavy-duty cabinet for added rigidity and strength

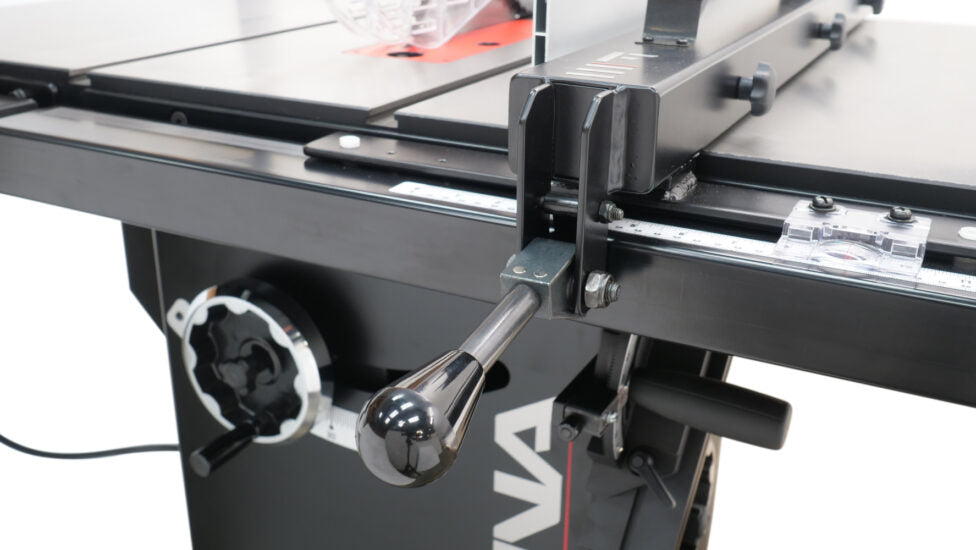

- Industrial Fence and Rails - The fence glides effortlessly on the industrial strength steel fence rails
Specifications:
- Dust Port Size: 4 in.
- Blade Guard Dust Port Size: 1.5 in.
- Table Saw Type: Cabinet
- 220V, Single-Phase, 60Hz Power Requirement
- Maximum Blade Diameter: 10 in.
- Cutting Material: Wood
- Arbor Size: 0.62 in.
- Arbor Speed: 4500RPM
- Maximum Width Of Dado: 0.75 in.
-
Blade Tilt Direction: Left
- Max Blade Tilt: 45°
- Maximum Depth Of Cut At 90°: 3.12 in.
- Maximum Depth Of Cut At 45°: 2.12 in.
- Max Rip Right Of Blade w/ Included Fence & Rails: 37 in.
- Max Rip Left Of Blade w/ Included Fence & Rails: 19.68 in
-
Included Blade Information: 10" x 60T
- Riving Knife/Spreader Thickness: 0.09 in.
-
Required Blade Body Thickness: > 3.0mm
- Required Blade Kerf Thickness: < 2.0mm
-
Floor To Table Height: 34.9 in.
- Table Size With Extension Wings Width: 76.91 in.
- Table Size With Extension Wings Depth: 26.9 in.
-
Distance - Front of Table To Center Of Blade: 13.46 in.
- Distance - Front of Table To Blade At Maximum Cut: 8.66 in.
- Main Table Size Thickness: 1.49 in
-
Fence Type: Camlock T-Shape With Aluminum With European Hi-Lo Face
- Fence Size Length: 33.46 in.
- Fence Size Width: 15.94 in.
- Fence Size Height: 3.03 in
-
Fence Rail Type: Aluminum Extrusion/Angle Steel
- Fence Rail Length: 67.87 in.
- Fence Rail Width: 3 in.
- Fence Rail Height: 2 in.
-
Weight (Net): 405 lbs.
- Overall Width (Side-To-Side): 84.94 in.
- Overall Depth (Front-To-Back): 56.1 in.
- Overall Height: 42.91 in.
- Footprint Width: 48 in
-
Footprint Length: 42.51 in.
- Space Required For Full Range Of Movement Width (Side-To-Side): 84.94 in.
- Space Required For Full Range Of Movement Depth (Front-To-Back): 56.1 in.
-
Table: Precision-Ground Cast Iron
- Wings: Precision-Ground Cast Iron
- Cabinet: 14 Gauge Steel
- Trunnions: Cast Iron
- Body Assembly: 14 Gauge Steel
- Fence Assembly: Steel Body
-
Rails: Industrial Steel
- Miter Gauge Construction: Cast Iron With Steel Bar, Alu Fence
- Guard: Steel And Clear Plastic
- Body/Cabinet Paint Type/Finish: Powder Coated
- Arbor Bearings: Sealed & Permanently Lubricated
Specifications
Specifications
| Laguna Tools F3 Fusion 52in Rip Capacity Tablesaw MTSF3362203-0130-52 | |
| APPLICATION | Wood Working / Metal Working |
| Brand | Laguna Tools |
| TOOL TYPE | Saws |
| Laguna Tools F3 Fusion 52in Rip Capacity Tablesaw Rail MTSF3362203-0130-52RAIL | |
| Brand | Laguna Tools |
| Laguna Tools F3 Fusion 52in Rip Capacity Tablesaw MTSF3362203-0130-52TABLE | |
| Brand | Laguna Tools |
