Laguna Tools JX|8 Pro ShearTecII, 8in Jointer, 2 pcs MJ8x72P-0130
Laguna Tools JX|8 Pro ShearTecII, 8in Jointer, 2 pcs MJ8x72P-0130
Couldn't load pickup availability
Details
Details

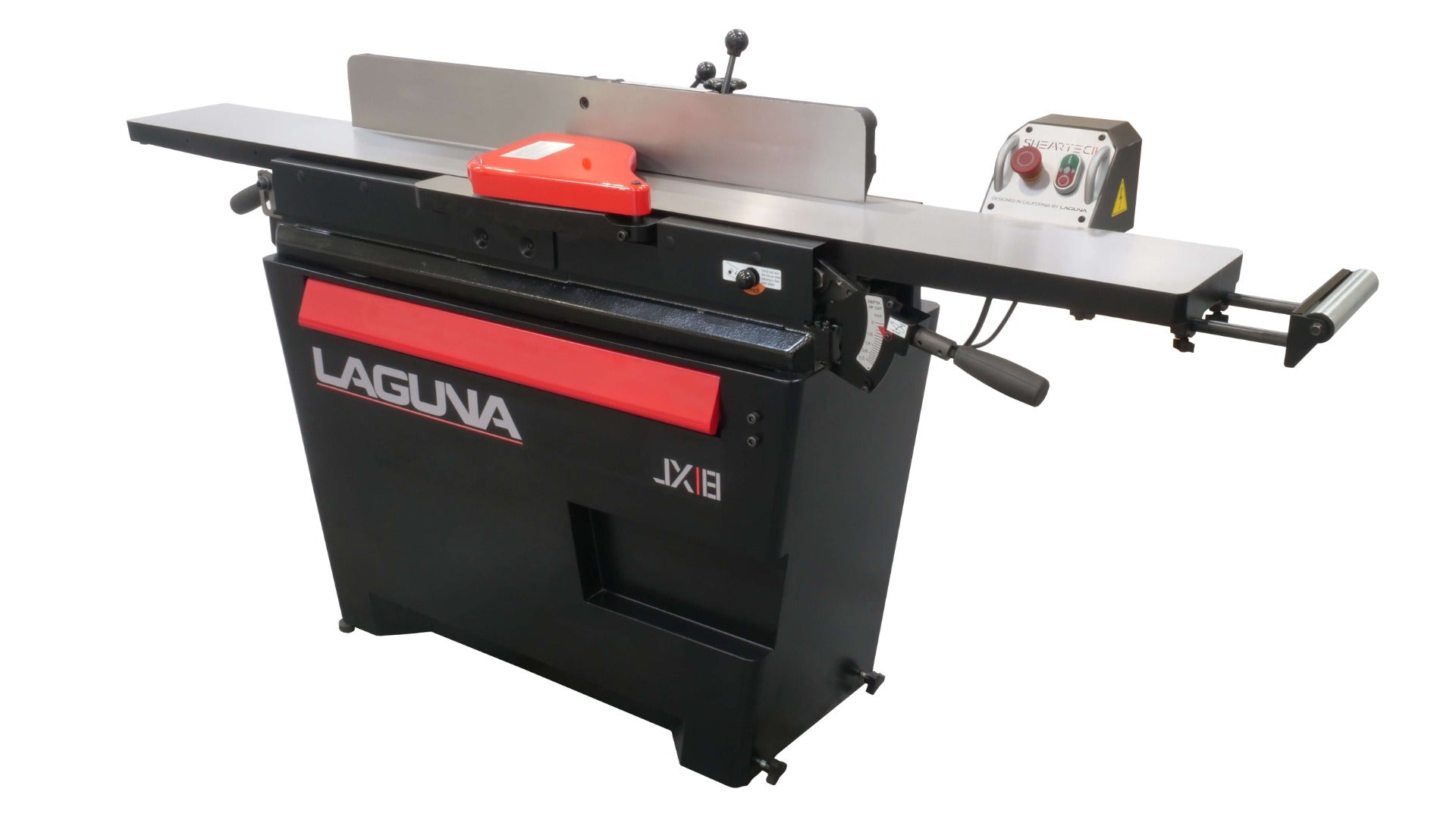

MJ8X72P-0130, Laguna Tools, JX|8 Pro ShearTecII, 8in Jointer
The Laguna JX|8 ShearTec II is loaded with highly desirable features to make jointing safer and more enjoyable. The JX|8 is available in 2 versions. This version is the 220 volt 3 HP version.
Features:
- Parallelogram Table Adjustments – Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel
- Emergency “Knee-Stop” – The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the
- New Ergonomic Machine Body – The new JX Series machine body has been redesigned with a “toe-kick” to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the

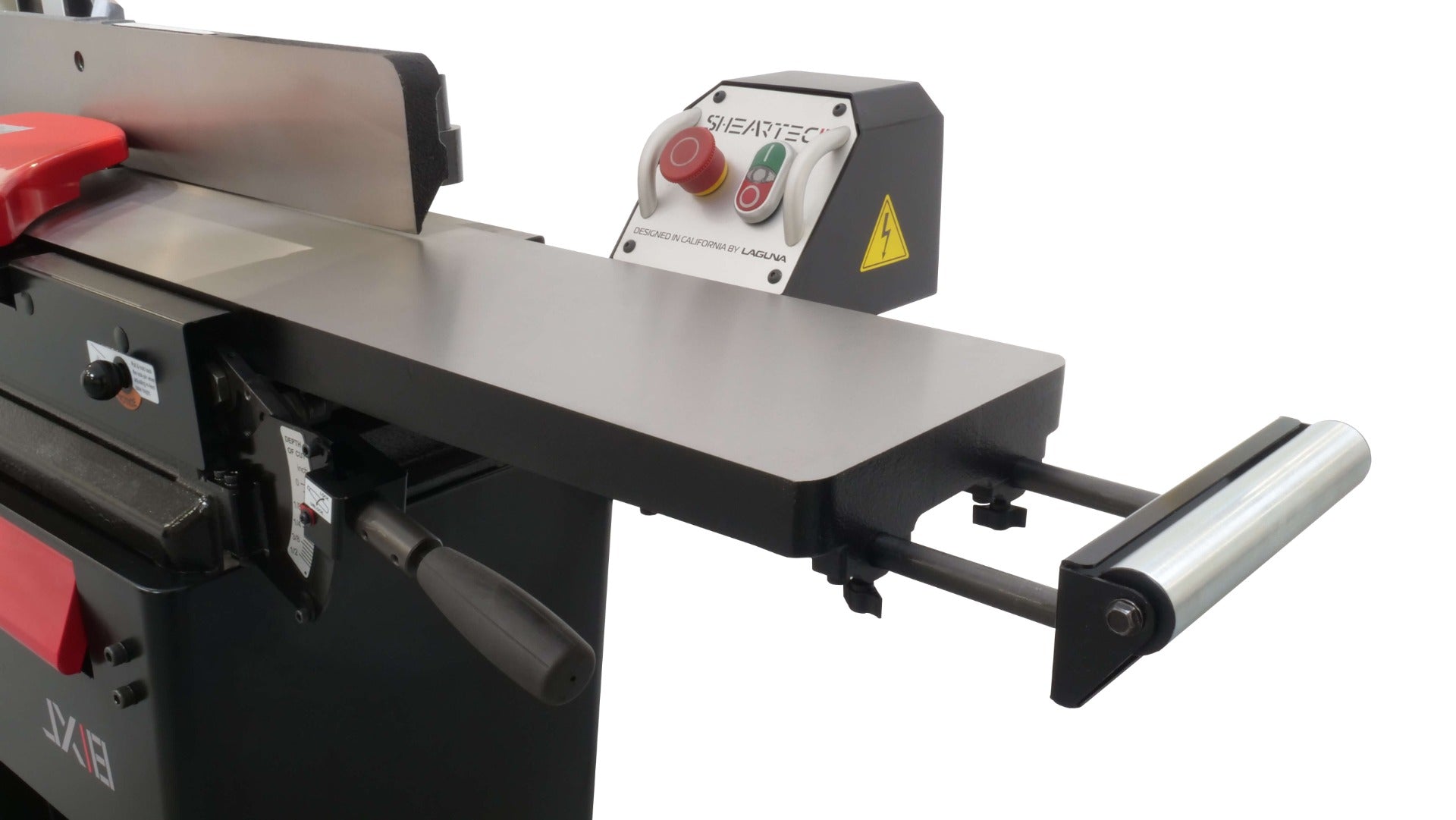

- In-feed Support Roller – Infeed tables are now fitted with pull-out support roller to help support longer
- ShearTec II Cutterhead – The ShearTec II cuttherhead comes as standard equipment on JX|8 ShearTec II Jointer.
- Built-In Wheels – No need to purchase a separate mobility

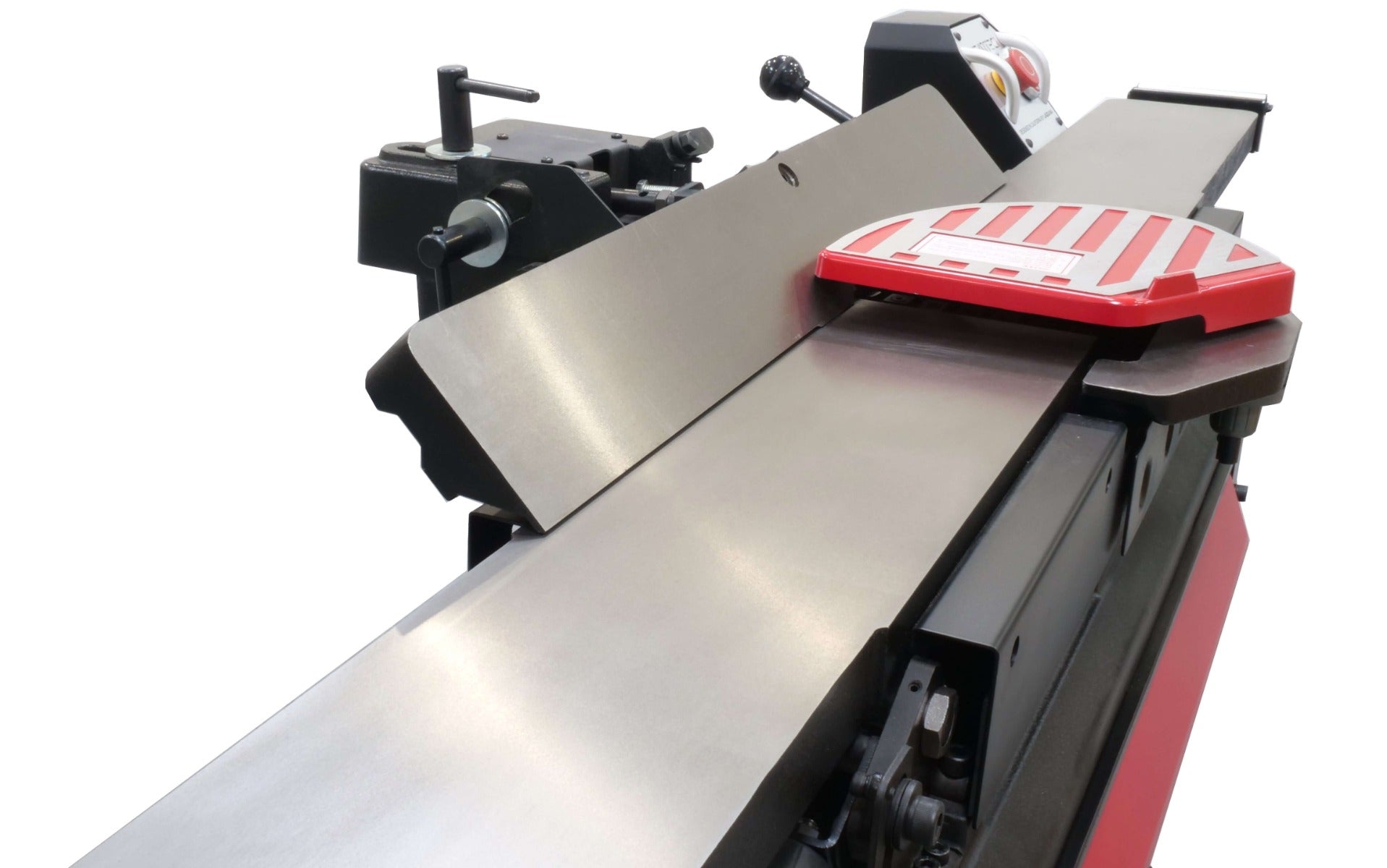

- Cast-Iron Tables and Fence

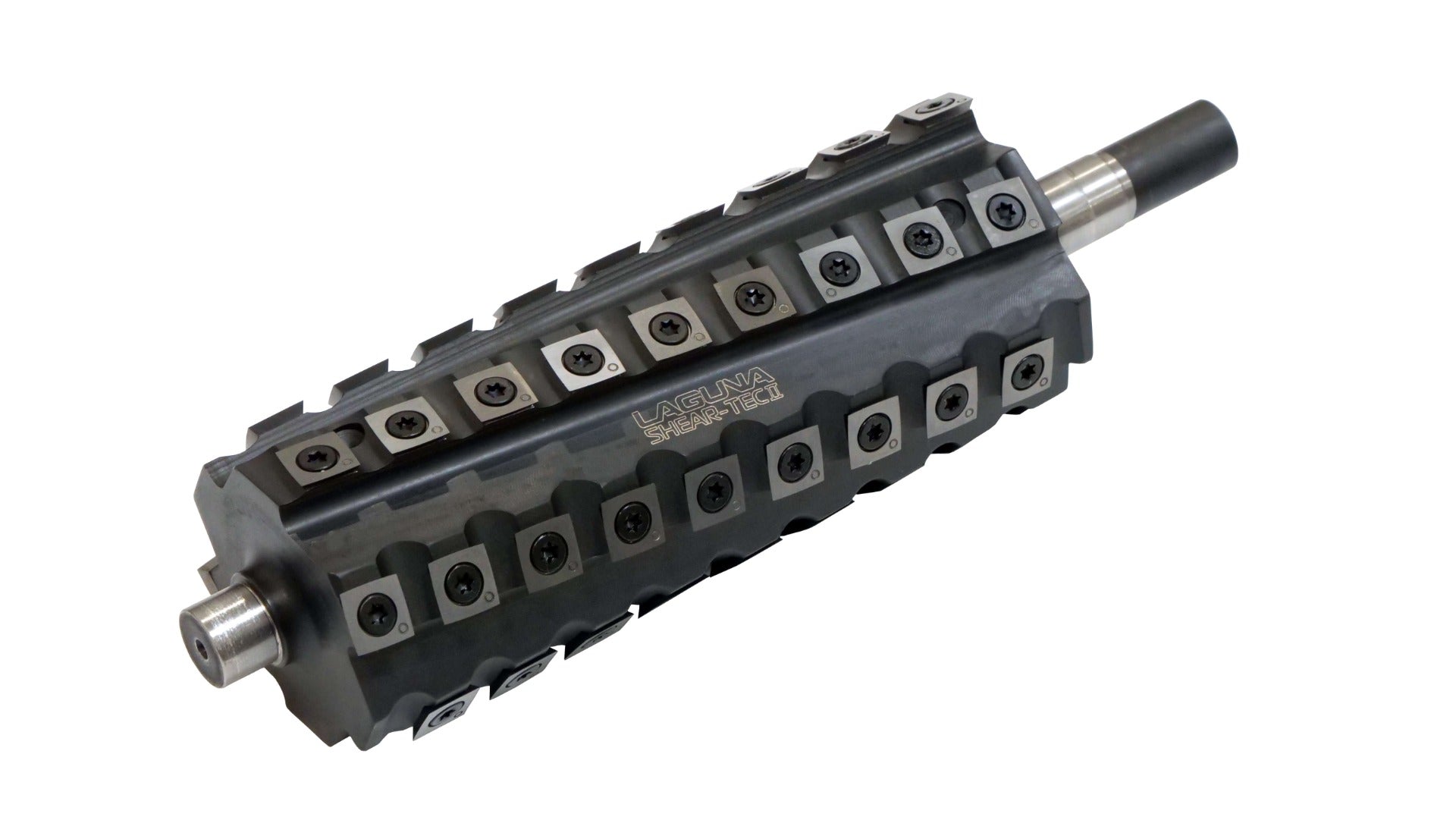

The ShearTec: II features 4-sided solid carbide inserts with a T-shoulder rather than a cone-shaped design, which helps prevent cracking of the inserts.

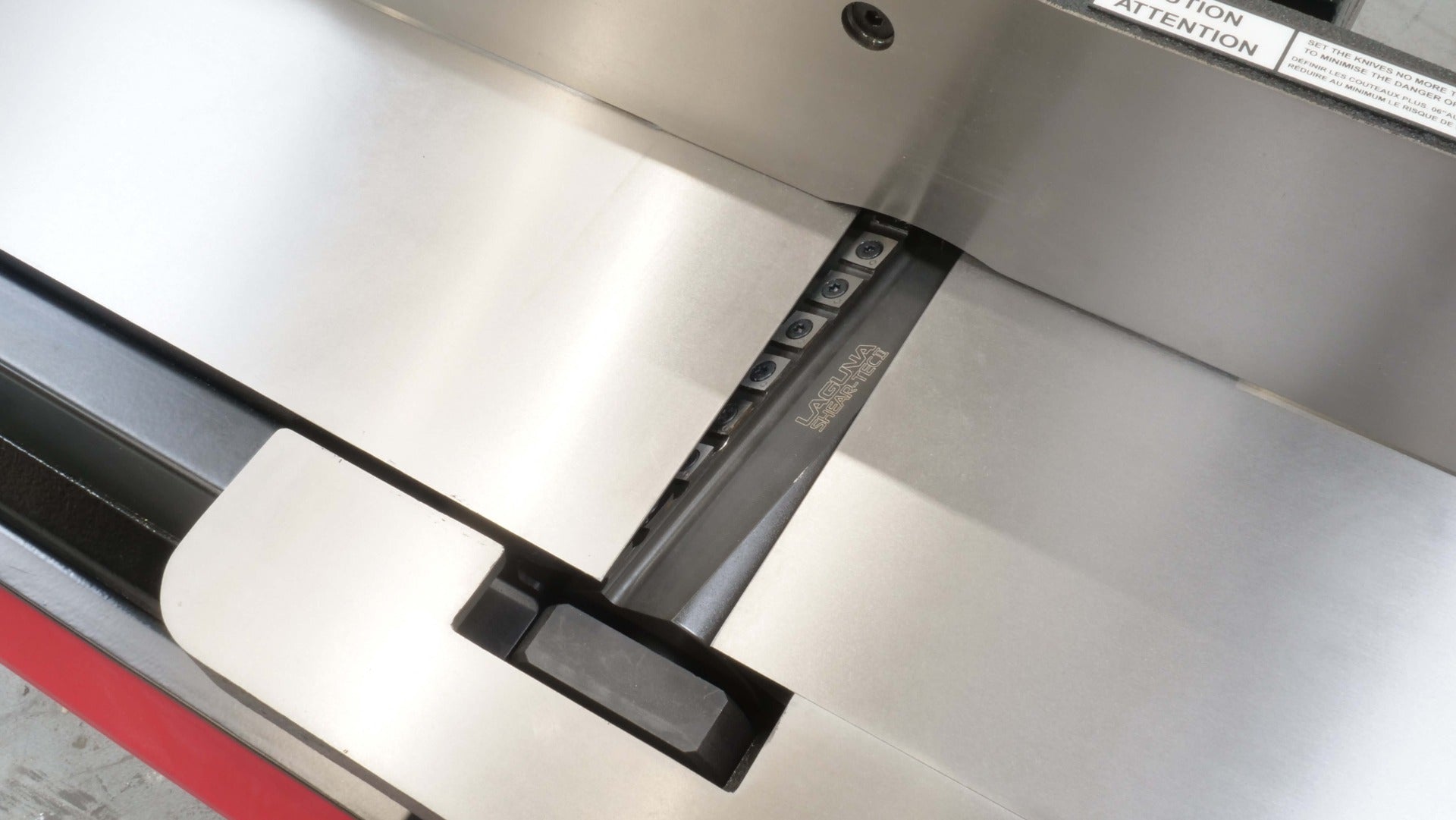

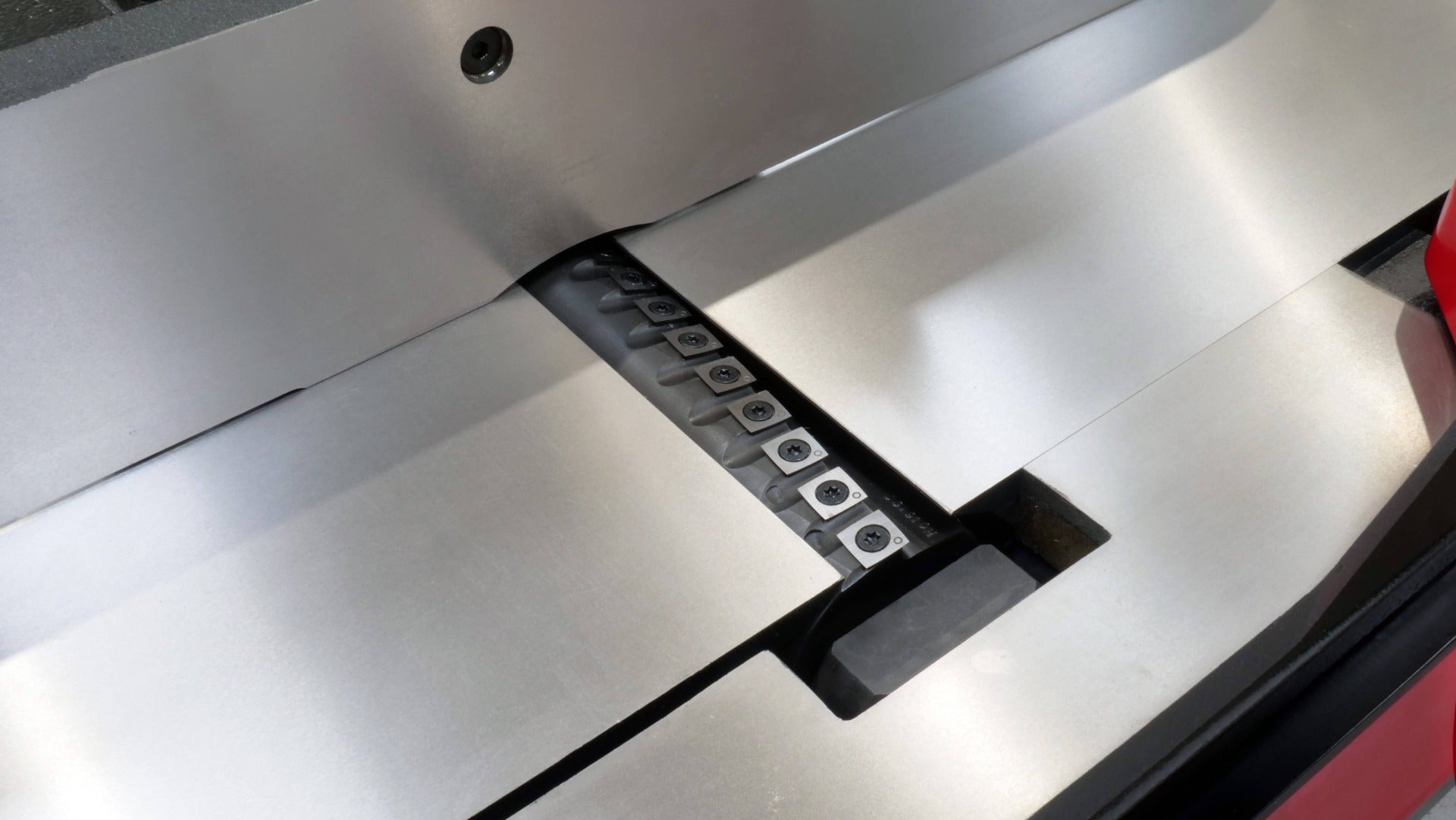

The ShearTec II cuttherhead comes as standard equipment on JX|8 ShearTec II Jointer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without need for a knife setting jig.
Specifications:
- Motor: 220V 3HP 1 Phase 60hz/12 Amp
- CSA: Yes
- Bed Size: 8″ x 72″
- Infeed Table Pull-Out Extension: 8″
- Rabbetting Capacity: 1/2″

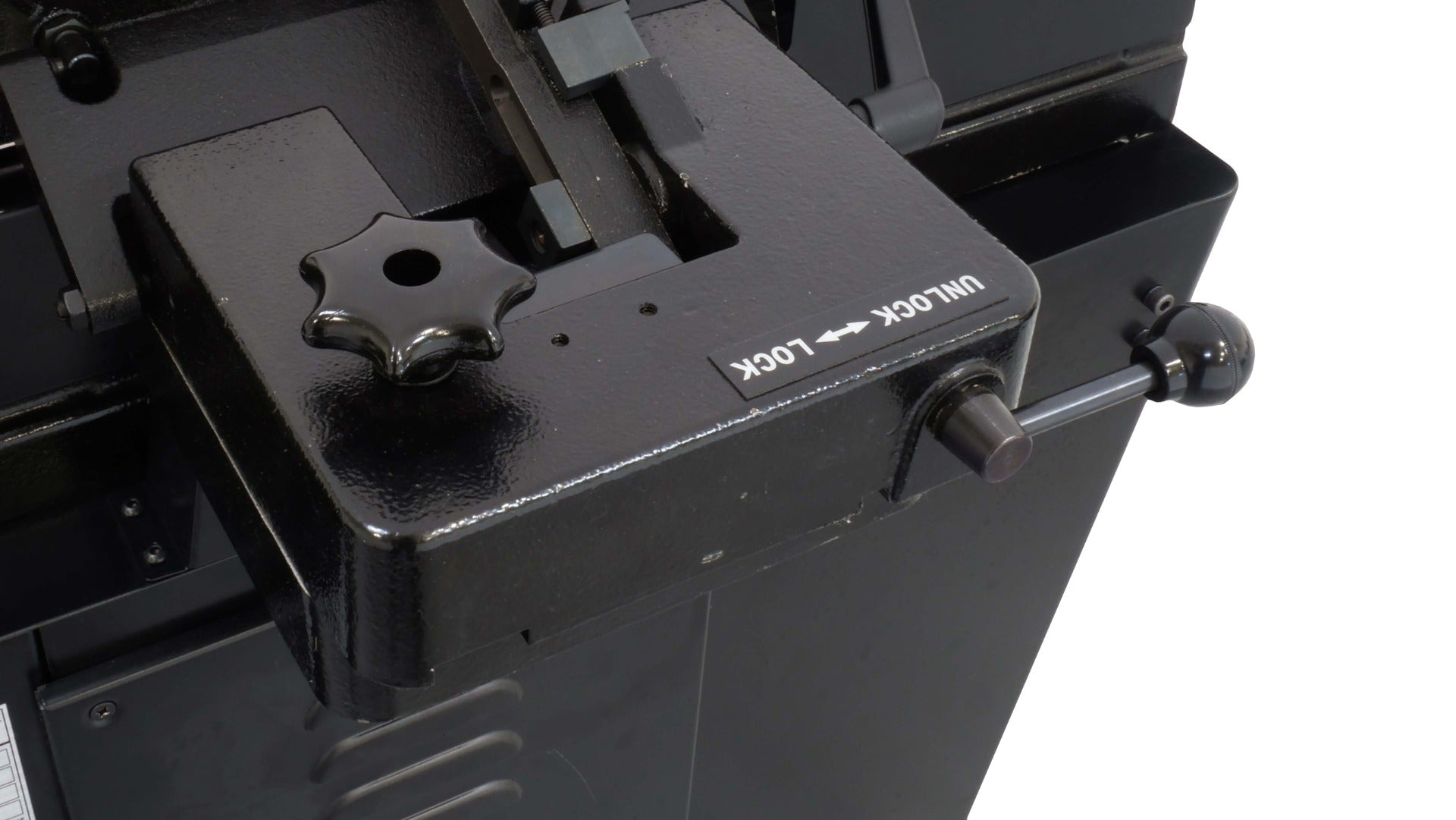

- Fence Size: 38″ x 4-3/4″ Cast Iron
- Fence Tilt: ±45/90°
- Max. Depth Of Cut: 1/8″
- Table Height From Floor: 31″
- Safety Bar Shut-Off: Yes
- Wheels Built-In: Yes
- Bracket To Mount Light: No
- 110V Outlet For Light: No
- Bracket To Mount Feeder: No
- Dust Port Diameter: 4″
- Cutterhead Insert #: 54 x 4-Sided Carbide, 6 Row
- Cutterhead RPM: 5500
- Cutterhead Diameter: 3-1/8″
- Bed Adjustment: Parallelogram
- Dimensions Set Up (Approx): 75-1/2″ x 26-1/2″
- Dimensions Shipping: 76″ x 25″ x 41″
- Net/Ship Weight: 380/495 Lbs. (1 Box)
Specifications
Specifications
| Laguna Tools JX|8 Pro ShearTecII, 8in Jointer, 2 pcs MJ8x72P-0130 | |
| APPLICATION | Wood Working |
| Brand | Laguna Tools |
| CUTTER DIAMETER | 3.13 in |
| DEPTH | 26.5 in |
| HORSEPOWER | 3.0 HP |
| MAKE | ShearTec |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL TYPE | Jointers |
| VOLTAGE | 208V-240V 1Ph |
| WIDTH | 75.5 in |
