The Mafell Arunda 80B Maxi Dovetail Milling Template Set is a versatile joinery system designed for medium-sized timber framing components. Pair-matched with the Mafell LO 65 Ec router, this template set allows carpenters and timber builders to construct strong, self-tightening wood-to-wood dovetail joints quickly and efficiently.

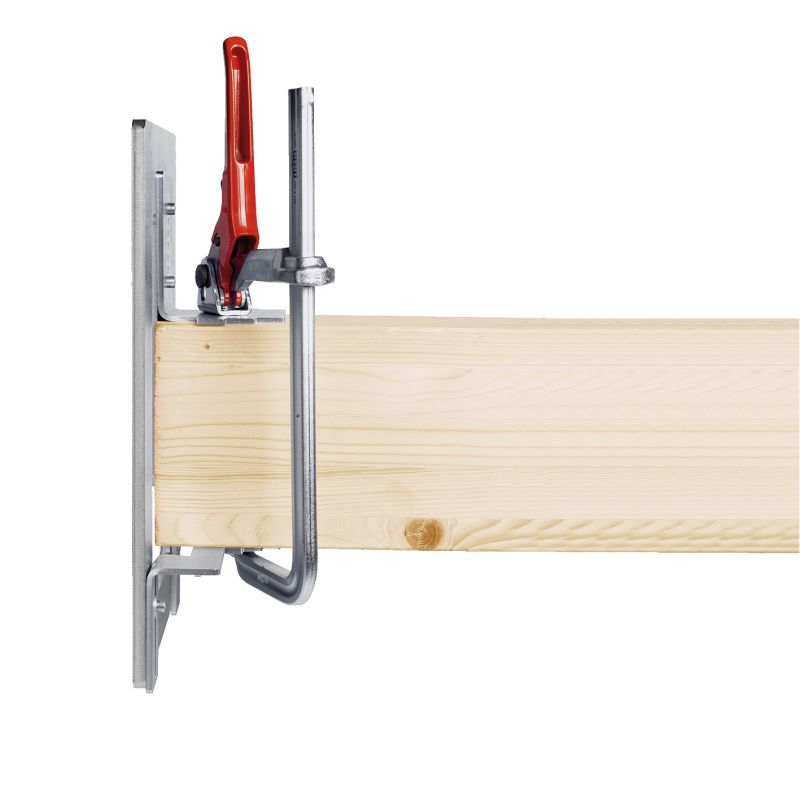

The system works by clamping the tenon template to the beam end and the mortise template to the receiving timber. Guided by a precision guide ring, the router cuts matching profiles that slide together cleanly without requiring steel brackets, plates, or exposed fasteners.

The Maxi package supplies the complete tooling array—including the dovetail router cutter with reversible blades, guide collar, depth setting gauge, and lever clamps—stored in a heavy-duty wooden box.

Features & Benefits

• Medium Timber Capacity: Optimized for timber cross-sections from 80 to 140 mm in width and up to 290 mm in height.
• All-Wood Joinery: Creates self-locking dovetail joints with high mechanical resistance without metal plates or hardware.
• Precision Alignment: Paired templates and setting gauge deliver consistent mortise and tenon alignment for fast job-site assembly.
• Complete Maxi Package: Includes router bit, guide ring, setting gauge, clamps, and wooden transport case.
• Heavy-Duty Build: Machined aluminum templates engineered for demanding structural woodworking environments.

What's Included

• (1) Mortise Milling Template
• (1) Tenon Milling Template
• (1) Arunda Dovetail Router Cutter with Reversible Blades
• (1) Router Guide Ring
• (1) Setting Gauge
• (2) Lever Clamps
• (1) Wooden Transport Case

This model is designed for timber widths from 80 to 140 mm. For smaller timber dimensions, choose the Arunda 60-1B Maxi; for larger timber cross-sections, choose the Arunda 120B Maxi or 160B Maxi.
