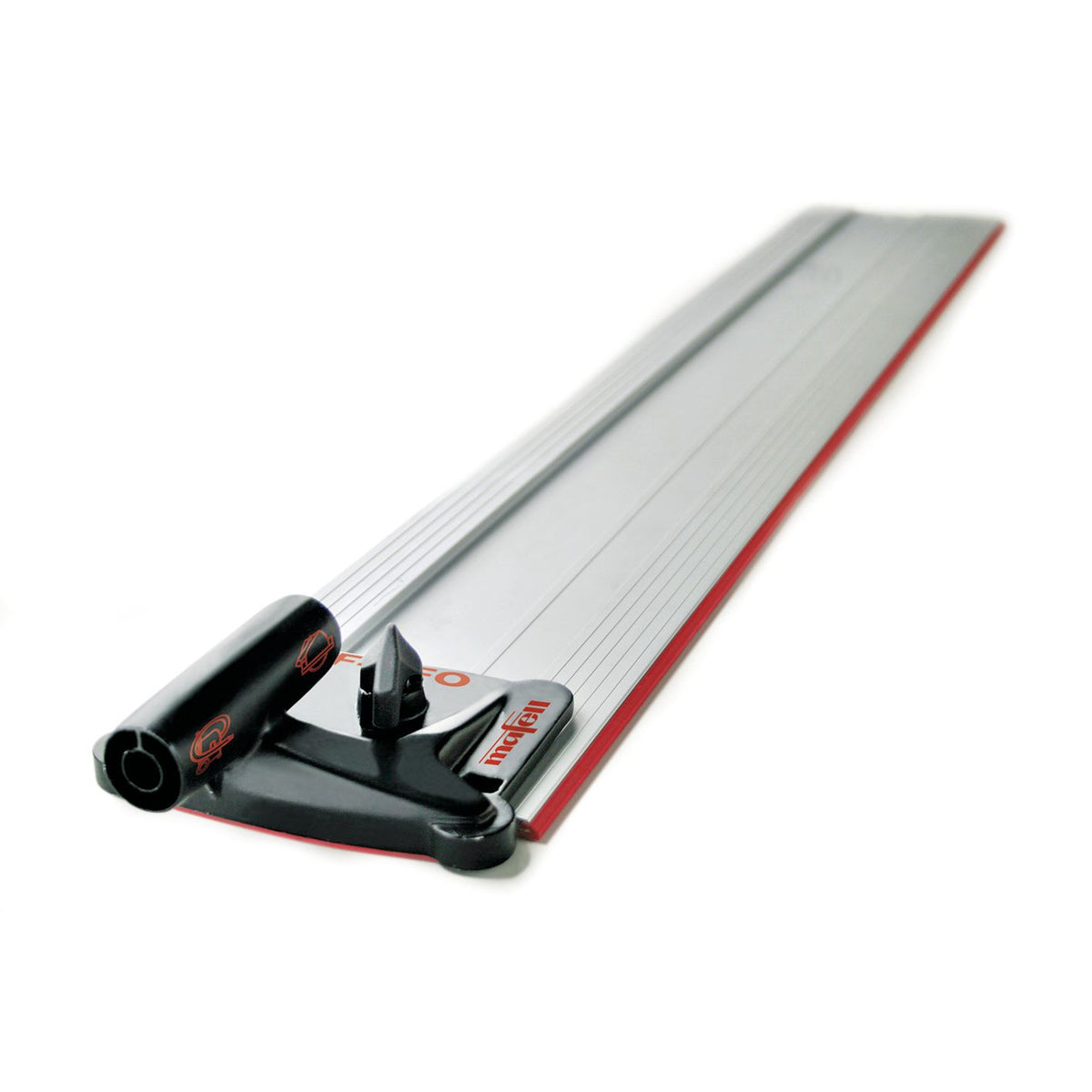

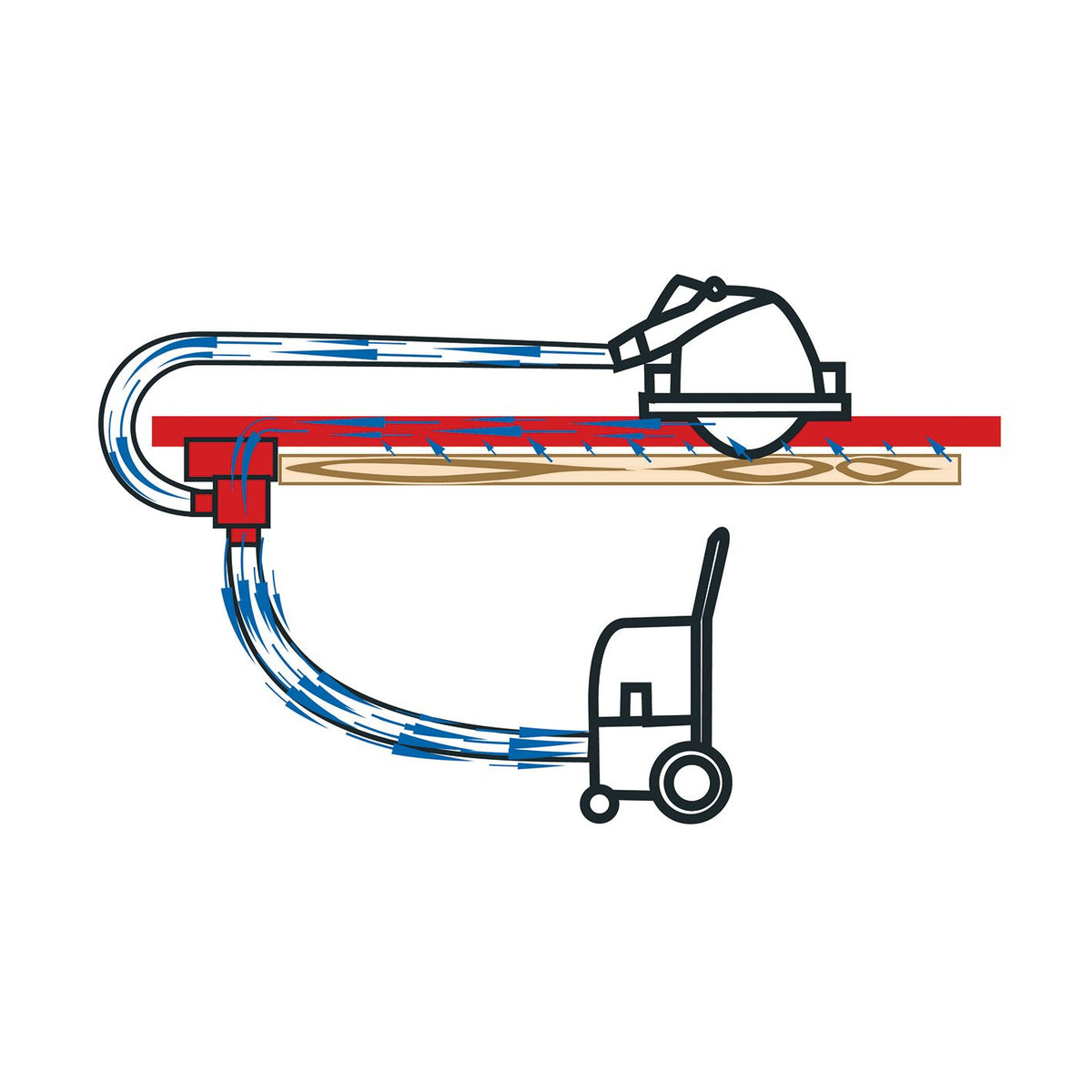

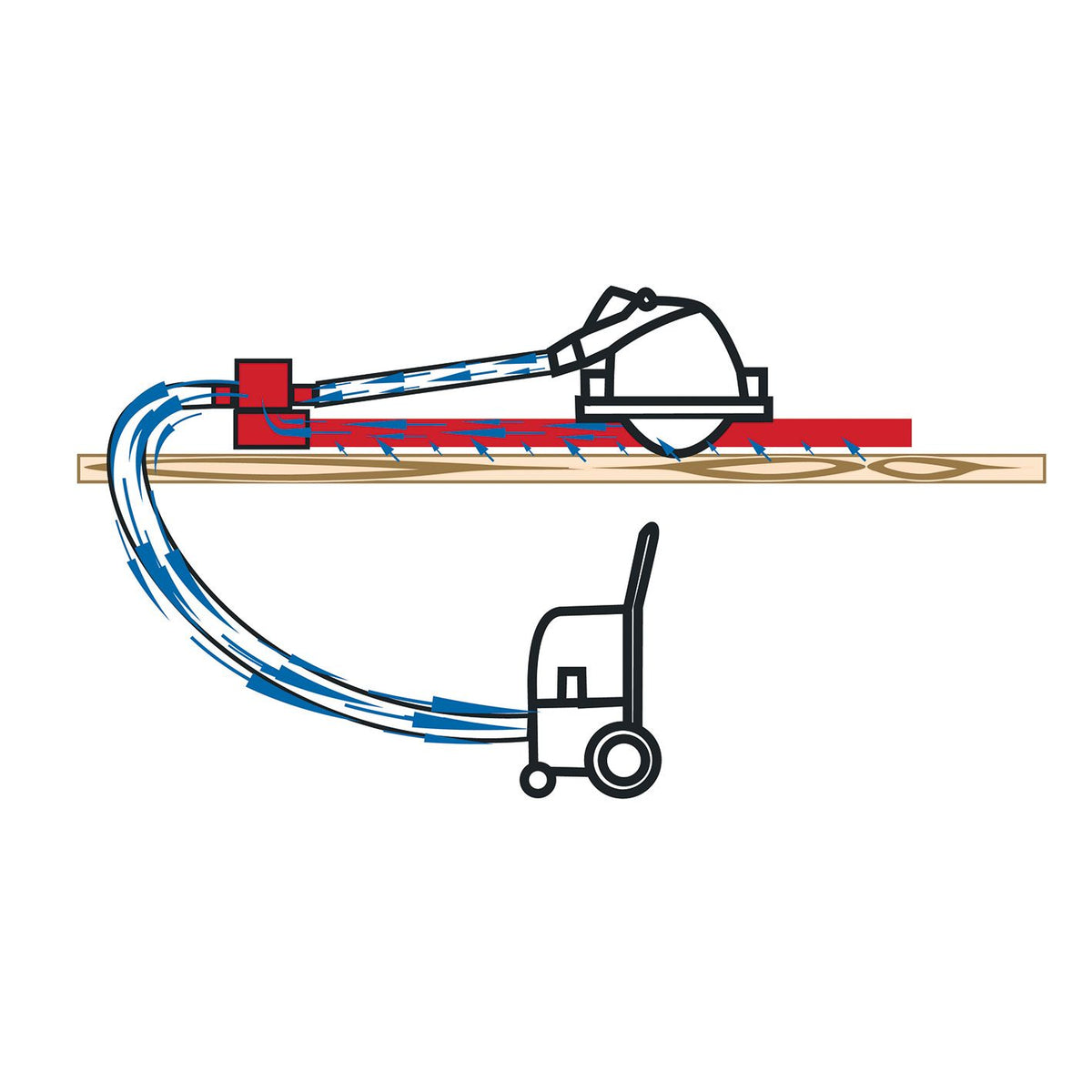

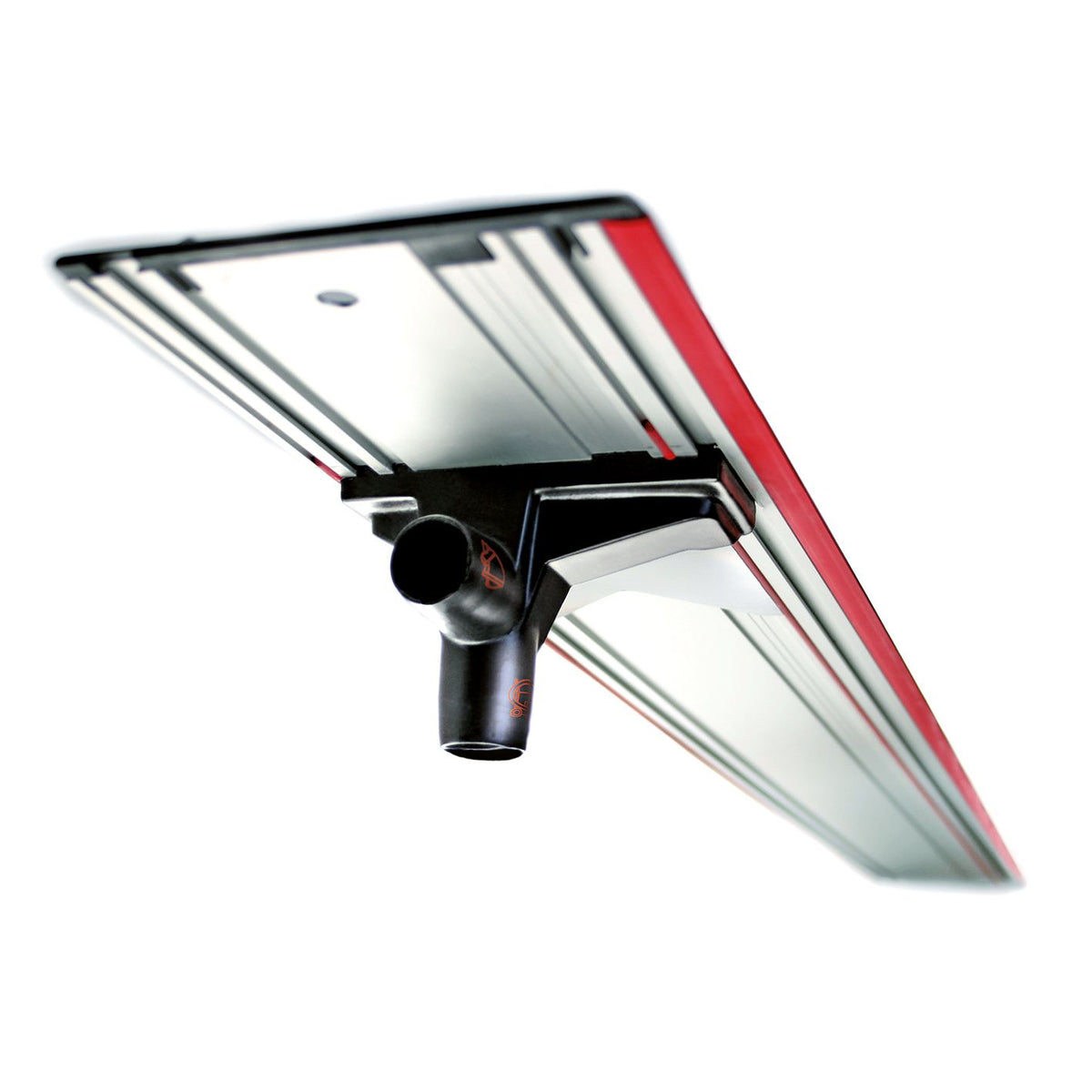

The Mafell Aerofix F-AF 1 uses the suction force produced by a connected dust extractor to generate a vacuum underneath the rail profile, securely clamping the 1.3m guide rail to the workpiece. This eliminates the need for traditional mechanical clamps that can obstruct the cutting path, providing a clear surface for quick, accurate sawing and routing operations on sheet goods and smooth surfaces.

By securing the rail from underneath, operators gain faster setup times and edge-to-edge cutting capability without repositioning clamps. The included 5.2 ft. flexible hose connects to the system's adapters, and the rail can be seamlessly joined with standard Mafell F 160, F 110, and F 80 guide rails using an optional connecting piece for longer cuts.

Features & Benefits

• Vacuum Clamping: Utilizes dust extractor suction to secure the rail to workpieces of any thickness without top-side clamps.
• Unobstructed Cutting: Leaves the top of the rail completely clear, preventing saw motors or cords from snagging on clamp heads.
• Modular Design: Connects to other Mafell F-series guide rails via the F-VS connecting piece for extended cutting lengths.
• Exact Calibration: The splinter guard rubber is cut by the saw blade on the first pass, calibrating exactly to the kerf to prevent tear-out.
• Broad Compatibility: Works with a wide range of Mafell track saws, plunge saws, cross-cutting systems, and routers.

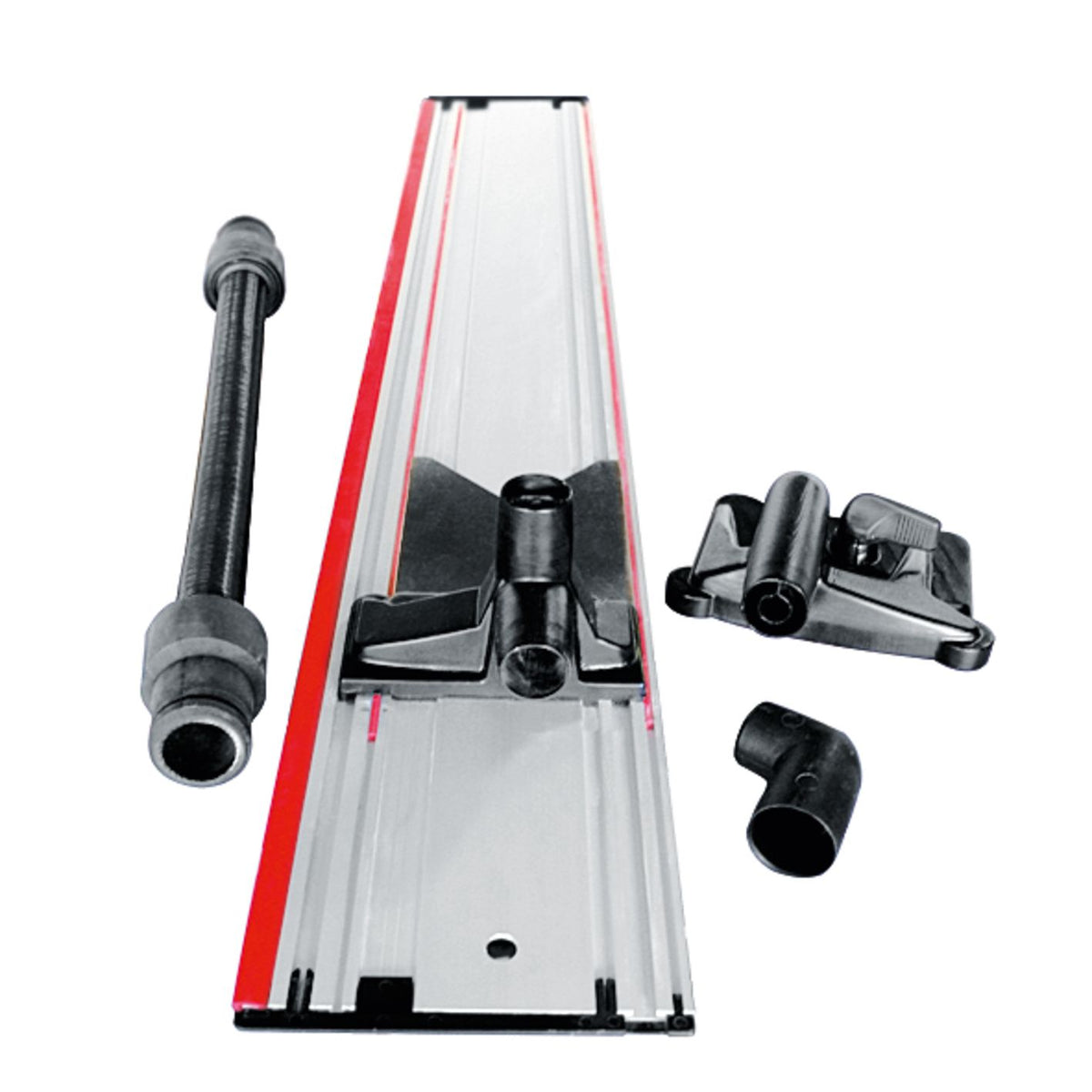

What's Included

• (1) 1.3m Aerofix F-AF 1 Guide Rail
• (1) Set of Adapters for Above and Underneath Rail
• (1) Flexible Hose (5.2 ft.)
