Lamello Cabineo 12 Cabinet Connectors, White, 500 Count 186320
Lamello Cabineo 12 Cabinet Connectors, White, 500 Count 186320
Couldn't load pickup availability
Details
Details

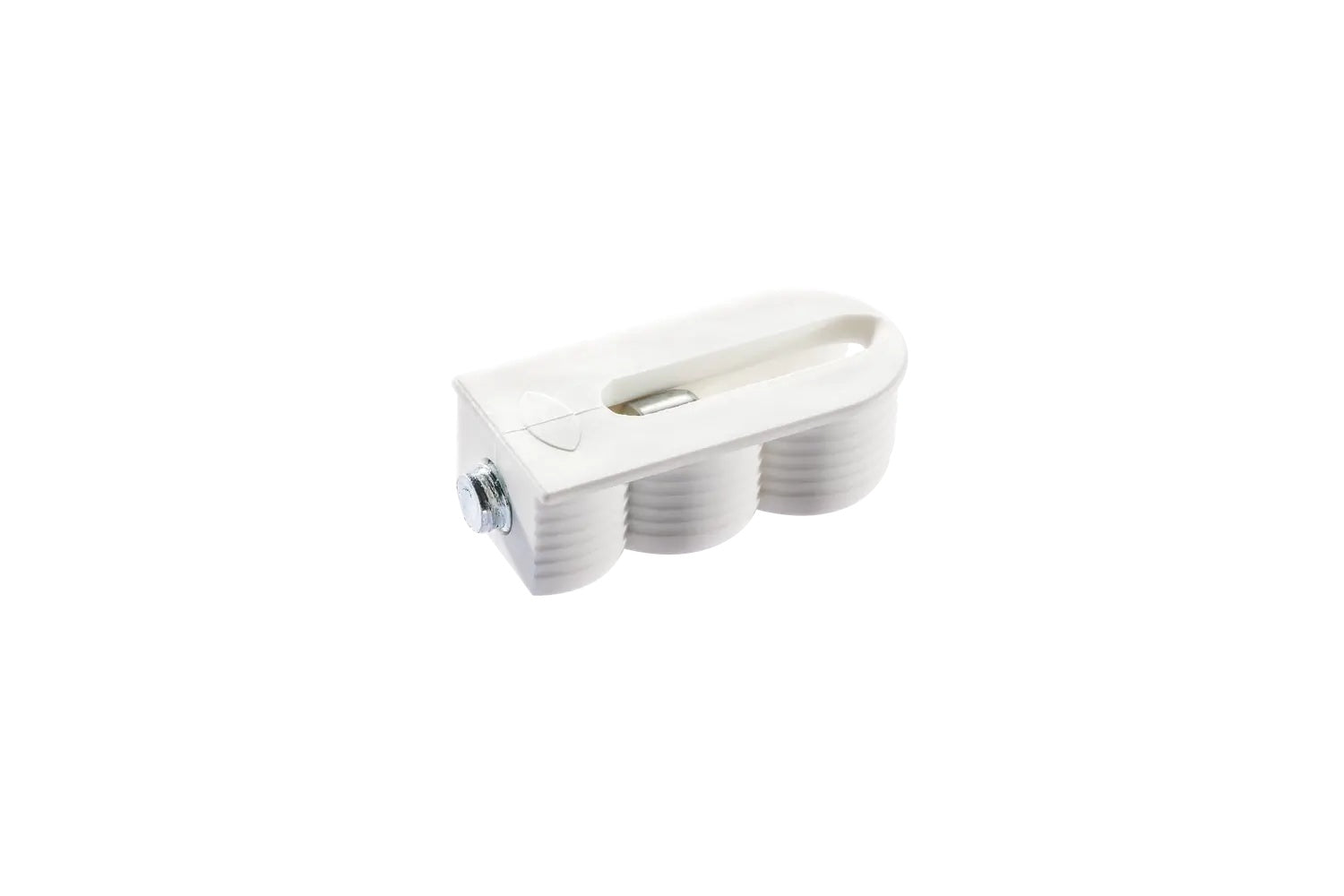

Lamello Cabineo 12 Cabinet Connectors, White, 500 Count 186320
The Lamello Cabineo 12 is a one-piece cabinet connector that revolutionizes production by eliminating the need for edge drilling. Designed for use with any CNC machine, the Cabineo 12 requires only surface machining before being pressed into the panel. It connects components with a pre-assembled 12mm screw that drives into a 5mm hole, providing very high clamping force without the need for dowels. The Cabineo 12 is the ideal solution for creating strong, fast, and efficient corner joints in materials from 13mm thick.
Features & Benefits

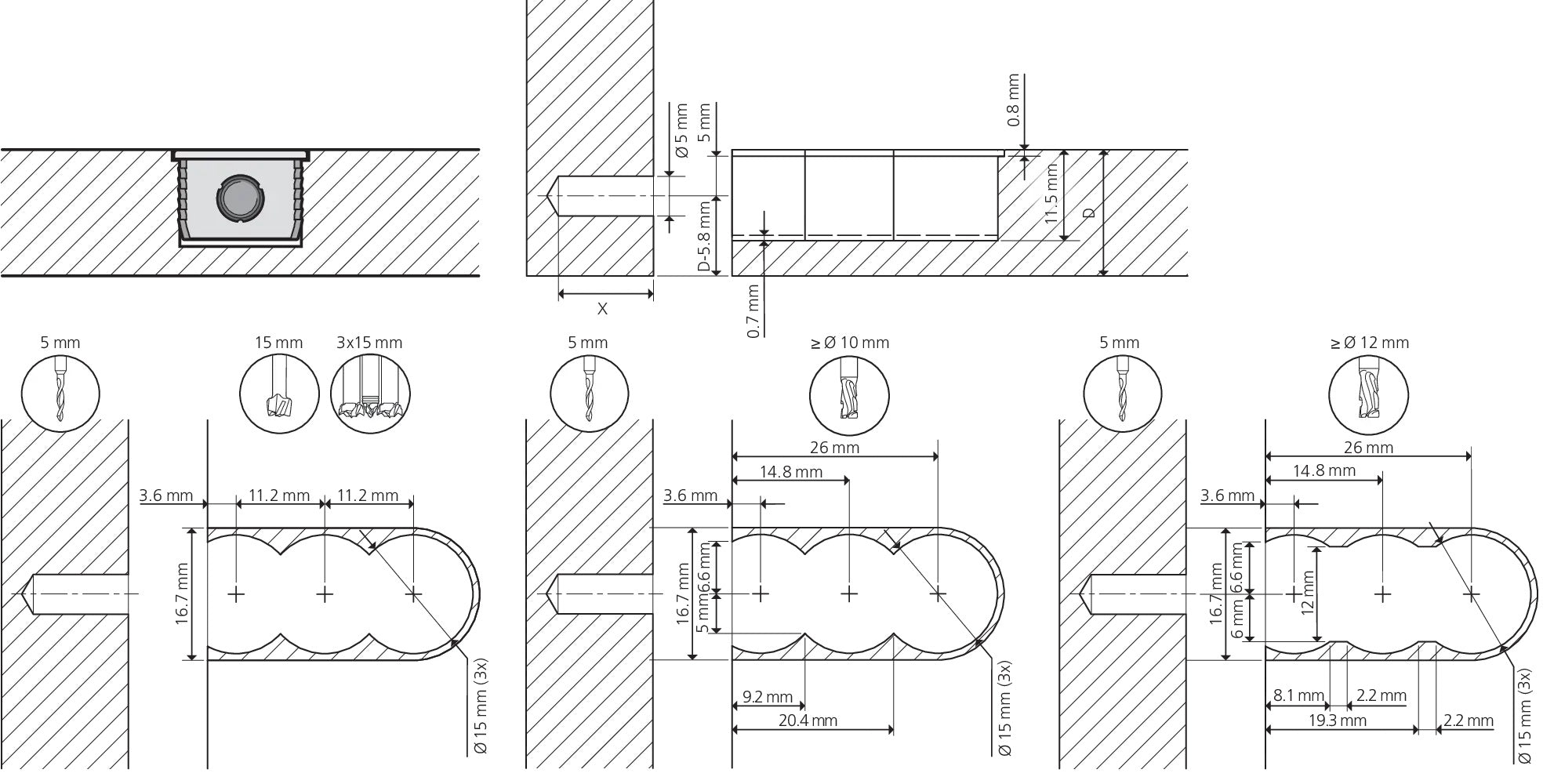

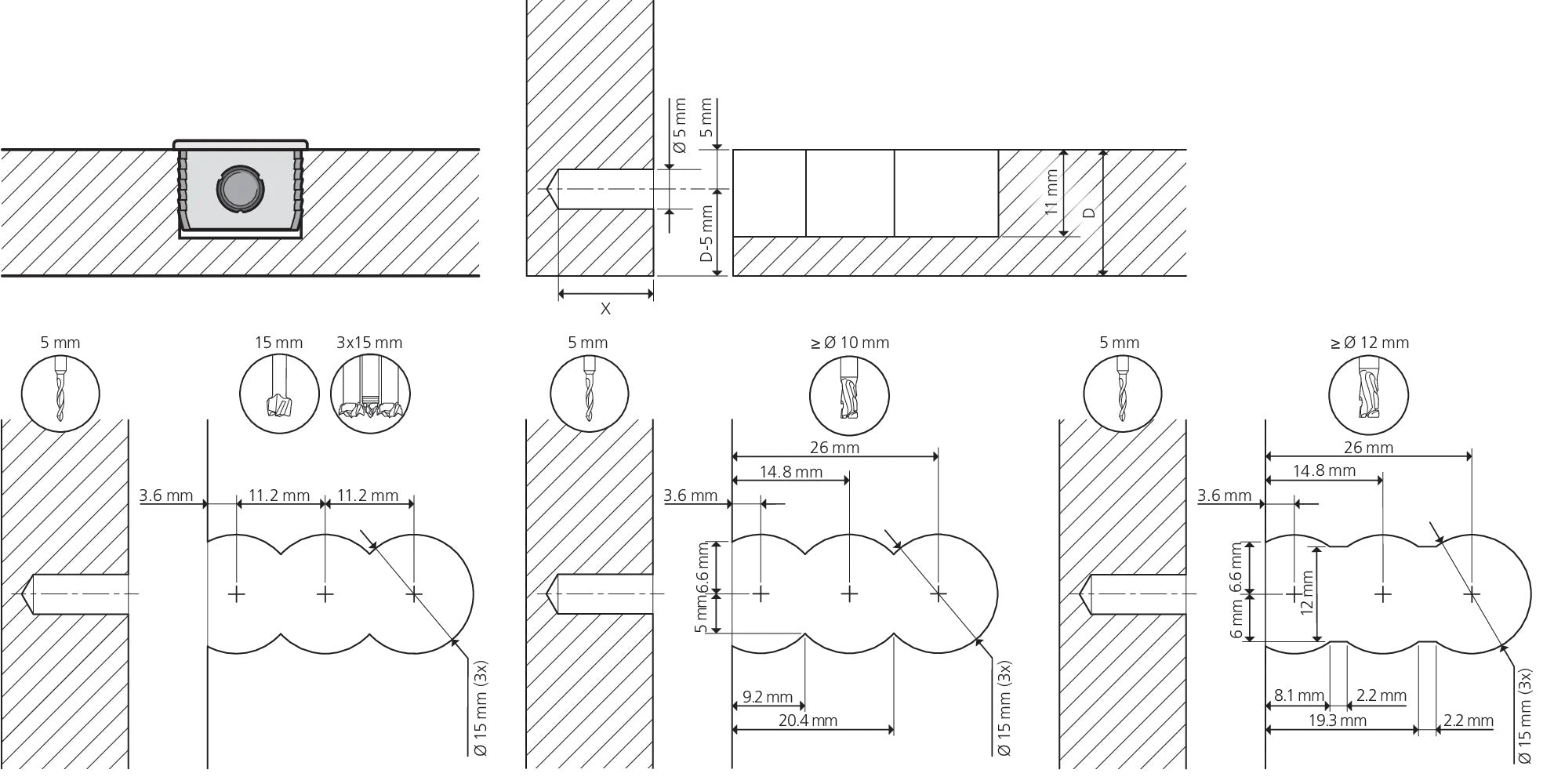

- No Edge Drilling Required: Machined entirely on the surface, making it compatible with any 3-axis CNC router.
- Very High Clamping Force: The longer 12mm screw provides a powerful connection, creating strong and stable carcasses without dowels.
- Extremely Fast Assembly: One-piece connectors are pre-installed and then quickly fastened with a cordless drill on-site.
- Flat-Pack Friendly: With no protruding parts, components can be stacked and transported efficiently.
Applications
- Ideal for corner joints in cabinet and carcass manufacturing.
- General furniture construction, built-in cupboards, and kitchen units.
- Perfect for any CNC-based cabinet manufacturing workflow.
Specifications

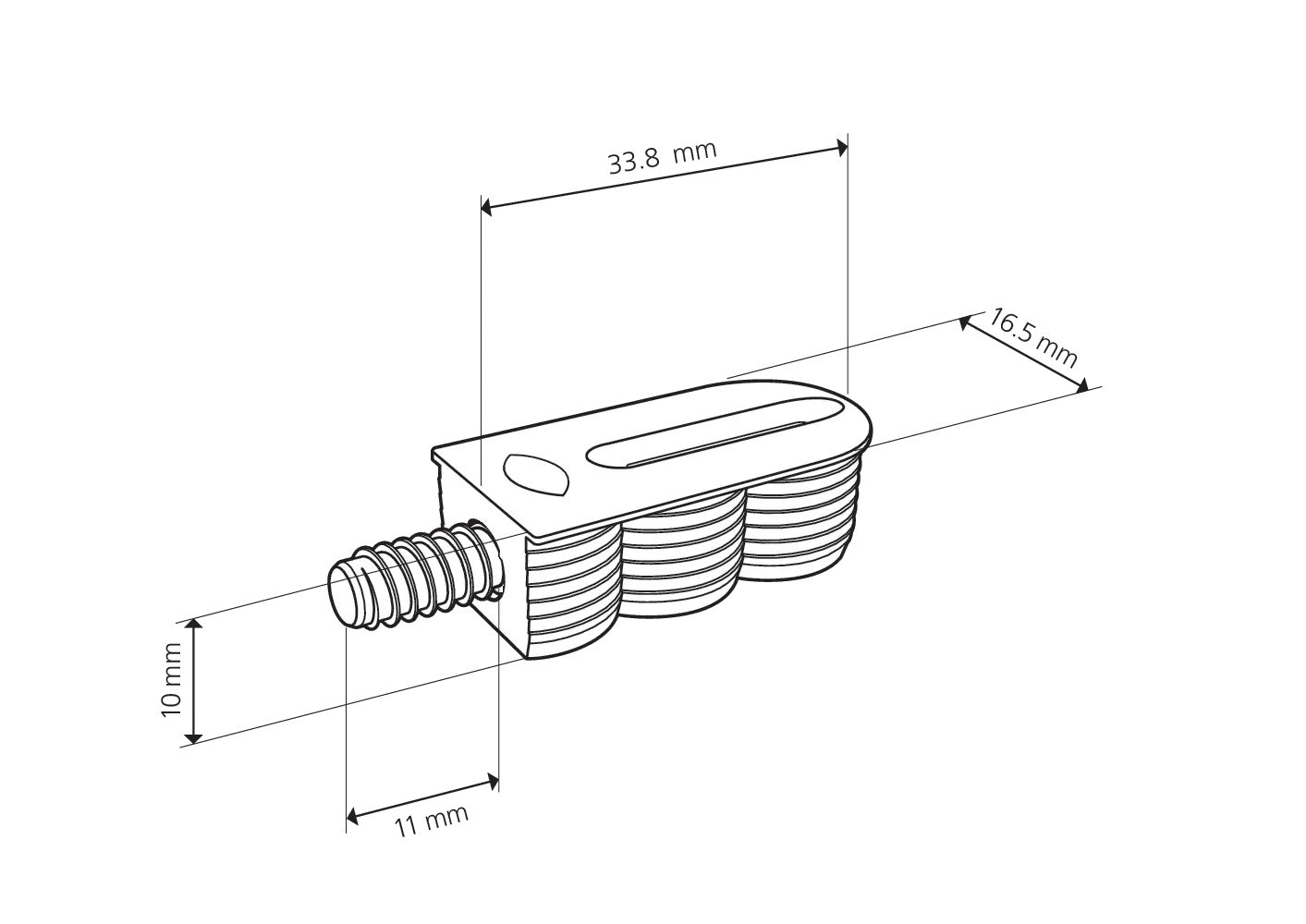

- Size: 33.8 x 16.5 x 10.8 mm
- Screw Length: 12 mm
- Minimum Surface Thickness: 13 mm
- Material: Fiberglass-reinforced plastic
- Tensile Strength (Particle Board): ~820 N (≈ 184 lbs)
- Quantity: 500 pieces
Specifications
Specifications
| Lamello Cabineo 12 Cabinet Connectors, White, 500 Count 186320 | |
| Brand | Lamello |
