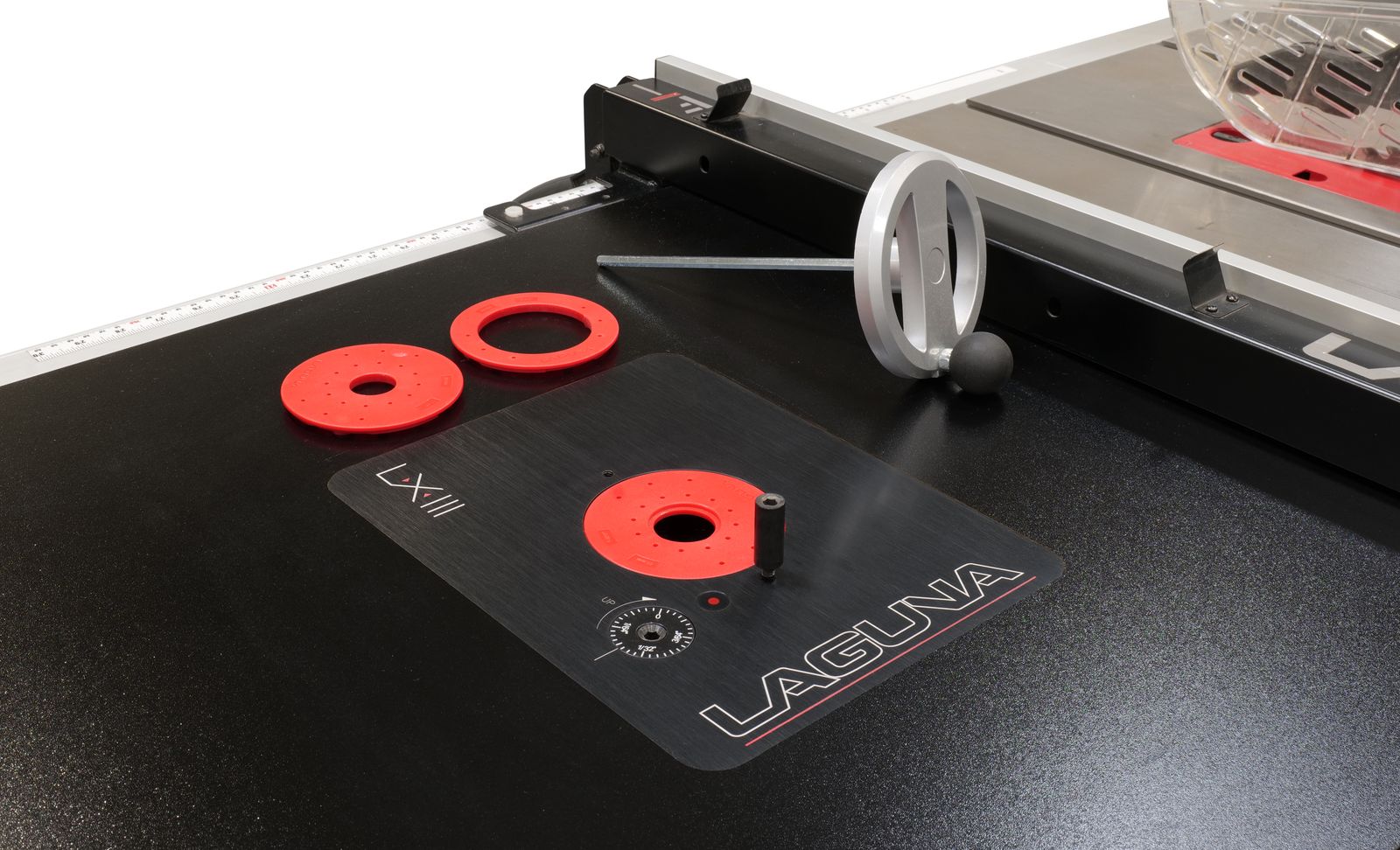

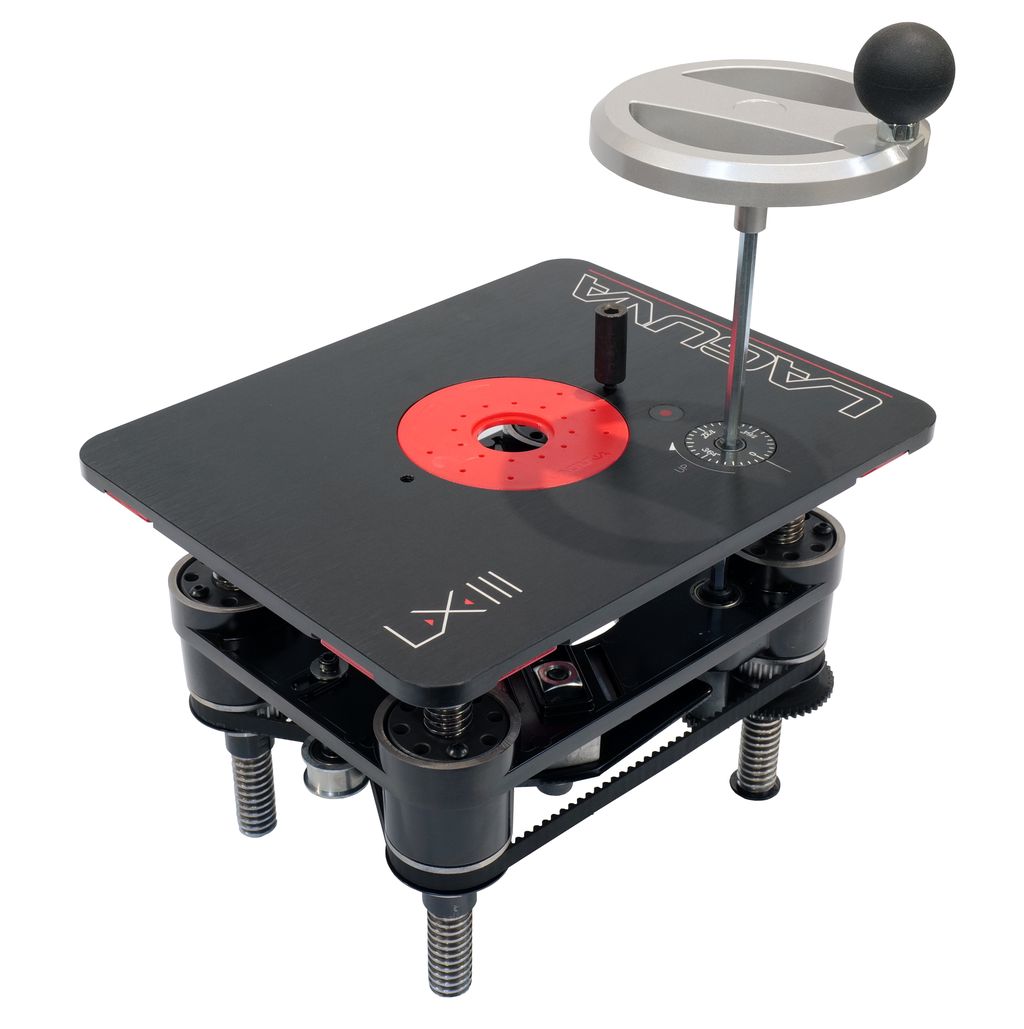

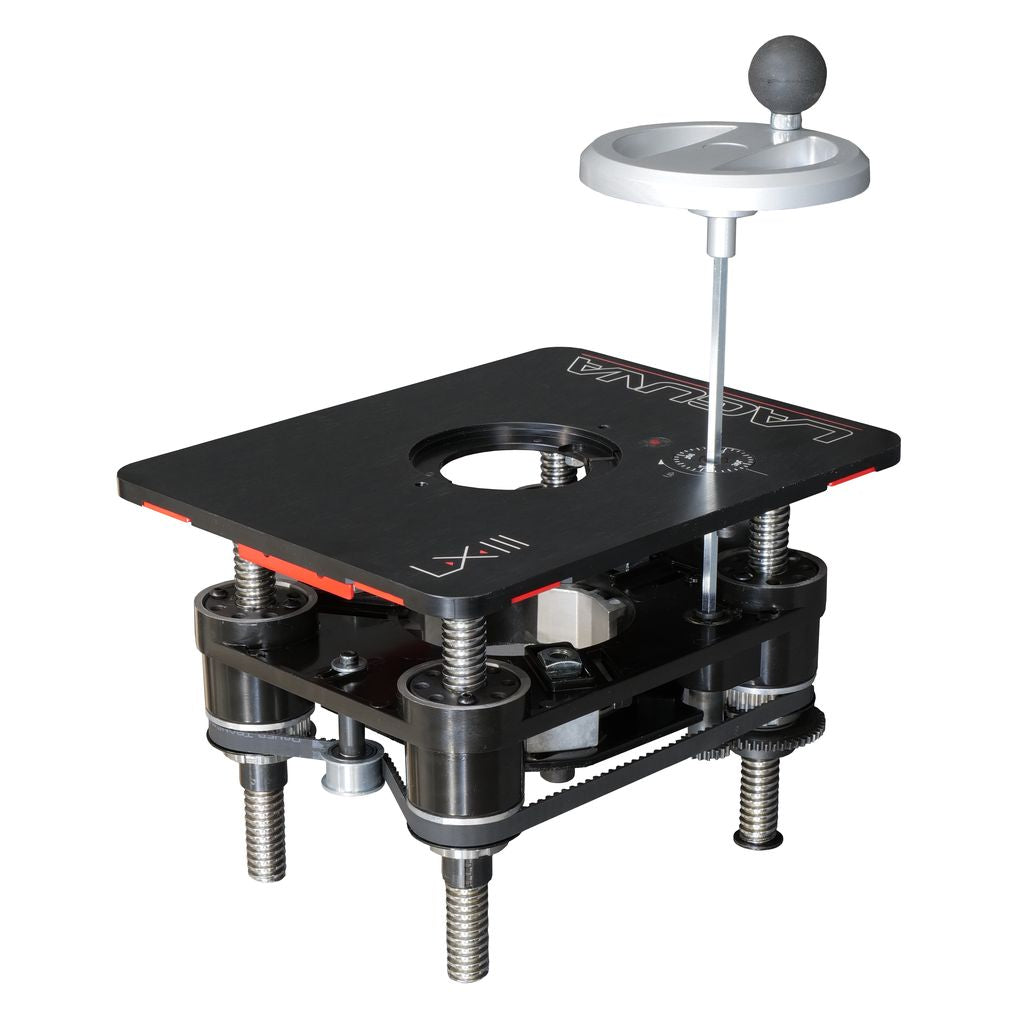

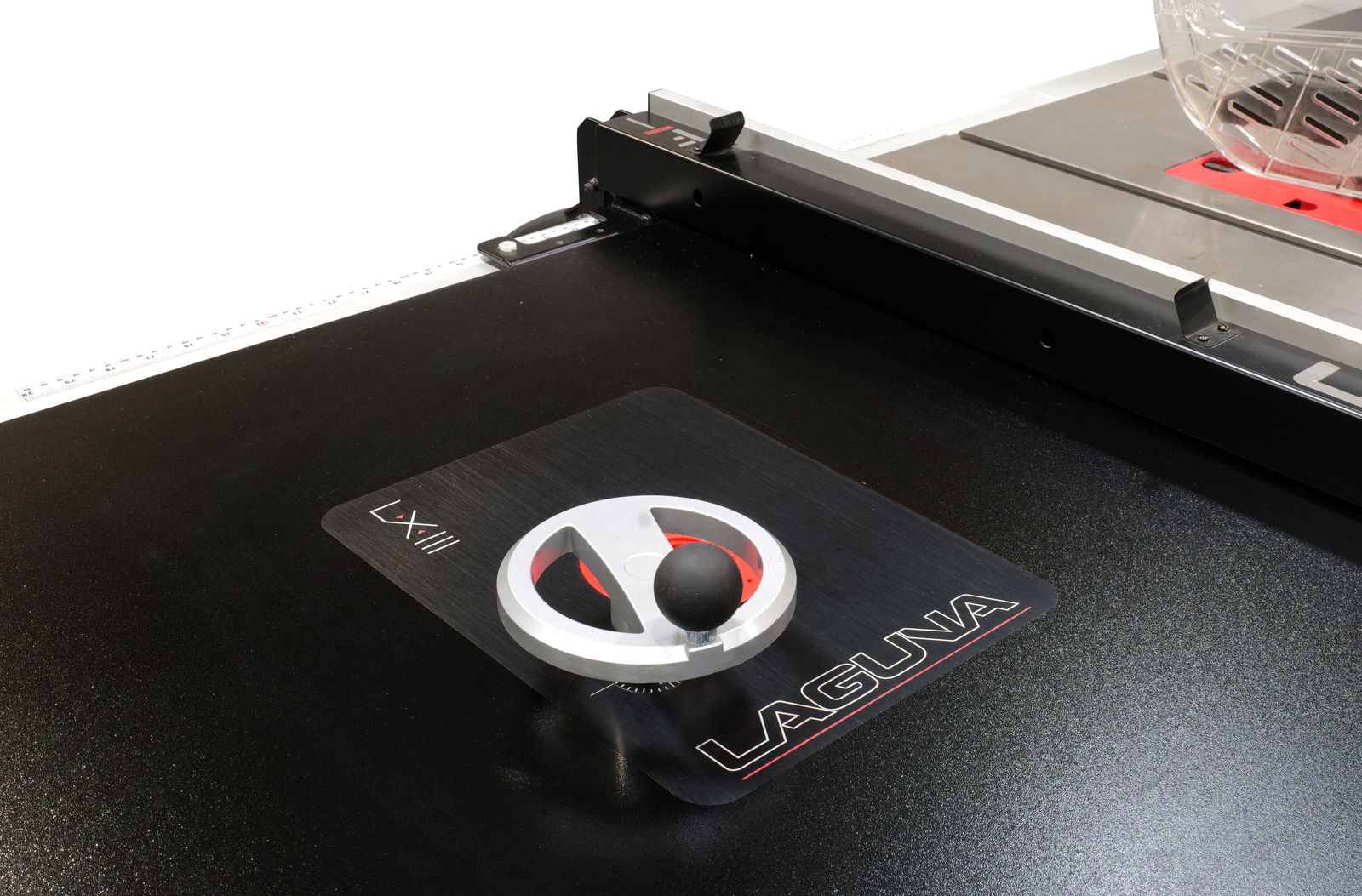

The Laguna LX3 Router Lift is engineered for precision, stability, and ease of use. Featuring four heavy-duty ¾” Acme-threaded posts synchronized by a maintenance-free timing belt, it delivers smooth and accurate height adjustments. Its adjustable and locking clamping jaws accept all popular round-body routers from 3″ to 4.3″ diameter without the need for inserts or repositioning bolt-on jaws. The robust 3/8″ thick top plate is drilled and tapped from the bottom to keep the top surface as clean as possible, making it easier to feed material across without gathering sawdust in unnecessary holes in the surface.  The edge tension guides and built-in leveling plates ensure secure, vibration-free operation for consistent, professional results.

Build Quality & Design

• Heavy -duty 3/8″ thick precision-machined top plate for maximum stability for routers of any size.
• Anodized surface finish for low friction and durability.

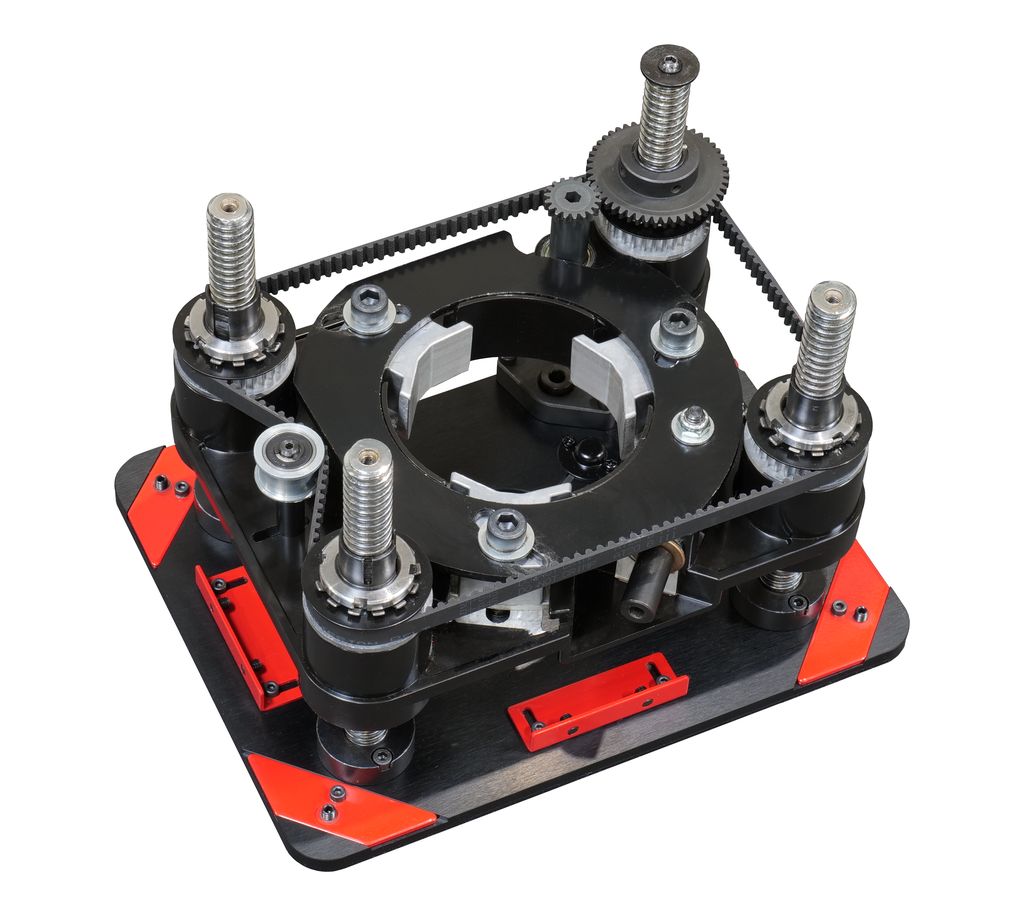

• Acme-threaded lift posts positioned at all four corners for smooth, precise operation even with heavy routers.
• Anti-backlash lift system does not require lock to maintain precise positioning.
• Three telescoping router jaws with faceted surfaces adjust quickly to securely hold routers from 3″ to 4.3″ diameter without spacers or bolt-on blocks that require a size chart to fit specific routers.
• Built-in leveling and side tension mechanisms for precise table fitment.

Versatility & Compatibility

• Standard 9.25′ x 11-3/4″ size fits all standard sized router tables.
• Fits nearly all round-bodied routers from 3″ to 4.3″ in diameter.
• 4.9″ vertical lift capability provides a greater range of use.
• Cast lift plate with wider support posts minimizes deflection and vibration for consistent routing accuracy.

Ease of Use

• 5″ diameter handwheel delivers quicker and more precise adjustment than standard hand cranks.
• Magnetic insert rings are released with the press of a button, making bit and insert changes tool-free and quicker.
• Easy to read scale plate with zeroing capability.  1 turn equals 1/16″ lift.
• Self centering clamping system with telescoping clamps instead of a flexing lock collar. Clamps lock in position after adjustment to securely hold the router.

Stability & Vibration Control

• Four-post support design ensures balanced lifting and eliminates racking
• Adjustable leveling plates/pads for perfectly flush table alignment
• Edge tension (gap adjustment) guides eliminate play in table opening
• Vibration-resistant design for smoother cuts and improved finish quality

Safety & Control

• Includes starter pin support for safe freehand routing operations
• Secure locking clamp system with bolt reinforcement to prevent router movement
• Stable lift mechanism reduces risk of sudden shifts during operation
• Designed for controlled, predictable bit height adjustments

Precision Operation

• 4-corner support and lifting offers a higher level of precision and less vibration even with larger routers.
• Adjustable leveling plates and edge tension rails are one-time settings that precisely fit the lift to your table opening to eliminate vibration, unwanted movement, or the need to unscrew the lift from the table for a router change.
• Micro-adjustment capability with precision increments on scale plate.  1/512″ lift per increment (~.002″)

Included Components & Accessories

• Multiple insert rings (1″, 1-3/16″, 2-5/8″) for versatility
• Handwheel with knob for precise adjustments
• Starter pin for guided routing operations
• Allen key for setup and adjustments
