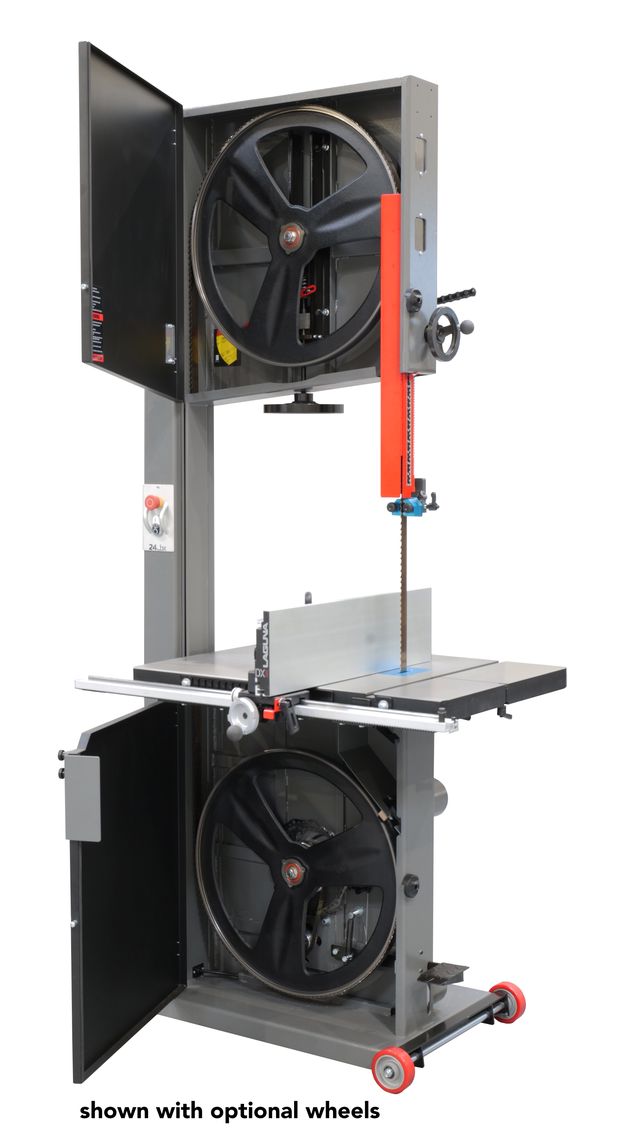

Laguna Tools 24" Resaw Bandsaw 24|BX 5HP 1Ph 220V with DriftMaster Fence DXIII MBAND24BX
Laguna Tools 24" Resaw Bandsaw 24|BX 5HP 1Ph 220V with DriftMaster Fence DXIII MBAND24BX
Couldn't load pickup availability
Details
Details
Laguna Tools 24" Resaw Bandsaw 24|BX 5HP 1Ph 220V with DriftMaster Fence MBAND24BX

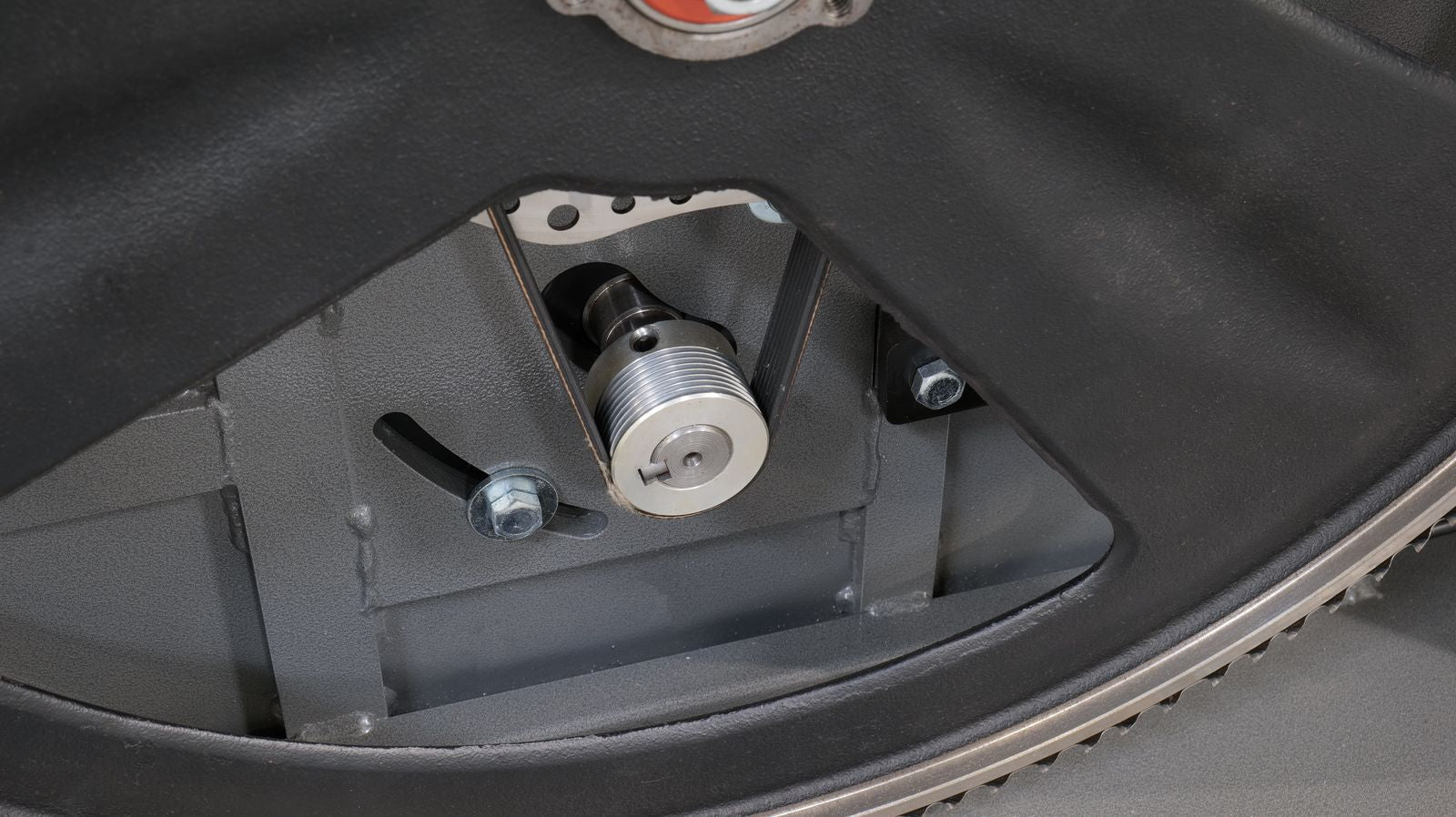

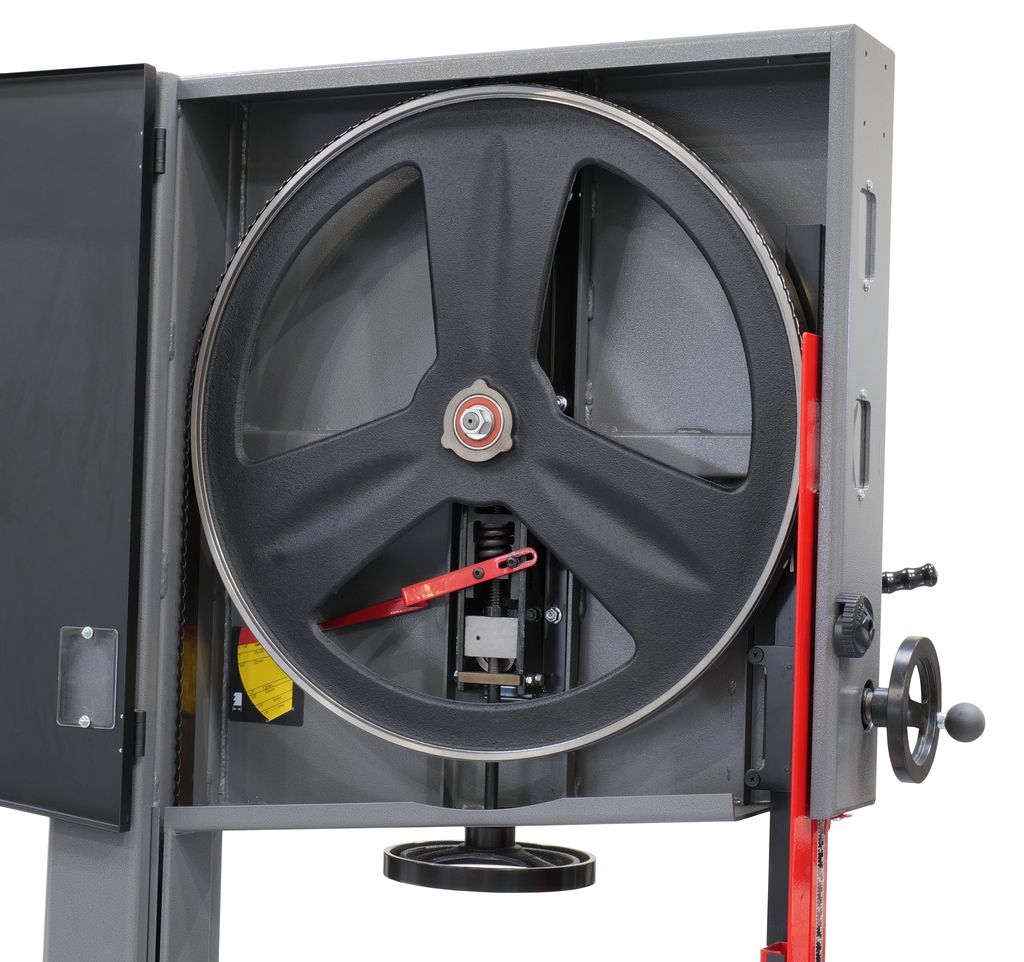

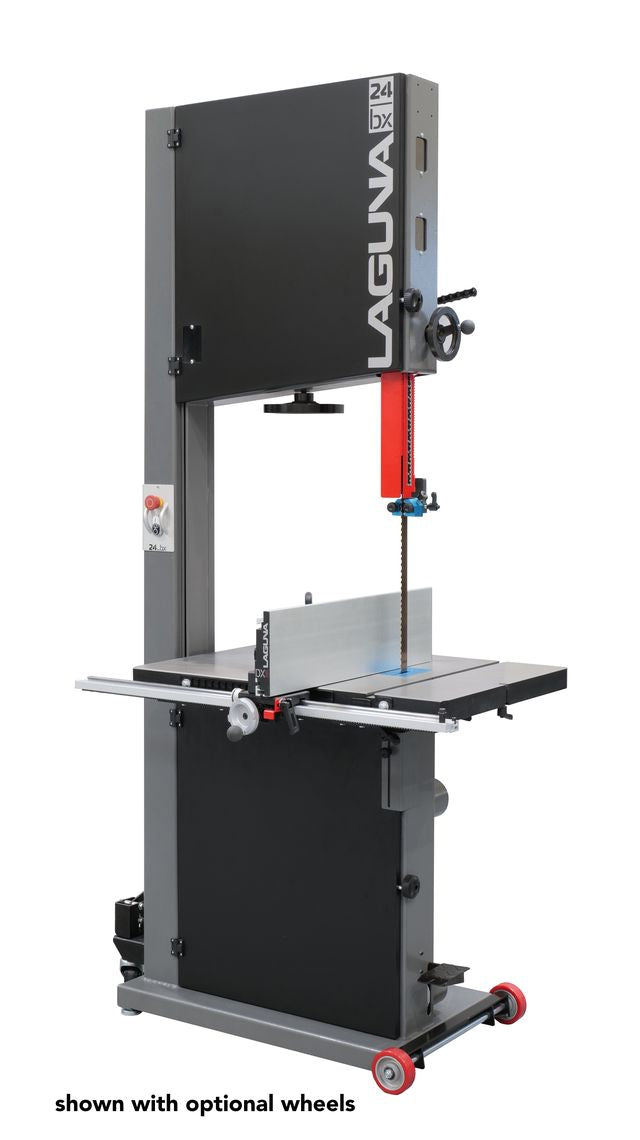

The Laguna 24|BX Bandsaw fills out the Classic Series lineup with truly massive capacities and luxury features designed for the professional woodworker. As the largest in the BX series, it boasts best-in-class capabilities with a 24-inch resaw height and a 24-inch throat, allowing for the processing of large timber and veneers with ease. The precision-balanced cast-iron flywheels are driven by a robust 5 HP induction motor, providing the necessary torque to power through the toughest jobs in the shop.
Standard on the 24|BX is the popular DX3 DriftMaster Fence System, providing exceptional precision and control. This dual-mode fence allows for manual adjustments or fine-tuning via the handwheel, making it perfect for drift compensation. Additional premium features include a foot-pedal actuated disc brake for quick stops, dual dust collection ports to keep your workspace clean, and a massive cast-iron table with air strut assist for easy tilting.
Features & Benefits
- Best-in-Class Capacity: 24" resaw height and 24" throat depth allow for handling large workpieces and thick veneers.

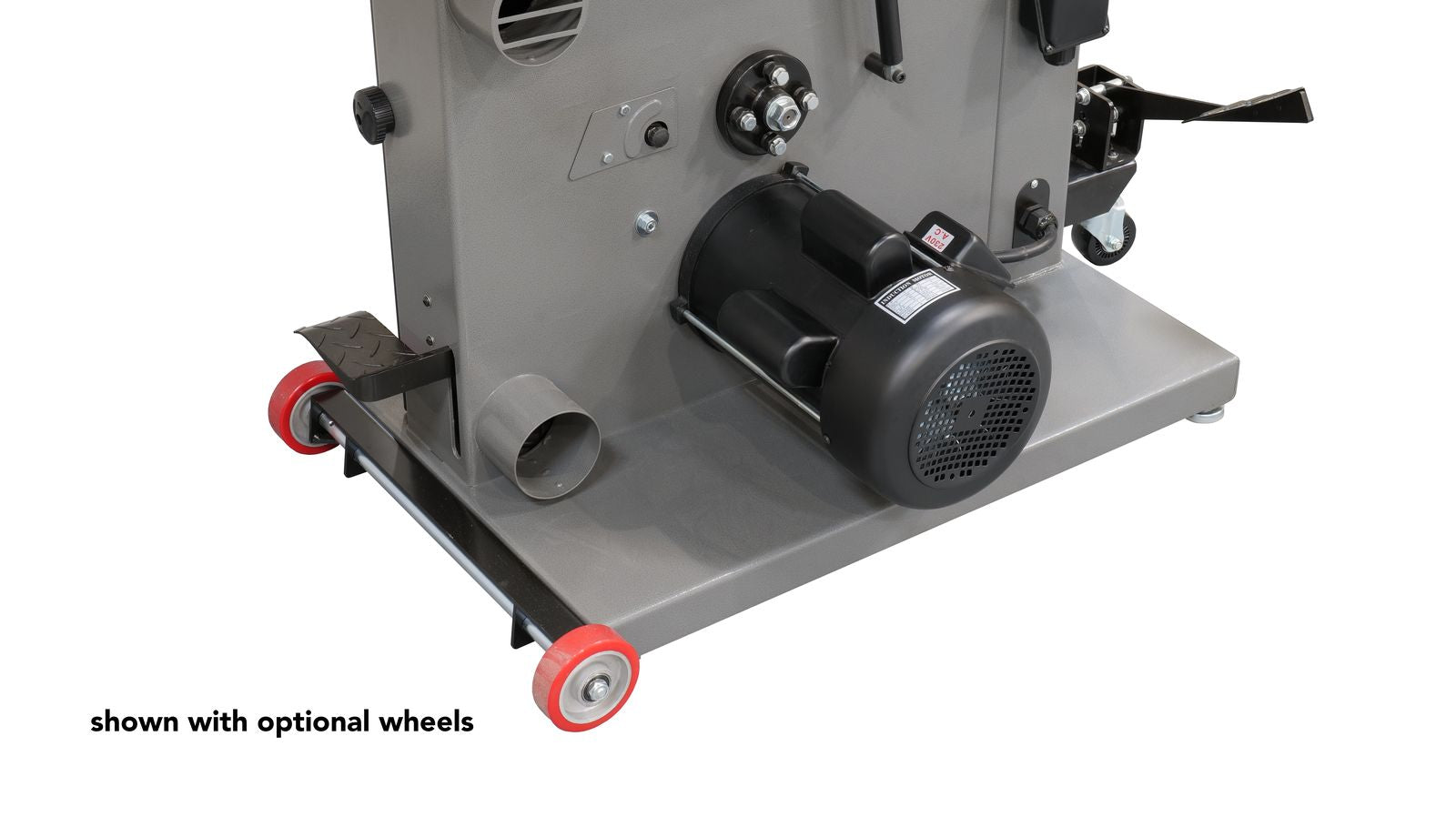

- Powerful Motor: A 5 HP, 220V single-phase induction motor (21 Amp) supplies plenty of power to keep the heavy cast-iron flywheels moving during heavy cuts.

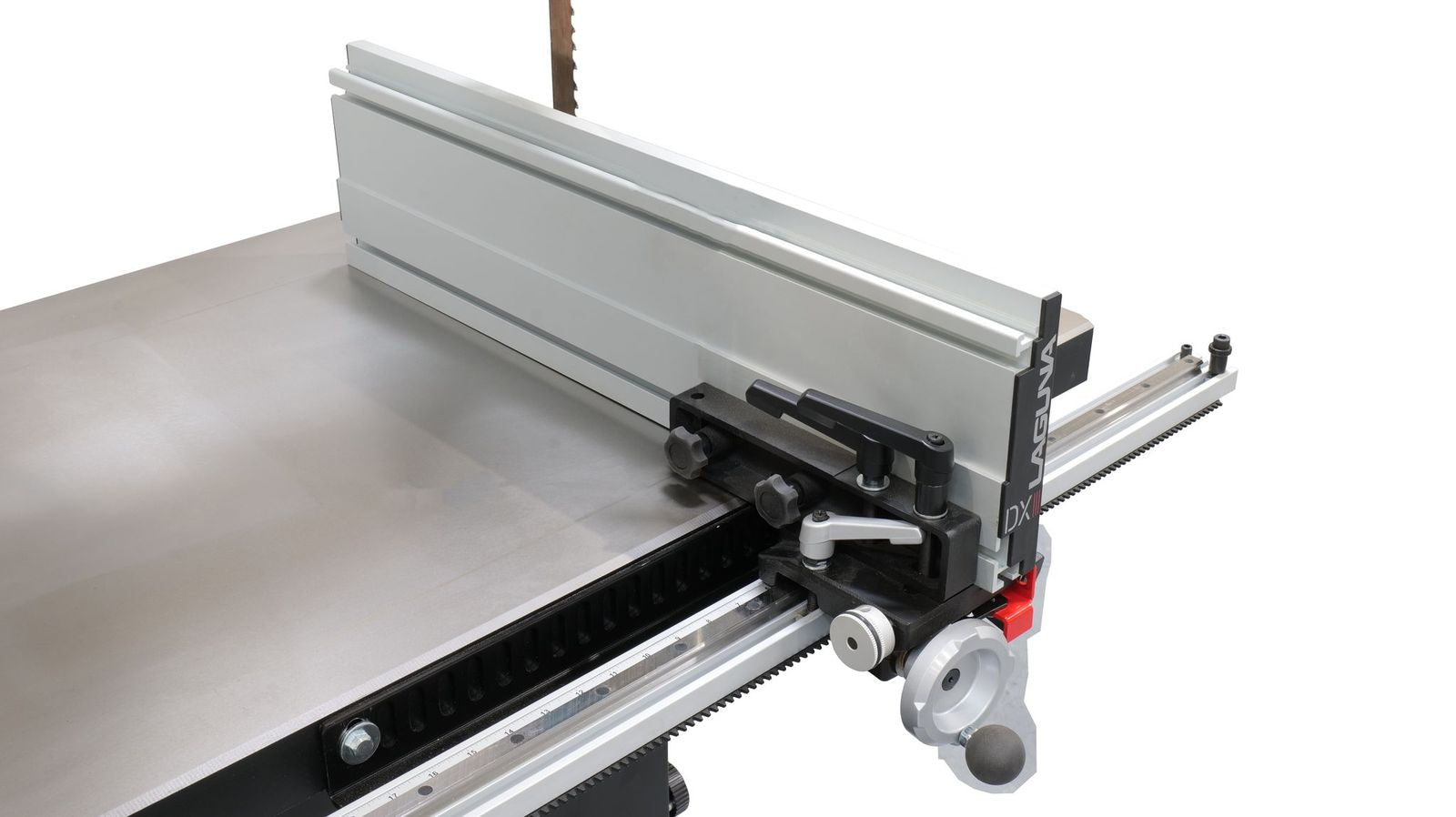

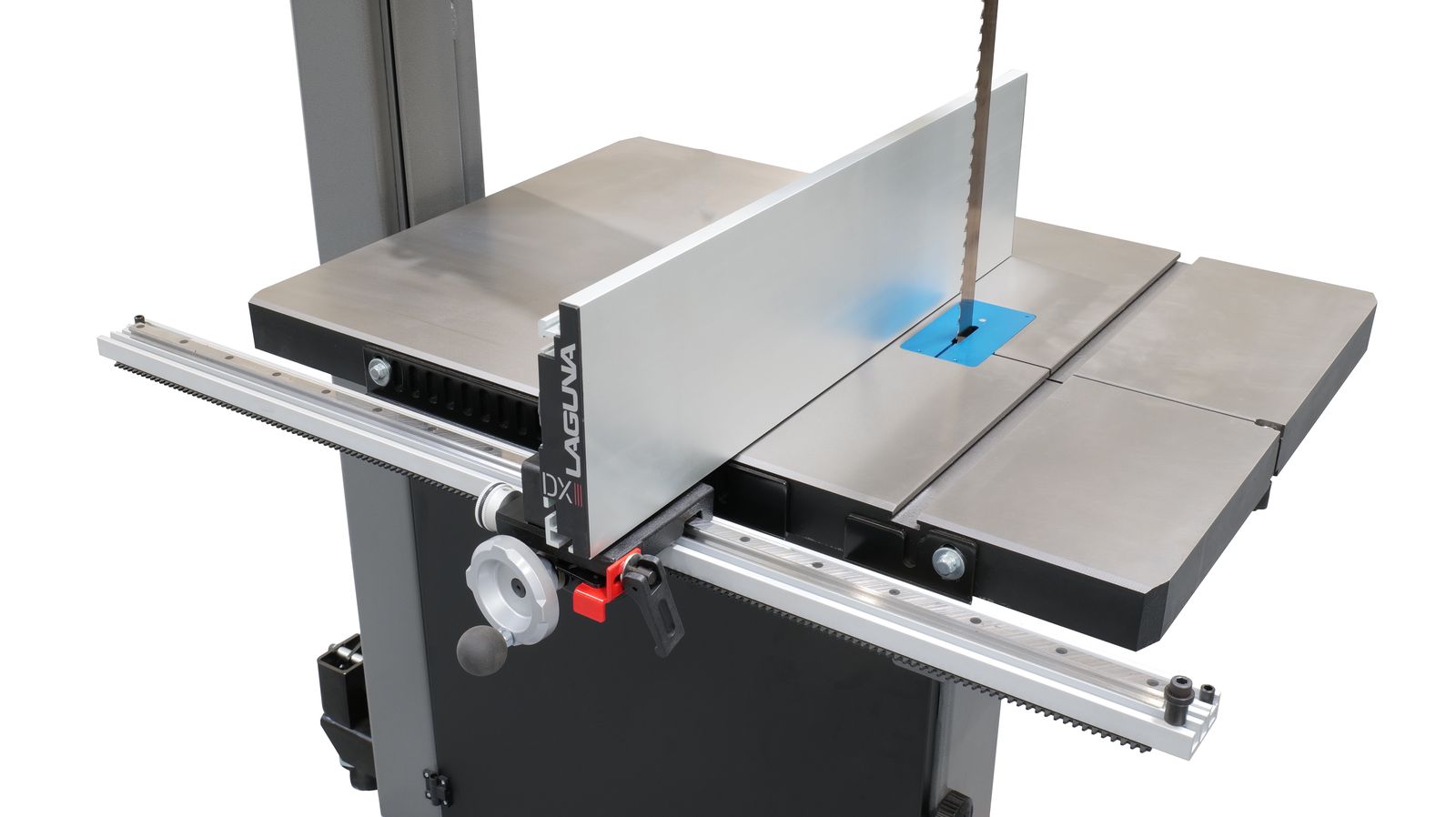

- DX3 DriftMaster Fence: Included as standard, this fence system offers Hi/Low capabilities and EZ drift adjustments, usable in manual mode or precision mode with handwheel movement.

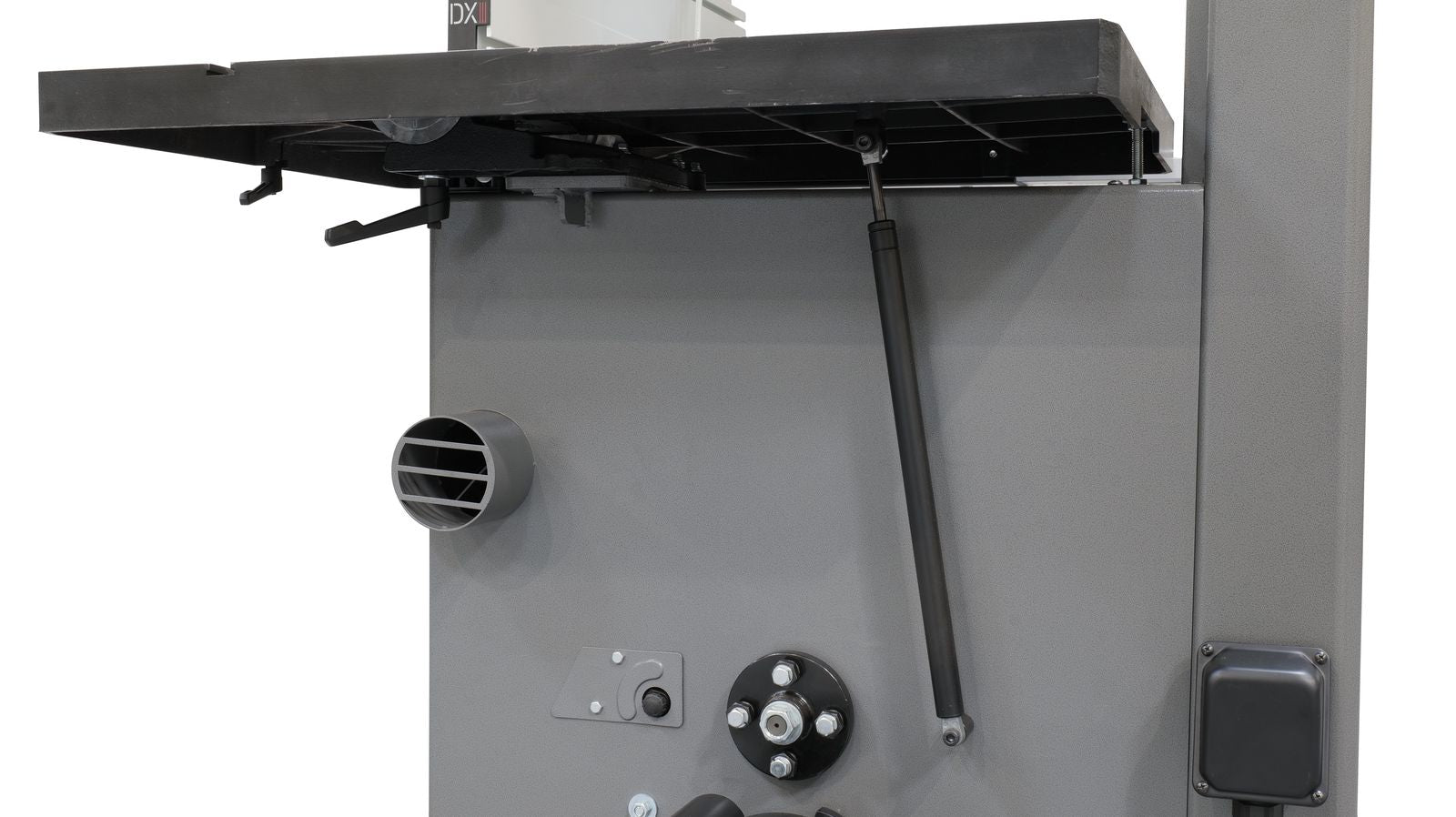

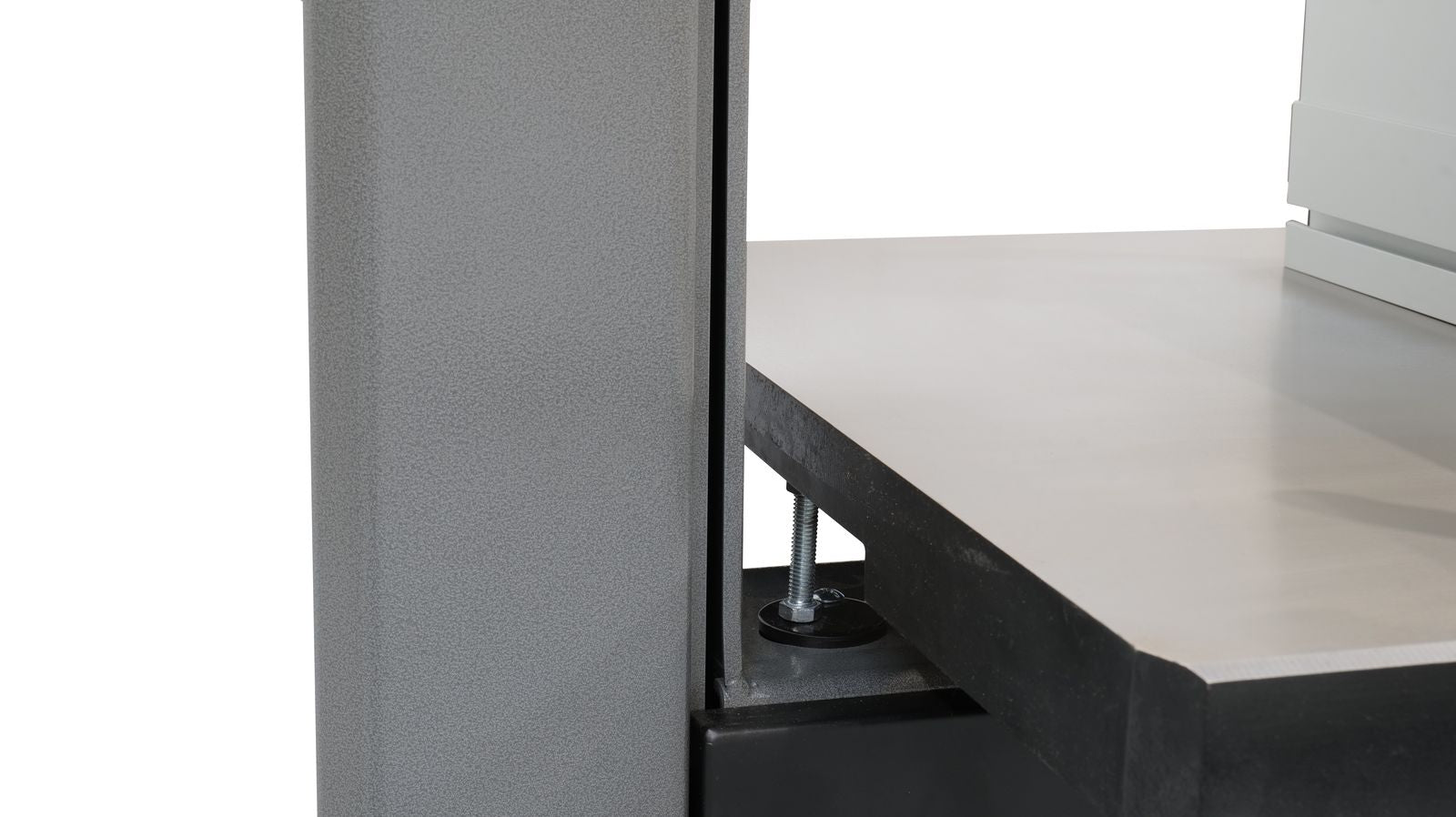

- Heavy-Duty Table: The massive 24" x 34.5" cast-iron table provides ample workspace and features Air Strut Assist for effortless tilting (-5° to 45°).

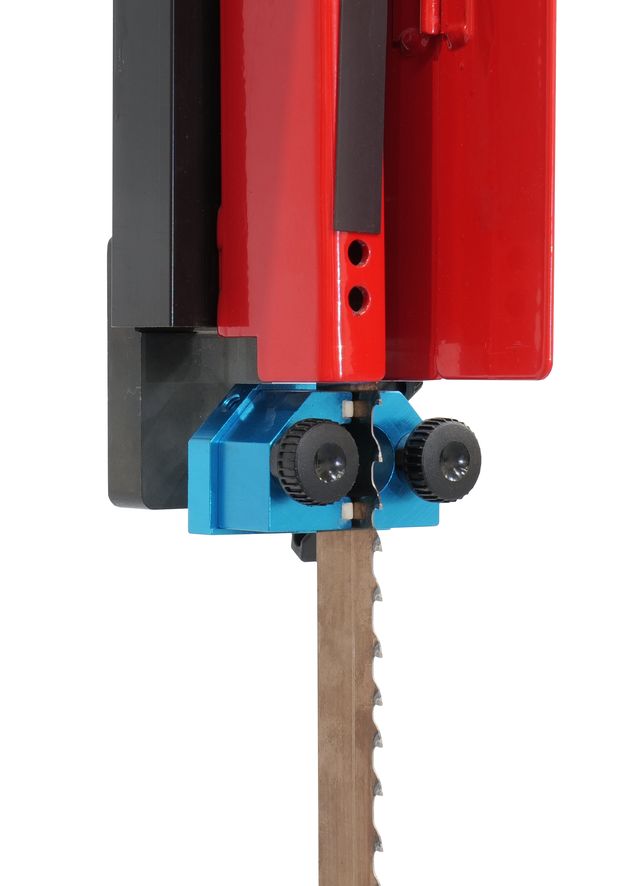

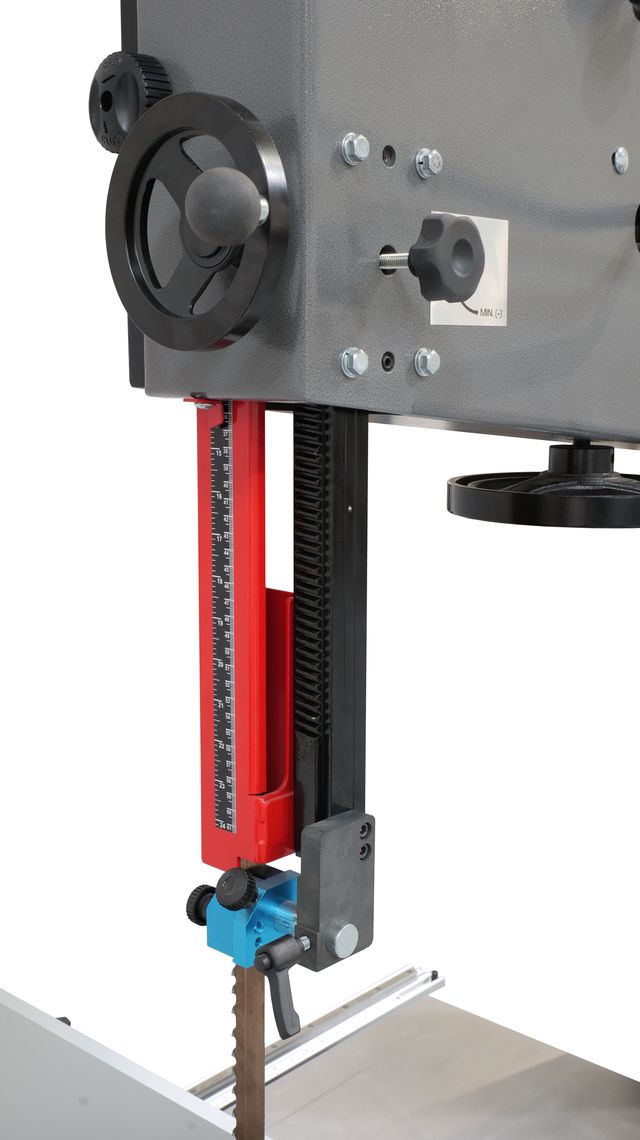

- Ceramic Guides: Laguna Ceramic Guides control the blade with 10 points of contact, ensuring the most accurate cuts possible.

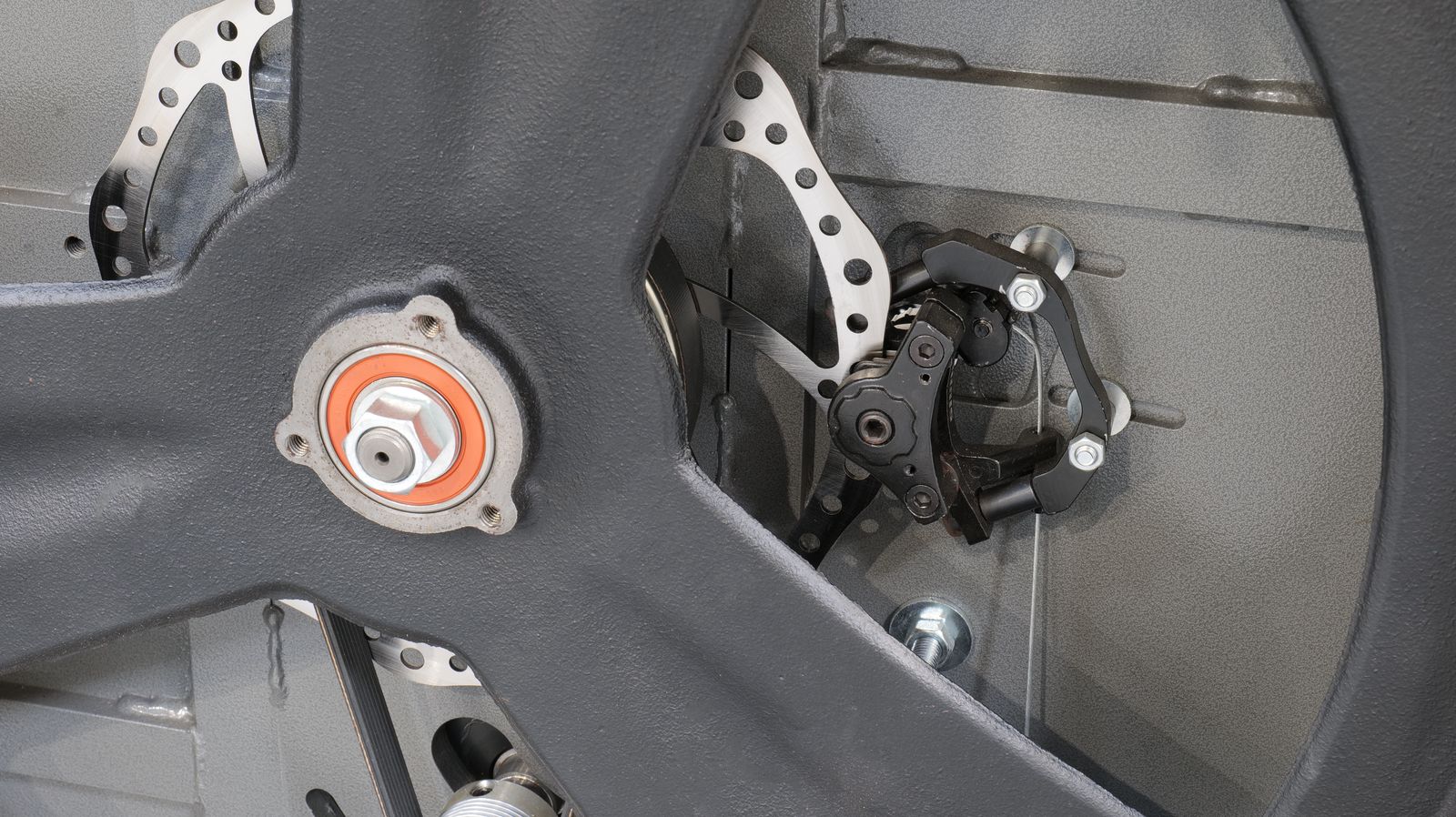

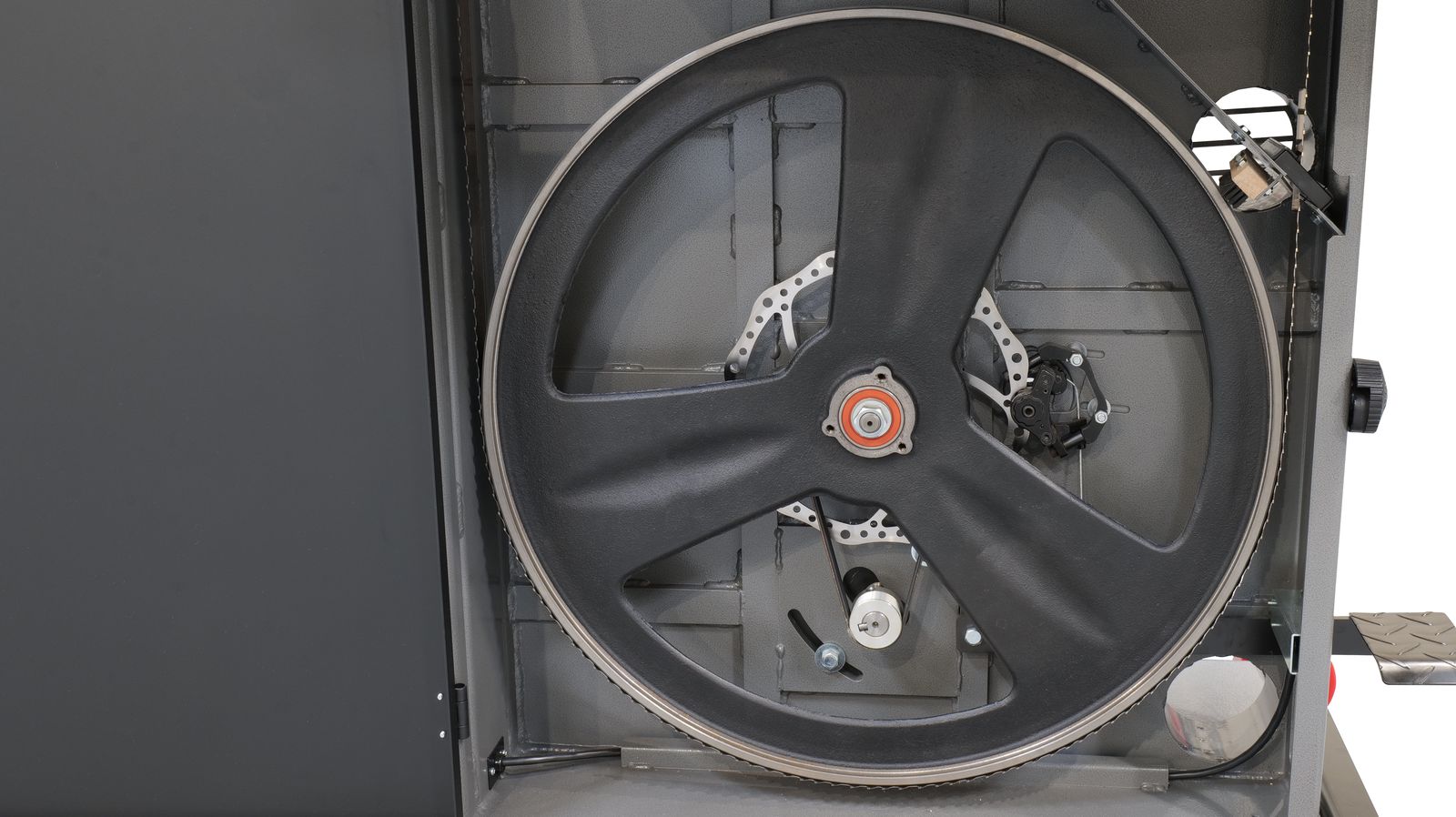

- Safety & Control: Equipped with a foot-pedal actuated disc brake that shuts off the motor and quickly stops the flywheels and blade.

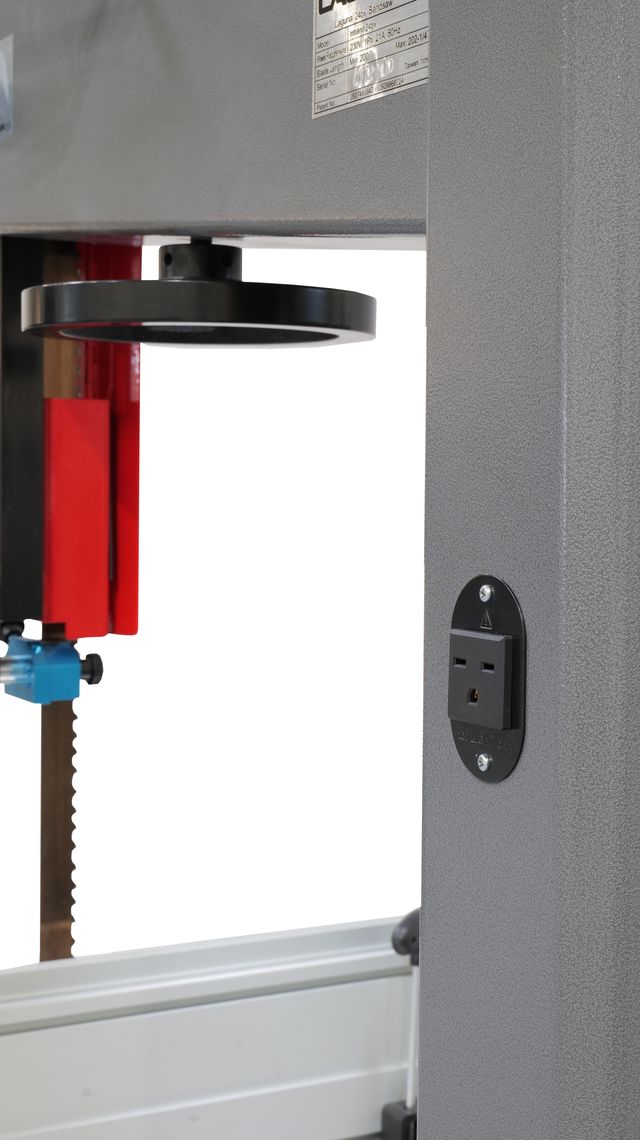

- Convenience: Includes a 230 Volt accessory outlet at the rear for powering work lights and dual 4" dust ports for effective dust management.
Compatible Accessories

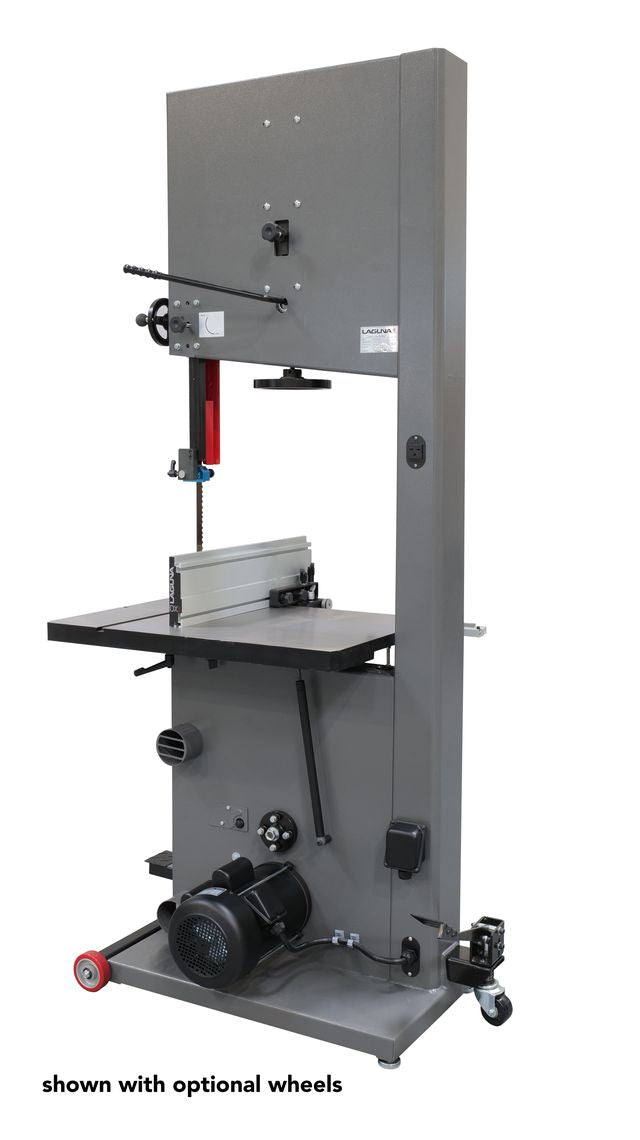

- Mobility Kit (Designed specifically for the 24BX with heavier wheels)
- Work Lights (LED and Halogen options)
- Resaw King Blade (1-1/4" carbide-tipped)
- ProForce & ShearForce Blades
- XP Roller Conveyor Tables (Infeed/Outfeed support)
Specifications
- Part Number: MBAND24BX
- Motor: 5 HP, 1 Phase, 230V, 21 Amp
- Resaw Capacity: 24"
- Throat Capacity: 24"
- Blade Length: 201" (Min: 200", Max: 202.5")
- Blade Width Capacity: Min 1/8" - Max 1-1/4"
- Table Size: 24" x 34.5"

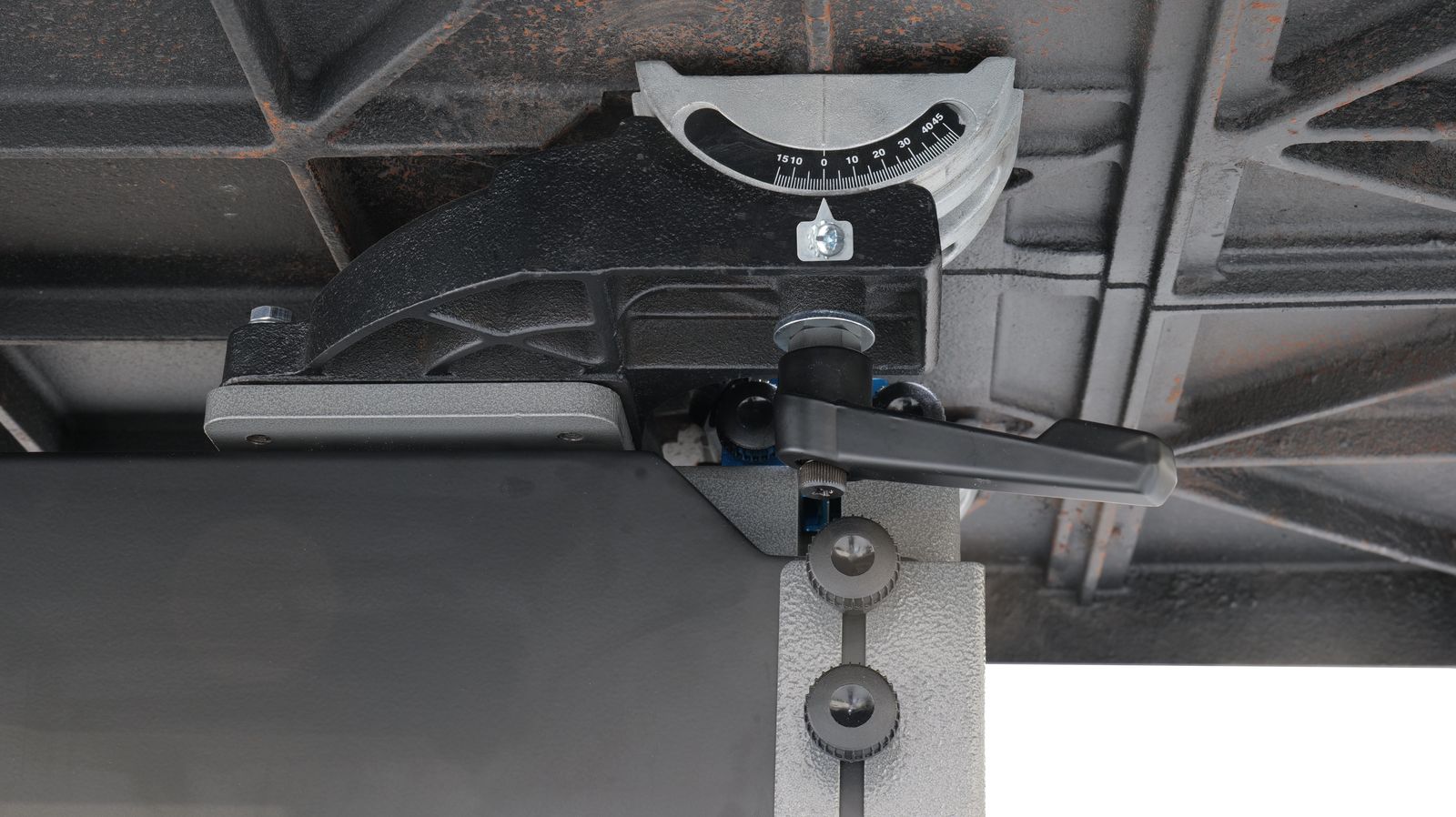

- Table Tilt: -5° to 45° (Air Strut Assist)
- Table Height: 38"
- Fence: DX3 DriftMaster (26-3/4" Long / 37" Width)
- Dust Ports: 2 x 4"
- Accessory Outlet: 230V NEMA 6-15R
- Net Weight: 580 Lbs
- Base Size: 20" x 33"
- Cord/Plug: Not Included (Requires hardwiring or user-supplied plug)
What's Included: Laguna 24|BX Bandsaw, DX3 DriftMaster Fence System, Ceramic Blade Guides. (Blade sold separately).
