K Strong Megadavit H-Base Deluxe Kit w/ H-Base Frame Assembly, 54" Column Mast, 3' Cantilever Boom Arm with Winch Bracket, 60' 3-way Rescue Retrieval SRL-R with Mounting Bracket, and 60' Material/Personnel Winch UFT551011DK
K Strong Megadavit H-Base Deluxe Kit w/ H-Base Frame Assembly, 54" Column Mast, 3' Cantilever Boom Arm with Winch Bracket, 60' 3-way Rescue Retrieval SRL-R with Mounting Bracket, and 60' Material/Personnel Winch UFT551011DK
Couldn't load pickup availability
Details
Details
KStrong Megadavit H-Base Deluxe Kit w/ H-Base Frame Assembly, 54" Column Mast, 3' Cantilever Boom Arm with Winch Bracket, 60' 3-way Rescue Retrieval SRL-R with Mounting Bracket, and 60' Material/Personnel Winch UFT551011DK

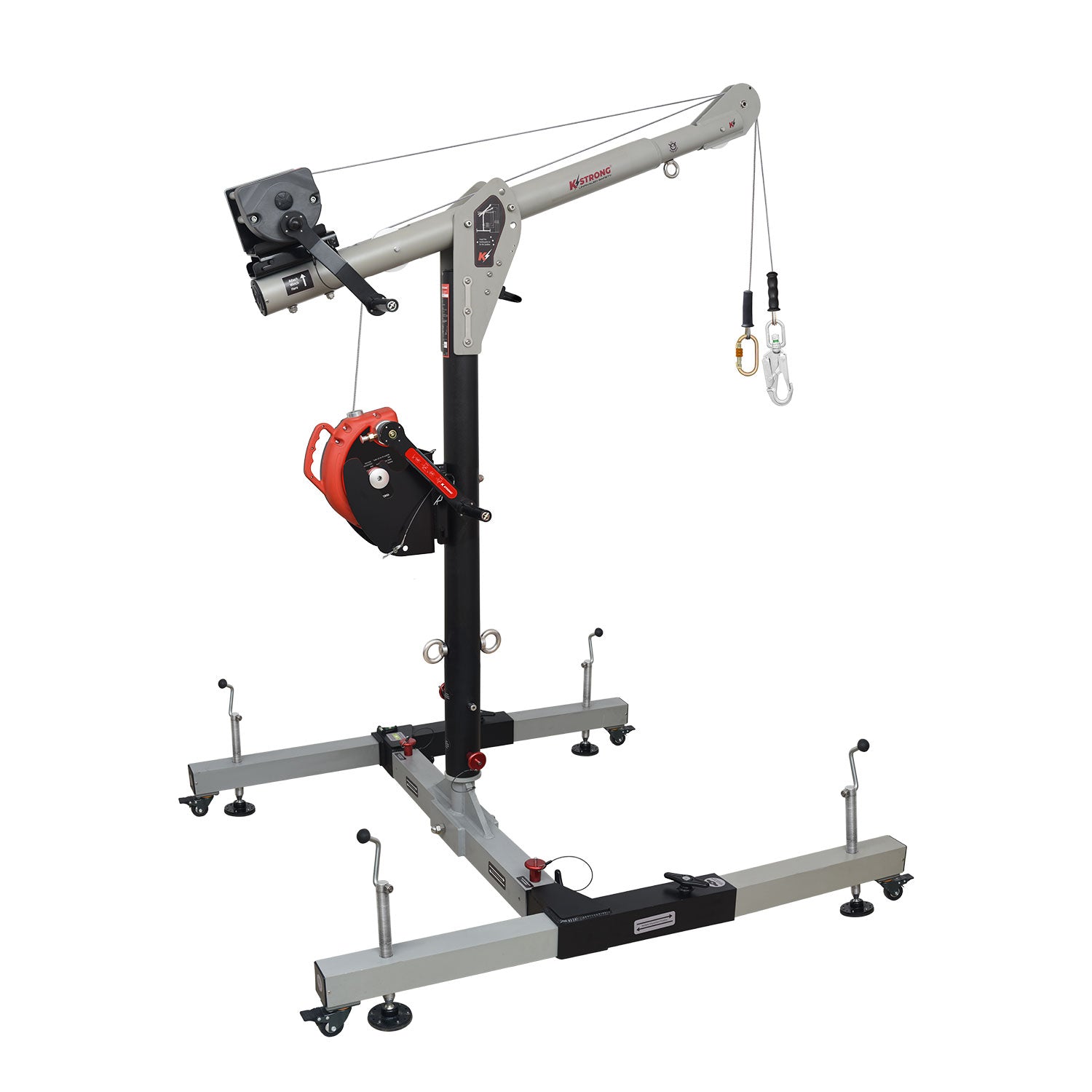

The KStrong® Megadavit™ H-Base Deluxe Kit is a complete, portable davit system for confined space access and rescue. This comprehensive kit includes the H-Base Frame Assembly, a 54 in. Column Mast, a 3 ft. Cantilever Boom Arm with Winch Bracket, a 60 ft. 3-way Rescue Retrieval SRL-R with Mounting Bracket, and a 60 ft. Material / Personnel Winch.
Features & Benefits
- Breaks down into components for easy storage, transport, and setup.
- No tools required for assembly.
- Modular design allows use of various fixed/portable bases and optional mast extensions.
- Cantilever arm features 3 adjustment positions for height customization.
- Ideal for providing overhead anchorage in large confined space openings.
- Foldable and removable legs for easy transportation and installation.
- Multiple anchorage points for rescue applications.
- Inbuilt swivel feature allows davit column assembly to rotate up to 360°.
Specifications
- Material: High Strength and Durable Aluminum Alloy
- Opening of H-Base: Minimum diameter 43.3 in. (1100mm) & Maximum diameter 59.44 in. (1500mm)
- Maximum Load Capacity: 1102 lbs. (500kgs)
- Finish: ED coated grey
- System Strength: 15 kN (3300 lbs)
- Weight: 196.70 lbs. ± 0.22 lbs. (89.22kgs ± 0.10kgs)
- Relevant Standards: Conforms to EN795:2012 Type B, AS/NZS 5532:2013
- Height Adjustment and Reach:
- Upper Position: 26.57 in. reach, 89.76 in. height
- Middle Position: 33.27 in. reach, 78.74 in. height
- Lower Position: 36.22 in. reach, 65.35 in. height
