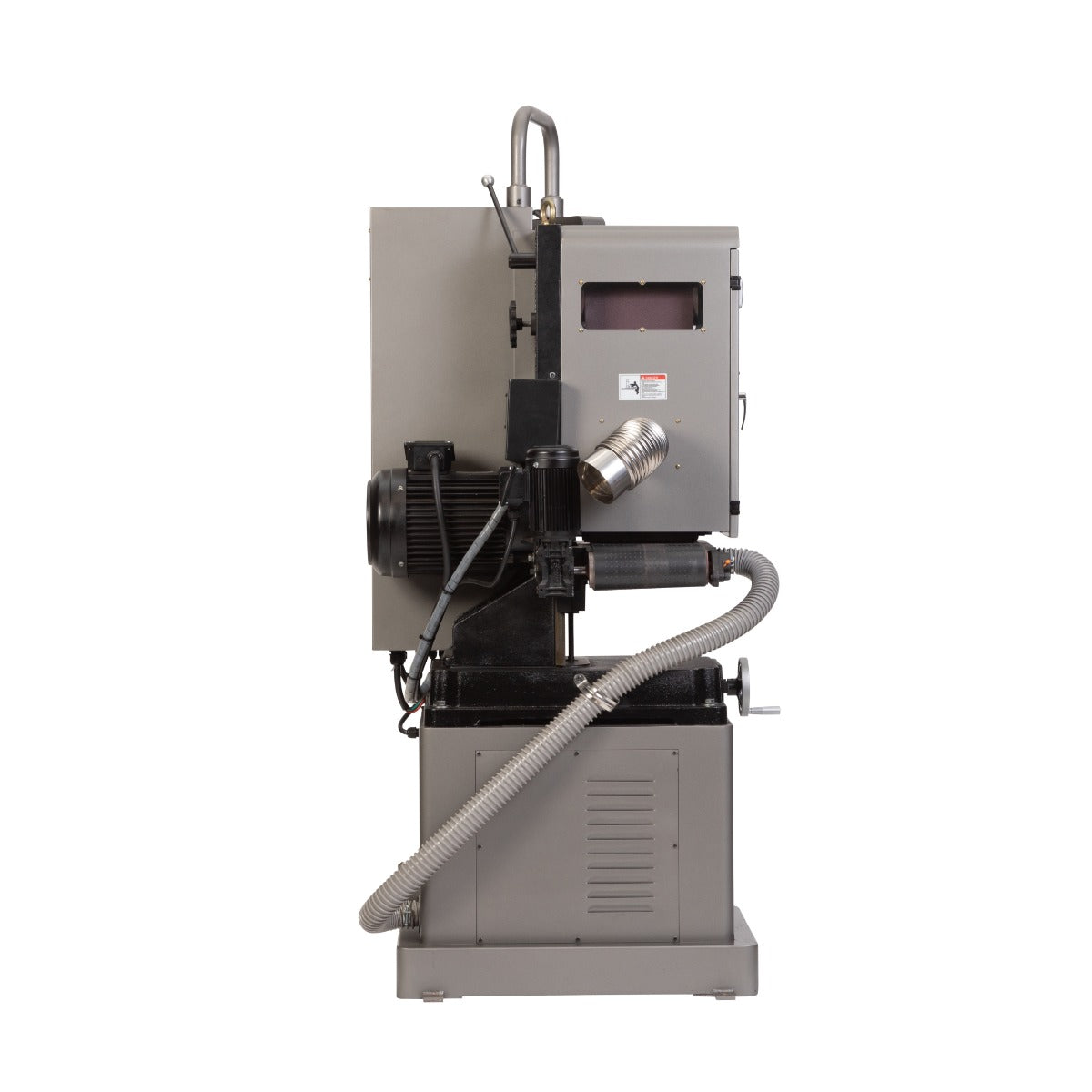

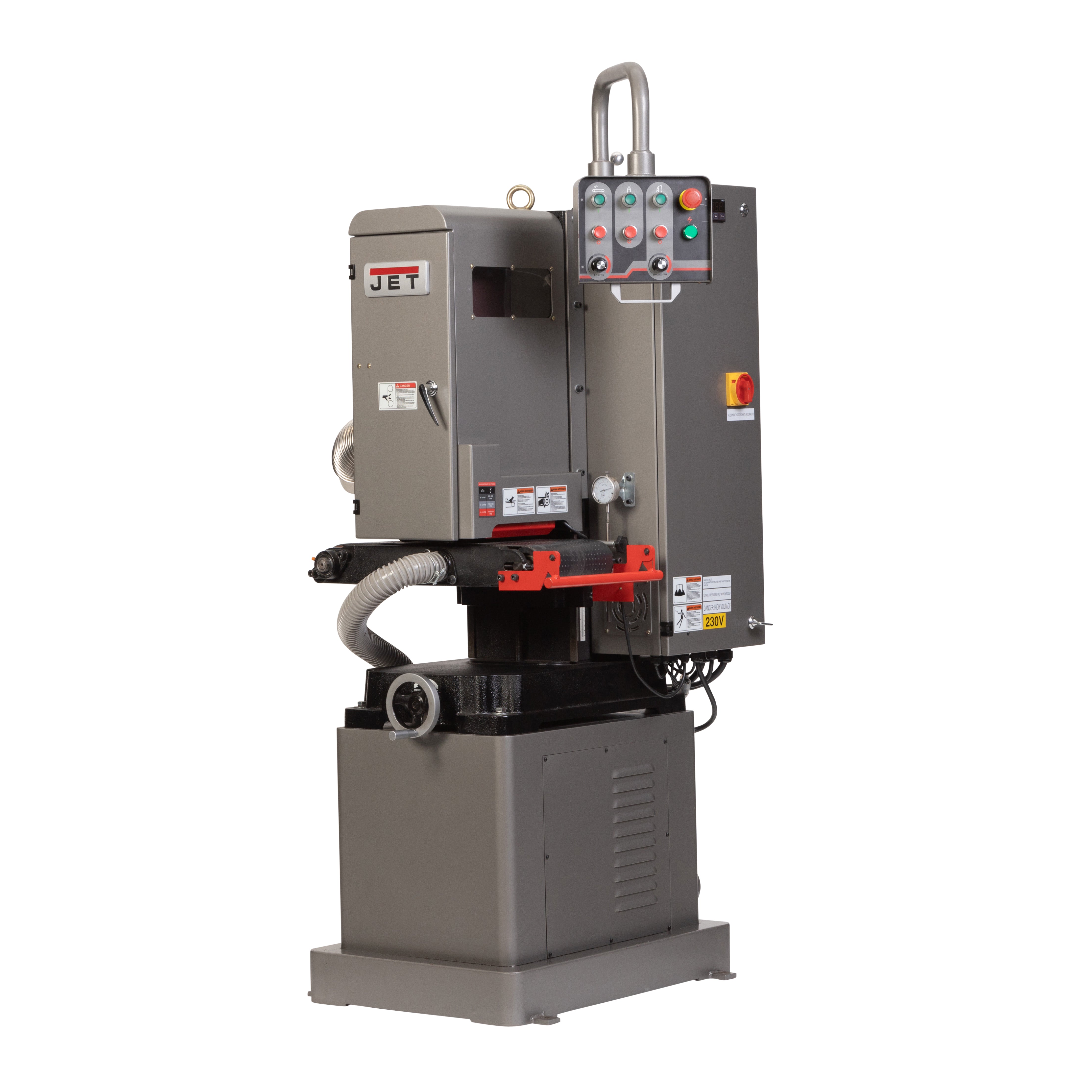

Jet 9 x 48 in. Variable Speed Wide Belt Sander 3PH 230V J-948WBSV JT1-550
Jet 9 x 48 in. Variable Speed Wide Belt Sander 3PH 230V J-948WBSV JT1-550
Couldn't load pickup availability
Details
Details
Jet 9 x 48 in. Variable Speed Wide Belt Sander 3PH 230V J-948WBSV JT1-550
The 9"x 48" Variable Speed Wide Belt Sander is ideal for removal of burrs, dross and slag from laser, plasma & water jet cuts. Designed for finishing large numbers of small pieces allowing operators to save time & money. Perfect for prepping material for paint or powder coating. The auto-tracking system keeps the abrasive belt aligned eliminating the need to continuously adjust alignment providing up to 50% time savings and extending belt life. The Variable Speed Conveyor Belt allows ability to match conveyor belt speed to material size/shape including multiple small pieces for optimal finishing. Vacuum suction on the Conveyor Belt holds smaller pieces in place, eliminating material shifts to produce better finishing and reducing belt damage.
Features:
- The auto-tracking system keeps the abrasive belt aligned eliminating the need to continuously adjust alignment providing up to 50%-time savings and extending belt life
- Variable Speed abrasive belt allows ability to match abrasive belt speed to material size/shape including multiple small pieces for optimal finishing

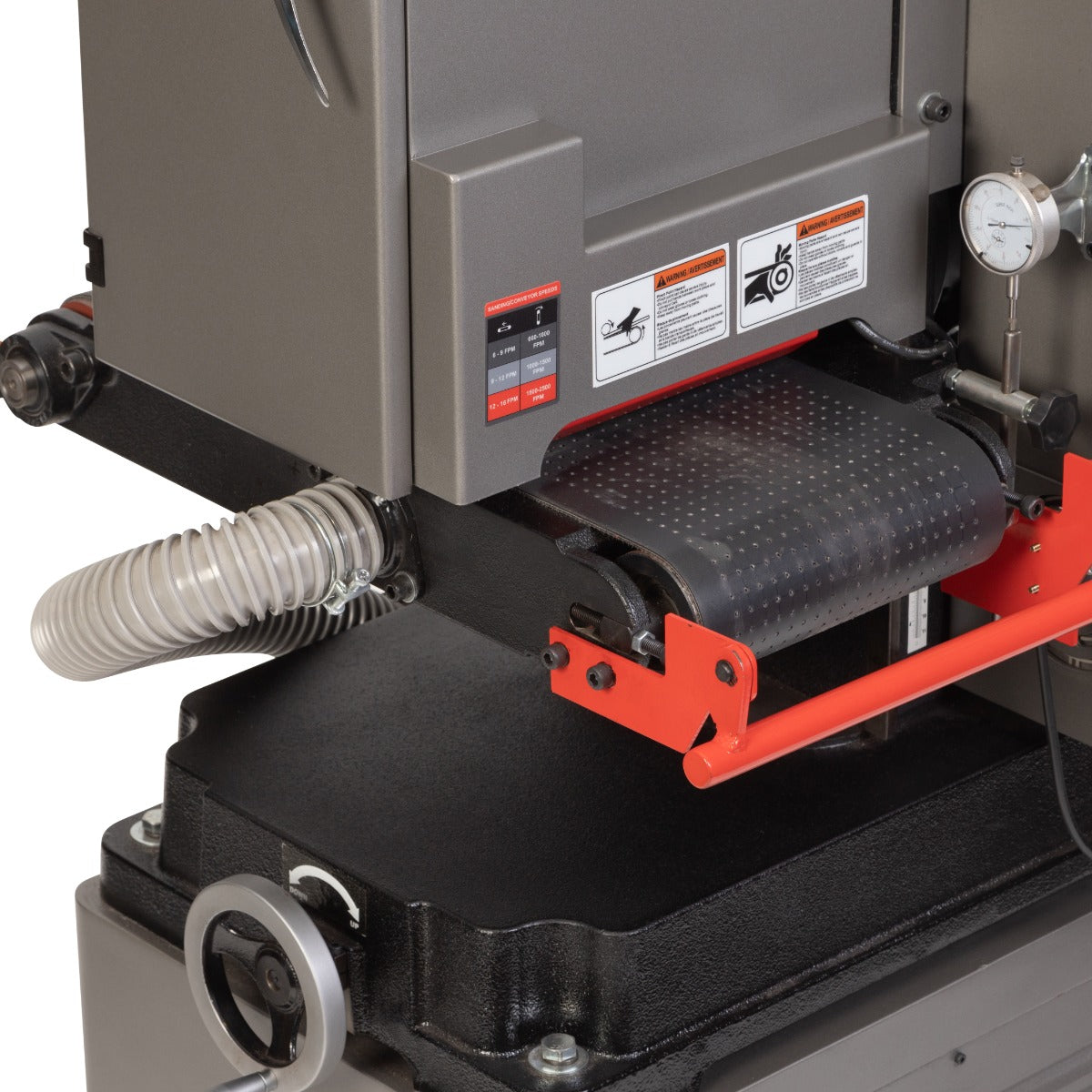

- Vacuum suction on the conveyor belt holds smaller pieces in place, eliminating shifts to produce better finishing and reducing belt damage
- Variable Speed abrasive and conveyor belts provides ability to finish multiple type of material including steel, aluminum, plastic, etc.
- Design allows operator to safely finish multiple pieces quickly without having to hold material producing consistent finished material thickness

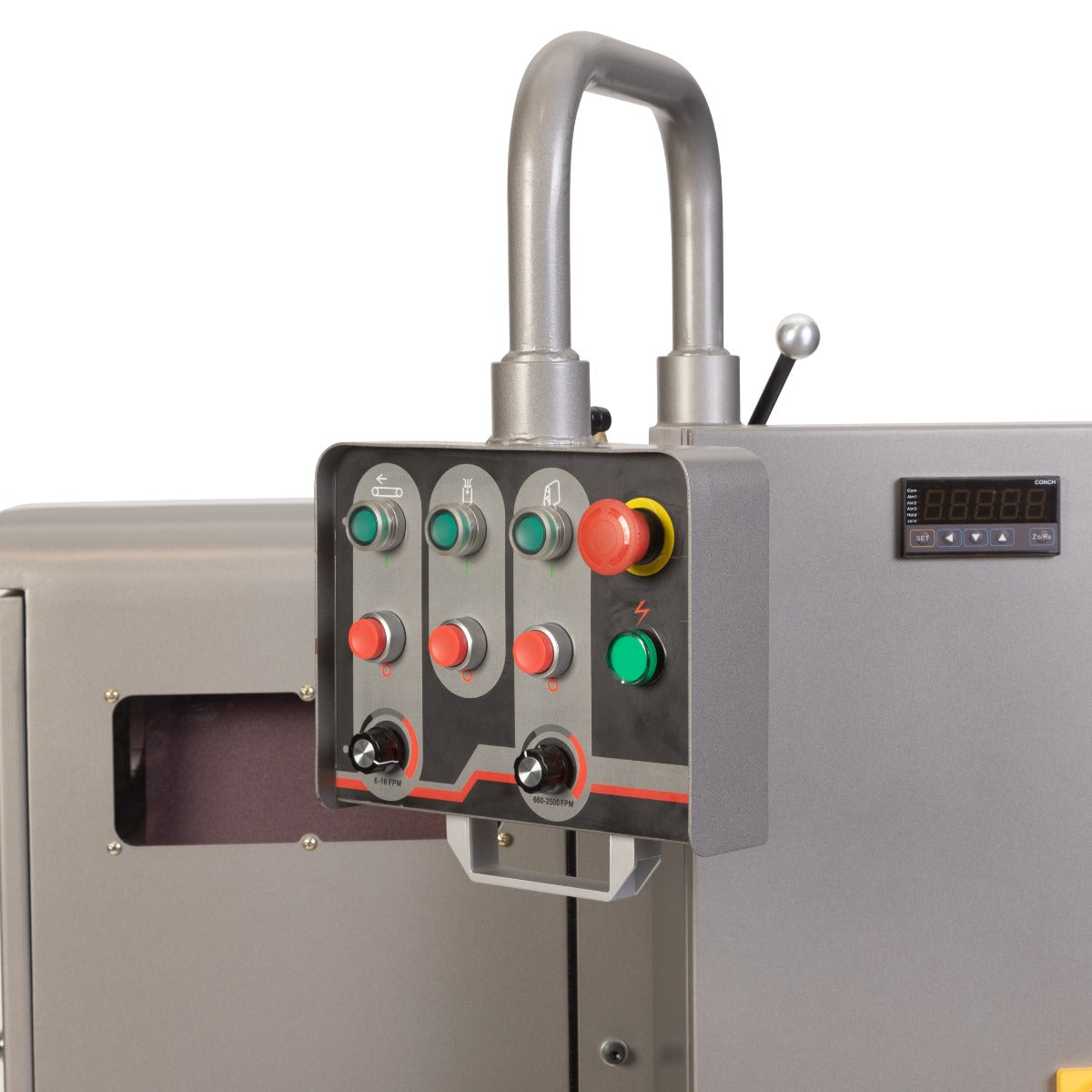

- Swing away control panel makes all controls easily accessible to the operator
- High torque motor produces exceptional power for continuous, long operation
- E-Stop button provides additional operator safety
- Quick-stop bar on conveyor belt entry provides additional safety
- Material height safety lever limits accidental, improper material entry
Specifications:
- Stock Number — JT1-550
- Model Number — J-948WBSV
- Electrics — 5HP, 230V, 3Ph
- Full Load Amps — 15
- Belt Size (W x L) (In.) — 9" x 48"
- Belt Speed (SFPM) — 32-1465
- Belt Grit — 80
- Number of Speeds — Variable
- Sanding Belt Speed (FPM) — 660~2,500 inverter driven
- Conveyor Motor (HP) — 1/4
- Conveyor Speed (FPM) — 6 - 16 FPM Variable Speed
- Maximum Material Width (in.) — 9
- Minimum Material Length (in.) — 5.9 (non-vacuum)
- Maximum Work Piece Height (In.) — 4
- Minimum Height (In.) — 1/16
- Table Height (In.) — 41.2" - 45.7"
- Dust Port Size (In.) — 4
- Assembled Machine Dimensions (L x W x H) (In.) — 37.5" x 28.9" x 76.7"
- Net Weight (Lbs.) — 704
- Gross Weight (Lbs) — 860
- Prop 65 — Cancer and Reproductive Harm
Specifications
Specifications
| Jet 9 x 48 in. Variable Speed Wide Belt Sander 3PH 230V J-948WBSV JT1-550 | |
| APPLICATION | Wood Working / Metal Working |
| Brand | Jet |
| HORSEPOWER | 5.0 HP |
| LENGTH | 48 in |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Sanders - Belt Sanders |
| TOOL TYPE | Sanders |
| VARIABLE SPEED | Yes |
| VOLTAGE | 208V-240V 3Ph |
| WIDTH | 9 in |
