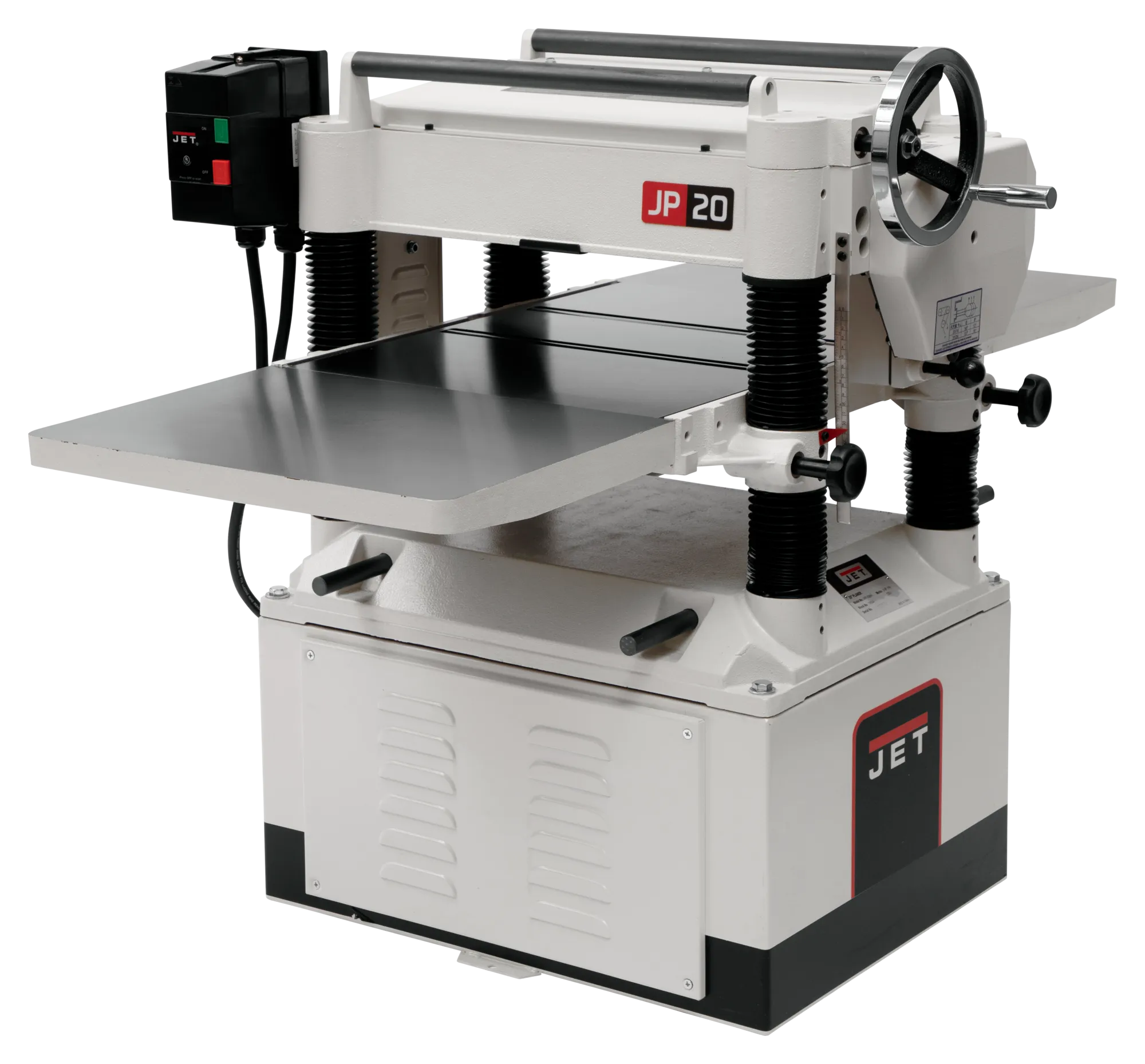

The JET JWP-208HH is a 20 in. helical head wood planer driven by a 5 HP single-phase induction motor, engineered for commercial woodworking shops and professional woodworkers milling heavy, rough-sawn lumber into finished stock. Built with heavy-duty cast iron table construction and a one-piece welded steel base, this stationary machine maintains steady workpiece support and dampens vibration during full-width surfacing passes.

The cutterhead features 68 staggered carbide insert knives arranged in a 20 in. full-width helical configuration, delivering smooth surface finishes on figured or difficult grain while operating at reduced noise levels compared to straight-knife cutterheads. A two-speed gearbox with an automatic chain tensioner allows quick feed rate changes between 24 FPM and 31 FPM to accommodate high material removal or fine finish requirements. Thickness adjustments are controlled using a large handwheel with a positive gear drive and a 1/16 in. increment height scale. Three steel infeed and outfeed roller sets continuously maintain downward pressure to help eliminate board snipe.

For operator safety and motor protection, magnetic controls shield against voltage drops and prevent unexpected machine restarts following power loss. Dust collection is integrated via a 5 in. dust port requiring a minimum airflow rating of 400 CFM to maintain a clean shop environment.

Features & Benefits

• Helical Cutterhead: Equipped with 68 staggered carbide knife inserts across a 20 in. width for quiet cutting action and smooth board finishes.
• 5 HP Induction Motor: Powered by a 5 HP single-phase motor operating on 220V/230V power for heavy-duty planing passes up to 3/32 in. cutting depth.

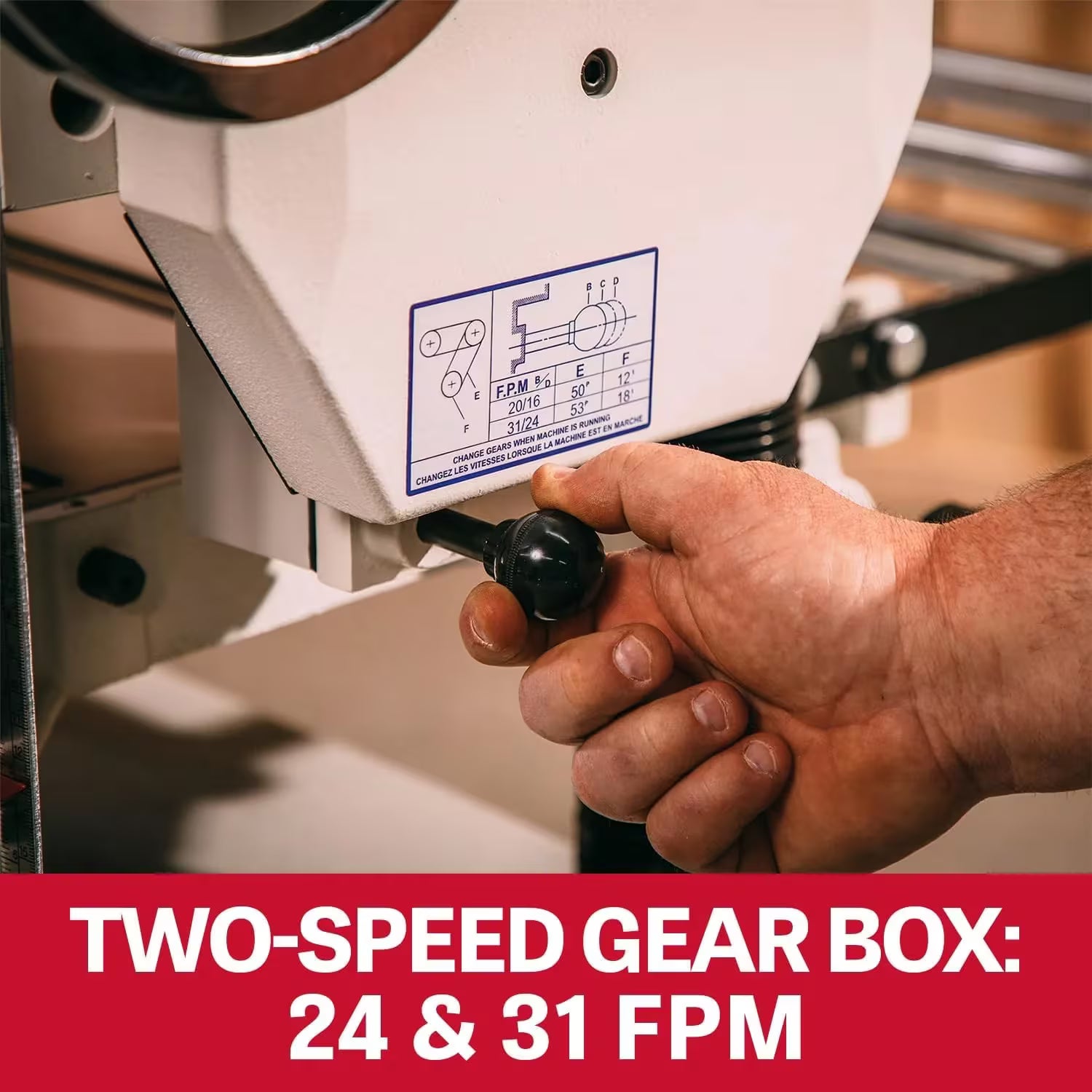

• Two-Speed Gearbox: Delivers 24 FPM and 31 FPM feed rates with an automatic chain tensioner for rapid feed speed adjustments.
• Anti-Snipe Roller System: Three-roller sets on both infeed and outfeed drive boards smoothly to reduce end snipe.
• Precision Cast Iron Table: Offers a smooth-ground 25-3/4 in. x 20 in. working surface for stable workpiece support.
• Height Scale & Handwheel: Gear-driven handwheel paired with a 1/16 in. increment height scale provides repeatable depth control.
• Magnetic Controls: Protect the motor from low-voltage conditions and prevent accidental restarts after power interruptions.
• Welded Steel Base: One-piece steel base construction keeps the machine planted during heavy material processing.
• Integrated Dust Port: 5 in. dust port connects to shop dust collection systems operating at a minimum 400 CFM.
