Festool Ultimate DFC 500 18V Cordless DOMINO Joiner Kit with TBX Tabless Battery Set
Festool Ultimate DFC 500 18V Cordless DOMINO Joiner Kit with TBX Tabless Battery Set
Couldn't load pickup availability
Details
Details

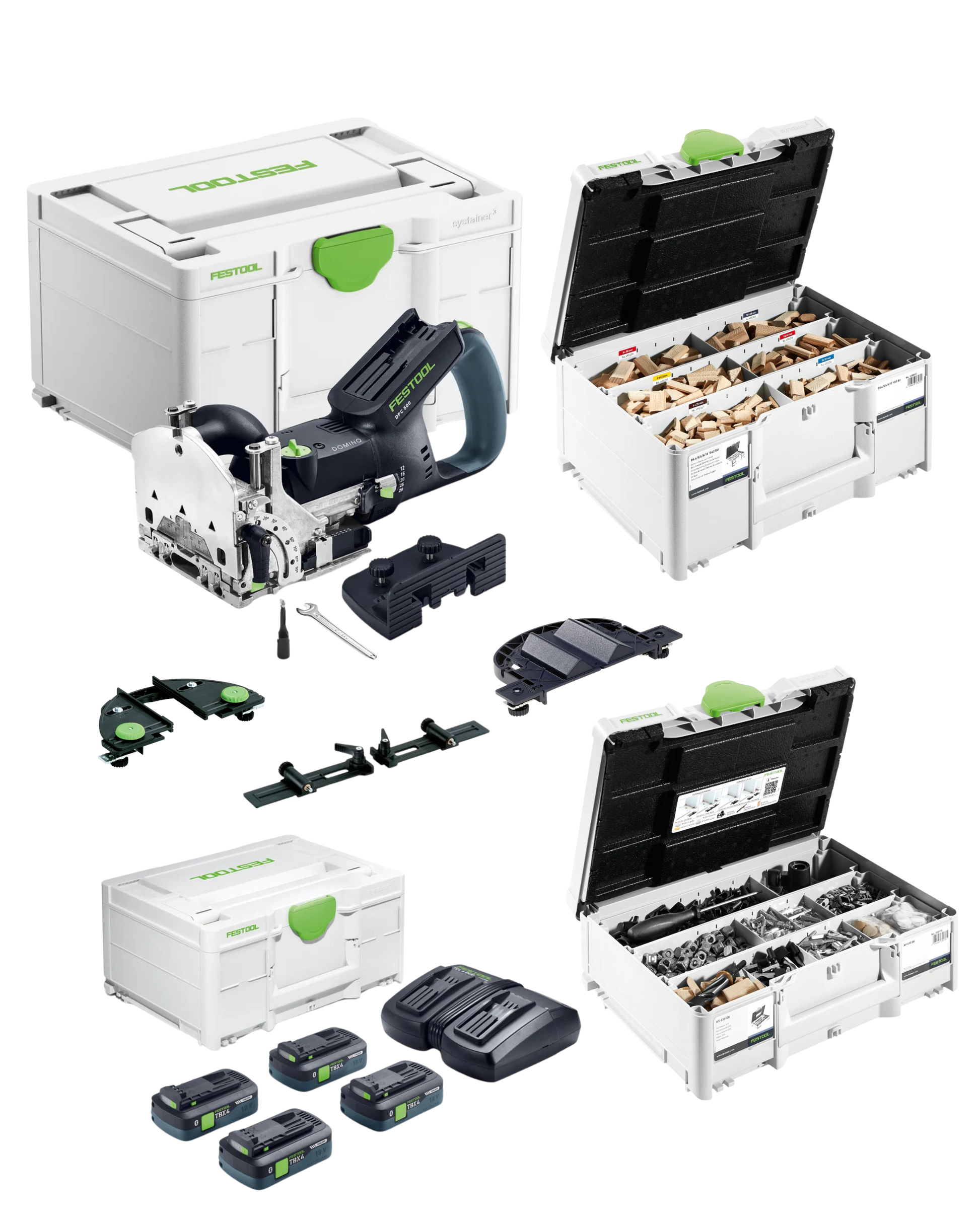

Built for precision. Engineered for stability. Powered by freedom. The Festool DFC 500 18V Cordless DOMINO Ultimate Joinery Kit brings together the cordless DOMINO joiner, SYS 18V 4xTBX4/TCL6DUO Energy Set, DOMINO tenon assortment, DOMINO connector range, and key DOMINO positioning accessories in one complete package.

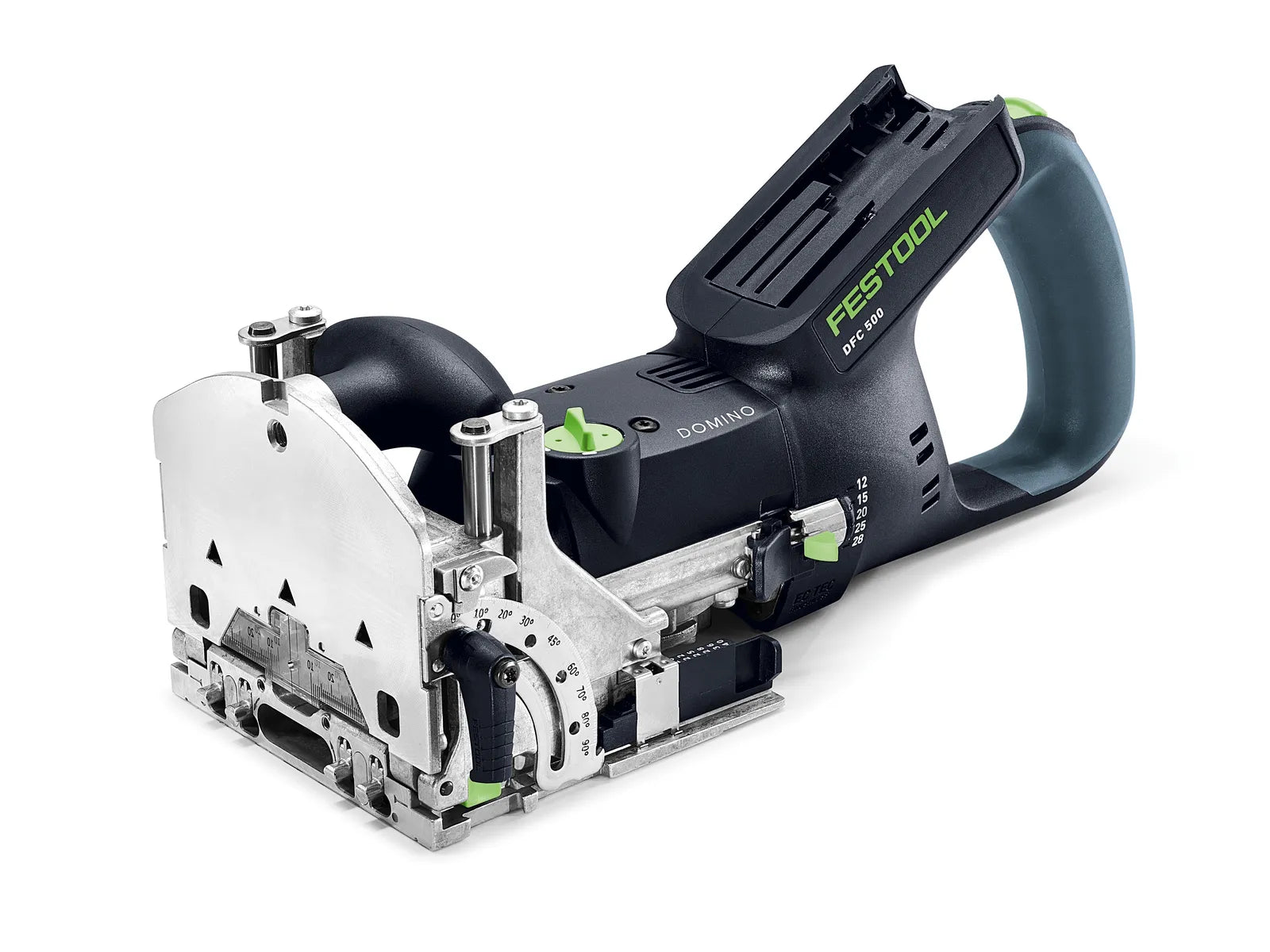

The DFC 500 uses Festool’s DOMINO joining system to create strong, accurate, twist-proof mortises for DOMINO Tenons. The special cutting motion creates clean mortises, while the flat, elongated DOMINO shape helps prevent rotation for precise alignment and stable joints.
The cordless design allows work in the shop or on-site without being tied down by a cord. The D-handle supports control and comfort, built-in indexing pins help with repeat mortise placement, and preset routing depths match tenon lengths and panel thicknesses.

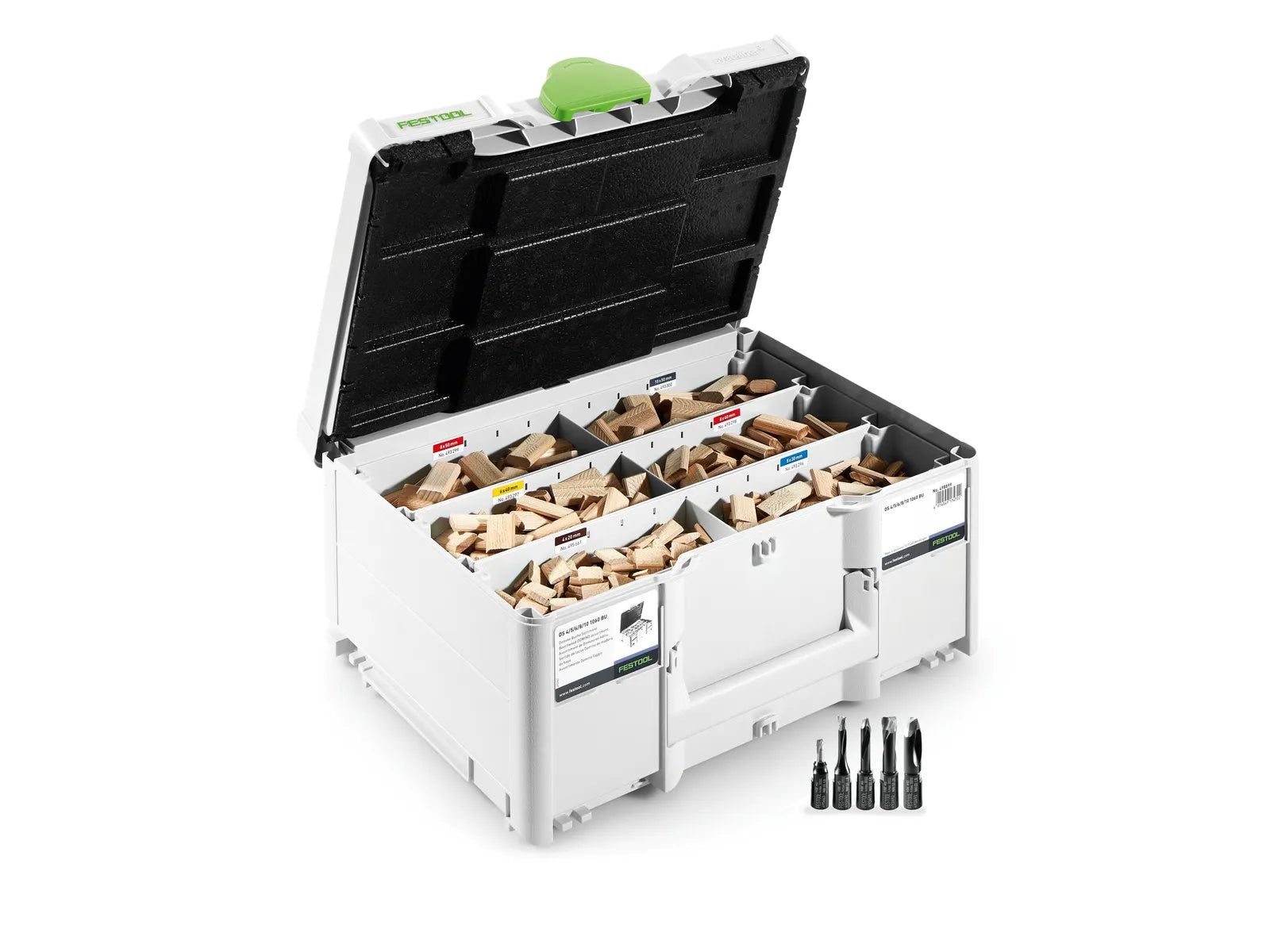

The included DS 4/5/6/8/10 1060 BU Beech DOMINO Tenons Assortment provides solid beech tenons for mortise-and-tenon applications such as furniture, cabinetmaking, casing, and frame work. The assortment includes DOMINO dowels, DOMINO cutters for sizes 4, 5, 6, 8, and 10, and a SORT-SYS3 M 187 DOMINO Systainer³ for organized storage.

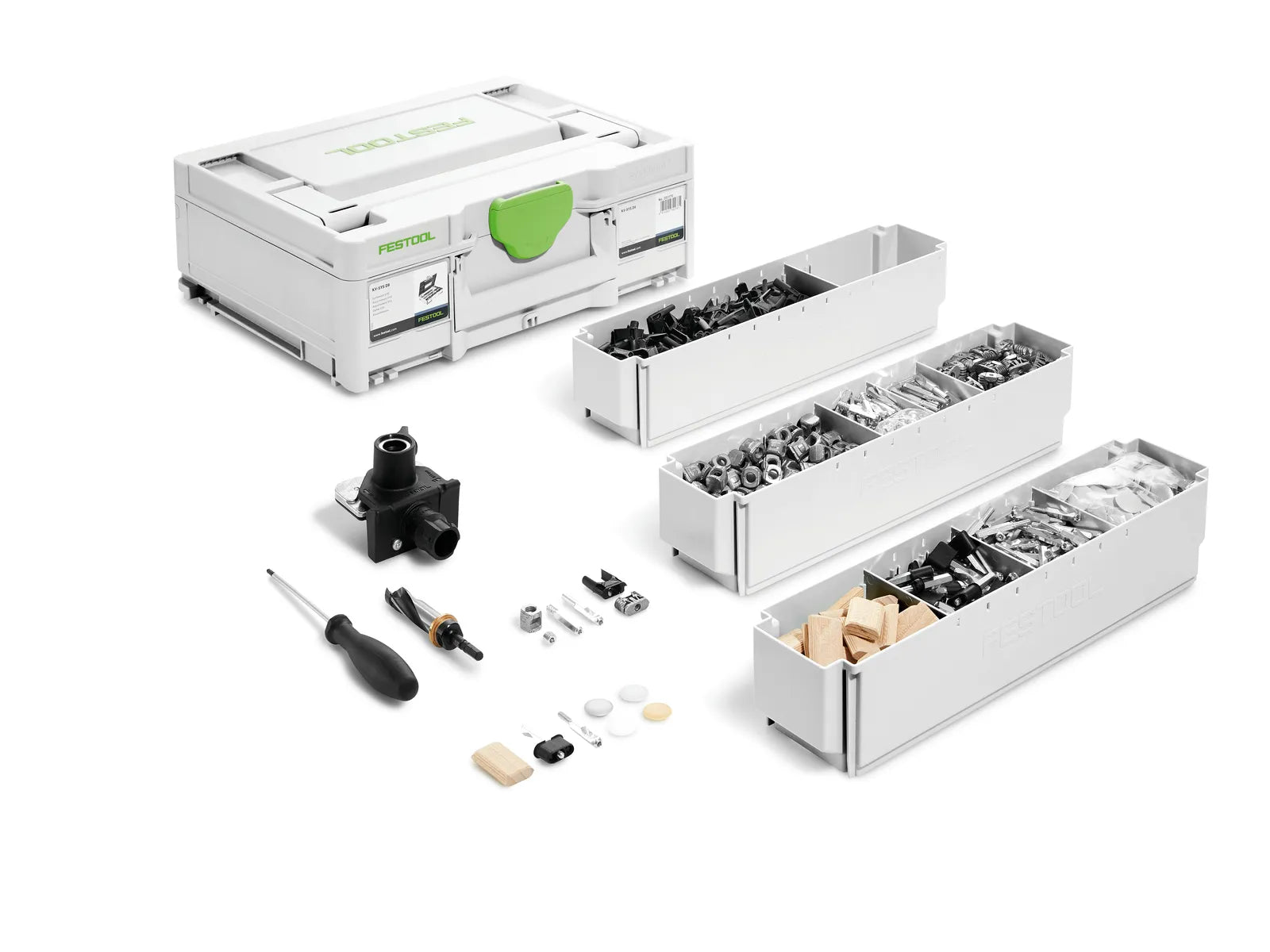

The included KV-SYS D8 DOMINO Connector Range adds knock-down joinery capability for assembly, separation, and reassembly. The connector system is designed for corner panel joints, center panel joints, and joints between a series of holes.
The included DOMINO positioning accessories expand setup options. The Cross Stop supports repetitive indexing of mortises without witness or scribe marks. The Trim Stop holds narrow workpieces for precise, repeatable mortise placement. The Hand Rail Fence centers the DOMINO machine on round workpieces such as handrails.

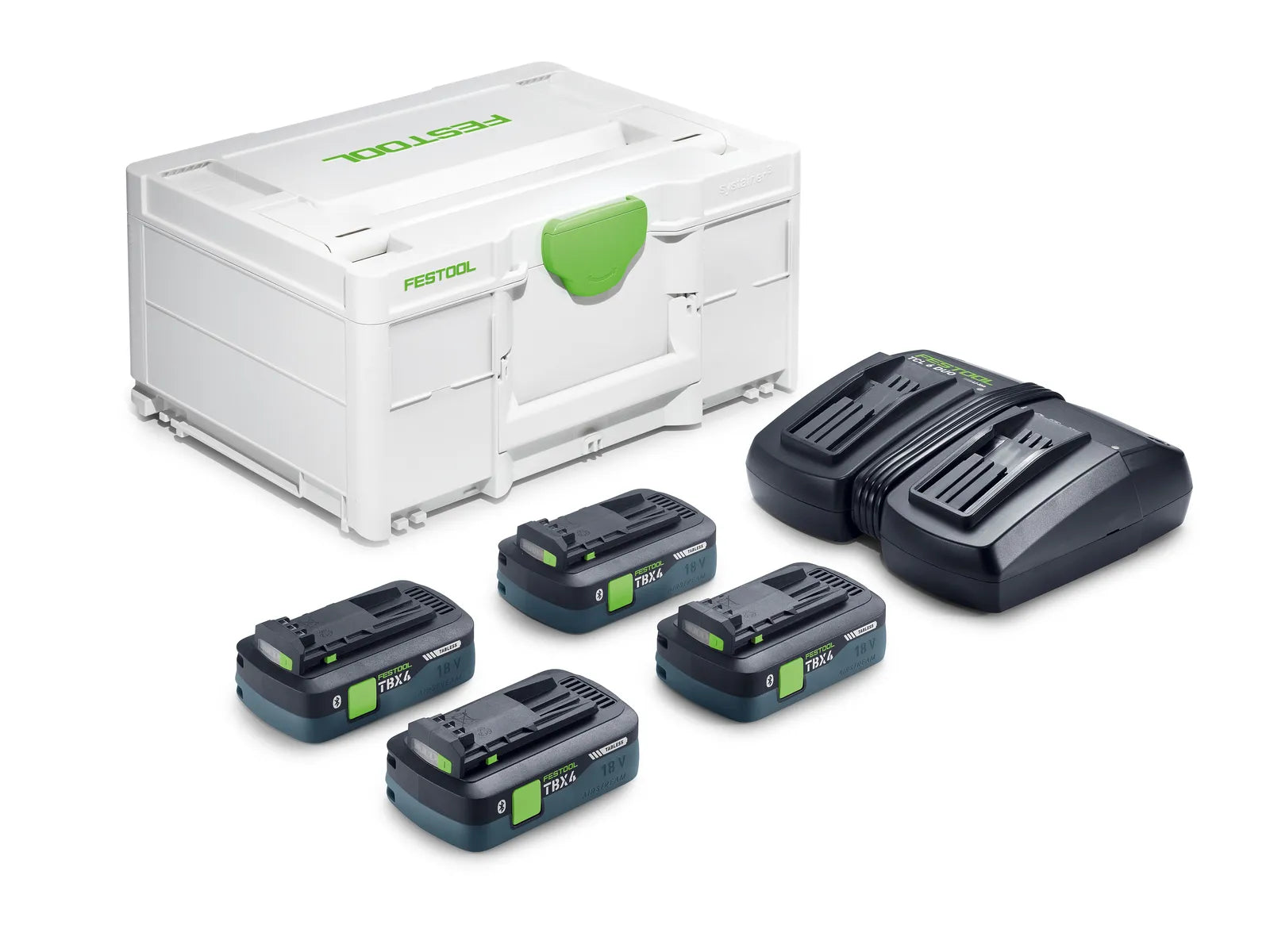

The SYS 18V 4xTBX4/TCL6DUO Energy Set supplies four BP 18 TBX 4.0 Ah tabless battery packs, a TCL 6 DUO rapid charger, and SYS3 M 187 Systainer³ storage. The TCL 6 DUO rapid charger charges two batteries simultaneously, while Bluetooth®-enabled batteries can automatically start a paired Festool CLEANTEC dust extractor when the cordless tool is switched on.
Features & Benefits
- Complete cordless DOMINO joining package built around the Festool DFC 500.
- 100% cordless design for shop or on-site work.
- Special cutting motion creates clean, accurate, twist-proof mortises.
- DOMINO Tenons provide strong alignment and solid hold.
- Built-in indexing pins make repeat mortise placement fast and easy.
- Preset routing depths match tenon lengths and panel thicknesses.
- Beech DOMINO Tenons serve as floating tenons for furniture, cabinetmaking, casing, and frame work.
- DOMINO connectors allow strong furniture joints that can be assembled, separated, and reassembled.
- Cross Stop allows repetitive indexing of mortises without witness or scribe marks.
- Trim Stop holds narrow workpieces for precise and repeatable mortise placement.
- Hand Rail Fence centers the DOMINO machine on round workpieces such as handrails.
- TBX Energy Set includes four tabless batteries, TCL 6 DUO rapid charger, and Systainer³ storage.
Main Applications
- Strong joints
- Panel joinery made easy
- Twist-proof strength
- Stable miters
- Removable connectors
- Thin material compatible
- Round profile joints
Includes

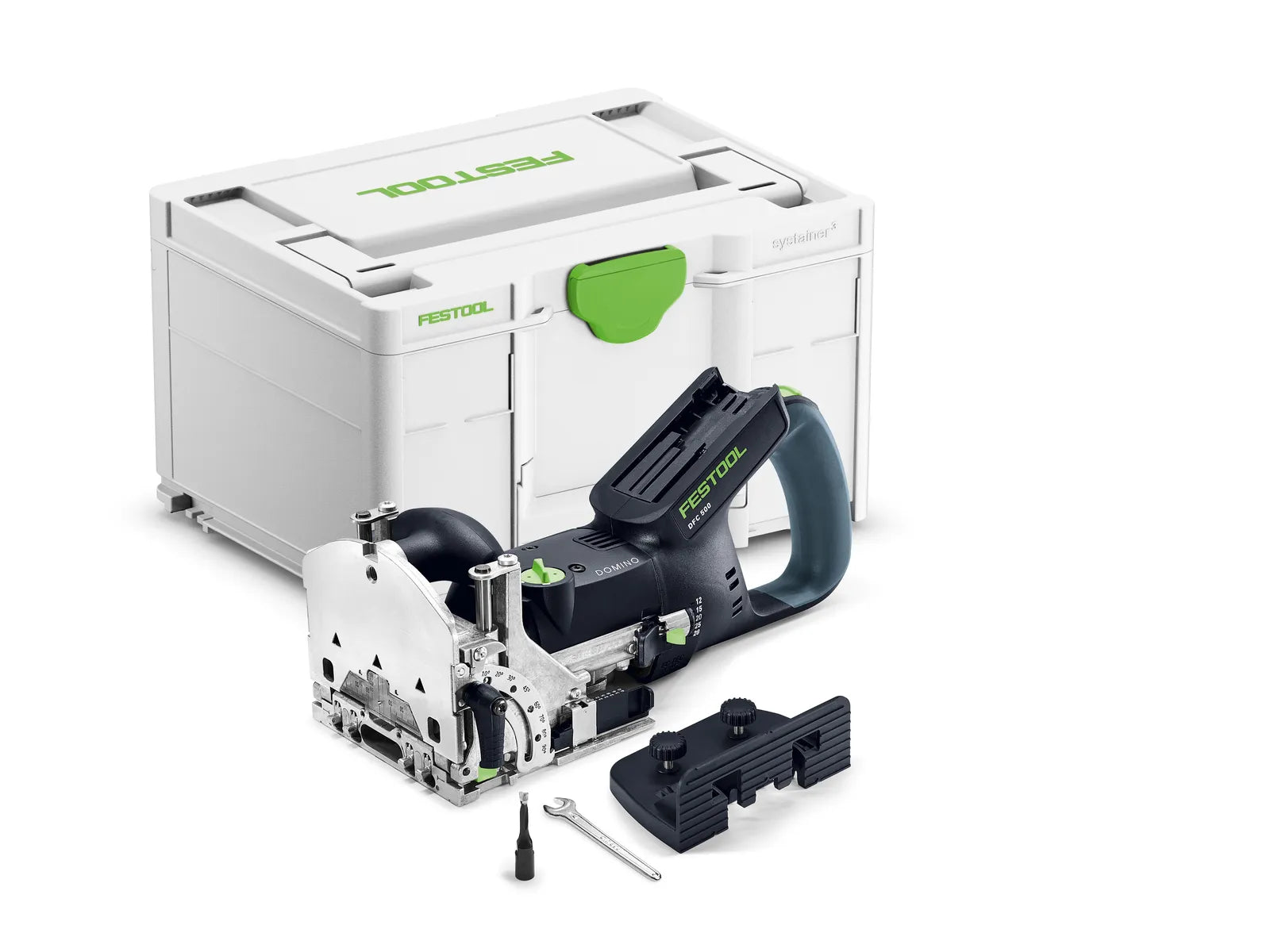

- 578121 - Festool DFC 500 E-Basic Cordless DOMINO Joiner
- 578946 - Festool SYS 18V 4xTBX4/TCL6DUO Energy Set
- 576794 - Festool DS 4/5/6/8/10 1060 BU Beech DOMINO Tenons Assortment
- 576797 - Festool KV-SYS D8 DOMINO Connector Range
- 498590 - Festool QA-DF 500/700 Cross Stop
- 493487 - Festool LA-DF 500/700 Trim Stop
- 494847 - Festool RA DF 500/700 Hand Rail Fence
Specifications
Specifications
| Tool Item Number | 578121 |
| Tool Drive Type | Battery |
| Tool Battery Voltage | 18 V |
| Idle Engine Speed | 18,500 RPM |
| Mitre Routing | 0 - 90° |
| Routing Height Adjustment | 1/8" (5 mm) - 1-3/16" (30 mm) |
| Max. Routing Depth | 1-1/16" (28 mm) |
| Dust Extraction Connection Dia. | 1-1/16" (27 mm) |
| DOMINO Slot Cutter Dia. | 3/16" (4 mm) / 1/8" (5 mm) / 1/4" (6 mm) / 5/16" (8 mm) / 3/8" (10 mm) |
| Depth Stop for Routing Depth | 12, 15, 20, 25, 28 mm |
| Tool Weight | 7.50 lbs (3.4 kg) |
| Tool Includes | D 5-NL 20 HW-DF 500 DOMINO Cutter; ZA-DF 500/700 Support Bracket; open ended spanner, WAF 8; SYS3 M 237 Systainer³ |
| Energy Set Item Number | 578946 |
| Energy Set Capacity | 4.00 Ah |
| Energy Set Voltage | 18 V |
| Charging Current | 2 x 6.0 A |
| Input Voltage | 120 V |
| Energy Set Weight | 11.90 lbs (5.4 kg) |
| Energy Set Includes | 4x BP 18 TBX 4 C-ASI Tabless Battery Packs; TCL 6 DUO Rapid Charger; SYS3 M 187 Systainer³ |
| Tenon Assortment Item Number | 576794 |
| Tenon Assortment Includes | DOMINO dowel range 4 x 20, 5 x 30, 6 x 40, 8 x 40, 8 x 50, 10 x 50 mm; DOMINO router for sizes 4, 5, 6, 8 and 10; SORT-SYS3 M 187 DOMINO Systainer³ |
| Connector Range Item Number | 576797 |
| Connector Range Includes | 70x DOMINO/DOMINO KV D8 basic structure connector; 20x DOMINO/LR32 KV-LR32 D8 basic structure connector; 10x DOMINO/DOMINO MSV D8 center panel connector; 10x DOMINO/LR32 MSV-LR32 D8 center panel connector; cover caps; 20x DOMINO D 8 x 36 mm; BS-KV D15 drilling template; KVB-HW D15 CE hinge location cutter; screwdriver; SYS3 M 137 Systainer³ |
| Cross Stop Item Number | 498590 |
| Cross Stop Repeat Hole Spacing | 4" - 8-3/32" (100 - 205 mm) |
| Trim Stop Item Number | 493487 |
| Trim Stop Material Width Range | 7/8" - 2-3/4" (22 - 70 mm) |
| Hand Rail Fence Item Number | 494847 |
| Hand Rail Fence Round Stock Range | 1-3/8" to 2-3/8" (35 mm to 60 mm) |
