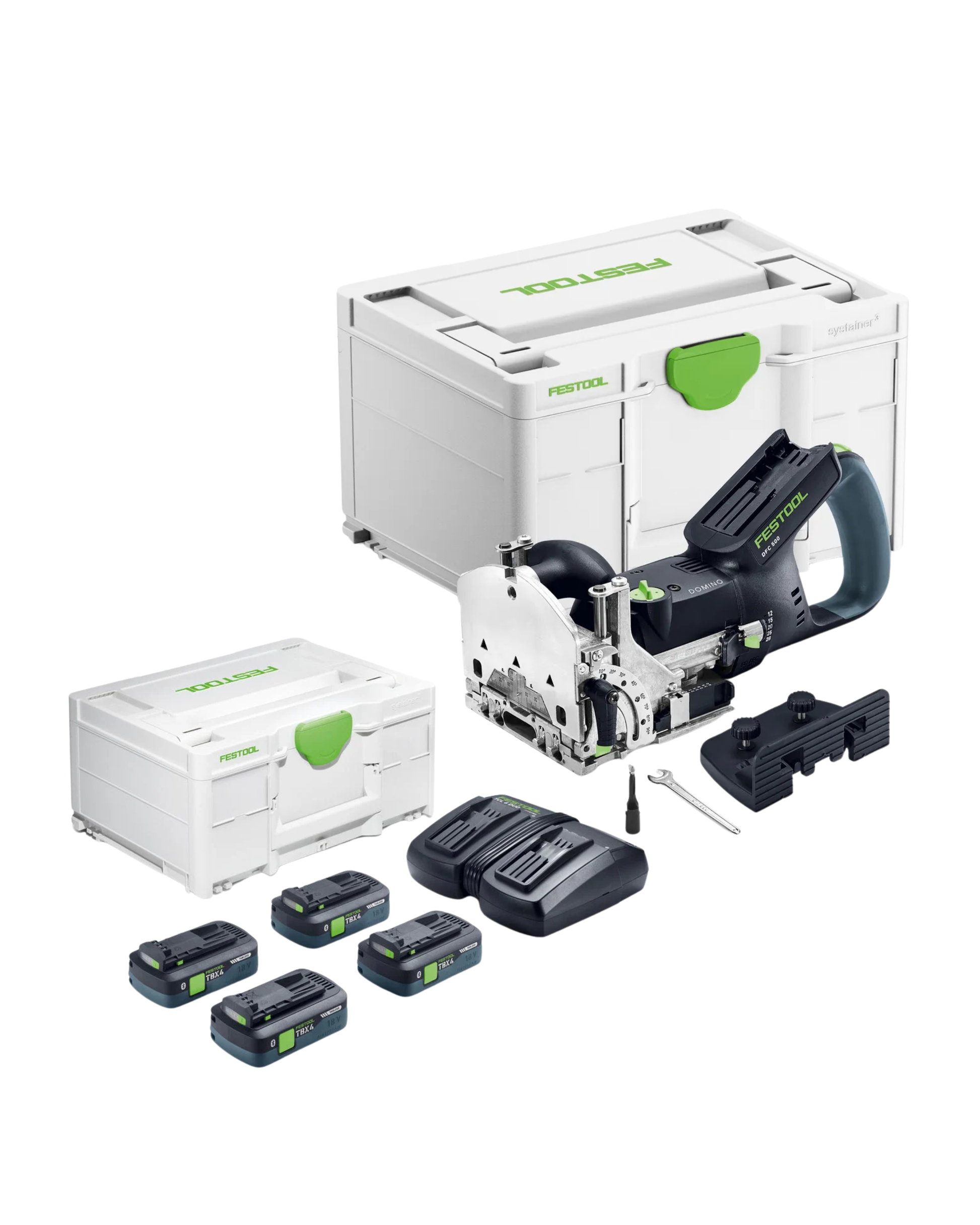

Festool DFC 500 18V Cordless DOMINO Joiner Starter Kit with TBX Tabless Battery Set
Festool DFC 500 18V Cordless DOMINO Joiner Starter Kit with TBX Tabless Battery Set
Couldn't load pickup availability
Details
Details
Strong joints. No cords. Ready for any job. The Festool DFC 500 18V Cordless DOMINO Joiner Starter Kit pairs the DFC 500 E-Basic with the SYS 18V 4xTBX4/TCL6DUO Energy Set, giving you the cordless DOMINO joiner, four TBX 4.0 Ah tabless battery packs, TCL 6 DUO rapid charger, and Systainer³ storage in one package.
The DFC 500 is built for precision, engineered for stability, and powered by cordless freedom. The DOMINO system creates strong wood joints with a special cutting motion that produces clean, twist-proof mortises designed to fit DOMINO Tenons accurately. DOMINO Tenons combine the alignment of a mortise-and-tenon joint with the adjustability of biscuits and the strength of dowels.
The cordless design allows work in the shop or on-site without being tied to a power outlet. The ergonomic D-handle supports control and comfort, while built-in indexing pins help make repeat mortise placement fast and easy. Preset routing depths match tenon lengths and panel thicknesses for accurate setup.
The included Festool Energy Set is built around TBX tabless battery technology. The four BP 18 TBX 4.0 Ah battery packs provide cordless power for Festool 18V tools, while the TCL 6 DUO rapid charger charges two batteries simultaneously. Everything is organized and protected in a SYS3 M 187 Systainer³ for transport, storage, and integration into the Festool system.
Features & Benefits
- 100% cordless DOMINO joiner for work in the shop or on-site.
- Special cutting motion creates clean, accurate, twist-proof mortises.
- DOMINO Tenons provide strong alignment and solid hold.
- Ergonomic D-handle supports control and comfort during use.
- Built-in indexing pins help make repeat mortise placement fast and easy.
- Preset routing depths match tenon lengths and panel thicknesses.
- TBX tabless battery technology delivers high output, fast charging, and smart system integration.
- TCL 6 DUO rapid charger charges two batteries simultaneously.
- Bluetooth®-enabled batteries can automatically start a paired Festool CLEANTEC dust extractor when the cordless tool is switched on.
- Festool app connectivity provides access to battery data including charge level, temperature, and charge cycles.
Main Applications
- Strong joints
- Panel joinery made easy
- Twist-proof strength
- Stable miters
- Removable connectors
- Thin material compatible
- Round profile joints
Includes
- 578121 - Festool DFC 500 E-Basic Cordless DOMINO Joiner
- 578946 - Festool SYS 18V 4xTBX4/TCL6DUO Energy Set
Specifications
Specifications
| Included Tool | DFC 500 E-Basic Cordless DOMINO Joiner |
| Tool Item Number | 578121 |
| Tool Drive Type | Battery |
| Tool Battery Voltage | 18 V |
| Idle Engine Speed | 18,500 RPM |
| Mitre Routing | 0 - 90° |
| Routing Height Adjustment | 1/8" (5 mm) - 1-3/16" (30 mm) |
| Max. Routing Depth | 1-1/16" (28 mm) |
| Dust Extraction Connection Dia. | 1-1/16" (27 mm) |
| DOMINO Slot Cutter Dia. | 3/16" (4 mm) / 1/8" (5 mm) / 1/4" (6 mm) / 5/16" (8 mm) / 3/8" (10 mm) |
| Depth Stop for Routing Depth | 12, 15, 20, 25, 28 mm |
| Tool Weight | 7.50 lbs (3.4 kg) |
| Tool Includes | D 5-NL 20 HW-DF 500 DOMINO Cutter; ZA-DF 500/700 Support Bracket; open ended spanner, WAF 8; SYS3 M 237 Systainer³ |
| Included Energy Set | SYS 18V 4xTBX4/TCL6DUO |
| Energy Set Item Number | 578946 |
| Energy Set Compatibility | For all 18-volt devices except ETSC 125, RTSC 400, DTSC 400 |
| Energy Set Capacity | 4.00 Ah |
| Energy Set Voltage | 18 V |
| Charging Current | 2 x 6.0 A |
| Input Voltage | 120 V |
| Energy Set Weight | 11.90 lbs (5.4 kg) |
| Energy Set Includes | 4x BP 18 TBX 4 C-ASI Tabless Battery Packs; TCL 6 DUO Rapid Charger; SYS3 M 187 Systainer³ |
Shipping & Returns
Shipping & Returns
Shipping: Beaver Industrial Supply offers free shipping on orders over $199, with the exception of Sawstop and Laguna, which require additional fees to be collected. Other exceptions apply as noted on product pages.
We reserve the right to determine the fastest and most cost-effective manner of transportation for all orders that qualify for free shipping. Our shipping carriers cannot deliver to PO box or U.S. military post office box addresses, such as APO and FPO, so we require a physical street address for delivery. We use USPS, which typically takes 2-8 days for delivery, depending on your location, for smaller items and UPS Ground for all other ground shipments under 150 pounds.
• Returns: We accept returns and exchanges for a fee up to 30 days in unopened, new, and unused condition in the original packaging. Exceptions apply.
Please note, NO REFUNDS will be given on any new, used, or damaged item if it is not returned in the original packaging, no matter what condition the packaging is in. If the item qualifies for free shipping, you will be charged the original shipping cost and are responsible for shipping the product back with the shipping carrier of your choice.
We must receive the item undamaged. We recommend you package it accordingly and purchase insurance for higher-priced items to ensure you receive the full refund minus any incurred fees as applicable. We reserve the right to refuse the return of accessories.
Because items are your responsibility until they reach us, we recommend that you send the parcel using a delivery service that insures you of the value of the goods. Return shipping is at the customer's cost. At Beaver Industrial Supply’s discretion, delivery charges can be refunded if the goods are defective.
Returns require a return authorization number. Please call customer service at 314-773-5999 or submit a customer service inquiry to start the exchange or return process and receive an authorization number.
Machinery too large for parcel shipment (palletized or crated) is only returnable if there is a material defect that cannot be resolved by replacing components.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Related Products
Festool 1060-Piece Tenon Assortment Systainer3 w/ Cutter for DOMINO DF 500 576794
Choose your option
Festool Domino Connector Range Set for DF 500 576797
Choose your option
Festool Domino Cross Stop 498590
Choose your option

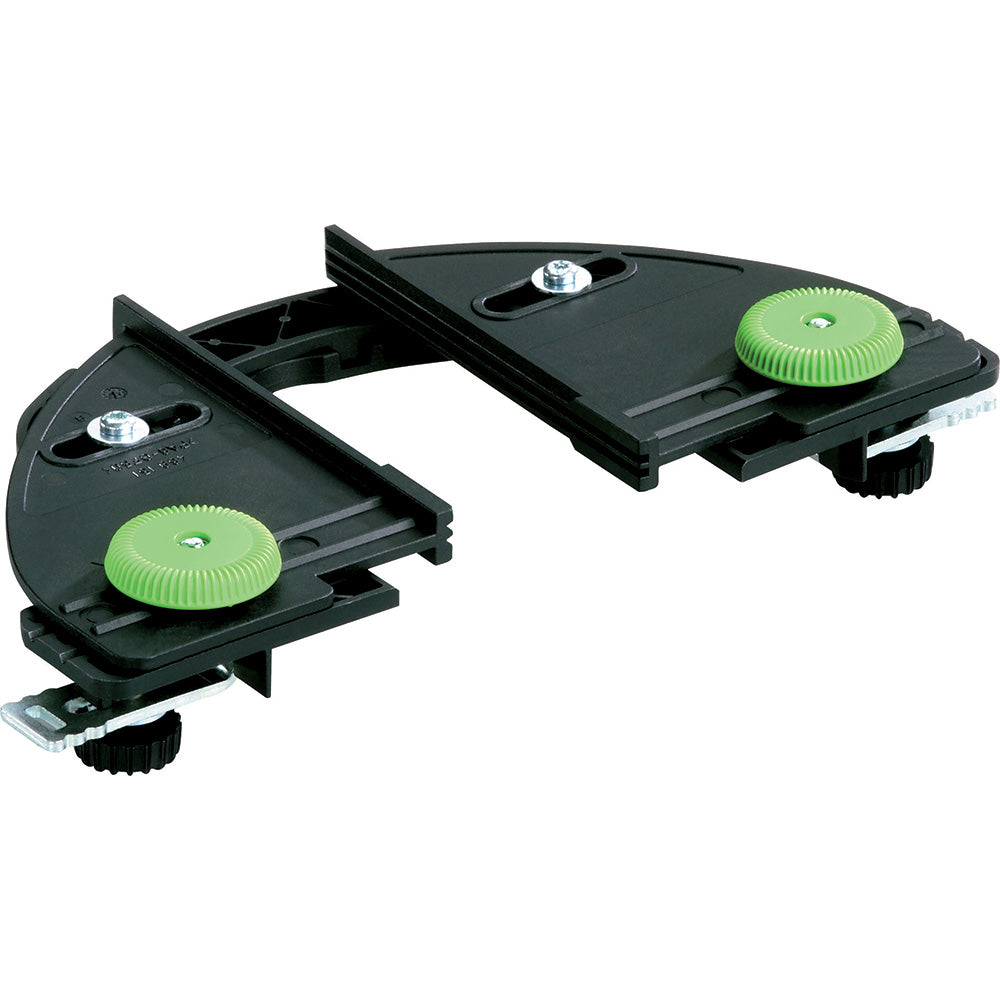

Festool Domino Trim Stop 493487
