Amana Tool 220mm/64 Teeth DITEC TIP H-ATB DT220T640
Amana Tool 220mm/64 Teeth DITEC TIP H-ATB DT220T640
Couldn't load pickup availability
Details
Details

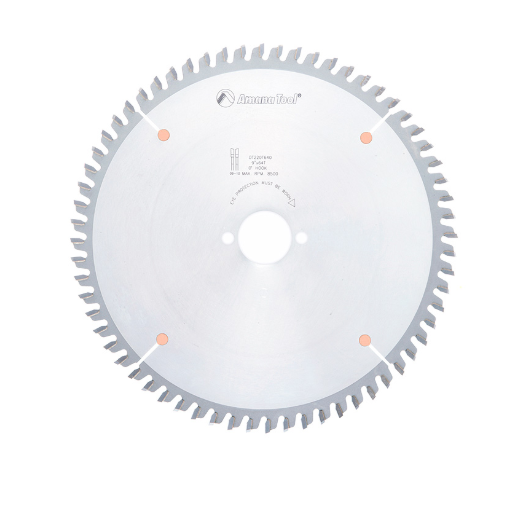

DT220T640, Amana Carbide Tipped Ditec Holz-Her General Purpose 220mm Dia x 64T H-ATB, 0 Deg, 30mm Bore
If you cut melamine on a regular basis, this is the blade you should use. It has the same features as our regular melamine blades – the MB series and MSB series – such as thicker than standard plate, high tooth count, and the H-ATB grind, but this blade has long-lasting DITEC™ carbide tips.
Features:
- Exclusive DITEC™ Carbide Tips
- Higher Reliability & Lower Maintenance
- Low Noise Level
- Laser Cut Saw Bodies
- Excellent Cutting Quality
- For maintenance grinding, use fine grit (D400 to D600) diamond wheels. To match the factory grind, use a slower than normal feed rate.
- Damaged teeth can be replaced by any grade of carbide tooth. Replacing of a large number of teeth will, of course, shorten the life of the saw blade.
- Since the carbide in the DITEC™ is harder than other carbides, it is critical that you protect them from “thermal shock” if an adjacent tooth is replaced. Heat absorbed during the brazing process will seriously degrade the DITEC™ carbide.

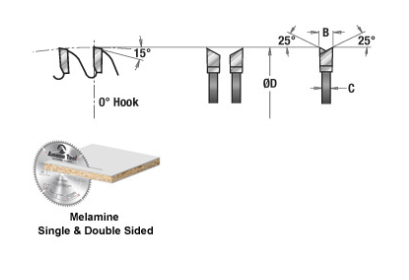

| (D) Diameter | 220mm |
|---|---|
| Teeth | 64 |
| (d) Bore | 30mm |
| Tooth Grind | H-ATB |
| Hook Angle | 0° |
| Application | Ditec™ Melamine |
| Kerf (B) | .126 (3.2mm) |
| Pinholes | 2/7/42 |
| Plate (C) | .079 (2.0mm) |
Designed specifically for the Holz-Her® 220mm panel saws.
Specifications
Specifications
| Amana Tool 220mm/64 Teeth DITEC TIP H-ATB DT220T640 | |
| APPLICATION | Contracting & Remodeling / Wood Working |
| Brand | Amana Tool |
