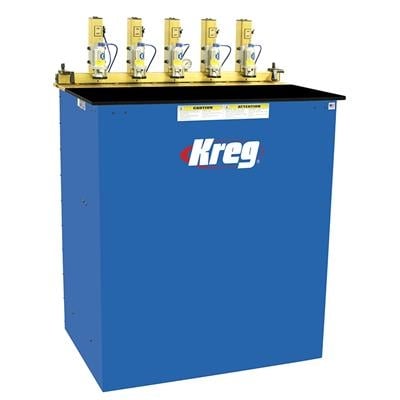

Kreg Panel-Boring Pocket Hole-Machine DK5100
Kreg Panel-Boring Pocket Hole-Machine DK5100
Couldn't load pickup availability
Details
Details
DK5100, Kreg Panel-Boring Pocket Hole-Machine
Five industrial-grade motors, five individually-activated clamping cylinders, and five durable drill spindles; all in one amazing machine. The DK5100 makes drilling multiple pocket holes across cabinet sides, shelving, stairs, and window or door extensions easier than ever before. In the right setting, it can beat the bottle-neck that’s slowing down your shop and significantly improve your bottom line.
This machine is built for the shop that has a specific repetitive application that demands increased productivity. The time saved by drilling up to five pocket holes at once is truly dramatic and will allow you to reallocate resources to areas of your shop that need more attention.
Features:
- Five individually-actuated motors
- Five clamping cylinders
- Five durable drill spindles
- Entirely pneumatic design
- Hardened-steel drill guides to maximize drill bit life
- One-touch, foot pedal operation
- Swing Stops for optimized material positioning
- Dust collection chutes for efficient chip removal
- Pre-filter and automatic lubricator
Specifications:
| Motor |
(5) pneumatic 3/4-HP motors |
| Drill Bits |
DKDB Drill Bit |
| CFM Rating |
20 CFM at 50% duty cycle |
| Cycle Time |
2 seconds |
| Material Clamping Capacity |
13/4" |
| Hole-Centering Capability |
1/2"-thick to 3/4"-thick material |
| Weight |
350 lbs. |
| Dimensions |
50"H x 36"W x 24"D |
| On-Center Spindle Spacings |
6" |
| Warranty |
5 Years |
| Included |
(1) Panel-Boring Pocket-Hole Machine and Complete Owner's Manual |
Specifications
Specifications
| Kreg Panel-Boring Pocket Hole-Machine DK5100 | |
| APPLICATION | Wood Working |
| BRAND COMPATIBILITY | Kreg |
| Brand | Kreg |
| HEIGHT | 50 in |
| HORSEPOWER | 0.75 HP |
| LENGTH | 24 in |
| POWER SOURCE | Compressed Air |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Joiners - Pocket Hole Joiners |
| TOOL TYPE | Joiners |
| WIDTH | 36 in |
