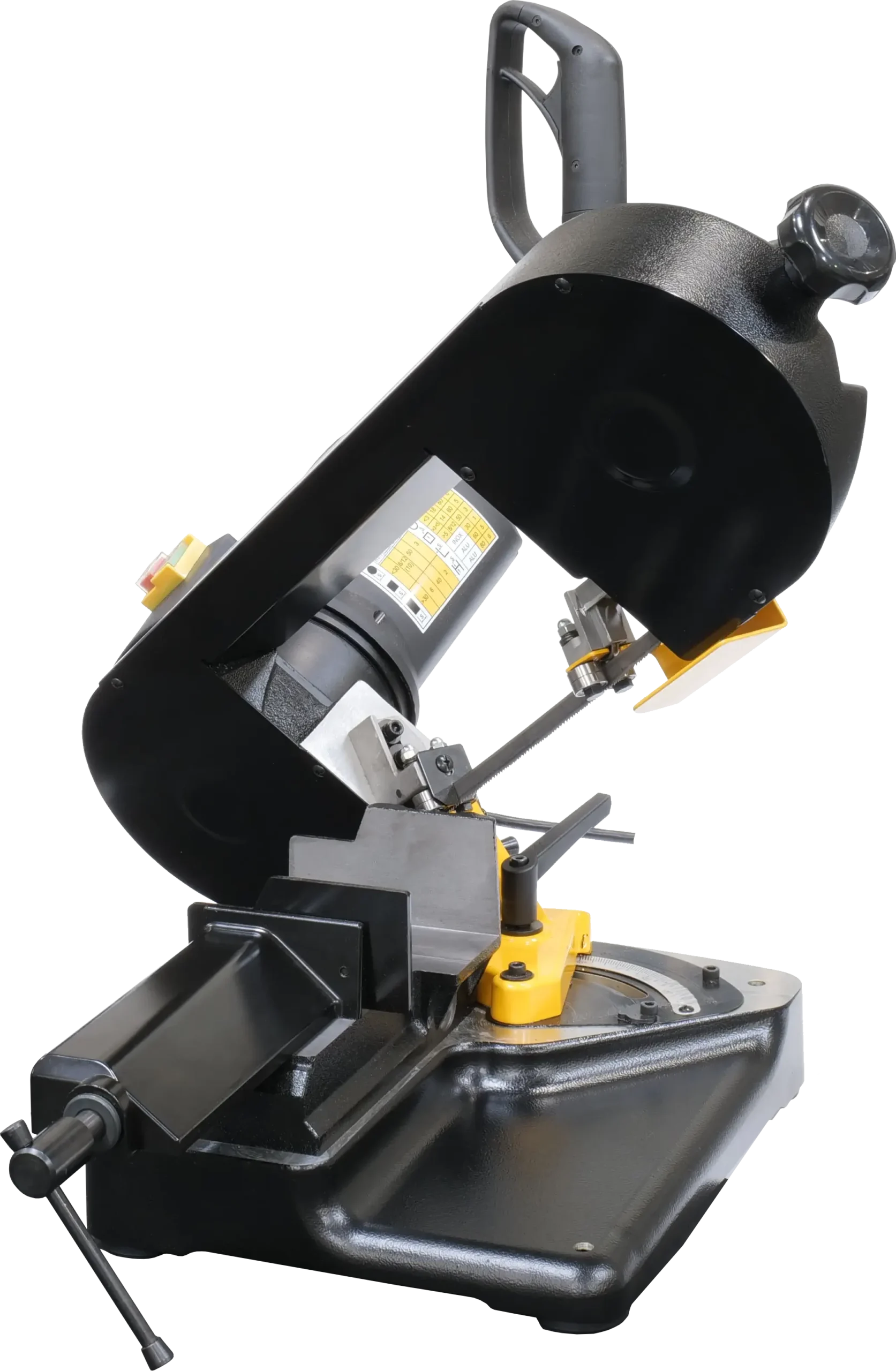

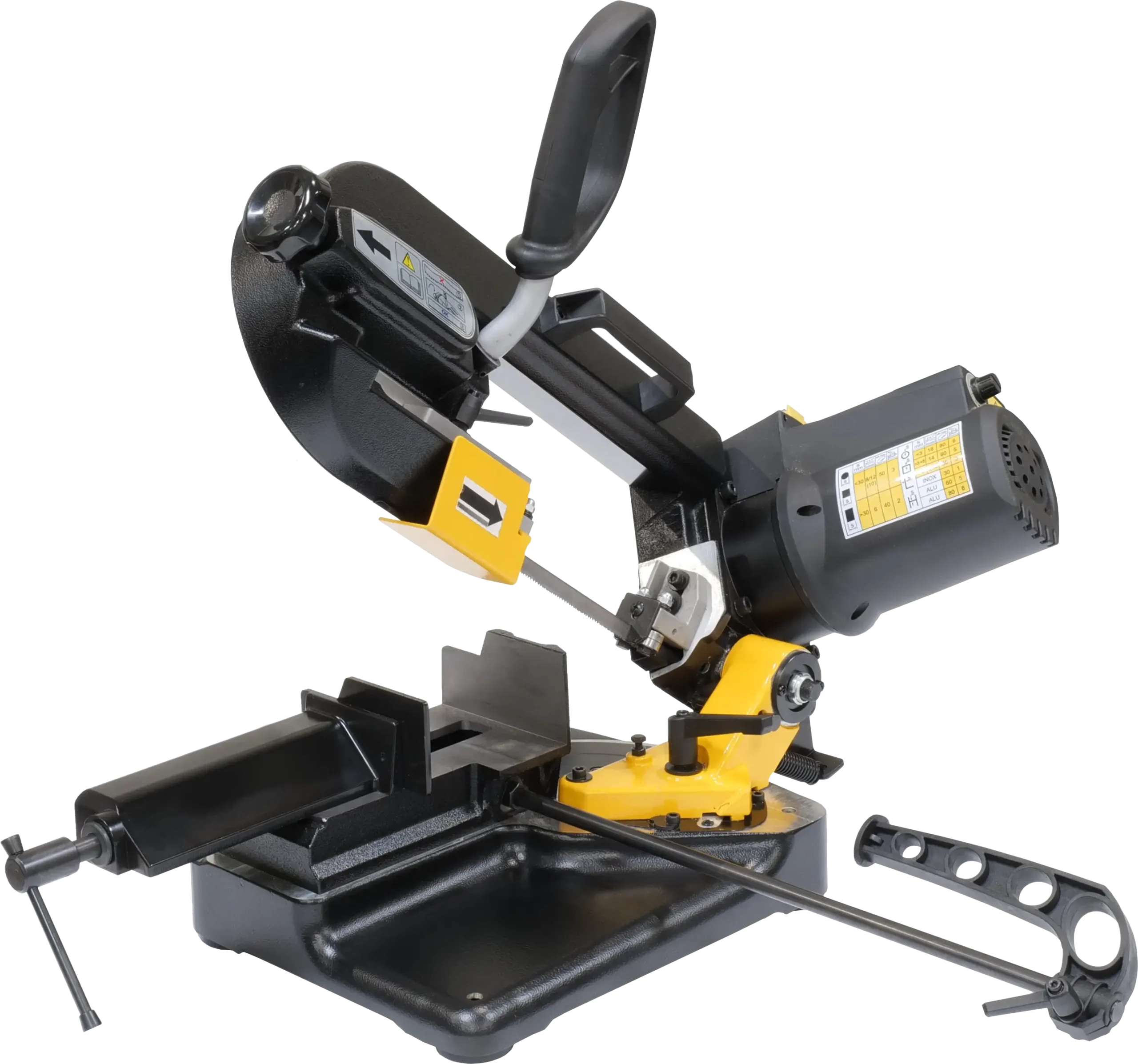

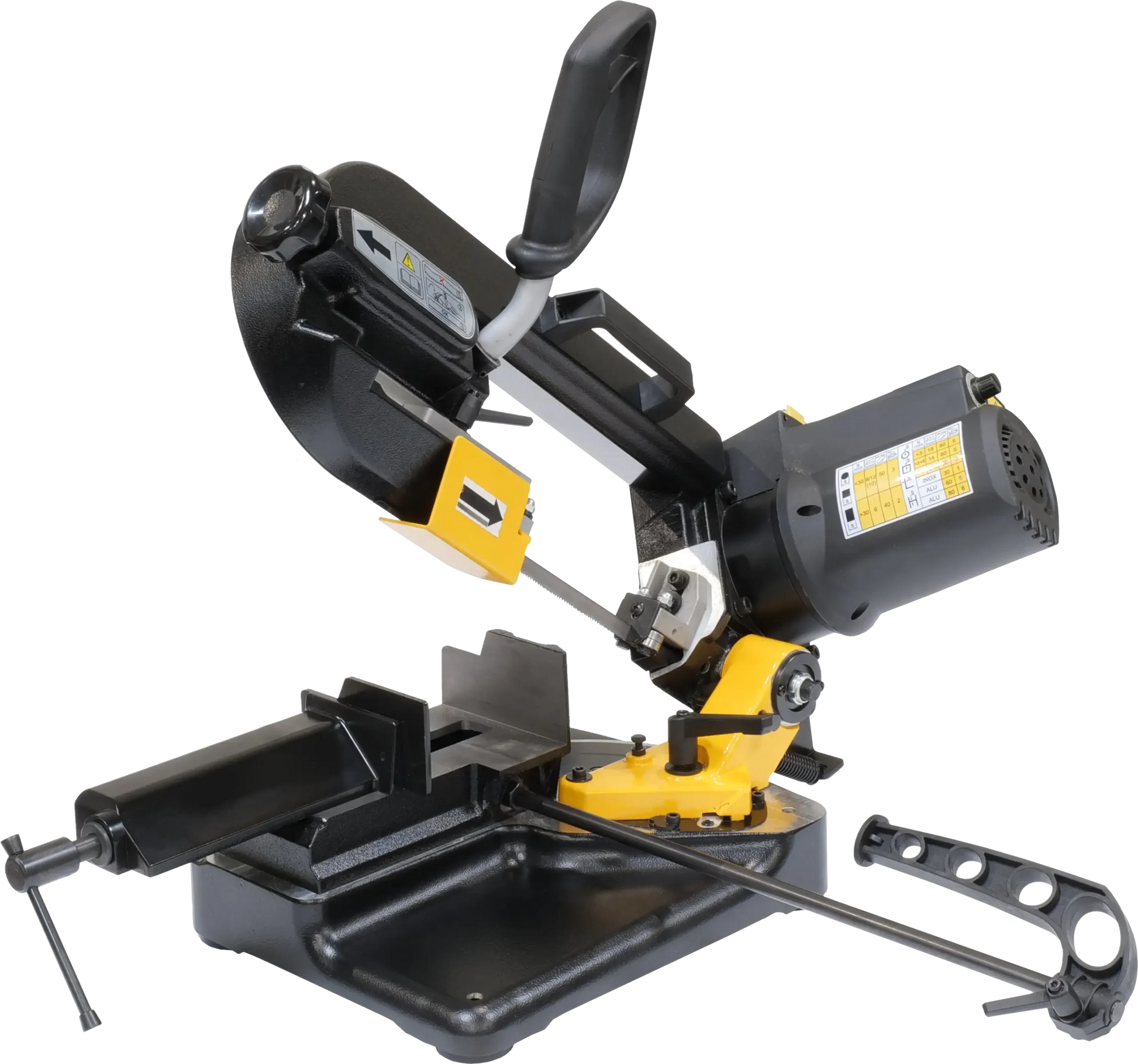

The Dake Machinery B:5 Horizontal Bandsaw (SKU MHBAND5X5) is a compact, benchtop metal-cutting saw built for precision cutting of carbon steel, stainless steel, copper alloys, cast iron, and aluminum. Powered by a 1 HP motor operating on standard 120V power, this saw delivers a 4.92 in. round cutting capacity and variable blade speeds from 82 to 262 FPM for machine shops, benchtop setups, and light-duty metal fabrication.

Featuring an aluminum bow-saw frame, the B:5 keeps overall weight down to 46.3 lbs. while maintaining structural stability. A variable blade speed dial allows operators to adjust cutting speeds to match specific metals, reducing blade wear and optimizing cut quality. The adjustable blade guide arm positions close to the workpiece to minimize blade deflection during cuts.

Workholding is handled by an integrated vise with a swivel jaw that auto-adjusts to hold material securely for cuts ranging from 0 to 60 degrees. A single-knob blade tensioning system targets a 1/4 in. blade deflection for straightforward setup, while the included work stop rod assembly supports repeatable length cutting. Four rubber feet with pre-drilled holes allow secure mounting to a workbench using lag screws or hex bolts.

Features & Benefits

• 1 HP 120V Motor: Runs on standard 120V electrical power without requiring special circuit wiring.
• Variable Blade Speed Dial: Adjusts blade speed from 82 to 262 FPM to match material hardness and optimize cutting performance.
• 4.92 in. Cutting Capacity: Handles up to 4.92 in. round bar and 5.12 x 4.92 in. rectangular stock at 90 degrees.
• 0 to 60 Degree Miter Range: Swivel vise jaw and quick-locking handle allow angle cuts up to 60 degrees.
• Aluminum Bow-Saw Frame: Provides structural rigidity while keeping total machine net weight to 46.3 lbs. for benchtop versatility.
• Adjustable Blade Guide Arm: Minimizes blade deflection by placing guide bearings near the workpiece.
• Single-Knob Blade Tensioning: Simplifies blade setup with a targeted 1/4 in. deflection standard.
• Work Stop Assembly: Included rod and handle facilitate uniform stock measurement for repeatable production cuts.
• Benchtop Mounting Base: Features four rubber feet with integrated mounting holes for lag screw or hex bolt installation.
• Quiet Operation: Rated at approximately 60 dB(A) for low-noise shop environments.

What's Included

• (1) B:5 Horizontal Bandsaw (MHBAND5X5) with Blade Installed
• (4) Rubber Feet with Mounting Holes
• (1) Work Stop Rod
• (1) Work Stop Handle
• (1) Hardware Bag (Mounting and Assembly Hardware)
