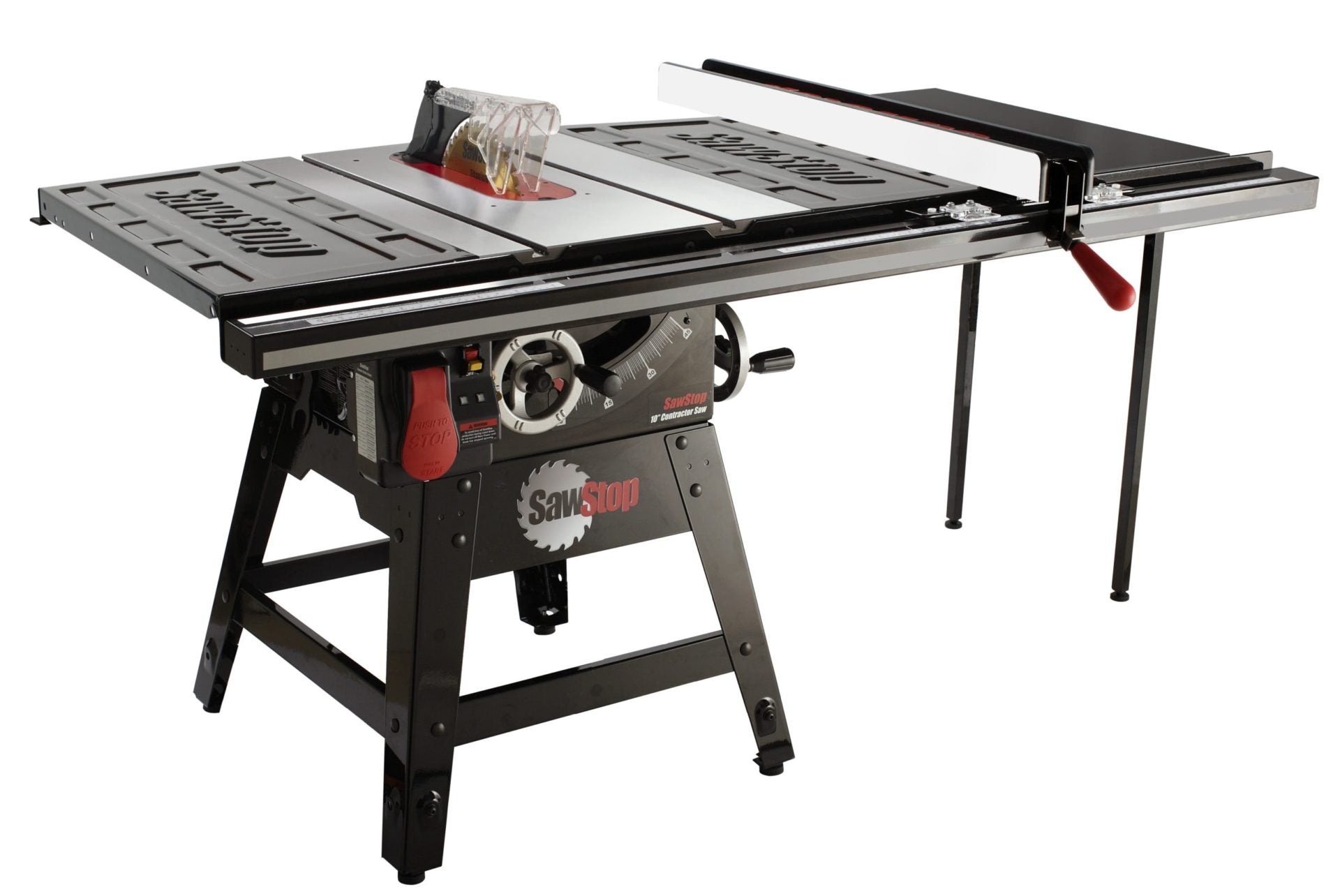

SawStop Contractor Table Saw 1.75HP 115/230V w/ 36" T-Glide Advance Fence Assembly CNS175-ATGP36
SawStop Contractor Table Saw 1.75HP 115/230V w/ 36" T-Glide Advance Fence Assembly CNS175-ATGP36
Low stock
Couldn't load pickup availability
Details
Details
The SawStop® Contractor Saw offers versatility and safety.

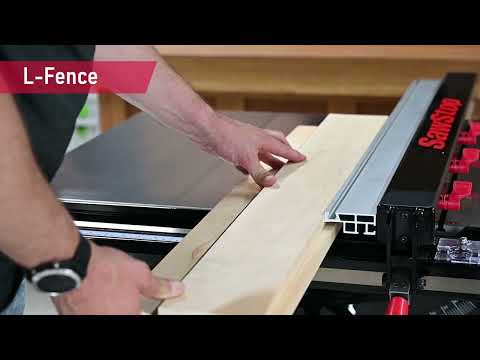

36-INCH T-GLIDE ADVANCE FENCE ASSEMBLY: The 36-inch T-Glide Advance Fence & Rail are made of heavy-gauge steel for sure lockdown and reliably square cutting for years without deflection. The multi-function aluminum fence face provides the ability to use in three positions, with a dovetailed groove for attaching accessories and jigs.
CONFIGURABILITY: Over 150 unique configurations, makes the Contractor Saw the most configurable SawStop saw. Adding a mobile base, sliding crosscut table or router table, are just a few of the ways to make this your ideal saw.
UNIVERSAL PERFORMANCE: The Contractor Saw offers versatility, reliability and safety for a variety of users. The cast iron table top (Cast Iron Wing Assembly, CNS-CIWA, sold separately) creates a better-than-hybrid performance in the shop at an affordable price.
SAWSTOP PATENTED SAFETY SYSTEM: Stops a spinning blade on contact with skin. The blade stops in less than 5 milliseconds, and drops below the table, minimizing a potentially life-altering injury to a mere scratch.
RELIABILITY: The Control Box houses the on-off switch, power paddle, and on-board computer, and constantly checks that all systems are working to reliably keep you safe.
UNMATCHED QUALITY: The trunnion and arbor are built for precision, strength and stability. Poly v-ribbed belts reduce vibration and help ensure a great cut. Table flatness is measured diagonally at 0. 010” maximum gap.
Features
- 36" Professional T-Glide Advance Fence System provides smooth operation, three operating positions (high, low, L-fence), a dovetail groove for attaching accessories and jigs, precision measurement with two magnifying indicators (high and low position) and sure lockdown without deflection.
- SawStop Safety System stops on contact with skin.
- Includes Two Steel Extension Wings
- The most configurable saw in the SawStop lineup
- Dimension: 69 1/8" w, 45" d, 34 3/4" h
- Precision, performance and safety all come together to make this the right choice for experts looking for a reliable saw at an affordable price.
Included Items
- (2) Steel Extension Wings
- (1) Miter Gauge
- (1) Micro Blade Guard
- (1) Riving Knife
- (2) Blade Wrenches
- (1) Push Stick
- (1) 10” Blade
- (1) Standard Lockdown Insert
- (1) Standard Brake Cartridge
- (1) Owner’s Manual
- (1) Assembly Instructions
- (2) Hardware Packs
- (1) 3mm Hex Key
- (1) 5mm Hex Key
- (1) 8mm hex Key
- (1) Blade Spacing Adjustment Gauge
Specifications
Specifications
| 36" Rip Capacity | 36" T-Glide Advance Fence Assembly |
| Motor Option(s) (60Hz TEFC) | 1.75 HP available |
| Overall saw dimensions 36 in | 69 1/8" W x 45" D x 34 3/4" H |
| Motor Configuration(s) | 1.75 HP, 120v, 14 A (user config. to 220v w/optional kit available for purchase). |
| Saw body footprint | 25 3/4" W x 27" D (w/stand installed) |
| Cast iron table | 20″ W x 27″ D |
| Cast iron table (w/ extension wings) | 44″ W x 27″ D |
| Extension wings | 12″ W x 27″ D Stamped Steel (optional cast iron for purchase) |
| Extension table 36 in | 23 3/4″ W x 27″ D |
| Shipping weights - w/ 36 in fence systems | 350 lbs (4 boxes) |
| Shipping dimensions (saw body only) | 35" W x 30" D x 20" H |
| Shipping weight (approx.) | 240 lbs (table saw only) |
| Assembled weights - w/ 36 in fence systems | 310 lbs |
| Weights - table saw only | 225 lbs |
| Weights - (optional cast iron wings) | 35 lbs each |
| Blade | 40-tooth, prof. grade, 5/8″ arbor |
| Blade diameter | 10" |
| Blade tilt | Left |
| Blade kerf | 0.118″ (3mm) |
| Blade plate thickness | 0.078″ (2mm) |
| Max. depth of cut, blade at 0º | 3 1/8″ |
| Max. depth of cut, blade at 45º | 2 1/4″ |
| Max. rip, left of blade (w/36” or 52” T-Glide Fence) | 12" |
| Max. rip, right of blade (w/36” Fence) | 36" |
| Dado diameter | 8" (requires dado brake cartridge & insert) |
| Dado max. width | 29/32" (23mm) |
| Arbor diameter at blade | 5/8" |
| Main bearing size | 62mm OD x 30mm ID |
| Second bearing size | 52mm OD x 25mm ID |
| Table in front of blade (max. elevation) | 10 5/8" |
| Table behind blade (max. elevation) | 7.125 |
| Arbor Runout | 0.001″ Maximum allowable runout |
| Table flatness measured diagonally | 0.016″ Maximum gap |
| Blade alignment with miter slot | 0.010″ Maximum displacement |
| Deviation of miter gauge indexing stops from actual | ±0.25º |
| Alignment between splitter and blade | 0.010″ Maximum difference |
| Miter slots T-shaped | 3/4″ at top, 1″ at bottom, 3/8″ deep |
| Miter slots center | 11 1/8″ center-to-center |
| Miter slots info | 5 1/2″ (arbor flange to center of right slot) |
| Dust collection port diameter | 4" |
| Riving knife / splitter thickness | 0.090" (2.3 mm) |
| Blade guard | Standard polycarbonate, extends 1″ right of blade (opt dust guard for purchase) |
| Insert | zero clearance, phenolic core, melamine surfaces |
| Hand wheels | 6″ diameter, cast alum. w/ ABS handle |
| Belts | V-ribbed belt – static dissipative |
