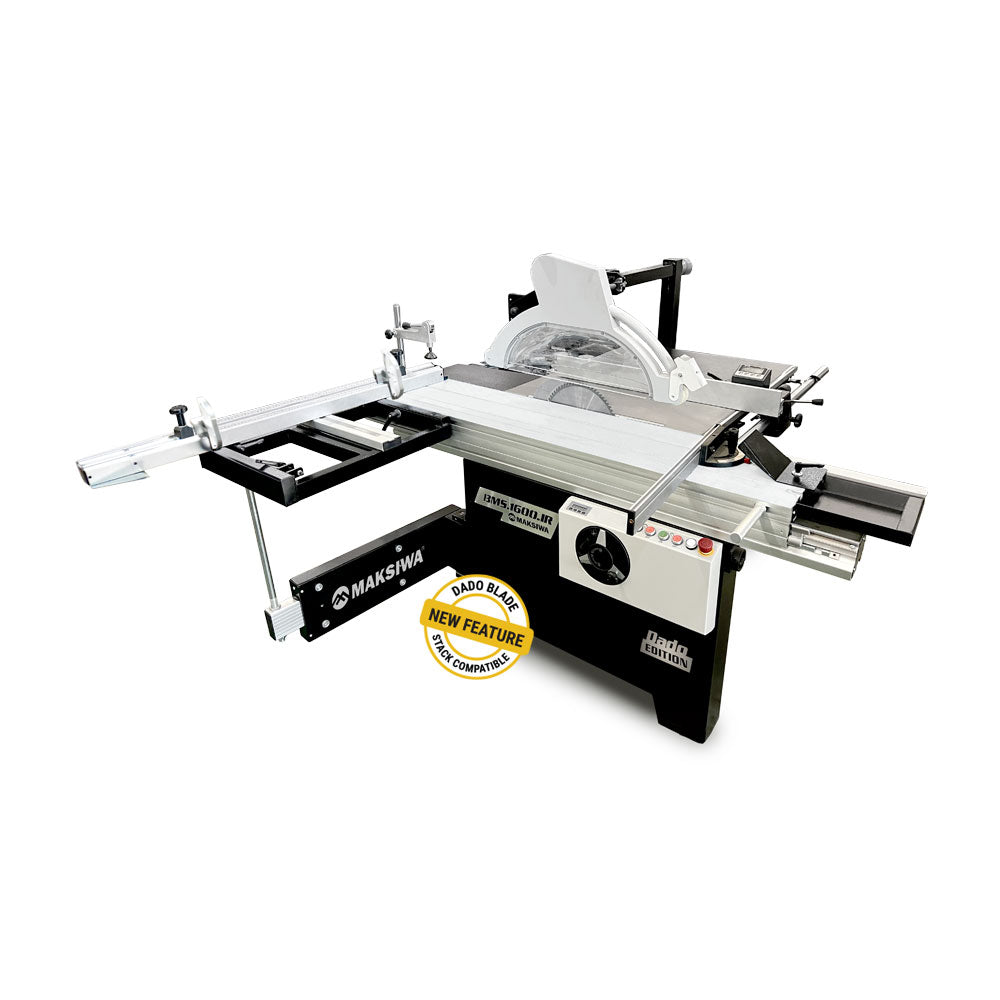

Maksiwa 5 ft. Sliding Panel Saw, 1 Phase, 5HP, 220V BMS.1600.IR
Maksiwa proudly introduces the BMS.1600.IR Dado Edition, an upgraded version of our popular sliding panel saw, now enhanced with dado blade stack compatibility. Designed for precision, power, and efficiency, this compact yet high-performance machine is perfect for shops that demand versatile cutting capabilities without sacrificing space.
With the ability to support dado stacks up to 1-1/4" using an 8" blade, the BMS.1600.IR Dado Edition ensures chip-free precision for joinery and cabinetmaking applications. Plus, quick blade changes between dado and standard blades streamline workflow, maximizing productivity.
Experience the next level of cutting flexibility—upgrade to the BMS.1600.IR Dado Edition today!
Technical Info
- Main Motor — 5 HP 4000 RPM 3.7 Kw
- Max Blade Diameter — 12" | 305mm
- Main Blade Arbor — 30mm
- Main Blade Max Cutting Height at 90° — 3 1/2"
- Main Blade Max Cutting Height at 45° — 2 1/2"
- Dado Width Capacity — 3/4"
- Max Dado Blade Diameter — 8"
- Dado Blade Arbor — 1 3/16" | 30mm
- Scoring Motor — 1 HP 8000 RPM .74Kw
- Scoring Motor Blade — 4 3/4" | 120mm
- Scoring Blade Arbor — 25/32" | 20mm
- Scoring Blade Type — Conical
- Max Ripping Capacity — 35 1/2" | 900mm
- Crosscut Capacity — 63"
- Crosscut fence max. (Closed/Open) — 48" / 80"
- Machine Working Dimension (LxWxH) — 79" x 115" x 66"
- Sliding Table Dimension — 63" x 12"
- Cast Iron Table dimension (LxWxH) — 32 1/2" x 21" x 35 1/2"
- Max Tilt — 45°
- Dust Collection Port — 4"
- Electrical Specs — 1 PH 220V 30 Amps 60Hzs
- Weight — 1000 lbs
Specifications
Specifications
| Maksiwa 5 ft. Sliding Panel Saw, 1 Phase, 5HP, 220V BMS.1600.IR | |
| APPLICATION | Wood Working |
| Brand | Maksiwa |
| DIAMETER | 12 in |
| HORSEPOWER | 5.0 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Saws - Panel Saws |
| TOOL TYPE | Saws |
| VARIABLE SPEED | No |
| VOLTAGE | 208V-240V 1Ph |
| WATTAGE | Over 2000 |
