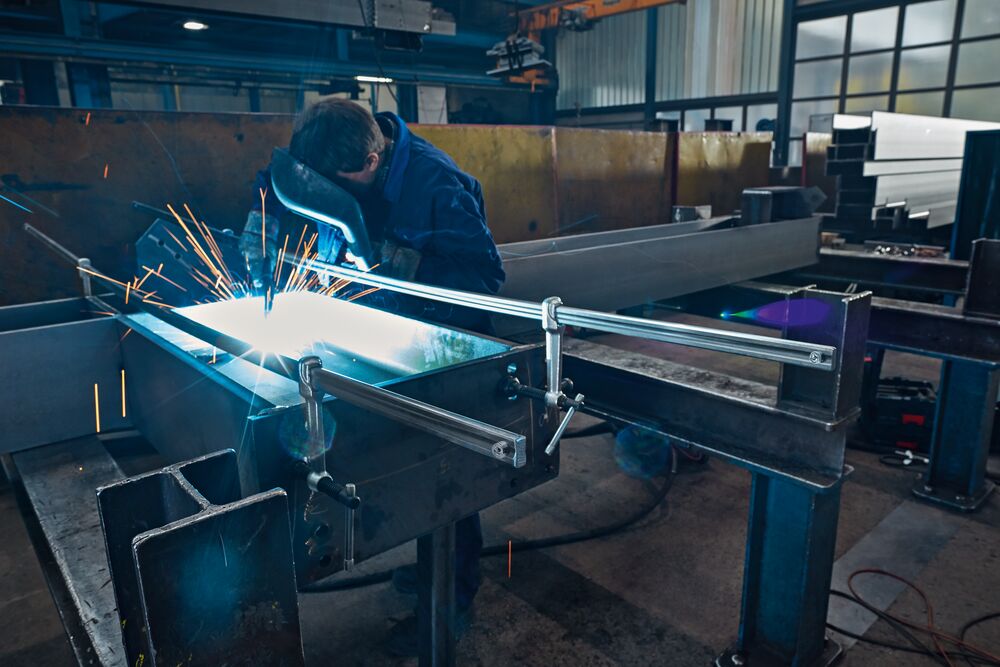

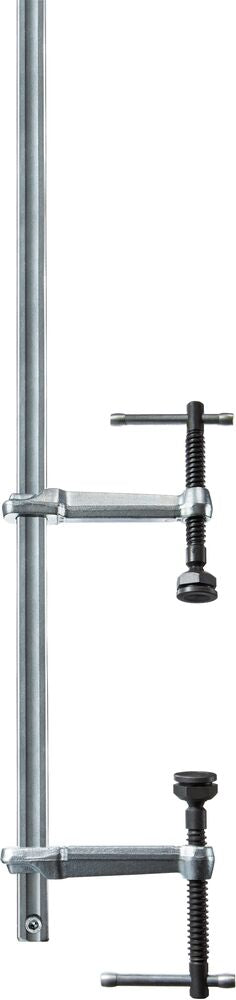

The BESSEY GSV300M Double Force All-Steel Variable Bar Clamp Set is a modular clamping system designed for large-scale steel fabrications, custom assembly jigs, and extra-wide workpiece joining. Built with an impressive 118 in. clamping capacity and a 5-1/2 in. throat depth, this system utilizes a heavy-duty 1-3/16 x 5/8 in. (30 x 15 mm) steel rail profile to deliver up to 2,000 lbs. of clamping force across extreme spans.

Engineered for ultimate versatility, the GSV300M features tool-less removable rail end slide stops that allow fabricators to reverse the sliding arms for spreading applications or add extra sliding arms to secure multiple workpiece sections simultaneously. The sliding arms are fitted with drop-forged steel components, heat-treated ACME threaded spindles resistant to weld spatter, and heavy-duty MorPads that tilt up to 35 degrees to accommodate angled or uneven workpiece surfaces.

Features & Benefits

• 118 in. Clamping Capacity: Massive clamping span enables securing extra-large steel structures and custom assembly jigs.

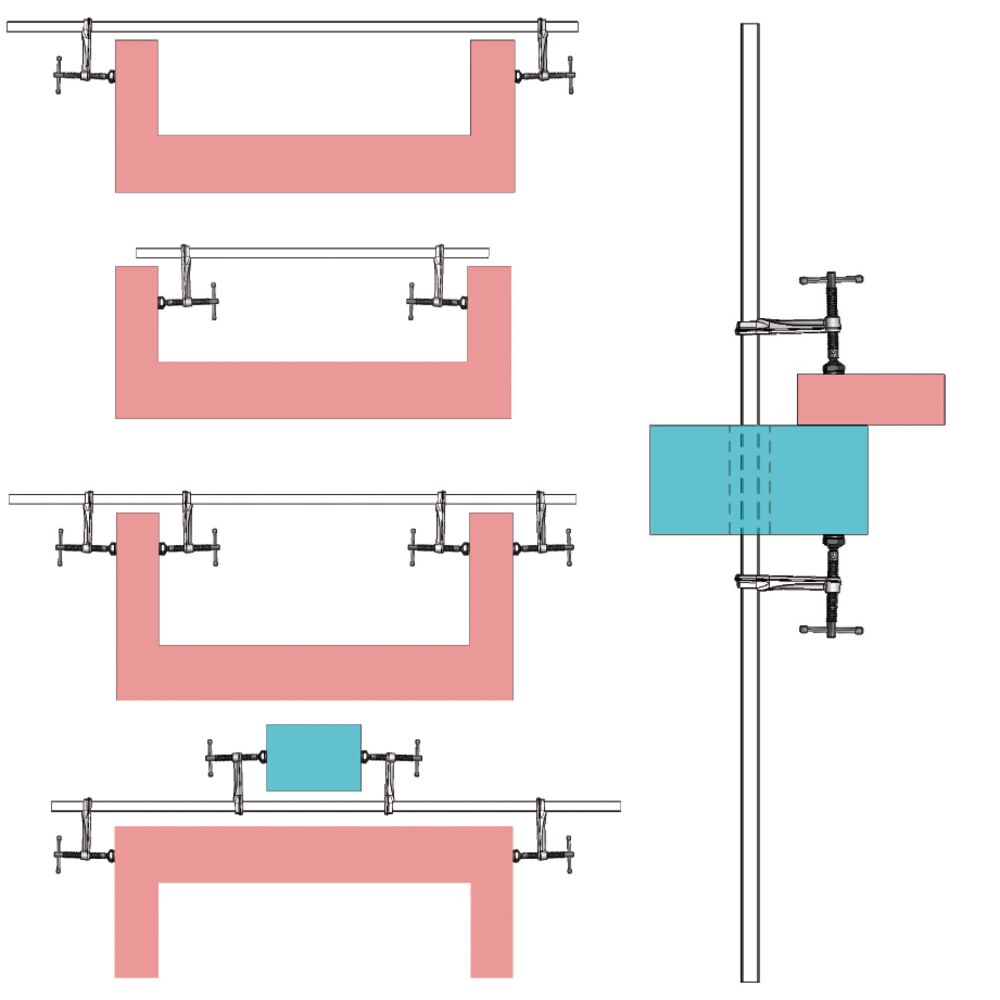

• Modular Double Force System: Removable rail end slide stops allow tool-free arm reversing for spreading or adding extra arms.
• 1-3/16 x 5/8 in. Steel Rail Profile: Heavy 30 x 15 mm drawn, heat-treated steel profile handles heavy structural loads without excessive deflection.
• Tilting MorPads: Heavy-duty MorPads tilt up to 35 degrees to grip tapered, angled, or flat materials securely.
• Spatter-Resistant ACME Spindle: High-carbon heat-treated screw resists weld spatter damage and thread wear.
• Drop-Forged Sliding Arms: Electro-galvanized drop-forged steel arms provide durability under high mechanical strain.
• Steel T-Bar Pin Handle: Provides maximum manual clamping torque and comfortable operation.

What's Included

• (1) Double Force 118 in. Variable Clamp Rail (30 x 15 mm Profile)
• (2) Sliding Arm Assemblies with Heavy-Duty MorPads and T-Bar Handles
• (2) Tool-Less Removable Rail End Slide Stops

The GSV300M provides heavy-duty 118 in. capacity with a 30 x 15 mm rail profile and 2,000 lbs. clamping force. For lighter applications or smaller profile requirements, consider the SLV series double force clamps featuring a 27 x 13 mm rail profile.
