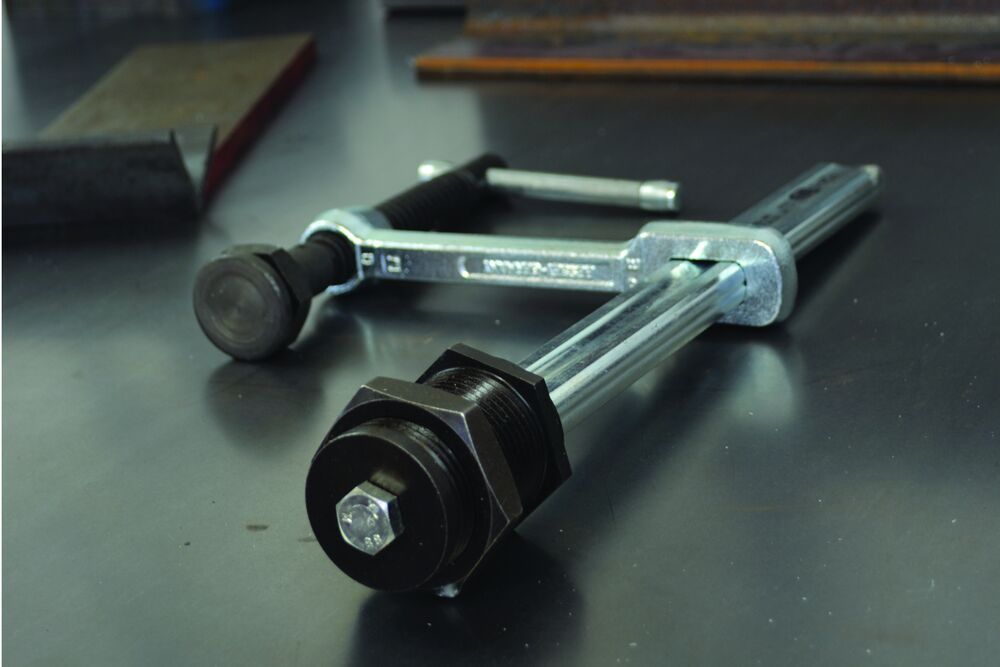

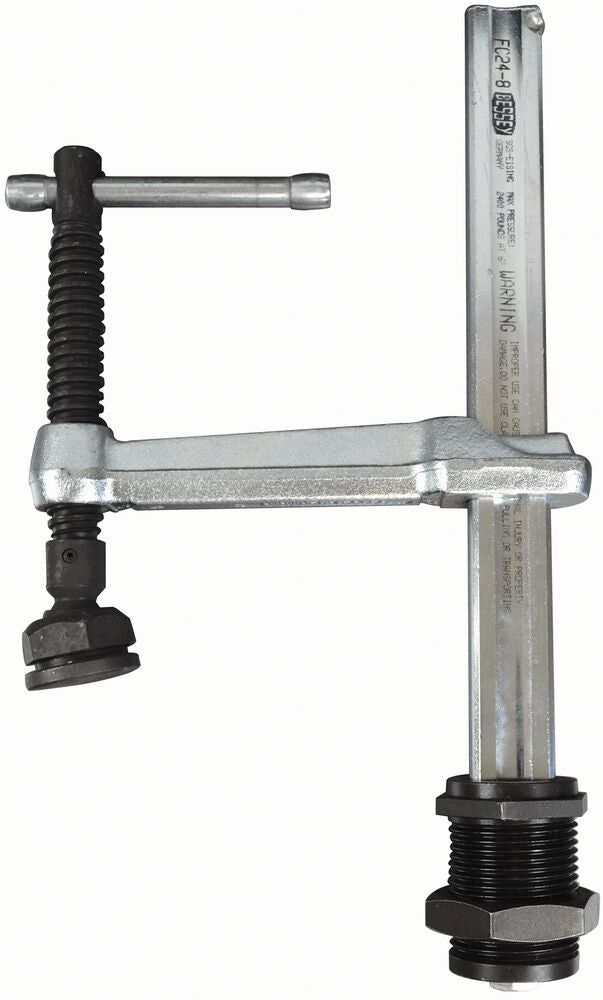

The BESSEY FC24-8 is an 8 in. heavy-duty jig and fixture hold-down clamp designed for metalworking setup tables, welding tables, and machine fixtures. Engineered to mount into welding tables with 50 mm (2 in.) holes or custom fixture plates, this clamp generates up to 2,660 lb of clamping force to secure heavy steel fabrications and metal assemblies.

Providing exceptional versatility, the FC24-8 can be used in 3 distinct modes: fixed non-rotating, fixed with 360-degree rotation, or as a fully removable clamping fixture with 360-degree rotation. The sliding arm is crafted from drop-forged, heat-treated steel, and the cold-drawn steel rail features a spatter-resistant hardened spindle and a MorPad pressure plate that swivels up to 35 degrees to grip flat or angled workpieces.

Features & Benefits

• 2,660 lb Clamping Force: Heavy-duty industrial rating for demanding welding, machining, and fixture setups.
• 3-Way Operational Flexibility: Operates as a non-rotating fixed clamp, 360-degree rotating clamp, or removable fixture.
• Table Mounting: Designed for welding and setup tables with 50 mm (2 in.) mounting holes.
• 360-Degree Rotation: Swivels full 360 degrees for rapid workpiece insertion, adjustment, and removal.
• BESSEY MorPad: Tilts up to 35 degrees to maintain full contact on uneven or angled metal parts.
• Drop-Forged Sliding Arm: Heat-treated, tempered drop-forged steel sliding arm provides maximum rigidity under load.
• Spatter-Resistant Spindle: Specially hardened steel clamping spindle resists welding spatter accumulation.

What's Included

• (1) BESSEY FC24-8 Jig and Fixture Hold-Down Clamp Assembly
• (1) Outer Bushing Assembly (1.81 in. OD)

Choose the FC24-8 for heavy-duty metal fabrication and fixture table hold-down applications requiring up to 2,660 lb clamping force and 360-degree swivel positioning. For lighter table clamping on track or MFT wood tables, consider BESSEY EZR series clamps.
