Baileigh VMD-18 - 18" Mill Drill with R-8 Taper 1231788

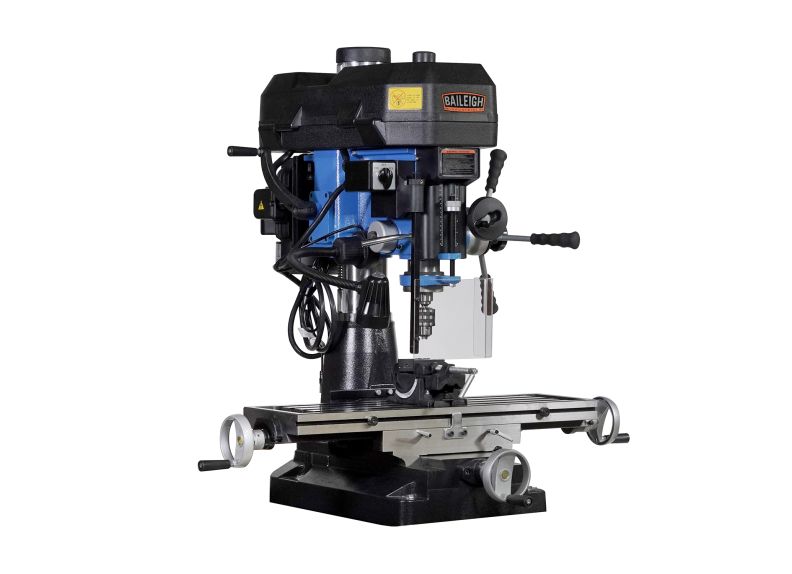

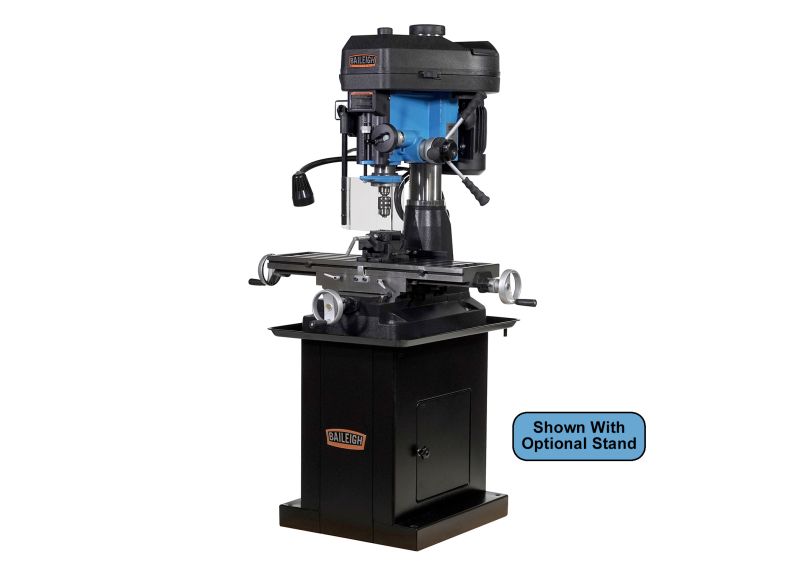

The Baileigh VMD-18 Mill Drill is the perfect option when operators need to do some light-duty milling that doesn't require a full-size milling machine but still allows the use of R-8 tooling. The ability to drill and mill with one machine saves time and money and is perfect for maintenance departments, machine, welding, job, or even home shops. An optional stand is also available if bench space is at a premium.
Recommended for: Milling, drilling, tapping, and boring.
Features:

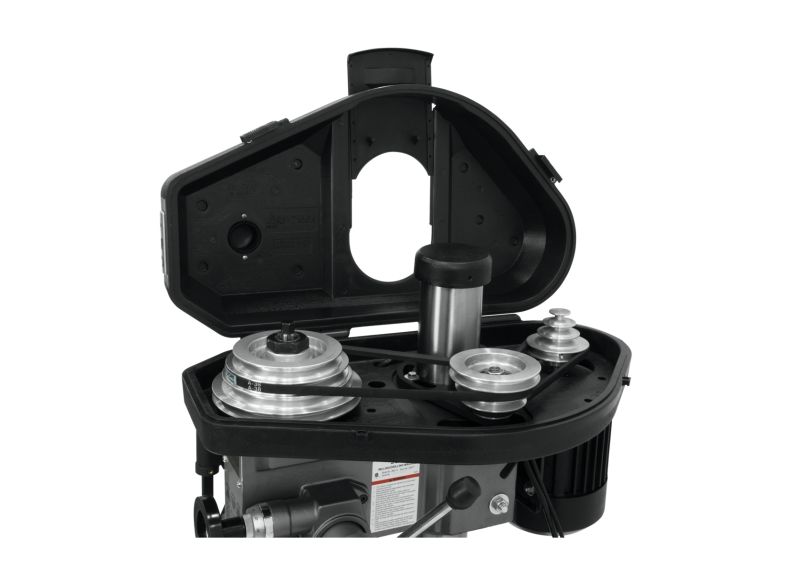

- Belt-drive, step pulley system allows for rapid, easy speed changes to work with a variety of materials
- Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds

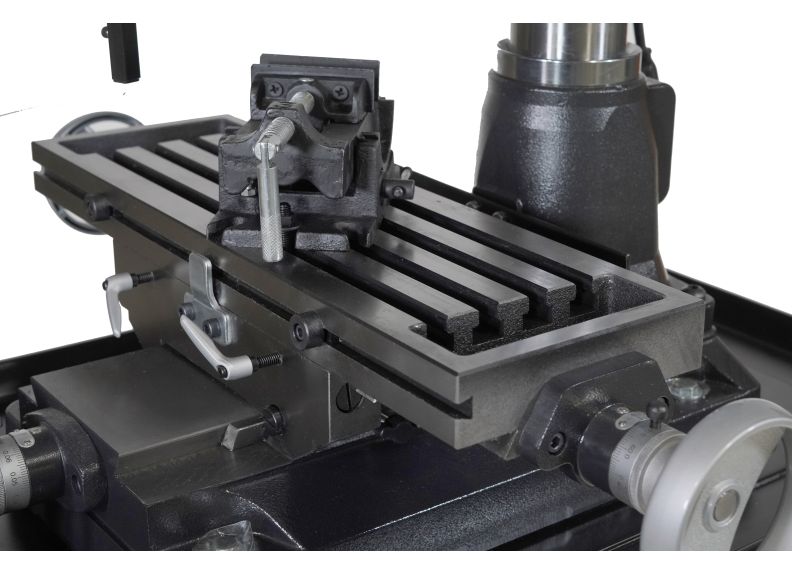

- Drill press style angle vise locks material in place

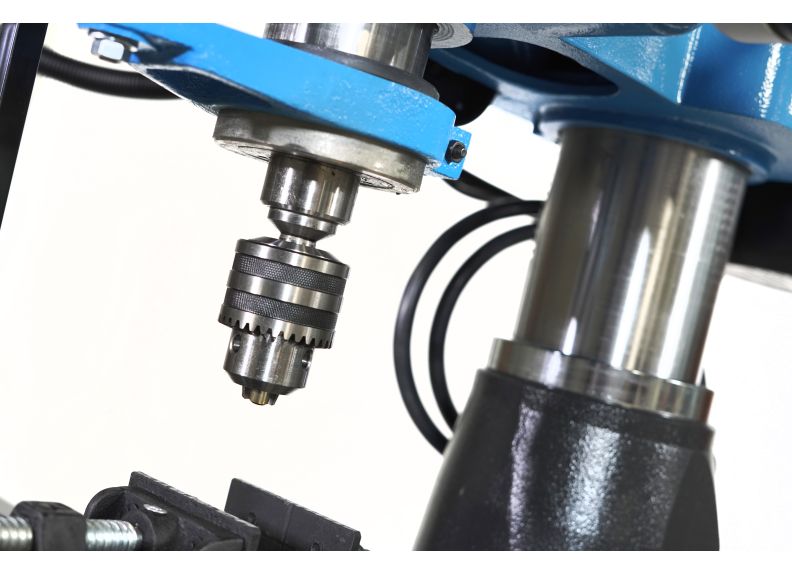

- Drill chuck & arbor allow easy changes from drilling to milling
- 360? head swivel allows milling or drilling of oversized material
- Articulated LED lamp illuminates your workpiece
- Single piece, the cast iron column provides stable support for precise milling or drilling reducing deflection
- Easy-to-read external depth gauge for accurate milling & drilling
Specifications:
- Model Number — VMD-18
- Base Dimensions (In.) — 15-3/4 x 23-3/4
- Column Diameter (In.) — 4-1/2
- Drilling Capacity (In.) — 1.5
- Motor — 1-1/2 HP, 115V, 1Ph
- Number of Spindle Speeds — 12
- Quill Diameter (In.) — 3"
- Range of Spindle Speeds (RPM) — 150-3000
- Spindle Taper (In. x TPI) — R8
- Spindle Travel (In.) — 4.75"
- Swing (In.) — 15-7/8"
- T-Slots Number and Size (In.) — 4 & 5/8"
- Table Size (L x W) (In.) — 32-1/4" x 9-1/2"
- Work Table Weight Capacity (Lbs.) — 400
- Weight (Lbs.) — 660
Specifications
Specifications
| Baileigh VMD-18 - 18" Mill Drill with R-8 Taper 1231788 | |
| Brand | Baileigh |
