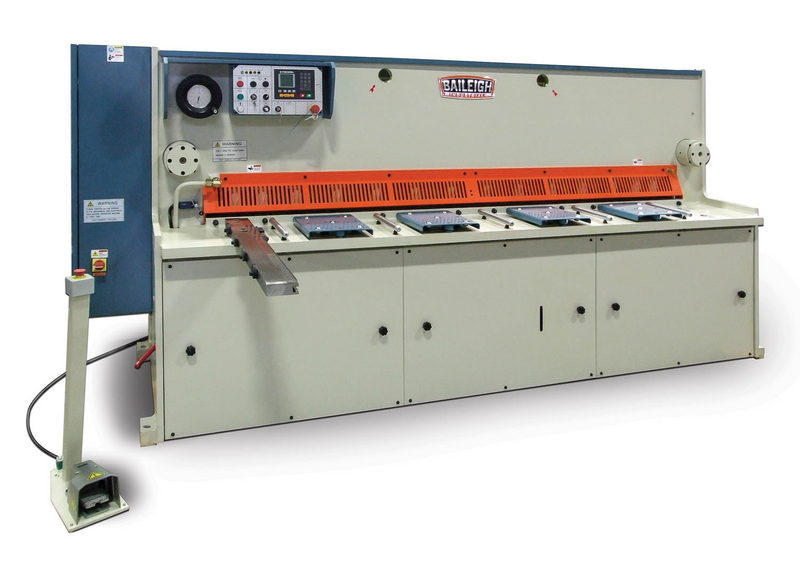

The Baileigh SH-70250-HD is a 96 in. (8 ft.) hydraulic sheet metal shear engineered for industrial metal fabrication, steel service centers, and high-volume production facilities. Capable of shearing mild steel up to 1/4 in. (6.35 mm) thick and stainless steel up to 10-gauge (0.177 in. / 4.5 mm), this shear provides precise, burr-free cuts across full-width 8 ft. sheets. Powered by a 10 HP main motor operating on 220V 3-phase power, it utilizes a fully welded steel frame to maintain rigid alignment and resist deflection during heavy cutting operations.

Operational accuracy is managed by the integrated YSD6000s NC controller paired with a motorized back gauge providing 0.4 in. to 23.62 in. travel with positioning precision to +/- 0.01 mm. Driven by a variable frequency drive (VFD), the back gauge moves at full speed during initial travel before shifting to a low-speed approach near the target dimension, reducing positioning inertia. The controller features internal memory for up to 100 programs and supports both single-step and multi-step sequence programming to optimize throughput on complex cut lists.

To ensure cut quality across various sheet metal grades, the shear features manual handwheel blade gap adjustment from 0.002 in. to 0.024 in., along with powered rake angle adjustment from 0.5 deg. to 2.5 deg. Adjustable hydraulic hold-down cylinders secure workpieces against the table before blade contact to prevent material slippage. Material handling is facilitated by front support arms, a squaring arm with eccentric alignment adjustment, roller infeed table surfaces, and a shadow-line lamp that projects a visual cutting line onto scribed workpieces. Integrated safety features include interlocked rear light curtain guards, a foot pedal control with hold and single-cycle modes, and an emergency stop button.

Features & Benefits

• 96 in. Cutting Width: Shears full-size 8 ft. metal sheets in a single continuous stroke.
• 1/4 in. Mild Steel Capacity: Rated to cut mild steel up to 1/4 in. (6.35 mm) thick at 64,000 PSI tensile strength and 10-gauge (0.177 in. / 4.5 mm) stainless steel at 100,000 PSI tensile strength.

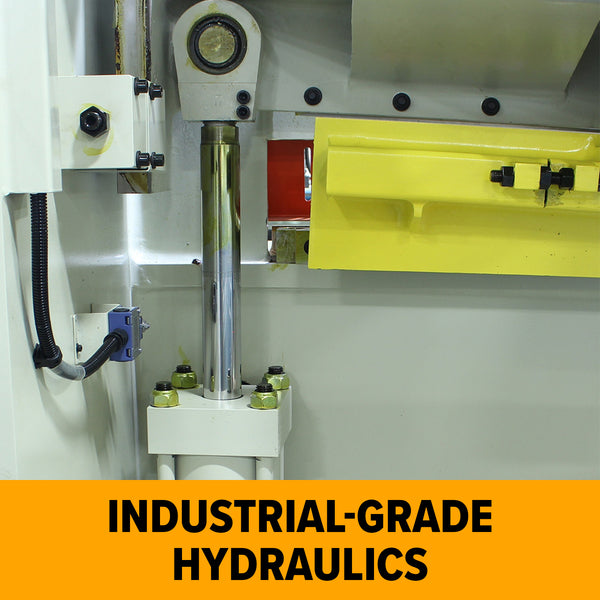

• 10 HP 3-Phase Motor: Delivers continuous hydraulic pump flow at 10 GPM and system operating pressure up to 2,175 PSI.

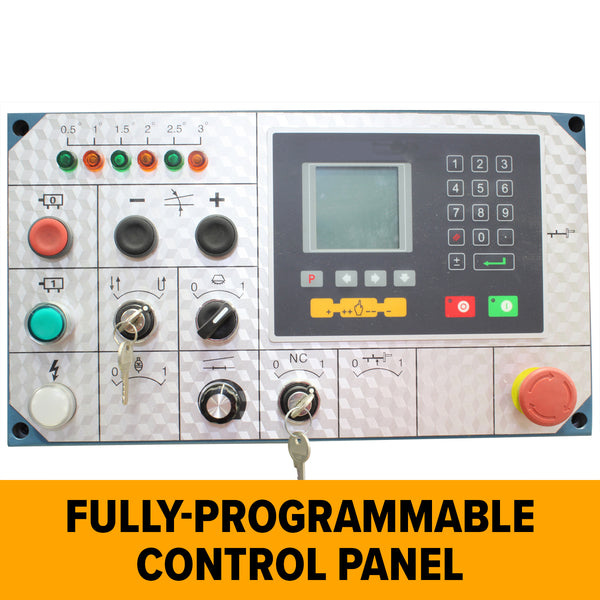

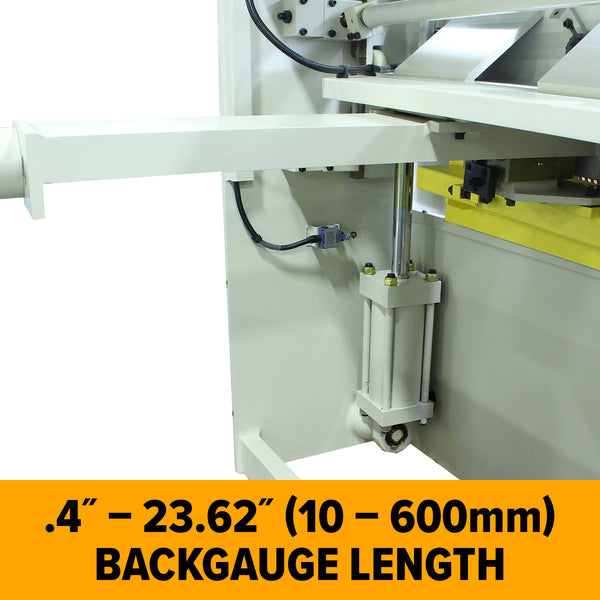

• YSD6000s NC Back Gauge Control: Motorized back gauge system delivers 0.4 in. to 23.62 in. travel with +/- 0.01 mm accuracy and stores up to 100 multi-step programs.

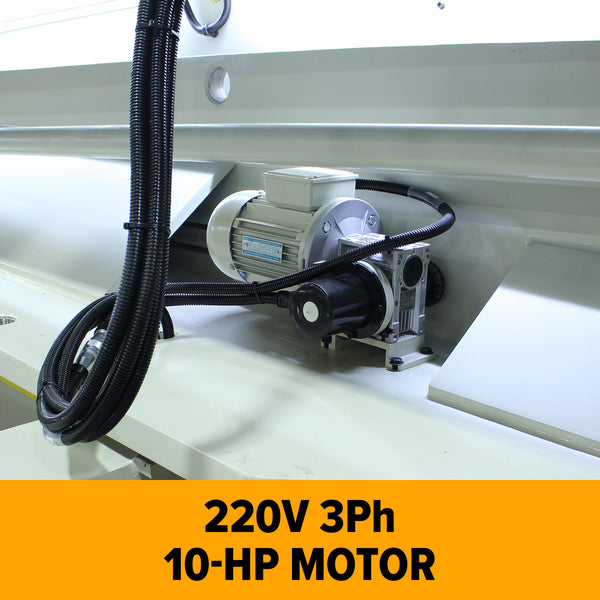

• VFD Drive Speed Control: Back gauge motor transitions from 50 Hz full speed to 5-10 Hz low speed near target position to minimize inertia.

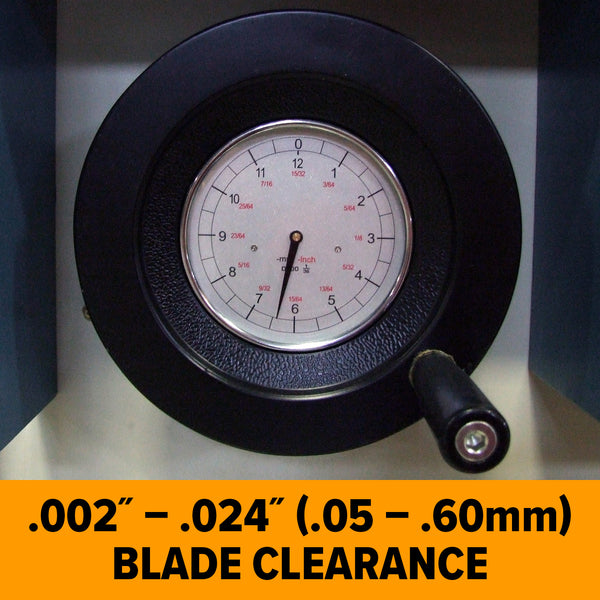

• Manual Blade Gap Adjustment: Side-mounted handwheel enables quick blade clearance settings from 0.002 in. to 0.024 in. to match material thickness.

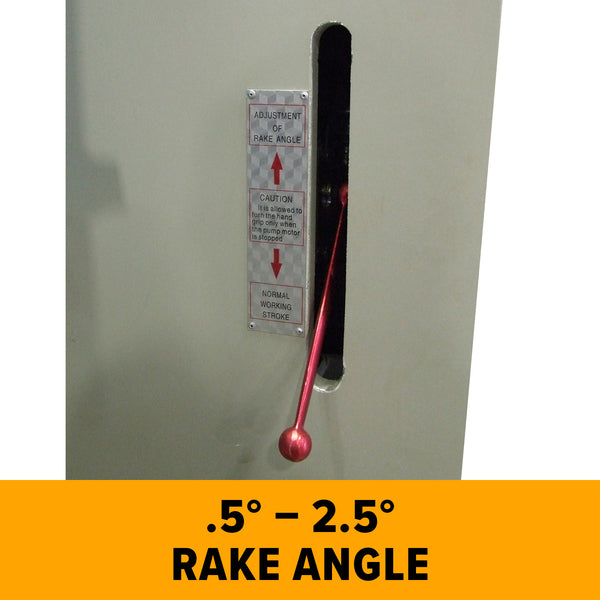

• Adjustable Rake Angle: Variable blade angle (0.5 deg. to 2.5 deg.) reduces workpiece distortion and cutting resistance.
• Hydraulic Material Hold-Downs: Clamps sheets firmly prior to cutting to prevent movement and maintain square edge cuts.
• Shadow-Line Alignment Lamp: Projects a sharp line onto the sheet for visual positioning along marked scribes.
• Fully Welded Steel Frame: Heavy frame structure prevents deflection under full 32,597 lbf cutting force.

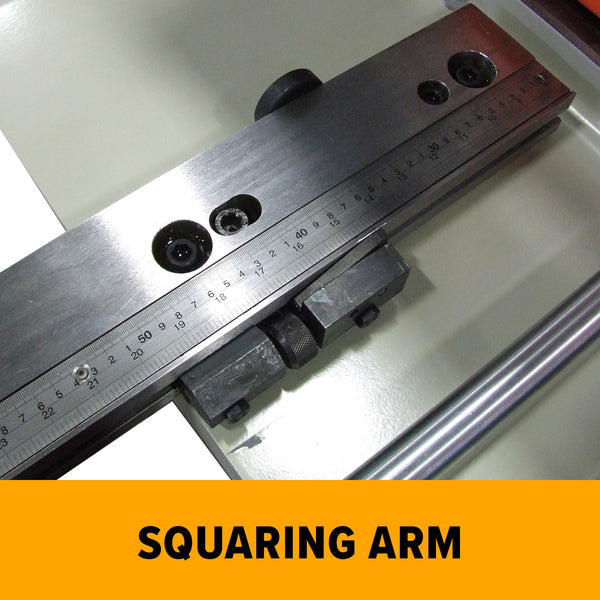

• Material Handling Support: Includes front support arms, squaring arm with eccentric adjustment, and roller infeed surfaces.
• Rear Light Curtain Safety: Interlocked light curtain guards halt operation instantly if the light beam is interrupted.

What's Included

• (1) 96 in. Heavy-Duty Hydraulic Sheet Metal Shear (SH-70250-HD)
