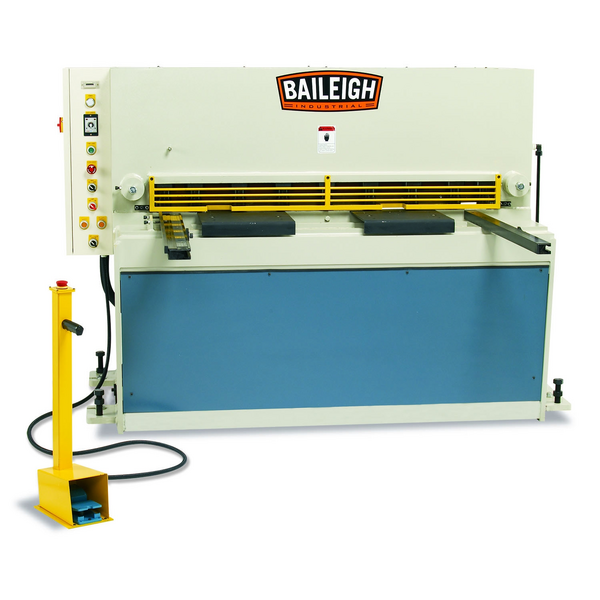

The Baileigh SH-5210-HD is a 52 in. heavy-duty hydraulic sheet metal shear designed for high-production metal fabrication shops requiring clean, consistent cuts in thicker sheet materials. Powered by a 7.5 HP motor operating on 220V 3-phase power, this shear delivers a 52 in. cutting length with a maximum capacity of up to 10 gauge mild steel and 13 gauge stainless steel.

Built on a rigid, fully welded steel frame, the SH-5210-HD minimizes frame flex during heavy shearing cycles to ensure precise, square cuts and long blade life. The shearing carriage travels on hardened ways with heavy-duty bearings to reduce friction and maintain smooth operation. To optimize cut quality across varying material types and thicknesses, the machine features adjustable blade gap dials and an adjustable rake angle, helping operators minimize burrs, twist, and edge distortion.

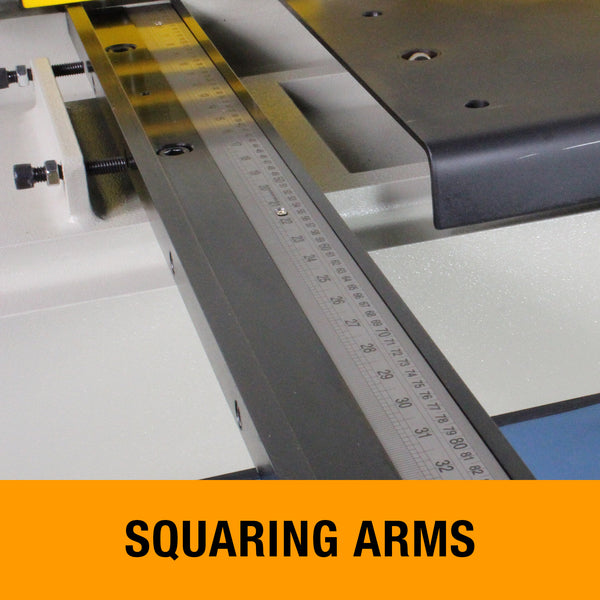

For efficient positioning and repeatable accuracy, the shear is equipped with a 24 in. manual backgauge and a front squaring arm that keeps material perpendicular to the cutting edge. Hydraulic hold-downs clamp material firmly before shearing begins, preventing sheet slippage or material shift during the stroke. An integrated green light projects a distinct shadow line onto the workpiece to aid in rapid visual alignment to scribe lines.

Features & Benefits

• 52 in. Shearing Width: Accommodates sheet materials up to 52 in. wide for medium to large fabrication applications.
• 10 Gauge Capacity: Shears up to 10 gauge mild steel and 13 gauge stainless steel for heavy-duty sheet processing.
• 7.5 HP Motor: Industrial motor operating on 220V 3-phase power delivers reliable hydraulic cutting power.
• High Productivity: Operates at 35 to 47 strokes per minute for quick material processing and fast cycle times.
• Welded Steel Frame: Rigid welded construction provides high stability and reduces deflection under load.
• Hardened Ways: Shearing carriage rides on hardened ways with heavy-duty bearings to minimize friction and wear.

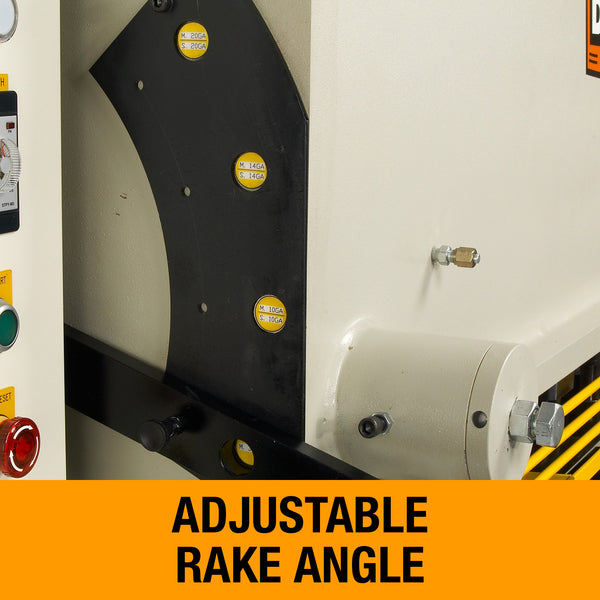

• Adjustable Blade Gap and Rake Angle: Dials allow quick fine-tuning to optimize cut quality and reduce material burrs.
• Hydraulic Hold-Downs: Clamps sheet material firmly in place prior to blade contact to prevent movement.
• High-Carbon Chromium Blades: Multi-edge blades can be flipped to maximize cutting life before resharpening.

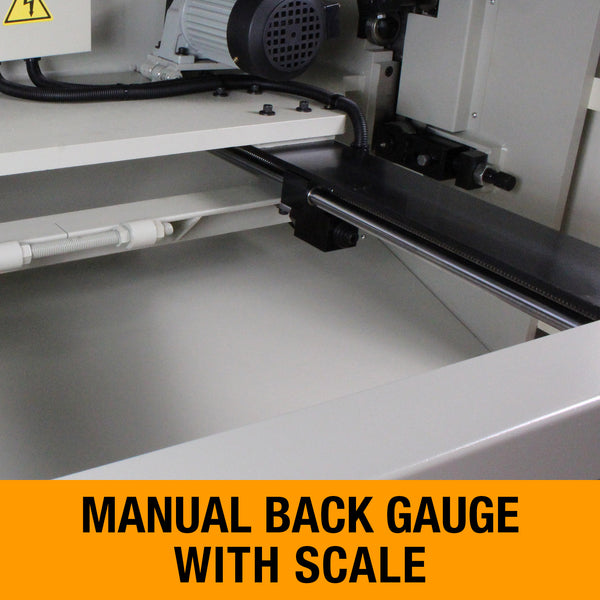

• Manual Backgauge: 24 in. adjustable backgauge ensures repeatable cutting dimensions for batch work.

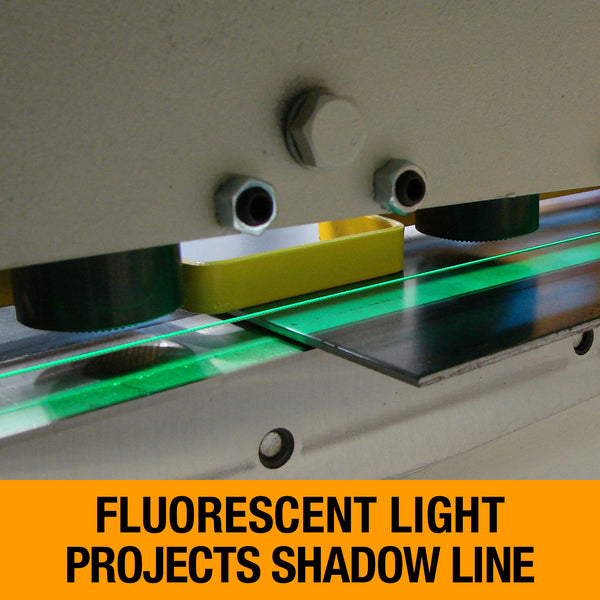

• Optical Shadow Line Light: Projects a clear green line onto the material for precise alignment with layout marks.
