Baileigh HSP-15A-15 Ton Hydraulic Shop Press 1232703
Baileigh HSP-15A-15 Ton Hydraulic Shop Press 1232703
Couldn't load pickup availability
Details
Details

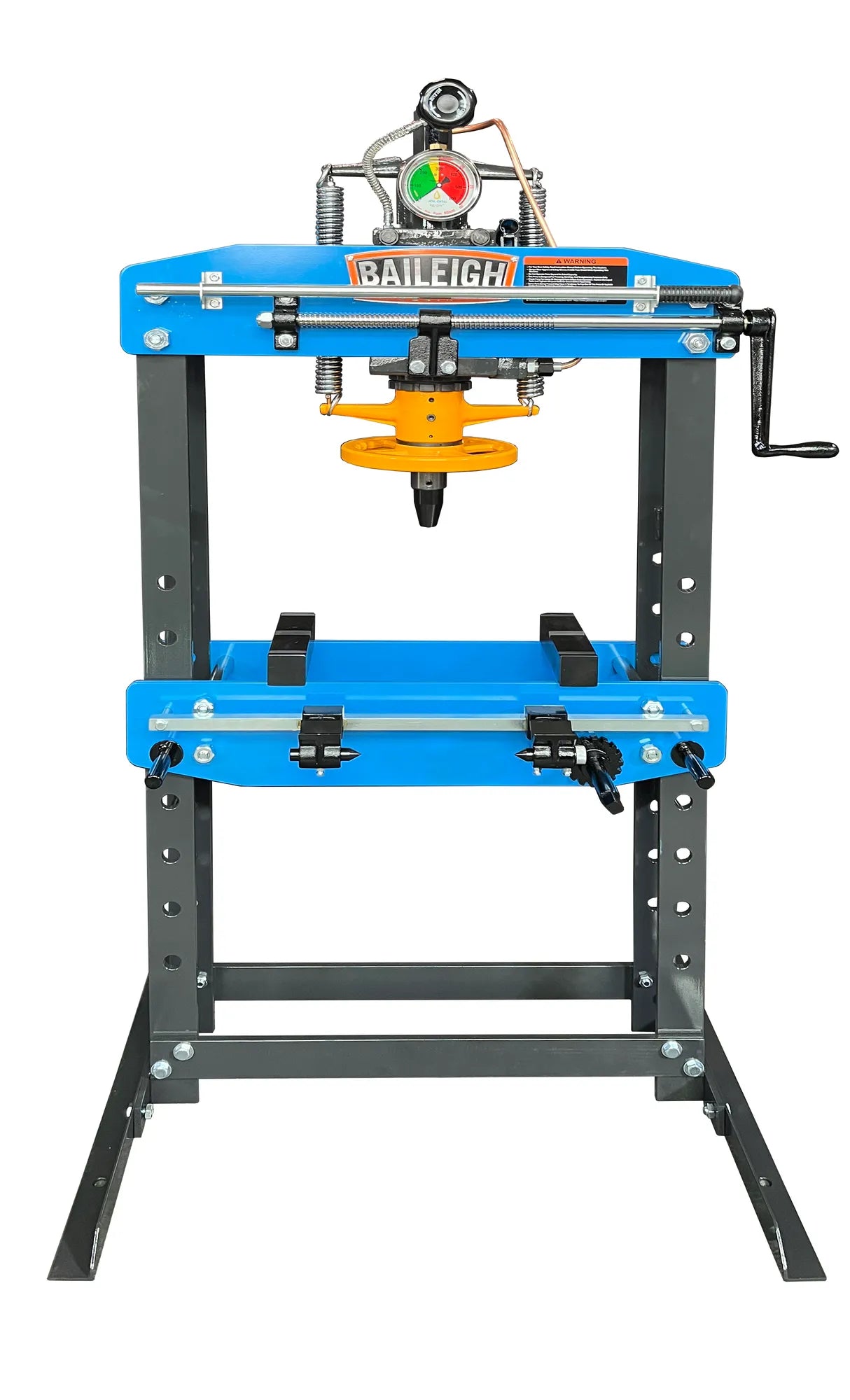

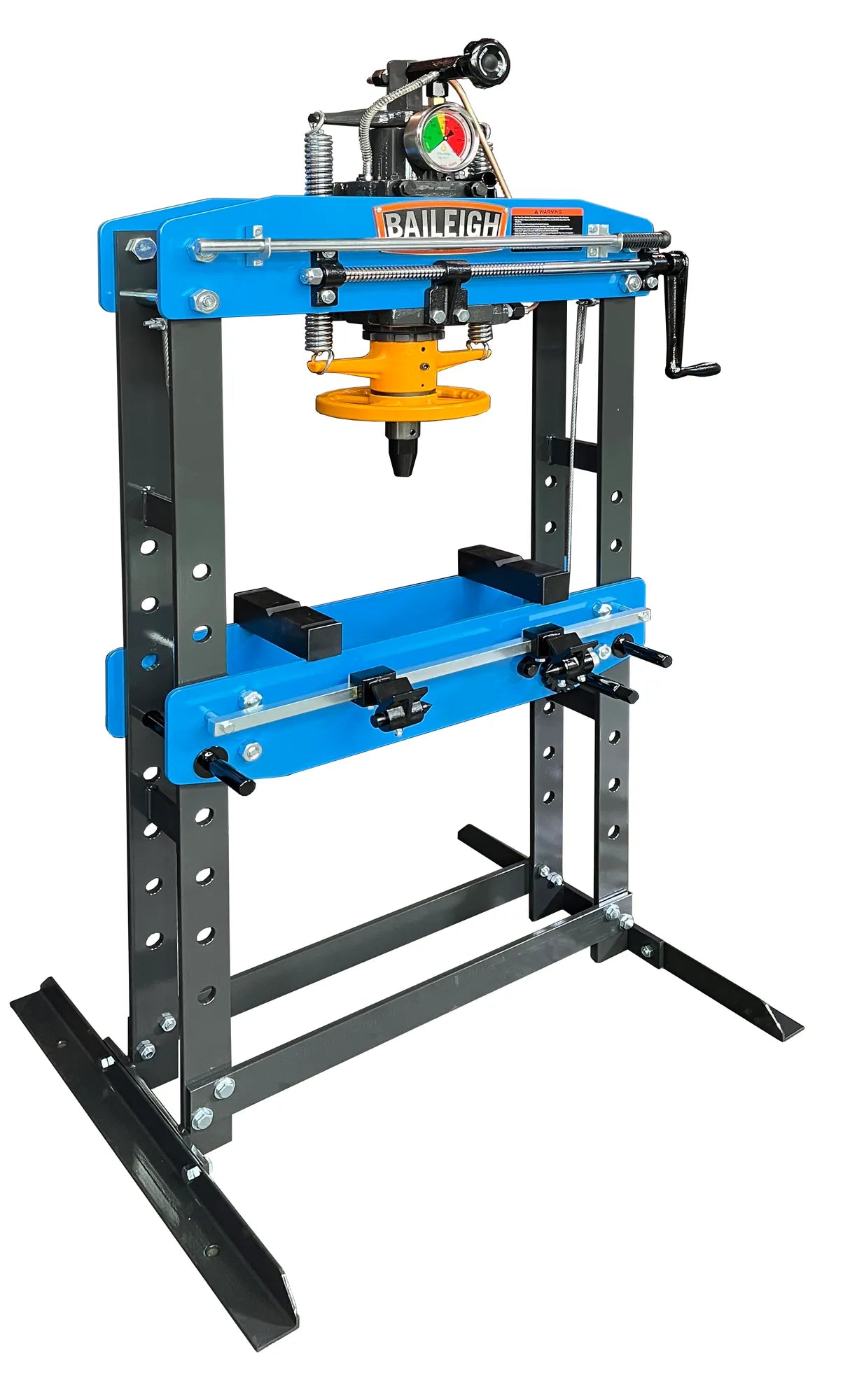

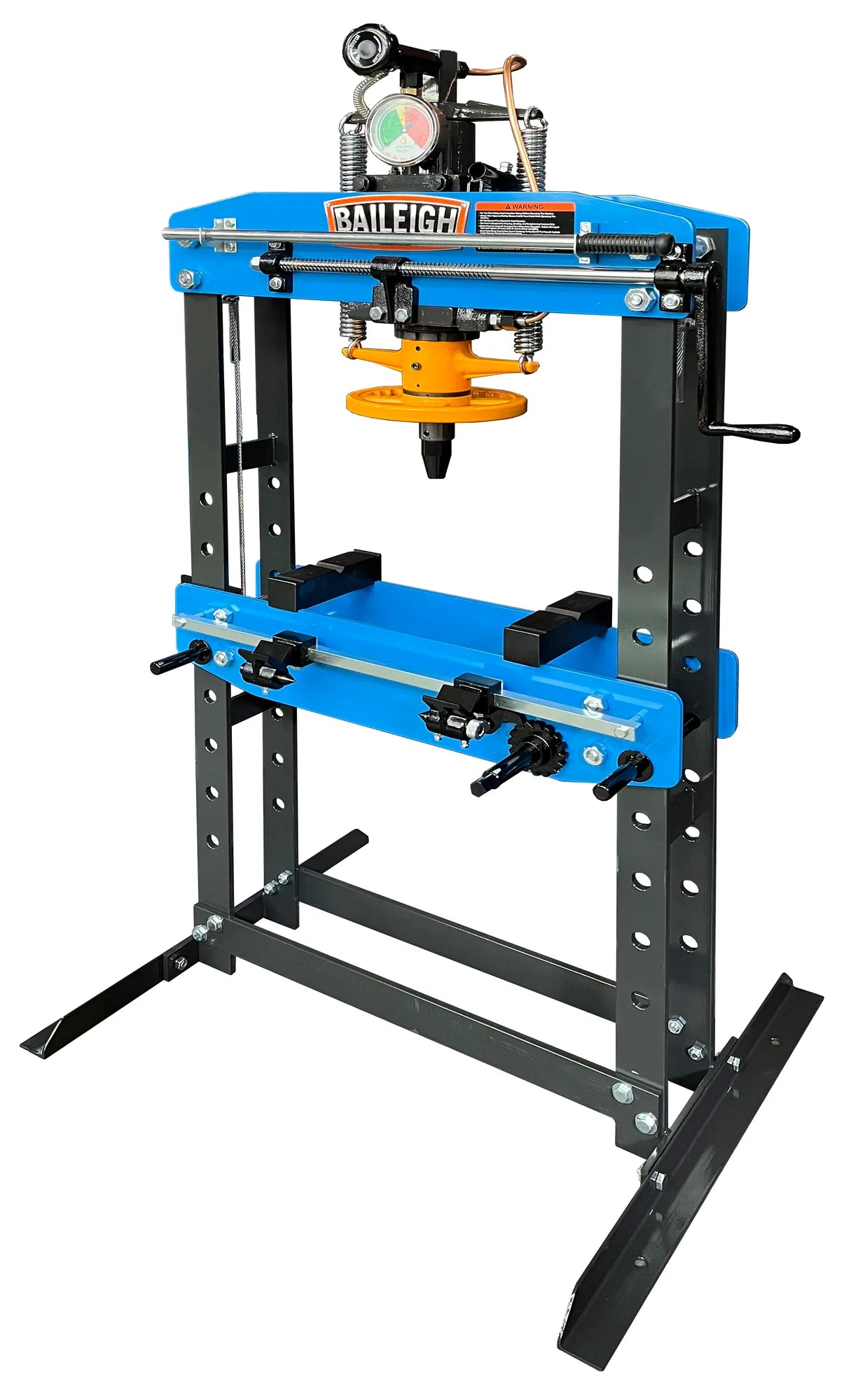

Product Description: The Baileigh HSP-15A is a robust 15-ton hydraulic shop press engineered with a heavy electro-welded steel H-frame to deliver dependable pressing power and durability for serious fabrication and machine shop tasks. Its industrial hydraulics provide consistent force for bending, straightening, and pressing operations, making it ideal for professional metalworking environments.
Industrial Performance: Built to endure the demands of everyday use, this shop press features a wide working area and adjustable table to accommodate varied applications, while the included pressure regulator and gauge give precise control over operations. Rigid construction minimizes flexing under load, ensuring reliable, repeatable results.
Features & Benefits
- Capacity: 15 tons of pressing force
- Working width: 24.75″
- Stroke: 4.75″ cylinder stroke
- Construction: Electro-welded heavy steel plate frame
- Hydraulics: Industrial-grade hydraulic components
- Adjustability: Adjustable press table for versatile use
- Control: Includes pressure regulator and gauge
- Accessory: Comes standard with a V-block set
- Power: Manual operation (no electrical power required)
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
Specifications
| Specification | Value |
|---|---|
| Model Number | HSP-15A |
| SKU / Stock Number | BA9-1232703 |
| UPC | 19907201144 |
| Input Power | Manual |
| Press Capacity | 15 Tons |
| Working Width | 24.75" |
| Piston Stroke | 4.75" |
| Screw Stroke | 4" |
| Ram Press Head Diameter | 2-1/2" |
| Worktable Dimensions | 24-3/4" x 7-1/2" |
| Lateral Ram Movement | 10.188" |
| Vertical Table Travel | 25" |
| Cylinder Advance Rate | 0.062" per stroke |
| Maximum Load Hold Time | Up to 5 minutes @ rated load |
| Hydraulic Oil Capacity | 553 mL |
| Base Dimensions (L x W) | 34-3/8" x 29-1/2" |
| Overall Dimensions (L x W x H) | 34-3/8" x 29-1/2" x 64-1/2" |
| Frame Construction | Electro-Welded Steel H-Frame |
| Net Weight | 378 lbs |
| Shipping Weight | 462 lbs |
| Included Accessories | V-Block Set |
| Warranty | 1 Year Parts Warranty |
