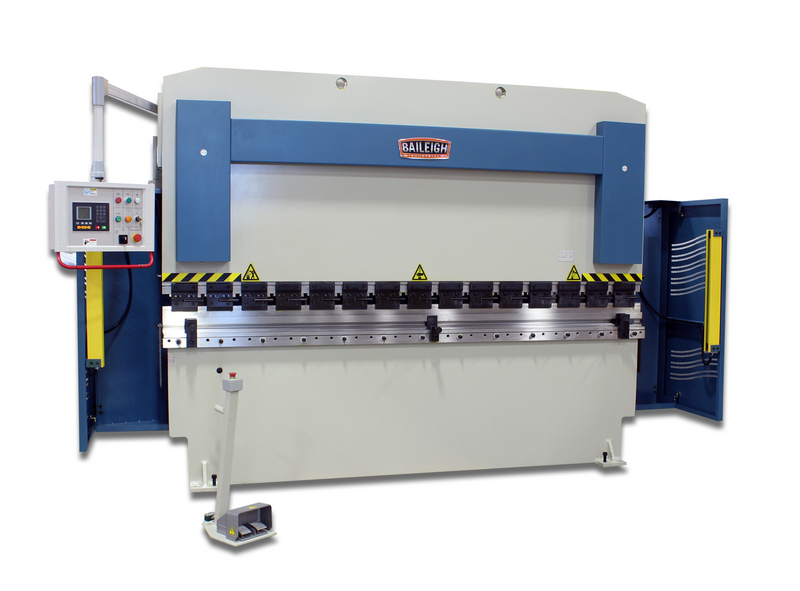

The Baileigh BP-17910 CNC Hydraulic Press Brake is built to deliver up to 179 tons of bending force across a 10 ft (125 in.) table for heavy sheet metal forming and precision plate fabrication applications. Powered by a 15 HP main motor and operating on 220V 3-phase power, this press brake provides reliable hydraulic power and rigid structural stability for production metalworking shops and industrial manufacturing facilities.

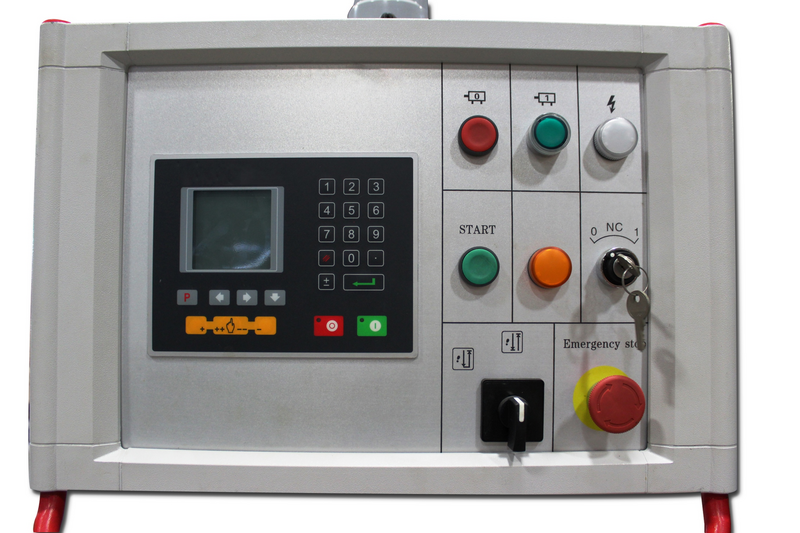

Equipped with a two-axis YSD6000D numerical controller, the machine automates positioning for both ram stroke depth (Y-axis) and back gauge distance (X-axis). High-accuracy servo motors drive both axes, automatically decelerating as they reach targeted set points to absorb movement inertia and ensure accurate, repeatable bends. The controller supports single-step positioning as well as multi-step bending sequences with up to 40 stored programs, enabling operators to streamline production runs and significantly reduce setup time between complex bends.

The industrial hydraulic system is constructed with premium Vickers/Eaton and Nachi valves, utilizing dual parallel cylinders synchronized by a heavy-duty mechanical torsion shaft to maintain strict ram parallelism across the entire bed length. For operator safety during operation, the press brake includes an opto-electronic safety light curtain system covering the full working zone, dual emergency stop controls, and protective side and rear guard enclosures.

Features & Benefits

• 179-Ton Bending Capacity: Delivers heavy-duty forming pressure capable of bending thick sheet metal and plate steel based on mild steel tensile ratings.
• 10-Foot Table Bed: Features a 125 in. table length with 100 in. clearance between housings to handle wide sheet fabrication.
• Two-Axis CNC Control: YSD6000D controller automatically manages Y-axis ram stroke depth and X-axis back gauge positioning with precision servo drives.
• 40-Program Memory: Stores multi-step bending programs for quick job recall and consistent accuracy across complex part runs.
• Synchronized Ram Movement: Dual hydraulic cylinders are mechanically linked via a heavy torsion shaft to maintain parallel ram travel across the bed.
• Vickers/Eaton and Nachi Hydraulics: High-grade hydraulic valves and a 33 gal. fluid reservoir deliver dependable pressure control and system cooling.
• Light Curtain Safeguarding: Integrated opto-electronic light curtain system monitors the active bending field and halts cycle movement if interrupted.
• Dual Operating Modes: Offers Inch mode for precise tooling setup and Semi-Automatic mode with programmable hold time for production bending.
• Adjustable Support Arms: Front-mounted support arms adjust vertically and horizontally along the table face to keep workpieces properly aligned.
• Welded Steel Frame: Heavy, fully welded steel frame construction minimizes deflection under maximum forming tonnage to protect bend accuracy.

Choosing the Right Model: Shops requiring additional bending width for extra-long sheets may consider the sibling BP-17913CNC, which increases table length to 157 in. and distance between housings to 123 in. while sharing the same 170–179 ton forming capacity and CNC controller.
