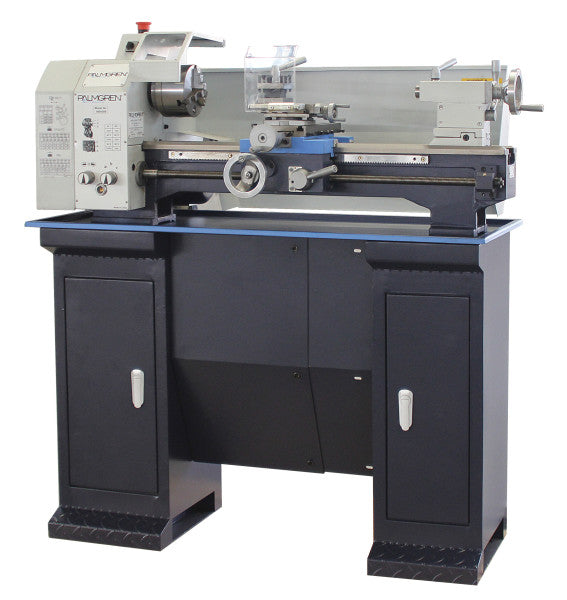

Palmgren 10 x 21 in. Bench Lathe, 115V, 1Ph 9684509
Palmgren 10 x 21 in. Bench Lathe, 115V, 1Ph 9684509
Couldn't load pickup availability
Details
Details
9684509, Palmgren 10in x 21in Bench Lathe 115V 1PH
Palmgren's 10" bench model engine lathes deliver the precision, power and versatility to handle a wide range of turning operations normally found in much larger machines. Heavy cast construction, smooth power transmission with helical gears, hardened and ground ways all designed to give you years of trouble-free, precise turning. All Optimum lathes are built and inspected to the DIN 8606 toolmakers precision lathe standard assuring accuracy and consistent performance. The bench lathe is the right choice for turning small metal parts and is used in proto type shops, home machinists, jewelry manufacturing, tool rooms, fabrication shops and maintenance shops
Features:
- Safety chuck and tool post guards
- Centers
- Precision thrust and ball bearings in the head stock
- (3) Jaw Chuck
- Splash Guard
- 4-Way Tool Post
- Lathe Chuck Guard
- Tool Post Chip Guard
- Steady Center MT2 and MT4
- Change Gear Kit
- Spindle Speed: 150 to 2400 RPM
- Distance Between Centers: 21-5/8"
- Spindle Taper: MT 4
- Tailstock Taper: MT 2
- Length: 50
- Motor: 1HP - 115V - 1PH - 60Hz
- Warranty: 3 Year
- Weight: 343
- Height: 19
- Width: 23
- Optional Accessories: Item # 9684505 - Steel floor stand
- Tailstock Travel: 2-1/2"
- Longitudinal Feed Rates: 0.003 to 0.016
- Swing Over Bed: 10"
- Spindle Bore: 1"
- Number of Spindle Speeds: 6
- Carriage Travel: 17"
- Compound Travel: 2-3/4"
- Cross Travel: 4-3/4"
- Thread Range (mm): 0.2 to 3.5mm
- Compound Slide Travel:
- Thread Range (In.): 8 to 56
- Z-Axis Travel: 10-1/2"
Specifications
Specifications
| Palmgren 10 x 21 in. Bench Lathe, 115V, 1Ph 9684509 | |
| APPLICATION | Metal Working |
| Brand | Palmgren |
| DEPTH | 23 in |
| HEIGHT | 19 in |
| HORSEPOWER | 1.0 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Lathes - Metal Working |
| TOOL TYPE | Lathes |
| VARIABLE SPEED | Yes |
| VOLTAGE | 110V-120V |
| WIDTH | 50 in |
