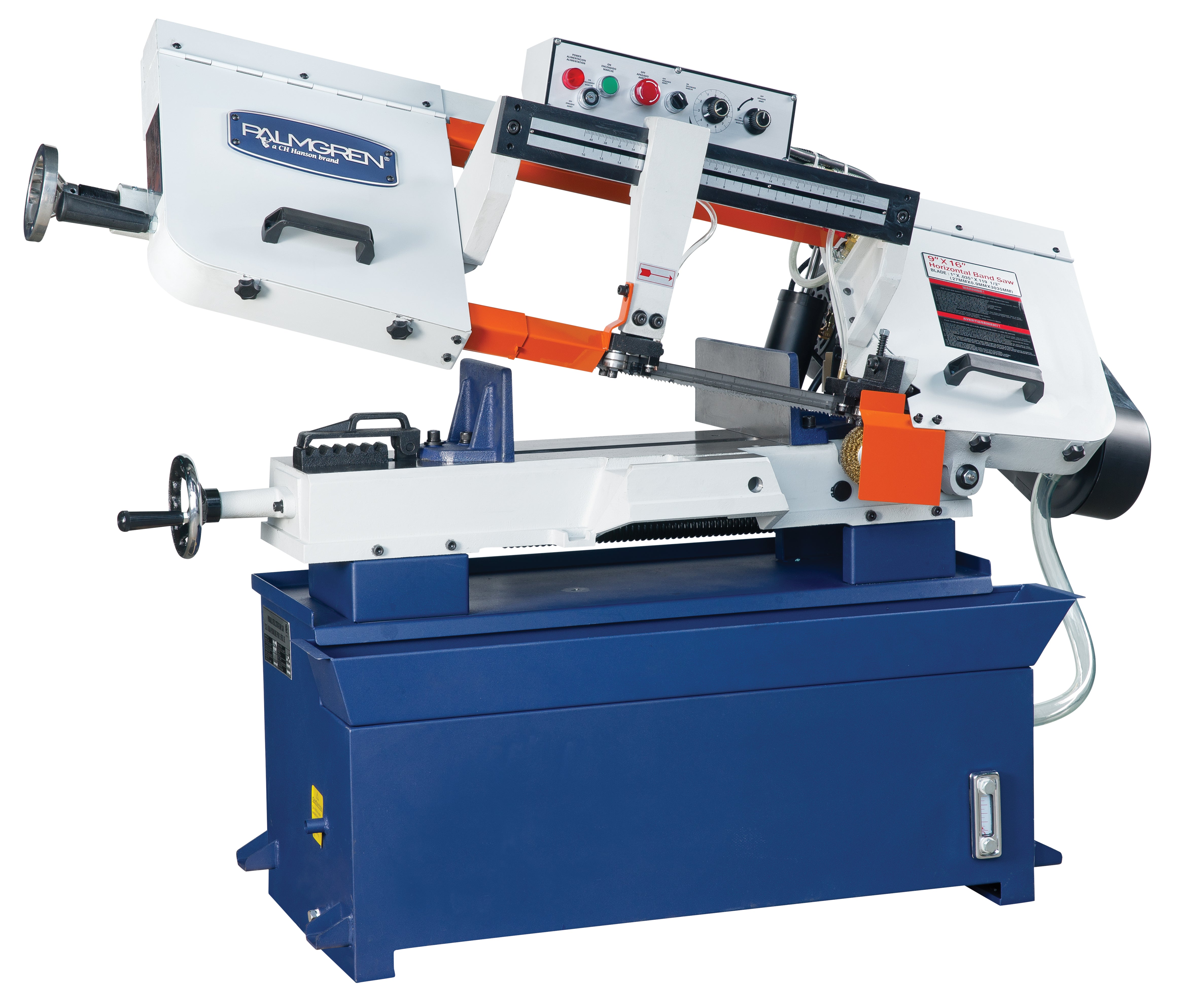

Palmgren 9" x 16" Variable Speed Horizontal Band Saw 9683314
Performance and value describe Palmgren's 9" x 16" horizontal band saw. This general purpose cutoff saw is built to deliver fast, accurate cutting on all types of materials. Heavy duty cast iron and steel construction of the saw head and base provide full blade support eliminating vibration and deflection. With more standard features designed to provide maximum performance, greater accuracy and more economical operation.
Features & Benefits
- Step pulley drive train with 4 speed settings to cover all your sawing applications
- Heavy duty transmission utilizes hardened and ground gears operating in an oil bath providing smooth, quiet positive surface feet per minute to the blade
- Variable hydraulic saw head feed delivers fast, accurate cuts while extending blade life
- Blade tension indicator with large hand wheel to ensure proper blade tensioning
- Adjustable parallel ball bearing and carbide blade guides provide maximum support and ensure square, accurate cuts
- Flood coolant system with the coolant fed through the blade guides to maximize cooling and cleaning of chips from the blade
- Blade brush to aid in the removal of chips from the blade
- Quick acting vise allows for fast, secure clamping of the workpiece
- Conveniently located operating controls with emergency stop switch and keyed power lock out
- Auto shut off at end of the cut
Specifications
- AMPS: 16.0/8.0
- Cold Saw and Band Saw Saw Type: Manual
- Cutting Amount Setting: 45°
- Cutting Capacity: 2" x 16" rectangle
- Cutting Capacity.1: 9" round
- Cutting Capacity.2: 9" square
- Miter Capacity: 45°
- Motor HP: 1.5HP - 115/230V - 1PH - 60Hz
- Optional Accessories: Item #9683333 Replacement Blade – Bi-Metal, 1" x 0.035" x 5-8 TPI
- RPM: 1720
- Sawing Type: Horizontal Band Saw
Specifications
Specifications
| Palmgren 9" x 16" Variable Speed Horizontal Band Saw 9683314 | |
| APPLICATION | |
| Brand | Palmgren |
