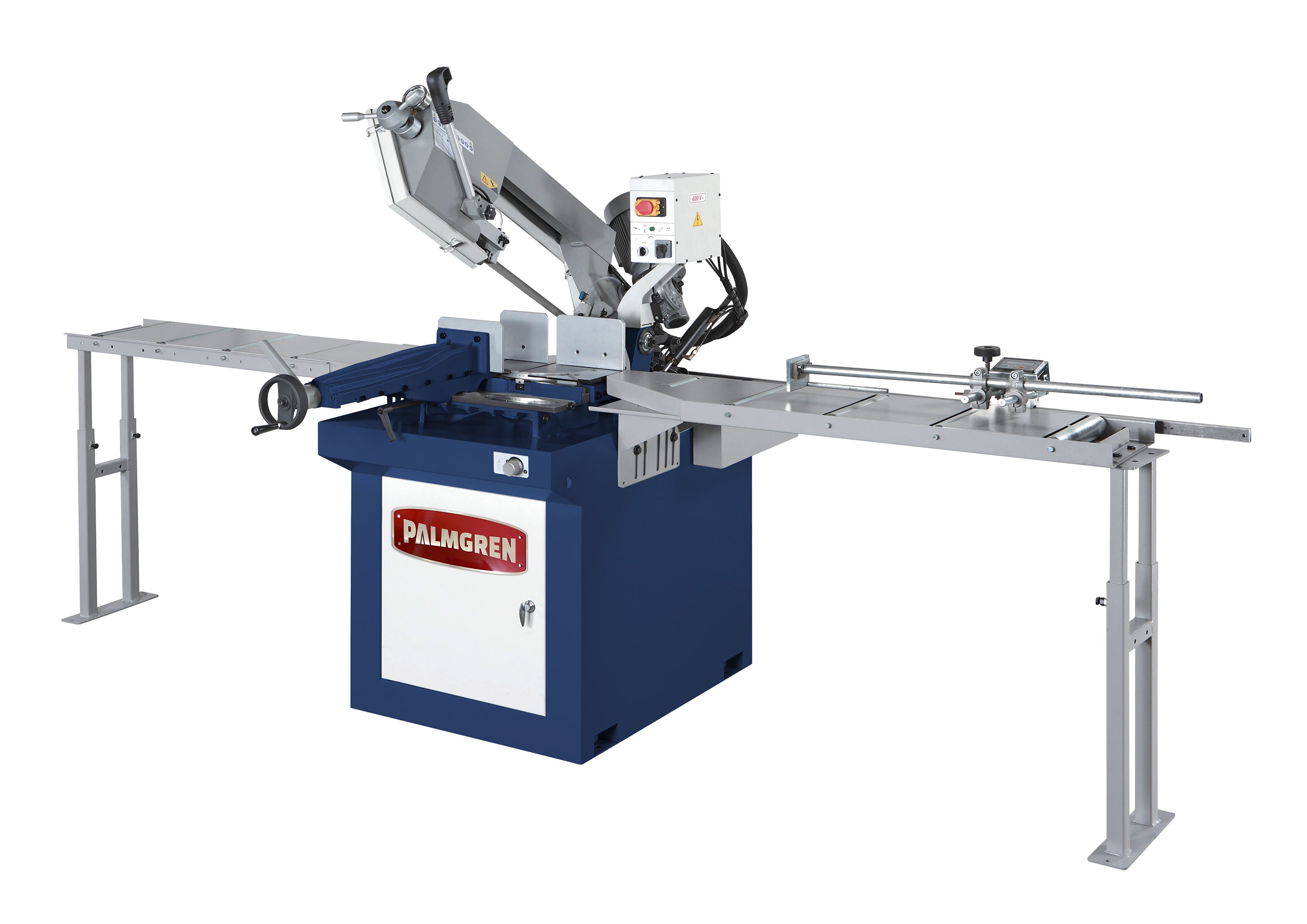

Palmgren 10" Double Miter Horizontal Band Saw 9683287
Designed from the blade out, Palmgren's dual Zip-Miter band saws combine the advantages of a circular cold saw with the speed of an abrasive saw and the capacity of a traditional band saw. Designed around the blade to deliver maximum squareness and accuracy, large cutting capacities while the workpiece remains fixed, and the saw head rotates to the left or right. Ideal for cutting straight or miter cuts on all ferrous and non-ferrous metals in solids, tubing and profiles. A step above conventional bandsaws our Zip-Miter models have built in deluxe features that deliver longer blade life, faster cutting and greater accuracy resulting in lower costs per cut.
Features & Benefits
- Choice of manual feed or hydraulic down feed
- Miter cuts 45° to the left and 60° to the right
- Precision machined cast iron head for maximum rigidity and vibration dampening
- Gear box utilizes a bronze worm gear and hardened and ground worm shaft in an oil bath
- Rapid positioning vise allows for fast cut set-ups
- Adjustable work stop for repetitive cuts
- Flood coolant system, with coolant fed through both blade guides for maximum blade cooling and chip clearing
- Electronic variable speed drive provides perfect cutting speed for any material Solid, single piece constructed steel base
Specifications
- Cold Saw and Band Saw Saw Type: Manual
- Cutting Angle: 45°/60°
- Cutting Angle Adjustment: Manual
- Feed: Hydraulic
- Machine Weight: 682
- Motor HP: 1-1/2
- Overall Dimensions (LxWxH): 61" x 31-1/2" x 58-1/4"
- Phase: Three
- Rectangle @ 45 Degrees: 8-7/8" x 8-1/2"
- Rectangle 0°: 11-1/2" x 9"
- Rectangle 60°: 6-3/8" x 5-1/8"
- Round @ 45 Degrees: 9-1/2"
- Round Material Max. 45°: 7-1/2"
- Round Material Max. 0°: 10-1/4"
- Round Material Max. 60°: 6-3/8"
- Saw Blade Diameter: 117" x 1" x 0.035"
- Sawing Type: Horizontal Band Saw
- Vise Opening: 11-7/8"
- Voltage: 230
- Warranty: 3 Year
