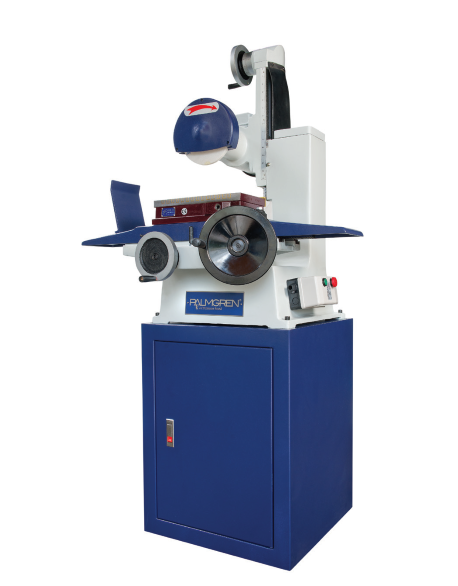

Palmgren 6 x 12 in. Manual Bench Surface Grinder with Stand 9682122
Palmgren 6 x 12 in. Manual Bench Surface Grinder with Stand 9682122
Couldn't load pickup availability
Details
Details
9682122, Palmgren 6inx12in Manual Bench Surface Grinder
This economical 6" x 12" manual surface grinder has many features found on larger units and is a perfect choice for small shops, tool rooms and maintenance shops when close tolerances are needed. Bring mirrorlike finishes to your metalworking projects with this professional grinder.
Features:
- Meehanite cast iron construction- stress relieved to minimize vibration while maintaining rigidity and accuracy
- Hand scraped ways
- Spindle and motor are a direct drive design and are dynamically balanced minimum vibration
- Swarf guard
- Large easy to read dials
- Spiral bevel gear for easy vertical movement of the spindle head
- 9670109 Optional Steel Floor Stand
DIMENSIONS: 41" L x 28-3/4" W x 38-3/8" H
Specificaitons:
| Horsepower | 3/4 |
|---|---|
| Volts | 115 |
| Phase | 1 |
| RPM | 3600 |
| Table Size | 6" x 12" |
| T-Slot Size | 1/2" |
| Max Grinding Length | 12-1/2" |
| Max Grinding Width | 6-11/16" |
| Table to Center of Spindle | 11 |
| Wheel Size (Dia x W x Bore) | 7" x 1/2" x 1-1/4" |
| Vertical Feed Graduation | 0.0005" |
| Cross Feed Graduation | 0.001" |
| Coolant Pump | No |
| Weight | 450lbs |
Specifications
Specifications
| Palmgren 6 x 12 in. Manual Bench Surface Grinder with Stand 9682122 | |
| APPLICATION | Metal Working |
| Brand | Palmgren |
| DEPTH | 28.75 in |
| HEIGHT | 38 3/8 in |
| HORSEPOWER | 3/4 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Grinders - Benchtop Grinders |
| TOOL TYPE | Grinders |
| VOLTAGE | 110V-120V |
| WIDTH | 41 in |
