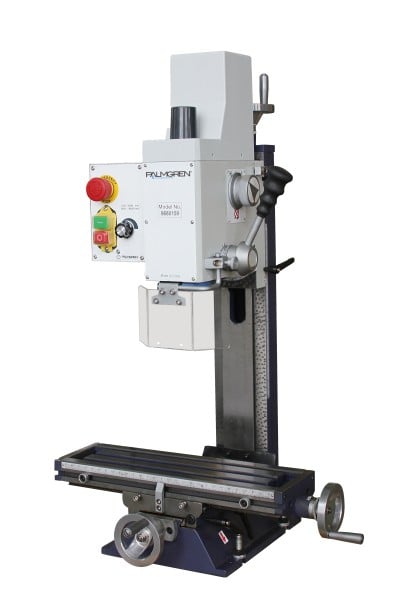

Palmgren 13 in. Gear Head Milling Machine, Variable Speed, 5/8HP, 240V 9680159
Palmgren 13 in. Gear Head Milling Machine, Variable Speed, 5/8HP, 240V 9680159
Couldn't load pickup availability
Details
Details
9680159, Palmgren 13in Gear Head Milling Machine, Variable Speed, 5/8HP, 240V, 1PH
Palmgren’s 13” variable speed gear head milling machine delivers precision, power and versatility to handle a wide range of small workpiece metalworking applications. The all gear drive transmission delivers full power at any speed driving the cutting tools at nearly 100% of the available horsepower. Equipped with a high performance brushless DC motor permanent current control and infinitely variable speed providing the broadest range of spindle speeds to fit any application.
Features:
-
Rigid box column with hardened and ground hand scraped dovetail ways provide accurate head positioning with minimum deflection and vibration
-
Swing Away Safety Shield with Micro Switch Depth stop
-
Two Stage Gearing Motor
-
Safety electrical system with emergency stop button and 24 volts at all the switches
-
Draw bar
-
Interlocking spindle safety guard
-
Cross slide table is precision ground with t-slots, adjustable limit stops, scale and two metal adjusting hand wheels
-
0005” at the spindle nose
-
Precision machine tool spindle equipped with tapper roller bearings and a spindle concentricity of 0
-
The milling head can be tilted right or left up to 90 degrees
-
All gear drive transmission with 2 step gear box
Specifications:
- Face Milling Capacity: 2-1/2"
- End Milling Capacity: 3/4"
- Table Work Surface: 15-3/4" x 4-3/4"
- Longitudinal Travel: 8-21/32"
- Operation: Manual
- T-Slots: 3/8"
- Drilling Capacity Steel: 5/8"
- Spindle to Table: 8-1/4"
- Spindle: 2MT with 3/8"-16 Draw Bar
- Cross Travel: 6-3/8"
- Spindle Travel: 2"
- Height: 19.00
- Width: 18.00
- Length: 33.00
- Motor: 5/8HP - 115V - 1PH - 10Amp - 60Hz
- Spindle Taper: 2MT
- Warranty: 3 Year
- Speed Range: 100 to 3000
- Swing: 13-1/2"
Specifications
Specifications
| Palmgren 13 in. Gear Head Milling Machine, Variable Speed, 5/8HP, 240V 9680159 | |
| APPLICATION | Metal Working |
| Brand | Palmgren |
| DEPTH | 18 in |
| HEIGHT | 33 in |
| HORSEPOWER | 5/8 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Milling Machines - Mill Drills |
| TOOL TYPE | Milling Machines |
| VARIABLE SPEED | Yes |
| VOLTAGE | 110V-120V |
| WIDTH | 19 in |
