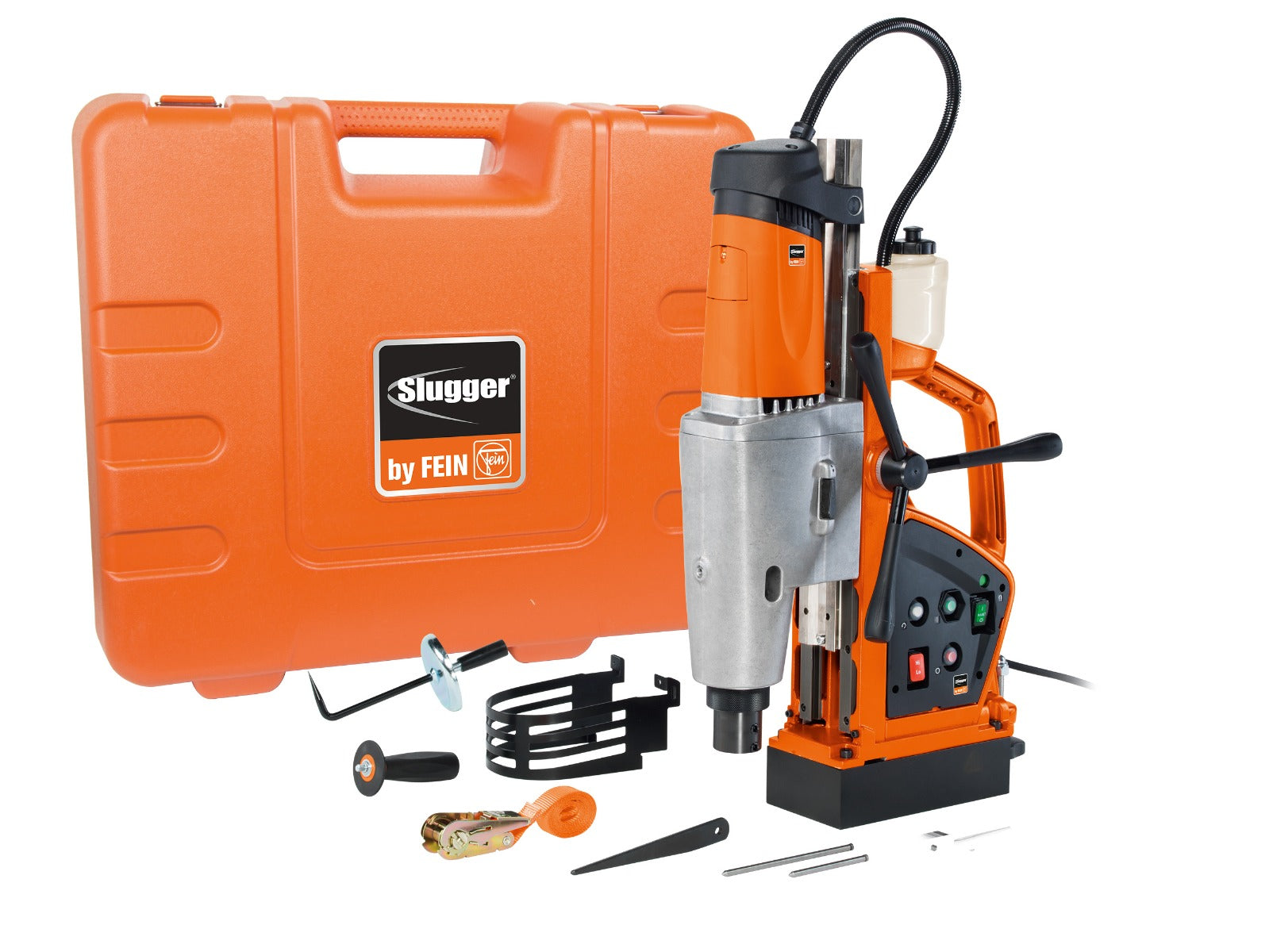

72706061090, Fein JMU 404 M Magnetic Base Drill
The all new Slugger by FEIN JMU 404 M magnetic base drill is engineered to be brilliant. This colossal mag drill features a reversible FEIN 1700 Watt HighPowered motor, coupled with a 4 speed gearbox to provide high torque for seriously heavy-duty applications. The JMU 404 M also features a powerful magnet safety features like a tilt sensor, safety clutch and a pivoting cable hose. The Slugger by FEIN JMU 404 M is built to handle the extreme applications.
Features:
- FEIN high-power 1700 W motor powering a 4-speed gearbox.
- 3-stage manual stroke range, the largest in class.
- Reversible
- MT 4 compatible
- Swivel mounted cable protects the tool from being damaged.
- Magnetic holding force display. Tilt sensor stops tool immediately in the event of slipping or tipping.
- Safety clutch stops the rotary hammer drill should the drill chuck jam.
- Convenient magnetic holding force gauge.
Specifications:
- Carbide cutter max. dia. 4-5/16in (110)
- HSS cutter max. dia. 3-1/8 (80)
- Cutter max. drilling depth 4 (100)
- Twist drill max. dia. 1-9/16 (40)
- Tapping max. 1-7/16 (36)
- Reaming max. dia. 36
- Power consumption 1700
- Power output 850
- 1st speed 120 - 60
- 2nd speed 170 - 90
- 3rd speed 300 - 150
- 4th speed 430 - 230
- Cutter holder
- 3/4in straight shank
- Tool mounting 4
- Stroke / stroke range 11/15-3/4
- Magnetic holding force 5170 (23000)
- Magnetic foot dimensions 9-1/2 x 4-3/4 x 2-1/2in
- Cable with plug 13 (4)
- Weight according to EPTA† 86 (39)
Includes:
- 1 coolant tank
- 1 lashing strap with ratchet
- 1 chip hook
- 2 centering pins
- 1 contact protection
- 1 drive wedge
- 2 Allen keys
- 1 additional handle
- 1 carrying case
*One Year Warranty with purchase plus two additional years available with product registration
Specifications
Specifications
| Fein Magnetic Base Drill JMU 404 M 72706061090 | |
| APPLICATION | Metal Working |
| Brand | Fein |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Drills - Magnetic Drills |
| TOOL TYPE | Drills |
| WATTAGE | 1501-2000 |
