Fein Slugger 1-3/8in max dia Universal Mag Core Drill JMU 137-2 QW 72705861120
Fein Slugger 1-3/8in max dia Universal Mag Core Drill JMU 137-2 QW 72705861120
Couldn't load pickup availability
Details
Details

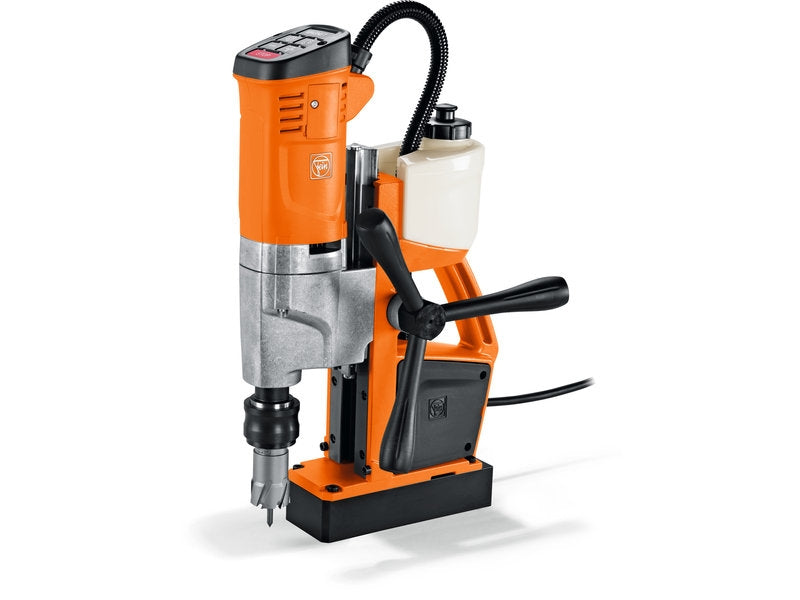

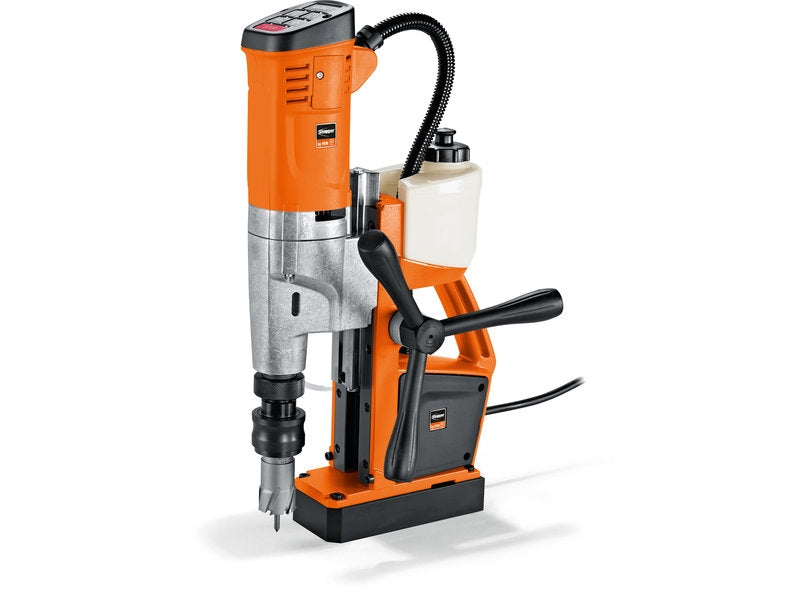

72705861120, Fein Slugger JMU 137-2 QW, 1-3/8in max dia, Universal Mag Core Drill
Small, long-stroke, 2-speed universal magnetic core drill with forward / reverse rotation and high-speed for efficient twist drilling on the construction site.
Features:
- Extremely resilient design due to solid machine construction with pivoting motor cable protection sleeve. Designed for heavy use in trade and industry.
- Perfect power to weight ratio due to compact, weight-optimized construction and FEIN 1,100 W high-performance motor with excellent speed, stability for reliable, efficient operation.
- Universal use, such as core drilling, twist drilling, tapping, countersinking, and reaming is possible due to forward / reverse rotation, electronic speed setting and a 10-1/4 in [260 mm] stroke.
- Small, with mechanic 2-gearbox for twist drilling.
- 3-coil magnet, only 2-3/4 in [70 mm] wide.
- Simple and error-proof control concept in the operator's field of view.
- Additional magnet switch in the drill stand.
- Tool-free core bit fast change system.
- Speed-controlled tacho electronics.
- Convenient magnetic holding force gauge.
- Integrated cooling tank.
- Hand feed wheel can be mounted on either side.
- Tilt sensor.
- "Memory function" speed storage.
Specifications:
- Power consumption 1 ,100 Watts
- Power output 550 Watts
- 1st gear 130 - 520 rpm
- 2nd gear 400 - 1,600 rpm
- Twist drill max. dia. 5/8 in
- Mag base, max. drilling depth 2 in
- Tapping 5/8 in
- Max. countersinking dia. 1-1/4 in
- Reaming max. dia. 5/8 in
- Carbide annular cutter max. dia. 1-3/8 in
- HSS annular cutters max. dia. 1-3/8 in
- Annular cutter holder 3/4 in Weldon
- Annular cutter change tool-free
- Stroke 5-5/16 in
- Total stroke range 10-1/4 in
- Magnetic holding force 2,136 lbs
- Magnetic base dimensions 7-5/16 x 2-3/4 in
- Cable with plug 13 ft
- Weight according to EPTA 24.3 lbs

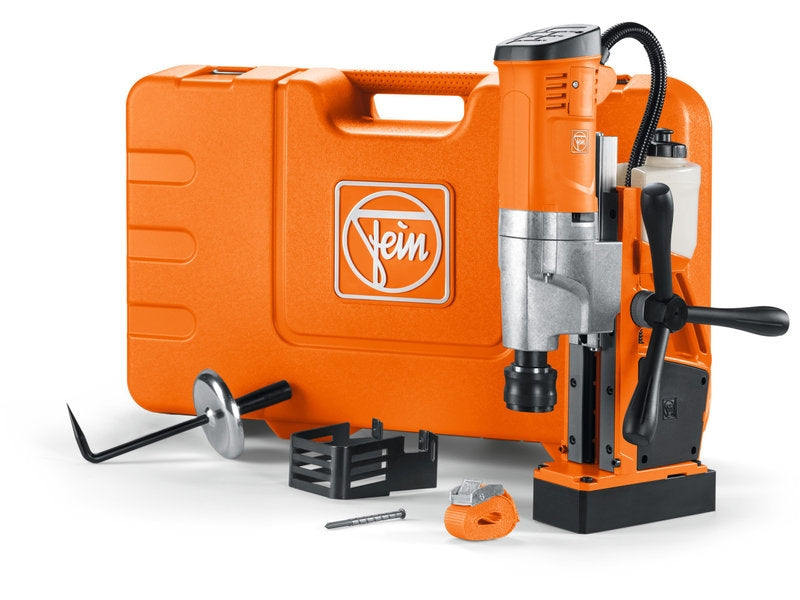

Includes:
- 1 case
- 1 coolant tank
- 1 safety strap
- 1 chip hook
- 1 centering pin
- 1 touch guard
- 1 3-Jaw Chuck
Specifications
Specifications
| Fein Slugger 1-3/8in max dia Universal Mag Core Drill JMU 137-2 QW 72705861120 | |
| APPLICATION | Wood Working / Metal Working |
| Brand | Fein |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Drills - Magnetic Drills |
| TOOL TYPE | Drills |
| WATTAGE | 1001-1500 |
