Fein 1-3/8in Magnetic Base Drill JMU 137-MQW 72705661120
Fein 1-3/8in Magnetic Base Drill JMU 137-MQW 72705661120
Low stock
Couldn't load pickup availability
Details
Details

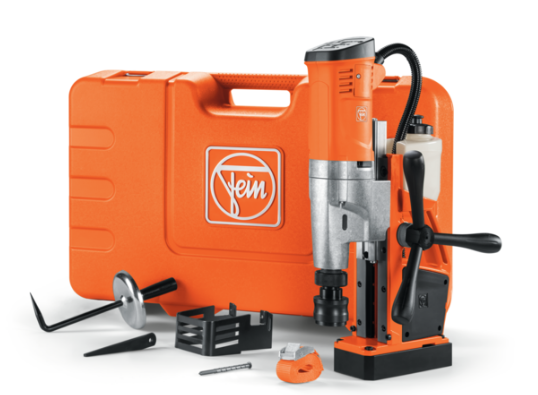

72705661120, Fein JMU 137-MQW, 1-3/8in, Magnetic Base Drill
Small, long-stroke, 1-speed universal magnetic core drill with forward / reverse rotation, permanent magnet and maximum functionality for safe and versatile work on the construction site.
Features:
- Extremely wear-resistant tool concept with swivel-mounted motor cable protection hose for tough conditions in industry and skilled trades.
- Perfect power-to-weight ratio, thanks to compact, weight-optimized design and FEIN 1100 W high-performance motor with tacho electronics for high speed stability for reliable and efficient operation.
- Universal use, such as mag base drilling, twist drilling, tapping, countersinking, and reaming is possible due to forward / reverse rotation, electronic speed setting and a 10-1/4 in [260 mm] stroke.
- Small, with MT2 tool mount.
- Simple and error-proof control concept in the operator's field of view.
- Convenient magnetic holding force display.
- High magnetic holding force.
- Motion sensor.
- Additional magnet switch in the drill stand.
- Integrated coolant tank.
- Hand feed wheel can be mounted on either side.
- "Memory function" speed storage.
- * optional using accessory.
Specifications:
- Power consumption 1,100 W
- Power output 550 W
- Full load speed 130 - 520 rpm
- Tool mount MT 2
- Carbide cutter max. dia. 1-3/8 [35] in[mm]
- HSS cutter max. dia. 1-3/8 [35] in[mm]
- Cutter max. drilling depth 2 [50] (3 [75] )* in[mm]
- Twist drill max. dia. 3/4 [18] in[mm]
- Tapping 9/16 in [M 14]
- Max. countersinking dia. 1-1/4 [31] in[mm]
- Reaming max. dia. 3/4 [18] in[mm]
- Cutter holder 3/4 in straight shank
- Cutter change tool-free
- Stroke 5-5/16 [135] in[mm]
- Total stroke range 10-1/4 [260] in[mm]
- Magnetic holding force 2248 [10,000] lbs[N]
- Magnetic base dimensions 6-7/8 [175] x 3-1/8 [80] in[mm]
- Cable with plug 13.1 [4] ft[m]
- Weight 24.25 [11.00] lbs[kg]
Includes:
- 1 coolant tank
- 1 safety strap
- 1 chip hook
- 1 pilot pin
- 1 chip guard
- 1 case
Specifications
Specifications
| Fein 1-3/8in Magnetic Base Drill JMU 137-MQW 72705661120 | |
| APPLICATION | Wood Working / Metal Working |
| Brand | Fein |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Drills - Magnetic Drills |
| TOOL TYPE | Drills |
| WATTAGE | 1001-1500 |
