Fein Slugger Auto Magnetic Base Drill JCM 200 72704661120
Fein Slugger Auto Magnetic Base Drill JCM 200 72704661120
Couldn't load pickup availability
Details
Details

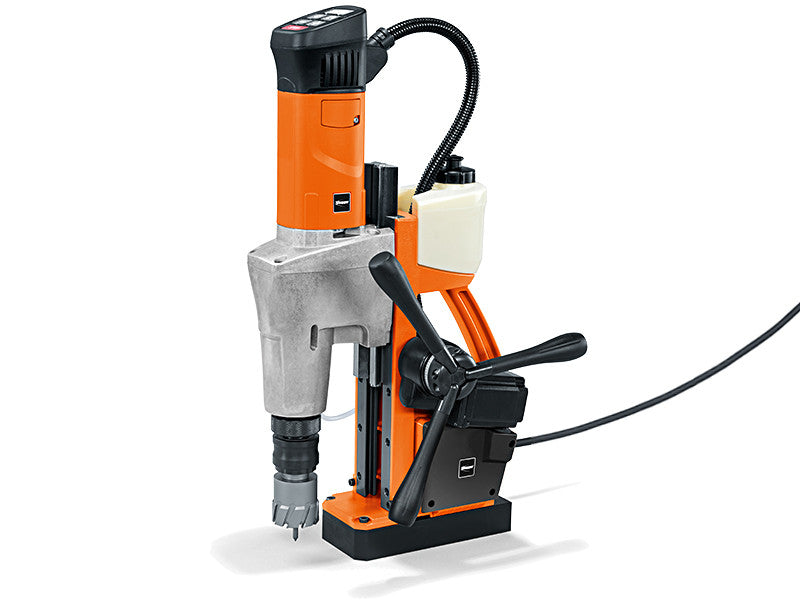

72704661120, Slugger JCM 200 Auto Magnetic Base Drill
The powerful JCM 200 auto is as efficient as it is mobile: Its compact design and low weight enable use either on the construction site or in the workshop.
Features:
- Saves time and money when producing a large number of holes thanks to the digitally controlled drill feed.
- Thanks to consistent and programmed drilling times, work hours for production and construction can be planned.
- Versatile work, such as tapping in manual mode is possible thanks to forward and reverse rotation and MT 3 tool holder.
- Slugger high-power motor with stable speed.
- Electronic speed setting.
- High magnetic holding force.
- Convenient magnetic holding force indicator.
- Integrated coolant tank.
- Tilt sensor.
- Controls which can be clearly seen.
- Optional Weldon QuickIN arbor is available. (uses standard 3/4" Weldon shank cutters).
Specifications:
- Carbide cutter drill max. dia. in (mm)2 (50)
- HSS cutter drill max. dia. in (mm)1 9/16 (40)
- Cutter max drilling depth [optional] in (mm)2 [3] (50 [75])
- Twist drill max. dia. in (mm)11/16 x 7/8 (18/23)
- Thread cutting max. in (mm)5/8 (16)
- Countersinking max. dia. in (mm)2 (50)
- Reaming max. dia. in (mm)7/8 (23)
- Power consumption W1 200
- Power output W610 1st speed rpm130 – 260 2nd speed rpm260 – 520
- Cutter holder QuickIN
- Tool mounting MT3
- Stroke / stroke range in5 11/16 / 12 3/8
- Magnetic holding force lbs (N)2 750 (12 500)
- Magnetic foot dimensions in 7 11/16 x 3 9/16
- Cable with plug ft (m)13 (4)
- Weight according to EPTA lbs (kg)35.7 (16.2)

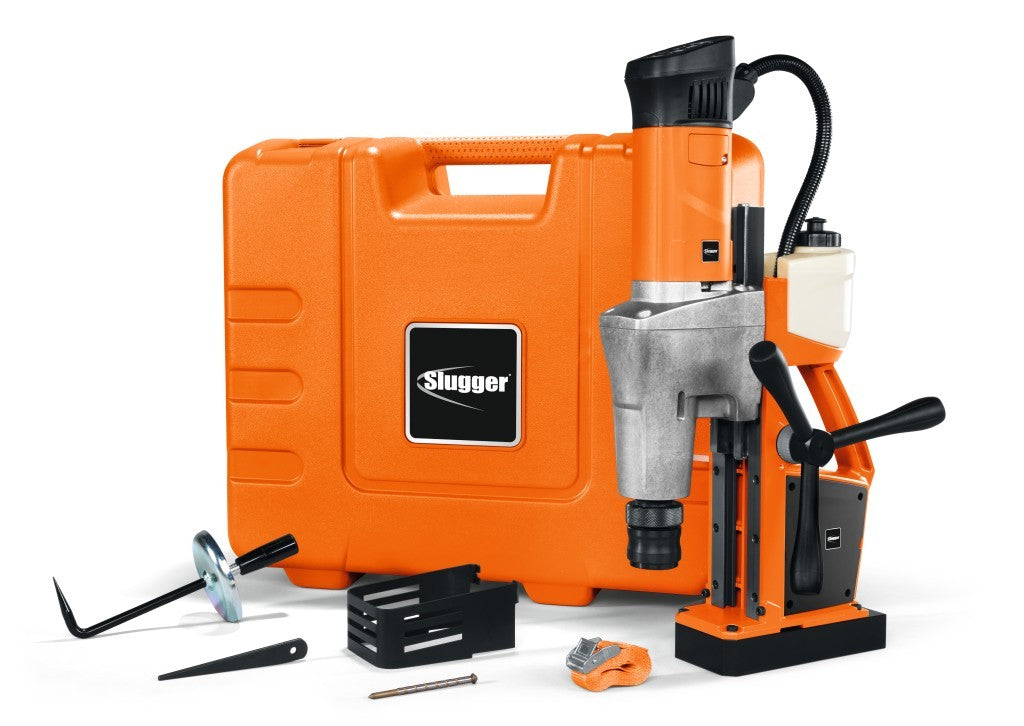

Includes:
- 1 case
- 1 coolant tank
- 1 safety strap
- 1 chip hook
- 1 pilot pin 4 1/8" (105 mm)
- 1 drift key
- 1 contact guard
Specifications
Specifications
| Fein Slugger Auto Magnetic Base Drill JCM 200 72704661120 | |
| APPLICATION | Wood Working / Metal Working |
| Brand | Fein |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Drills - Magnetic Drills |
| TOOL TYPE | Drills |
| WATTAGE | 1001-1500 |
