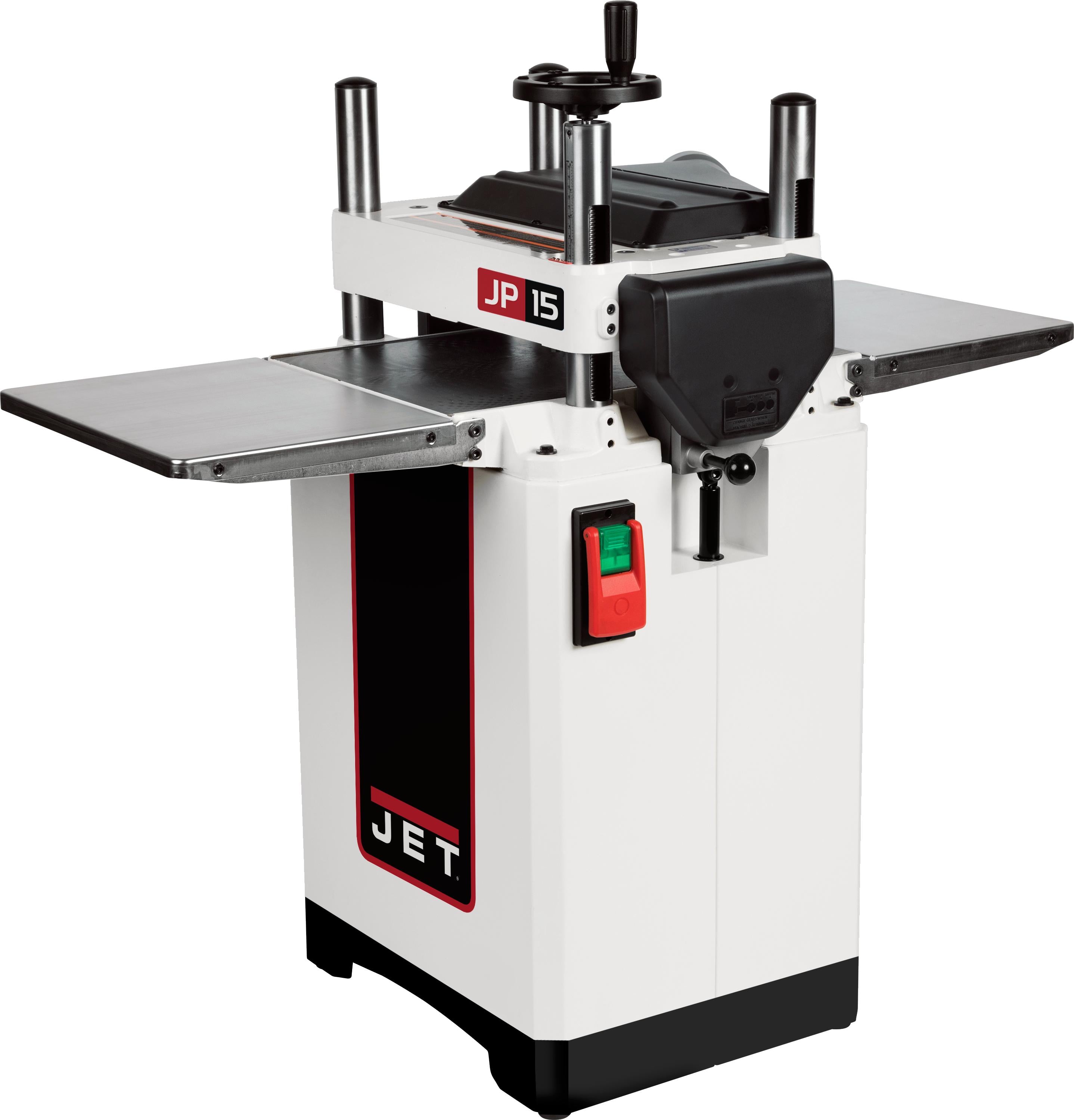

722150, Jet JWP-15B Straight Knife 15in Planer
The New JET 15" Straight Knife planer delivers the power and efficiency that woodworkers demand in the shop. Features include a straight knife cutterhead with 3 high-speed steel precision sharpened blades, Innovative Precision Air Strut System PASS™, rugged 4 post design, adjustable folding tables, 2 infeed speeds and a heavy-duty cast iron base mounted to a closed steel cabinet.
Features:
- Innovative Precision Air Strut System provides consistent upward pressure on the cutterhead, reducing the chance of board snipe

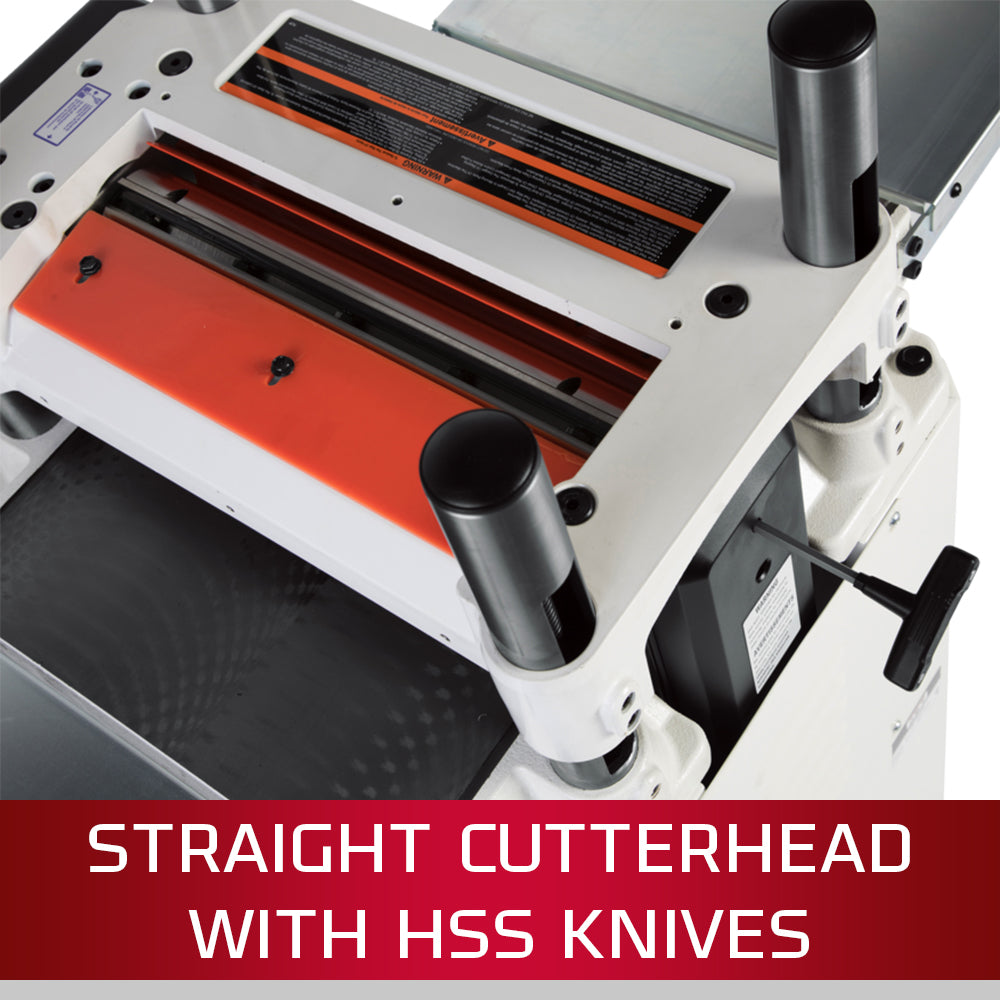

- Straight cutterhead has three high-speed steel knives that lock firmly in place to prevent movement while in use
- Heavy-duty precision ground cast iron table and four post design provides maximum control and support when passing boards through planer. Powerful 3-HP motor with v-belt transmission reduces vibration and running noise
- Dual infeed speed control for 16fpm or 20fpm, maximizes cut efficiency
- Maximum depth of cut 1/8", 6" cutting height and 15" width capacity

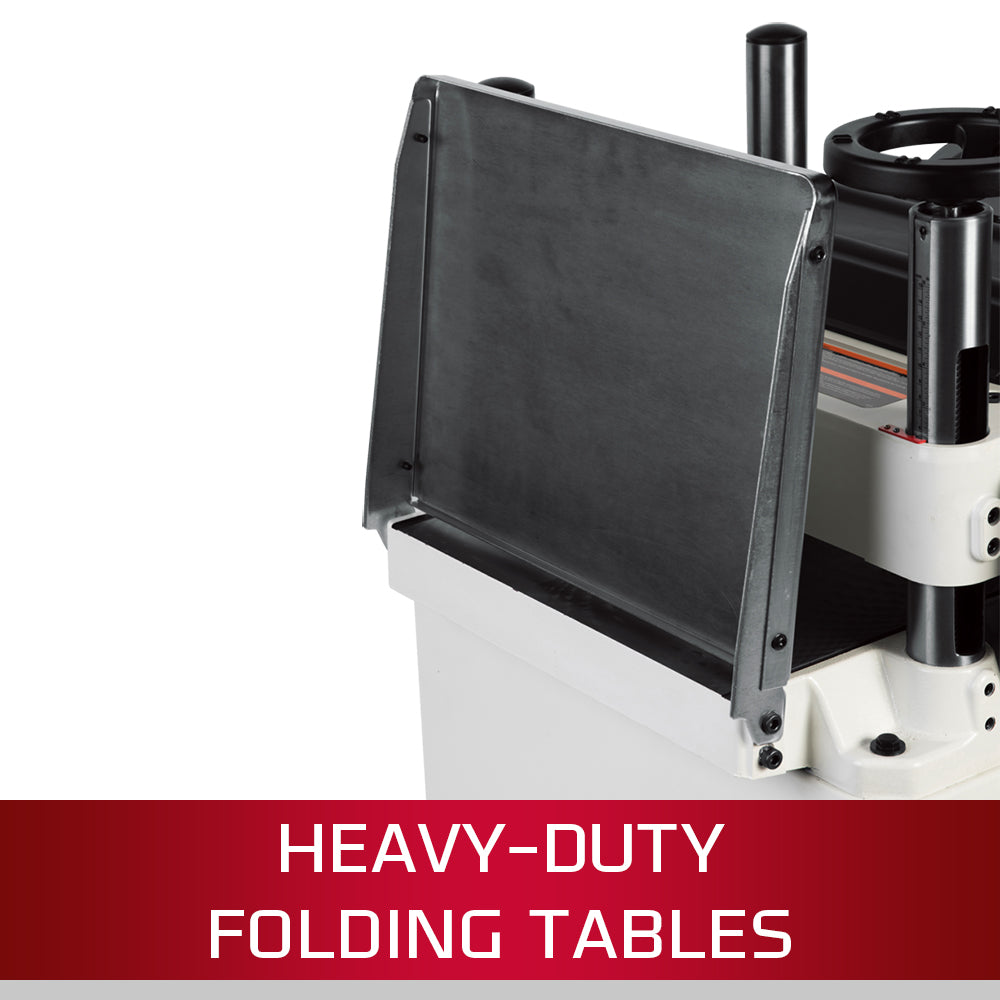

- Heavy-duty folding infeed/outfeed tables provide support for work pieces and fold for convenience

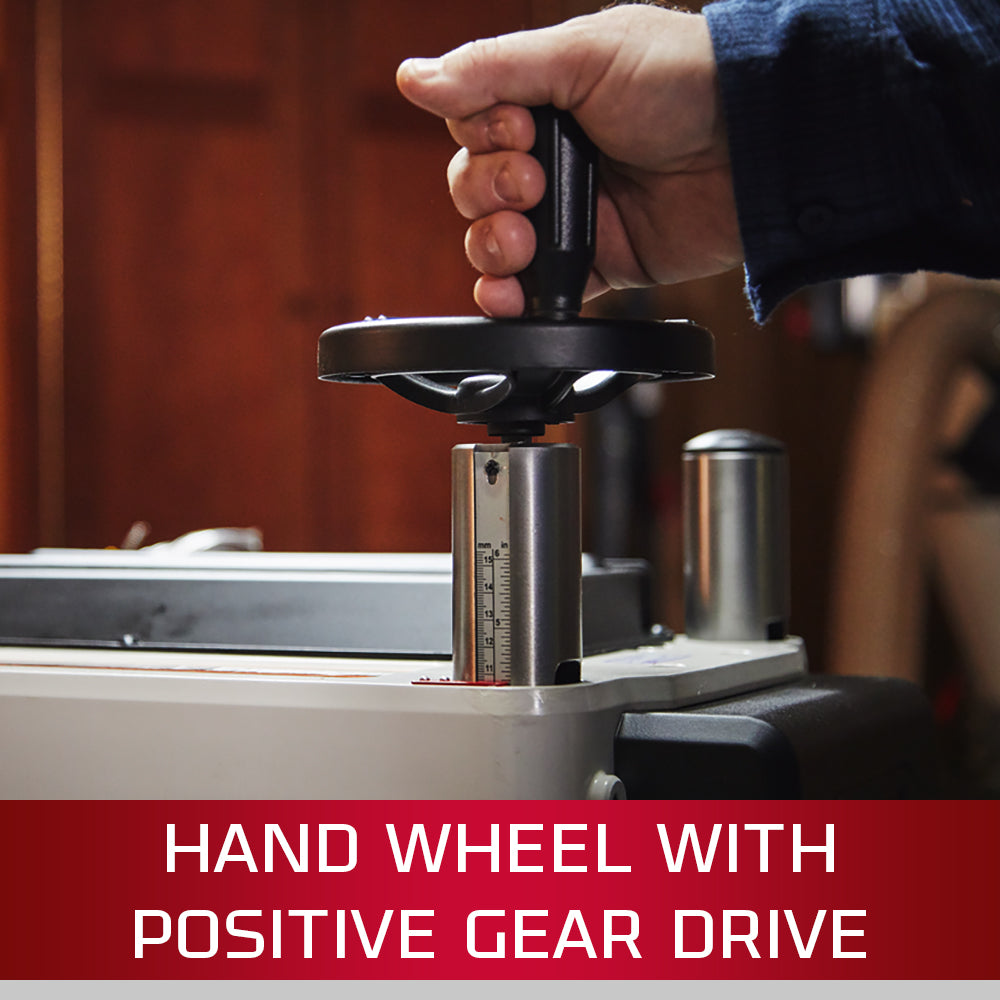

- Large hand wheel with positive gear drive easily moves the head to the desired board thickness

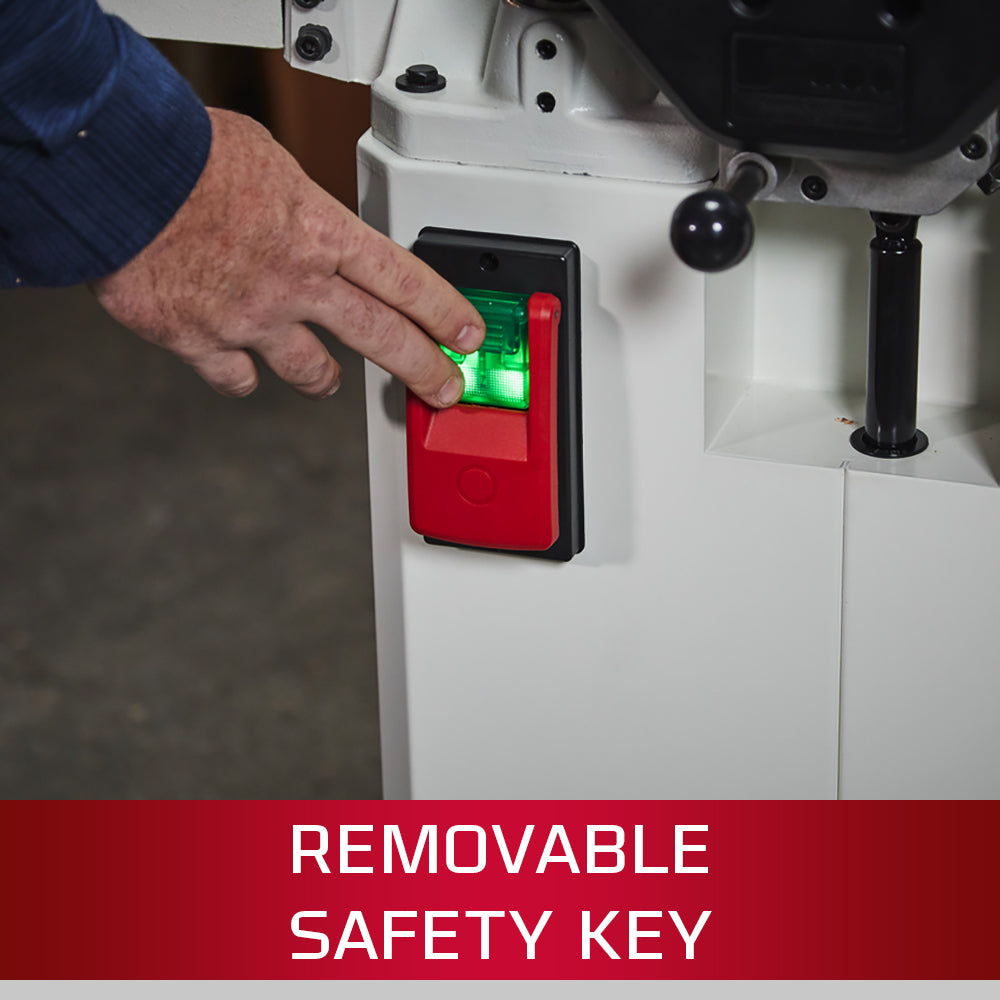

- Magnetic switch with green safety light illuminates when powered

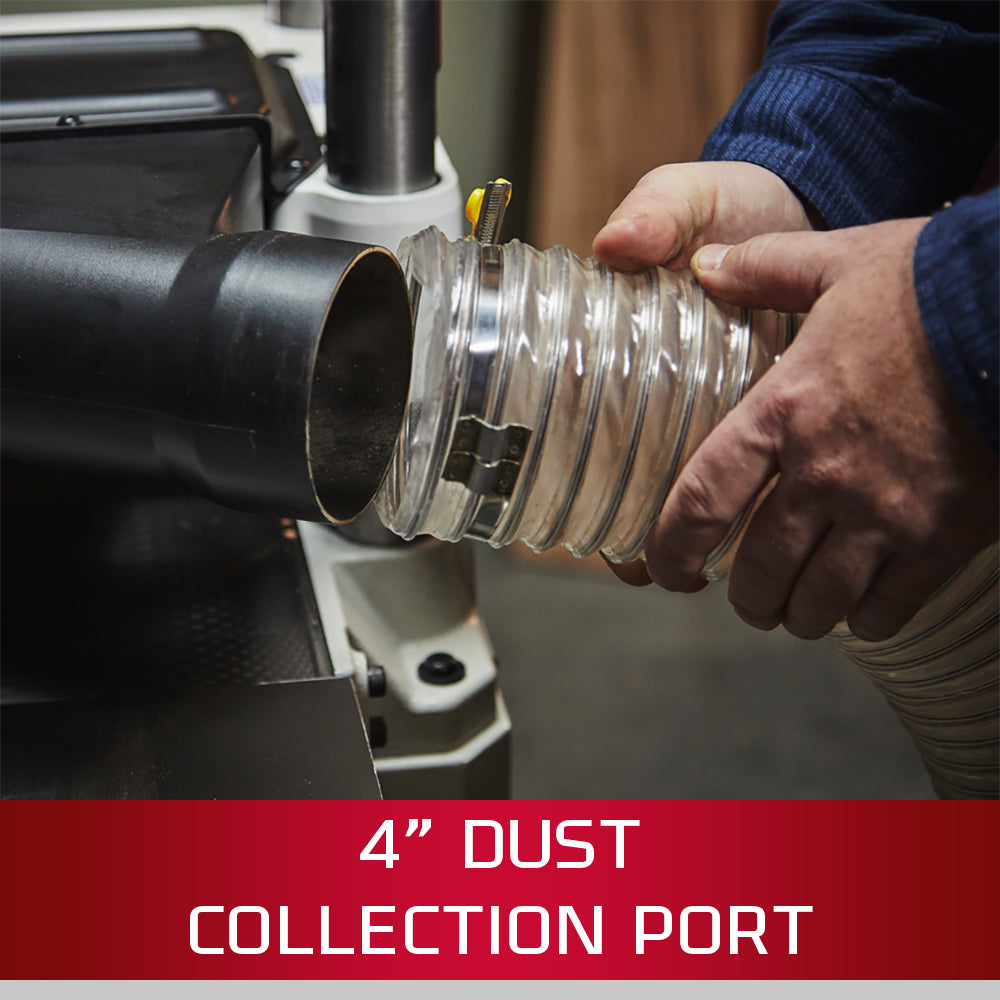

- 4" Dust port hooks up to dust management system and helps keep shop clean
Specifications:
- Model Number JWP-15B
- Cutterhead Support PASS™ - Precision Air Strut System Maximum
- Cutting Width 15”
- Maximum Cutting Thickness 6”
- Maximum Cutting Depth 1/8”
- Table movement per one revolution of handwheel 1/16”
- Number of cutterhead rows 3
- Knives 3 high-speed steel inserts
- Feed Rate (FPM) 16 and 20
- Cutterhead speed 5,200
- Motor 3HP, 1Ph, 230V, 60Hz, 15A
- Cutterhead Diameter 2 5/8” (68mm)
- Dust chute diameter 4” (102mm)
- Motor Amps 15
- Motor Power (HP) 3
- Motor Phase (PH) 1
- Motor Voltage (V) 230
- Net Weight (lbs.) 253
Red Assurance 5-year Warranty:
JET Tools warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET or Wilton tools.
Specifications
Specifications
| Jet JWP-15B 15 in. CS Planer with Straight Knives 722150 | |
| APPLICATION | Wood Working |
| BRAND COMPATIBILITY | JET |
| Brand | Jet |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL TYPE | Planers |
