Amana Tool 8 in x 40T ACM 45 deg ADJ Saw Blade 508400
Amana Tool 8 in x 40T ACM 45 deg ADJ Saw Blade 508400
Couldn't load pickup availability
Details
Details

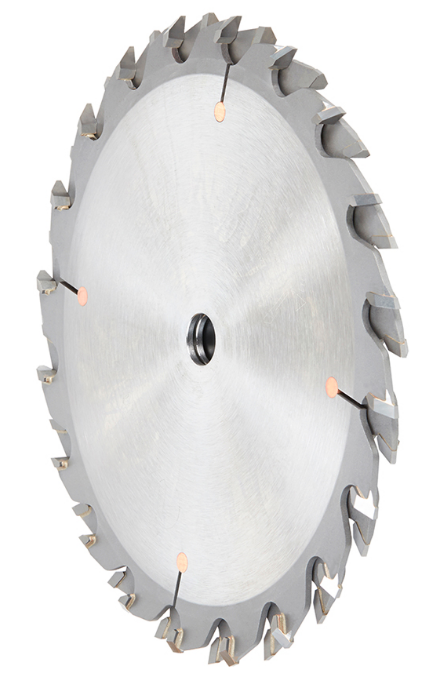

508400, Amana Carbide Tipped Adjustable ACM Scoring Set 8 Inch Dia x 2x20T, 18 Deg, 5/8 Bore
Features:

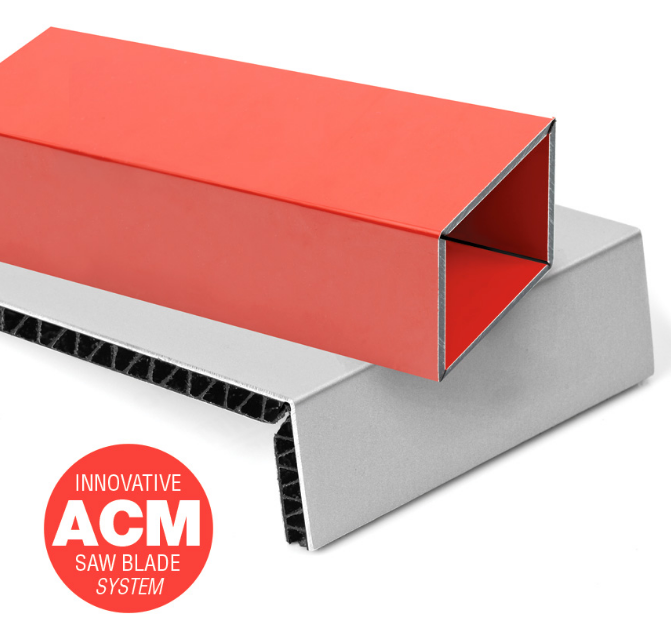

Adjustable Scoring Set designed for cutting angled cuts with flat bottoms in aluminum/non-ferrous/plastics composite sandwich materials such as:
- Aluminum, Clay, Zinc & Wood Composite Panels
- Aluminum Composite Materials (ACM)
- Aluminum Composite Panel (ACP)*
- ALPOLIC® Copper Composite Material (CCM)
- Alucobond®
- Alupanel®
- Dibond®
- Durabond**
- e-panel™
- Etalbond®
- Titanium Composite Material (TCM)
- Trespa®

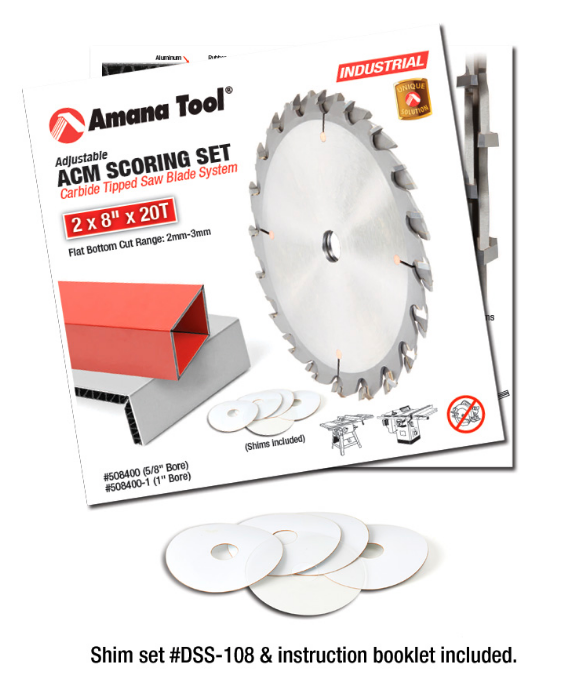

This set contains two carbide tipped saw blades and a shim set. This unique system can be widely used for scoring many cladding materials (wall coverings) such as Alucobond®, Alupanel®, Dibond®, ALPOLIC® CCM, Trespa®, Durabond and more. The materials are used on facades and interior wall surfaces that can be found in office buildings, hospitals, convention centers, airports and hotels, along with exterior signage.
*ACP is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for external cladding or facades of buildings, insulation, and signage. **Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side, pre-finished requiring no decoration.
WARNING: This set requires a custom zero clearance throat plate.
WARNING: Not to be used with portable saws.
Specifications:
- (D) Diameter 8
- Teeth 2x20
- (d) Bore 5/8
- Tooth Grind ACM
- Hook Angle 18°

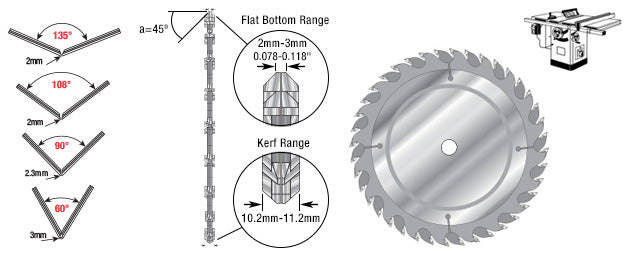

- Kerf (B) 10.2-11.2mm
- Machine Table Saw

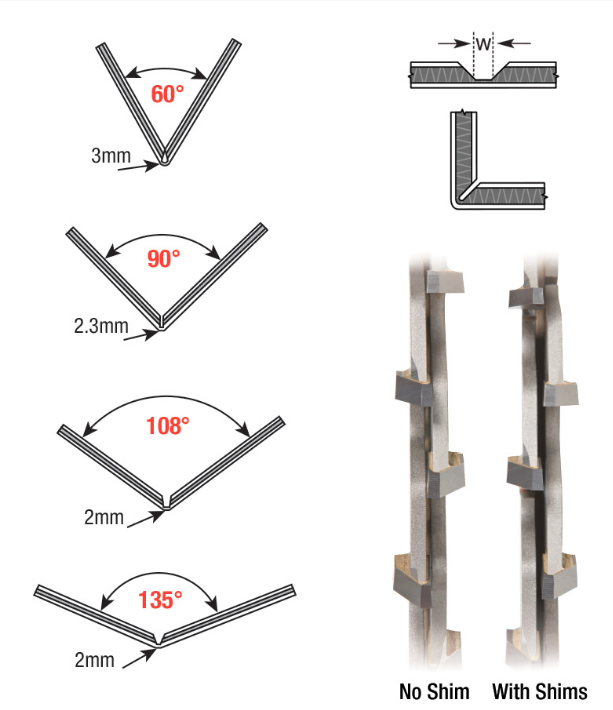

- (W) Flat Bottom Range 2.0-3.0mm / 0.078-0.118
- (a°) Angle 45°
- B1 0.161"
Specifications
Specifications
| Amana Tool 8 in x 40T ACM 45 deg ADJ Saw Blade 508400 | |
| APPLICATION | Contracting & Remodeling |
| Brand | Amana Tool |
