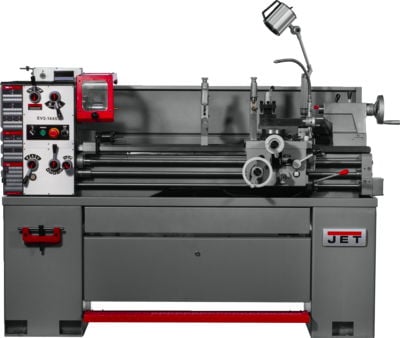

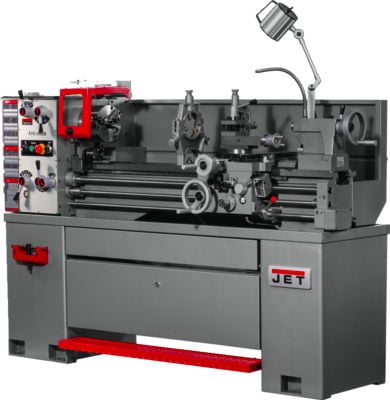

311450, Jet EVS-1440 Electronic Variable Speed lathe with Newall DP700 DRO and Taper Attachment, 3HP

The EVS-1440B is engineered to maximize your shop’s output. The D1 4 Spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run out maximum of .0004’’. The 2 speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM and at high speeds from 220 to 2,000 RPMs

Features:

• V-way bed design is induction hardened and ground
• Splined, not keyed, shafts are utilized
• D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
• Independent leadscrew and feed rod
• Adjustable gibs are incorporated in the carriage and slideways
• Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004"
• Meehanite castings retain their tolerance and remain rigid through many years of machining
• Safety on/off switch
• Emergency Stop within easy reach of the Operator
• Electronic Chuck Key Docking Station
• Chuck Guard
• Foot Brake
• Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 220-2000 RPM
• LED RPM readout allows for precise turning speeds

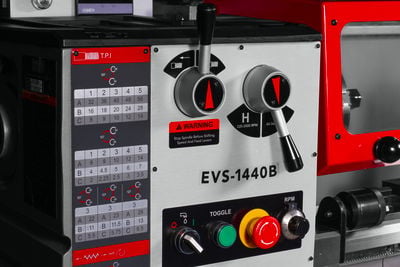

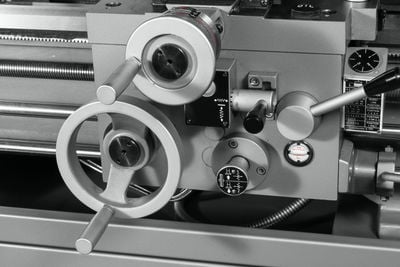

• Spindle actuation control is apron mounted
• Gap bed section provided for larger diameter work
• Compound and cross slide have backlash elimination
• Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
• Front removable chip tray
• Spindle jog button for easy gear engagement and spindle inching
• Coolant system

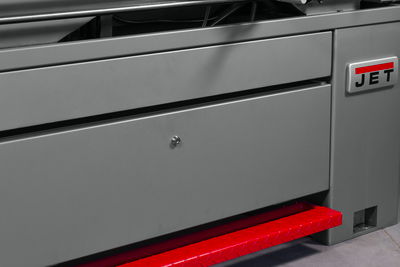

• Integrated locking tool storage cabinet in the stand
• Full length splash guard
• Standard Accessories

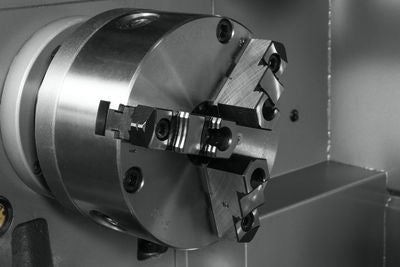

• 6" 3-Jaw Chuck
• Treading Dial Indicator
• Coolant Pump

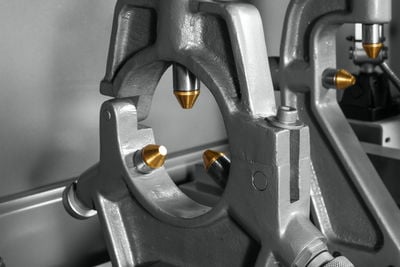

• Steady & Follow Rest
• Metric Change Gears

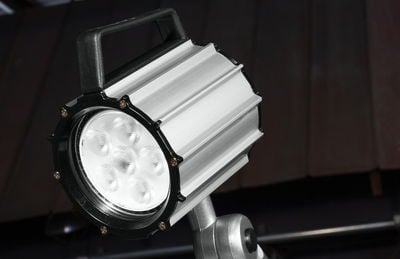

• LED Work Lamp

Specifications:

Digital Readout	Newall DP700
Accessory 1	Taper Attachment
Swing Over Bed (In.)	14
Swing Over Cross Slide (In.)	9-1/16
Swing Through Gap (In.)	19- 1/2
Length of Gap (In.)	9-1/2
Distance Between Centers (In.)	40
Spindle Bore (In.)	1-1/2
Spindle Mount	D1-4
Number of Spindle Speeds	Variable
Range of Spindle Speeds (RPM)	40-2000
Spindle Taper with Sleeve	MT-5
Number of Longitudinal and Cross Feed Rates	25
Range of Longitudinal Feeds (IPR)	0.0016-0.0460
Number of Inch Threads	34
Range of Inch Threads (TPI)	2-56
Number of Metric Threads	34
Range of Metric Threads	0.5-12
Max Tool Size (In.)	3/4 x 3/4
Compound Slide Travel (In.)	3-1/2
Cross Slide Travel (In.)	7
Tailstock Spindle Travel (In.)	6-1/8
Taper in Tailstock Spindle	MT-3
Follow Rest Capacity (In.)	0.35 - 2.2 Cooper Shaft (standard ) 0.393 - 2 Bearing Roller(OP)
Steady Rest Capacity (In.)	0.23-0.61 Copper Shaft ( Standard) 0.20-2.36 Bearing Roller(OP)
Width of Bed (In.)	7.48
Motor (HP)	3HP, 230/460V, 3Ph
Overall Dimensions (L x W x H) (In.)	68.5 x 28.3 x 50
Shipping Dimensions (L x W x H) (In.)	76 x 30 x 61
Net Weight (Lbs.)	1320
Gross Weight (Lbs)	1584
Height	50.0000
Length	68.5000
Weight	1584.0000
Width	28.3000

Jet EVS-1440B EVS Lathe with Newall DP700 DRO & Taper Attachment 311450
APPLICATION	Wood Working
BRAND COMPATIBILITY	JET
Brand	Jet
HEIGHT	50 in
HORSEPOWER	3.0 HP
POWER SOURCE	Electric - Corded
PRODUCT TYPE	Tools/Machinery
TOOL TYPE	Lathes
VARIABLE SPEED	Yes
VOLTAGE	208V-240V 3Ph
